      UniOP BKDC-16-0045
      UniOP BKDC-16-0045
      UniOP BKDC-16-0045
      UniOP BKDC-16-0045
      UniOP BKDC-16-0045
      UniOP BKDC-16-0045
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      BKDC-16-0045

      Operator Interface
      In Stock
      Ships by Wednesday, September 30
      Fast Shipping Available

      Product Describe：

      UniOP BKDC-16-0045 is a legacy colour flat-panel operator interface in the BKDC-16 family. The BKDC-16 platform combines a 5.6-inch STN 16-colour display, a 37-key operator keypad and programmable industrial communication ports.

      Ask our team:

      Get a quick price for： BKDC-16-0045
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for BKDC-16-0045

      Technical specifications for BKDC-16-0045

      • Manufacturer:
        UniOP
      • Product Category:
        HMI
      • Spare Part Number:
        BKDC-16-0045
      • Estimated shipping dimensions:
        21.6x16.8x8cm
      • Weight:
        1.44 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Italy
      • Product type:
        Colour flat-panel operator interface
      • Display:
        5.6-inch STN, 16 colours
      • Operator input:
        37-key keypad
      • User memory:
        32 MB family specification
      • Interfaces:
        PLC, PC/printer, AUX and external keyboard ports
      • Lifecycle:
        Legacy/discontinued family
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      UniOP BKDC-16-0045 is a legacy colour flat-panel operator interface in the BKDC-16 family. The BKDC-16 platform combines a 5.6-inch STN 16-colour display, a 37-key operator keypad and programmable industrial communication ports.
      • 5.6-inch 16-colour operator display
      • 37-key membrane keypad
      • Programmable PLC communication
      • PC, auxiliary and keyboard interfaces

      Record the complete BKDC-16-0045 marking, power label, PLC-port adapter, project file and communication settings before replacement. Preserve the installed application and verify every key, display area and communication link before release.

      Important Notice: Verify BKDC-16-0045 from the physical marking and current manufacturer documentation before installation or configuration.

      Apter Power UniOP BKDC-16-0045 Manuals and Guides
      Apter Power UniOP BKDC-16-0045 Product Technical Reference PDFApter Power UniOP BKDC-16-0045 Installation and Verification Workbook PDF

      The first document presents model-specific technical and system data. The second provides a distinct installation, connection, commissioning and acceptance workflow.

      Machine operator interface
      Displays process values, alarms and commands for the programmed industrial controller.
      Legacy panel replacement
      Restores the exact BKDC-16-0045 identity in an installed machine.
      PLC communication
      Uses the documented UniOP PLC port and approved protocol adapter.
      Maintenance access
      Provides PC/printer and auxiliary interfaces for approved project transfer and service tasks.
      Read the applicable UniOP instructions before work. Verify BKDC-16-0045 and the installed system configuration.
      1

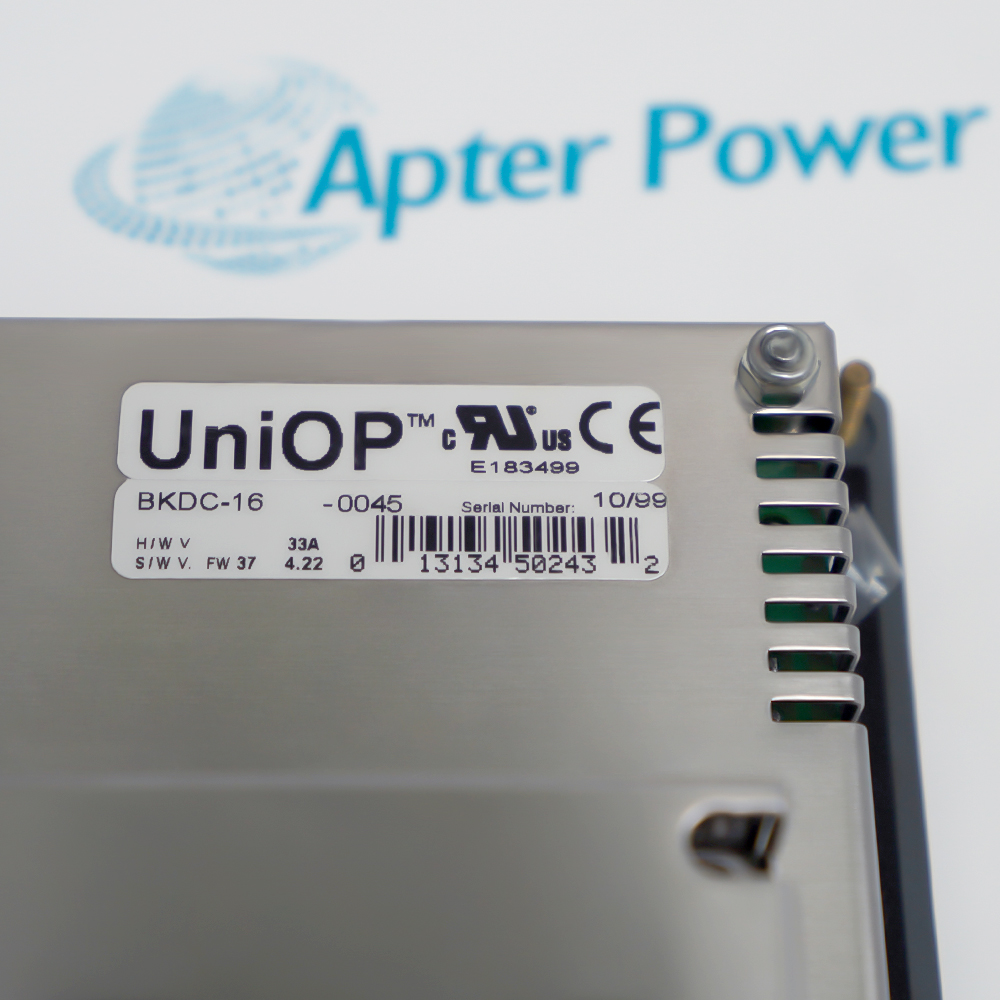

      Verify the complete BKDC-16-0045 marking and power label.
      2
      Back up the UniOP project and communication settings before removal.
      3

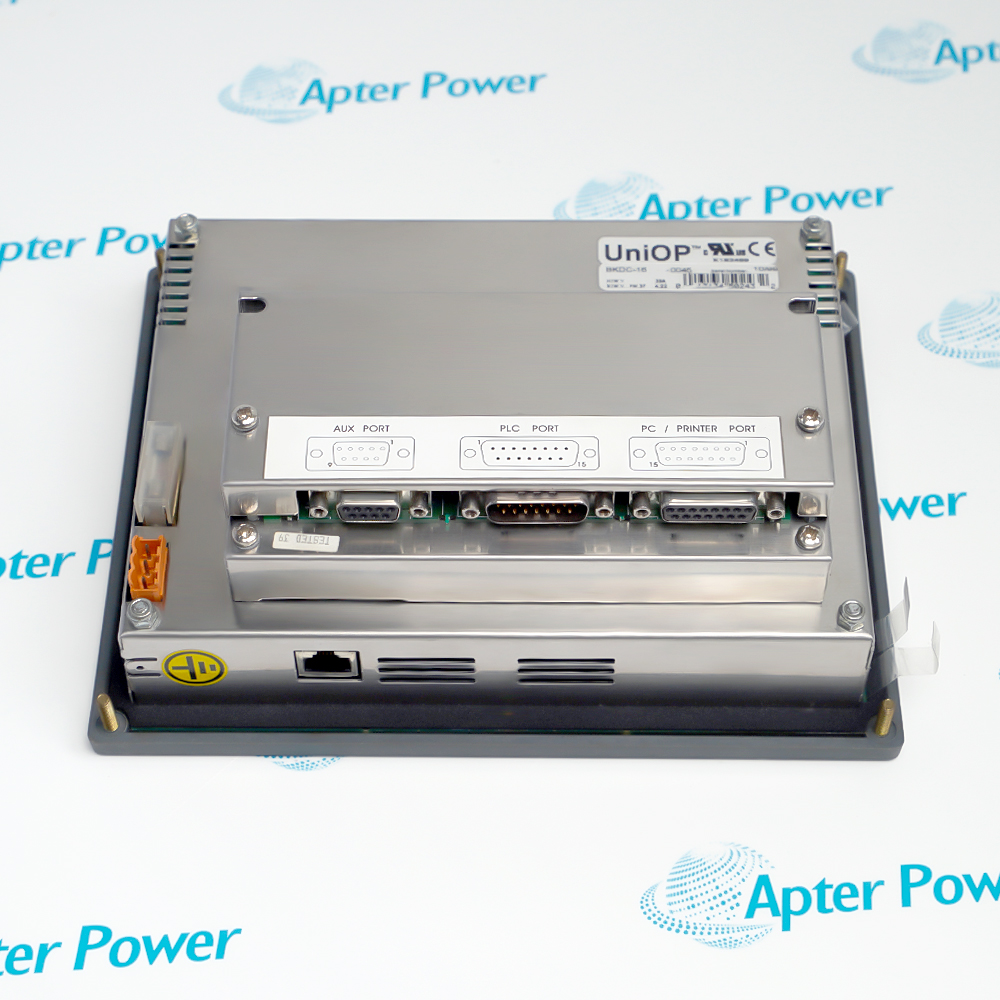

      Record every PLC, PC/printer, AUX and keyboard connection.
      4
      Remove panel and field power before wiring or connector work.
      5
      Use the documented communication adapter and cable pinout.
      6
      Protect the display, membrane keys and rear connectors from damage.
      7
      Do not load a project from another machine without controlled review.
      8
      Test display, keys, alarms and PLC communication before release.

      Technical notes

      Technical notes

      Record the complete BKDC-16-0045 marking, power label, PLC-port adapter, project file and communication settings before replacement. Preserve the installed application and verify every key, display area and communication link before release.

      FAQS

      • What is UniOP BKDC-16-0045?
        It is a colour flat-panel operator interface in the legacy UniOP BKDC-16 family.
      • What display does the BKDC-16 family use?
        The EXOR archive identifies a 5.6-inch STN display with 16 colours.
      • How many keys are provided?
        The BKDC-16 family is documented with a 37-key operator keypad.
      • Which connections are available?
        The manufacturer installation guide identifies PLC, PC/printer, AUX and external keyboard ports for the BKDC-16 family.
      • Is BKDC-16 still a current product family?
        No. The EXOR archive identifies the BKDC-16 family as discontinued.
      • What must be backed up before replacement?
        Preserve the project file, protocol selection, node settings, recipes and site-specific communication data.
      • Can any PLC cable be used?
        No. Use the protocol-specific UniOP adapter and the documented pinout for the installed controller.
      • What confirms a successful replacement?
        The correct project loads, all keys and display areas work, and every approved controller link communicates without error.
