      Siemens 505-4832
      Siemens 505-4832
      Siemens 505-4832
      Siemens 505-4832
      Siemens 505-4832
      Siemens 505-4832
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      505-4832

      Discrete Output Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

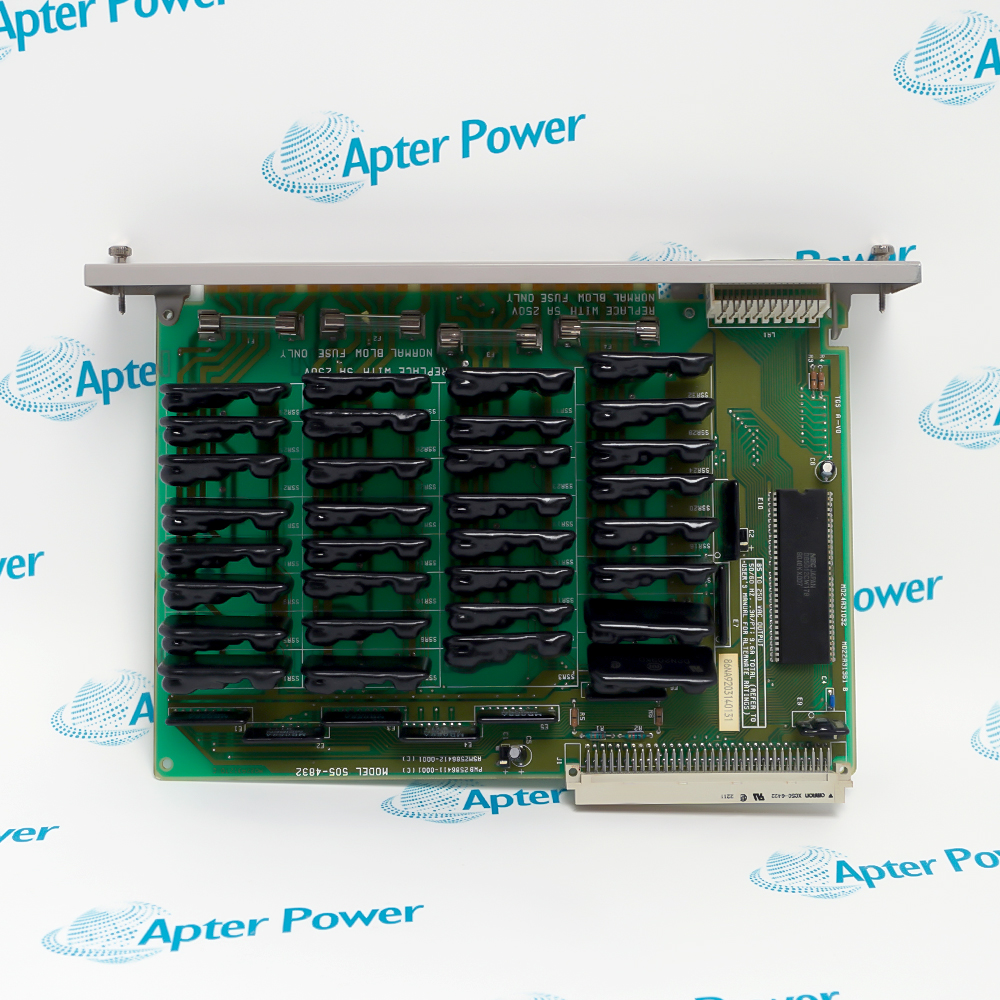

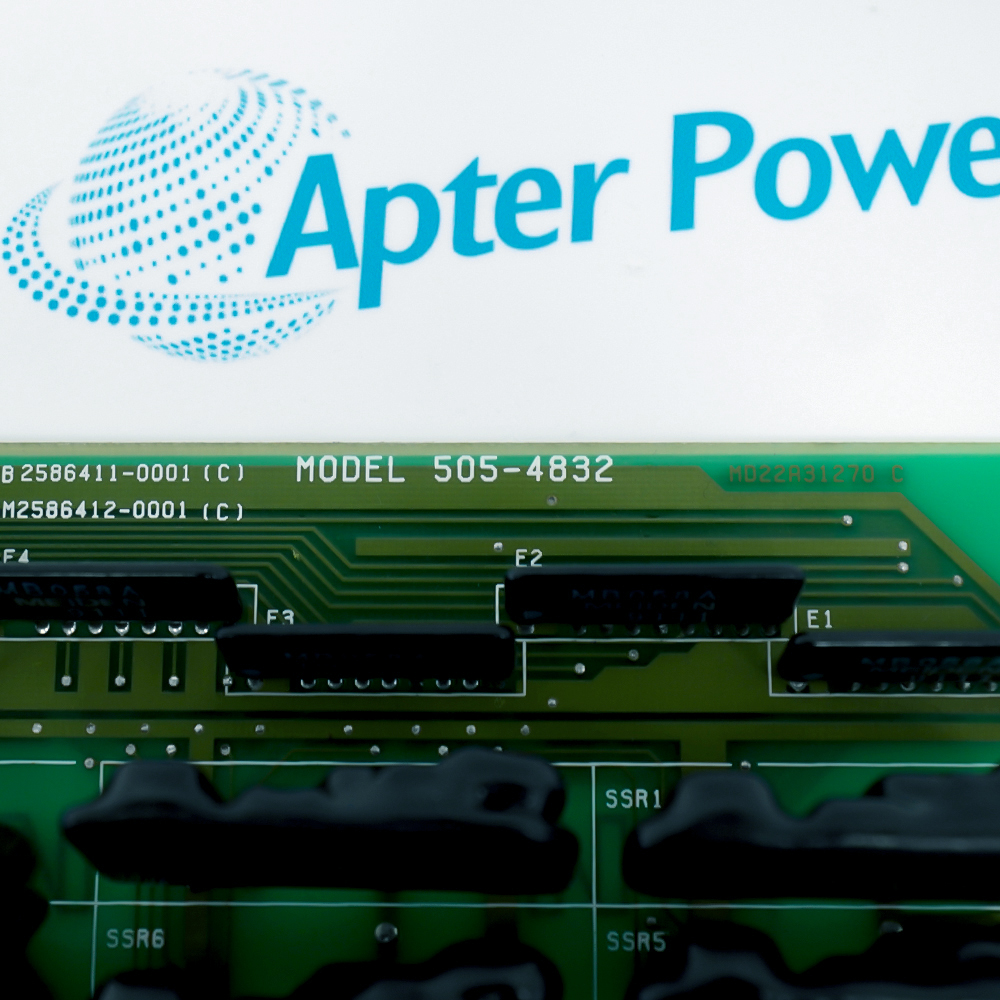

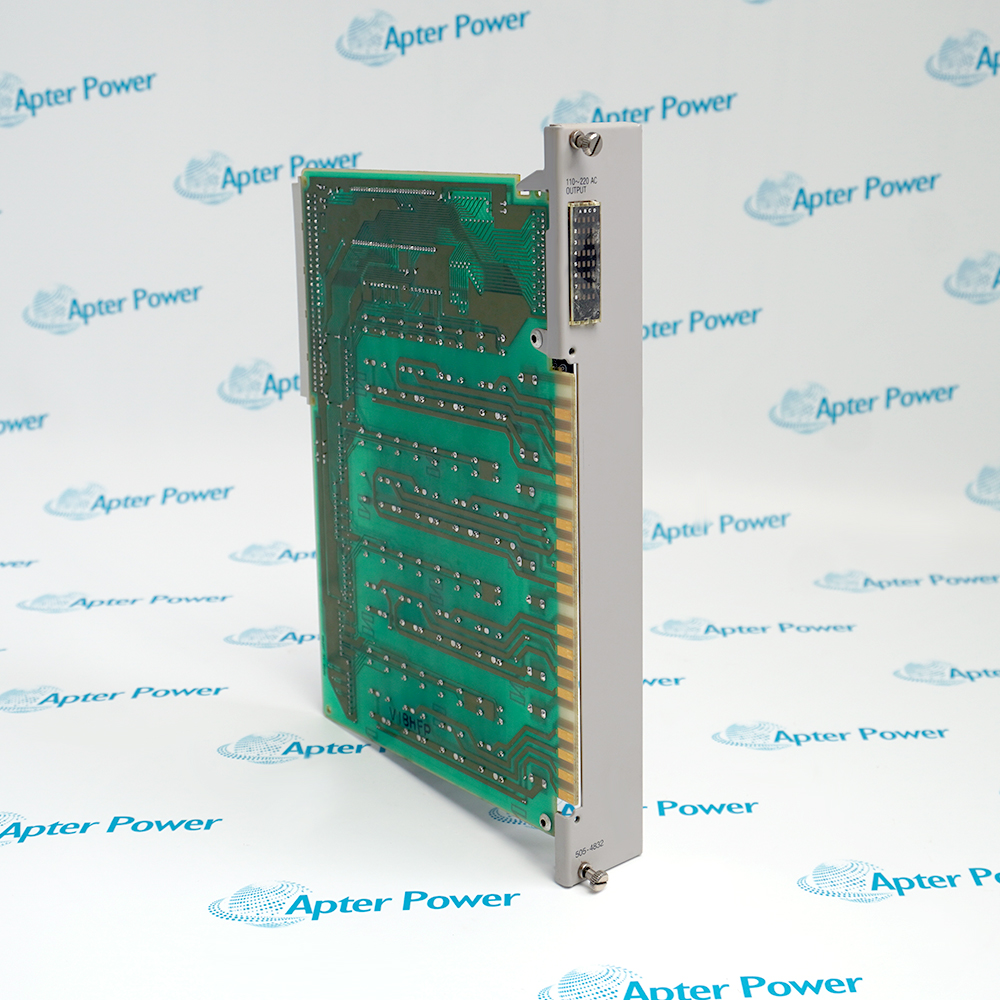

      Siemens 505-4832 is a discrete output module for the SIMATIC 505 programmable controller system. It is a 32-point double-wide 110/220 V AC discrete output module for a compatible SIMATIC 505 base.

      Ask our team:

      Get a quick price for： 505-4832
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 505-4832

      Technical specifications for 505-4832

      • Manufacturer:
        Siemens
      • Product Category:
        PLC Systems
      • Spare Part Number:
        505-4832
      • Estimated shipping dimensions:
        4x18.6x26.5cm
      • Weight:
        0.66 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Product family:
        SIMATIC 505 programmable controller system
      • Output points:
        32
      • Module width:
        Double-wide
      • Rated output voltage:
        100 to 230 V AC
      • Operating voltage:
        85 to 265 V AC
      • Frequency:
        47 to 63 Hz
      • Maximum output current:
        2 A
      • Minimum load current:
        50 mA
      • On-state voltage drop:
        2 V maximum
      • Off-state leakage:
        6 mA
      • Turn-on / turn-off delay:
        2 ms / 11 ms
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Siemens 505-4832 is a 32-point double-wide 110/220 V AC discrete output module for a compatible SIMATIC 505 base.
      • Provides thirty-two AC output points
      • Supports 100 to 230 V AC loads
      • Uses a double-wide SIMATIC 505 position
      • Includes RC output suppression

      505-4832 operates with its documented companion hardware and configured system interfaces.

      Engineered applications include AC discrete actuation, SIMATIC 505 machine output, High-density cabinet output, Output module replacement.

      Important Notice: Confirm 505-4832, double-wide slot allocation, AC source, output commons and load current. The outputs are non-latching and require external protection as documented.

      Siemens 505-4832 Manuals & Downloads
      Siemens 505-4832 Technical Reference (PDF)Siemens 505-4832 Installation & Commissioning Guide (PDF)
      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.
      AC discrete actuation
      Switches thirty-two documented AC loads.
      SIMATIC 505 machine output
      Executes the controller output image for the assigned base slots.
      High-density cabinet output
      Consolidates 32 AC points in a double-wide module.
      Output module replacement
      Restores 505-4832 without changing addresses or load protection.
      Read the applicable Siemens instructions before work. Verify 505-4832, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Confirm the complete 505-4832 marking and installed AC-output position before work.
      2
      Place the connected process in the approved maintenance state.
      3
      Isolate every applicable power and field circuit before disconnection.
      4
      Record connector, terminal, address, slot and companion-hardware identities.
      5
      Use grounded ESD controls and protect keyed interfaces from damage.
      6
      Preserve documented polarity, shielding, grounding and cable routing.
      7
      Restore power in the approved sequence and review diagnostics.
      8
      Prove the intended input, output or communications response and retain the acceptance record.

      Alternative Names

      Alternative Names

      505-4832 5054832 Siemens 505-4832

      Technical notes

      Technical notes

      Confirm 505-4832, double-wide slot allocation, AC source, output commons and load current. The outputs are non-latching and require external protection as documented.

      FAQS

      • What output points should be verified before 505-4832 is installed?
        Output points: 32. Use this value when checking the discrete output module against its installed position.
      • How should the module width be matched for this discrete output module?
        Module width: Double-wide. Retain it in the controlled replacement record.
      • How can the rated output voltage prevent an incorrect 505-4832 substitution?
        Rated output voltage: 100 to 230 V AC. Compare it with the existing terminal and companion-hardware assignment.
      • Why must technicians record the operating voltage before removing 505-4832?
        Operating voltage: 85 to 265 V AC. Apply it during the pre-energization wiring review.
      • When servicing 505-4832, how should the frequency be confirmed?
        Frequency: 47 to 63 Hz. Confirm the installed system can support this value before startup.
      • How does the maximum output current affect replacement of 505-4832?
        Maximum output current: 2 A. Do not replace it with a neighboring family value.
      • What does the minimum load current mean for 505-4832 system compatibility?
        Minimum load current: 50 mA. Record the as-found condition and verify it after commissioning.
      • Which acceptance record should retain the on-state voltage drop for 505-4832?
        On-state voltage drop: 2 V maximum. Use it to select the correct host, cable or rack arrangement.
