      6ES7414-1XG02-0AB0

      CPU Module
      In Stock
      Ships by Wednesday, September 30
      Fast Shipping Available

      Product Describe：

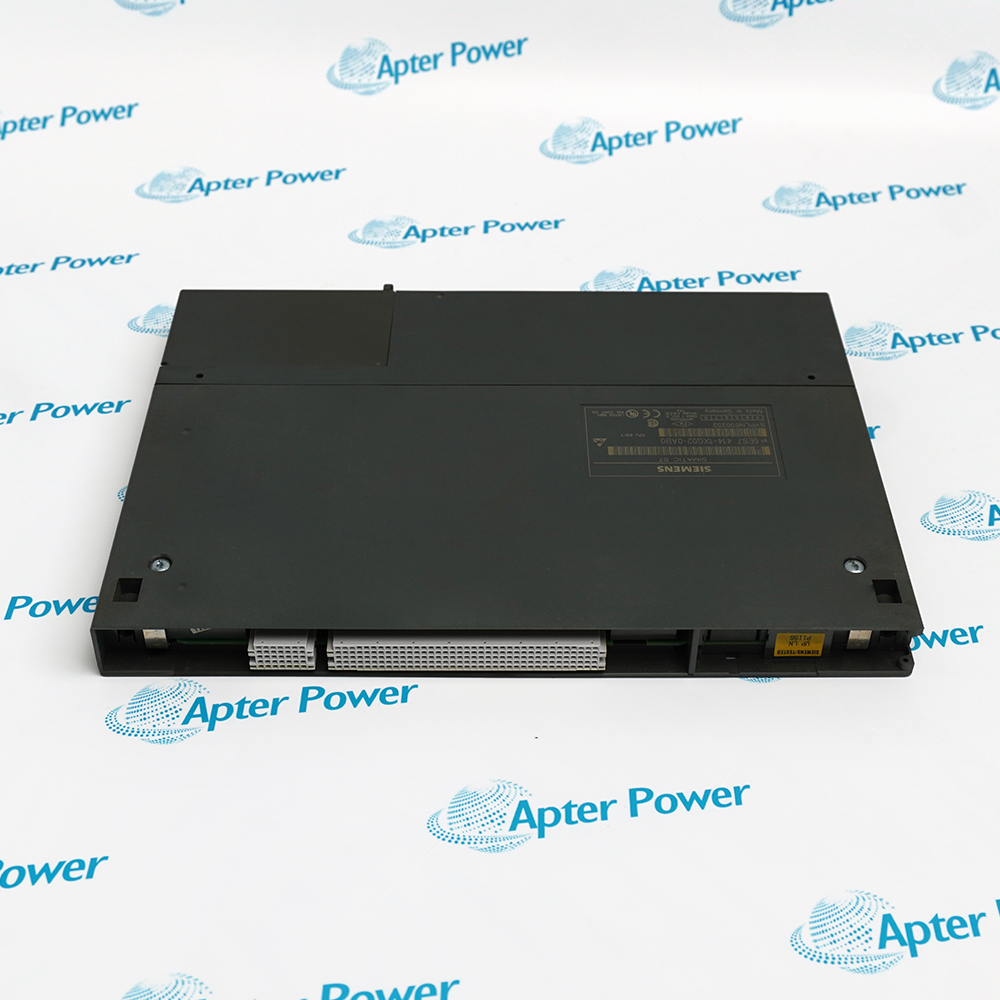

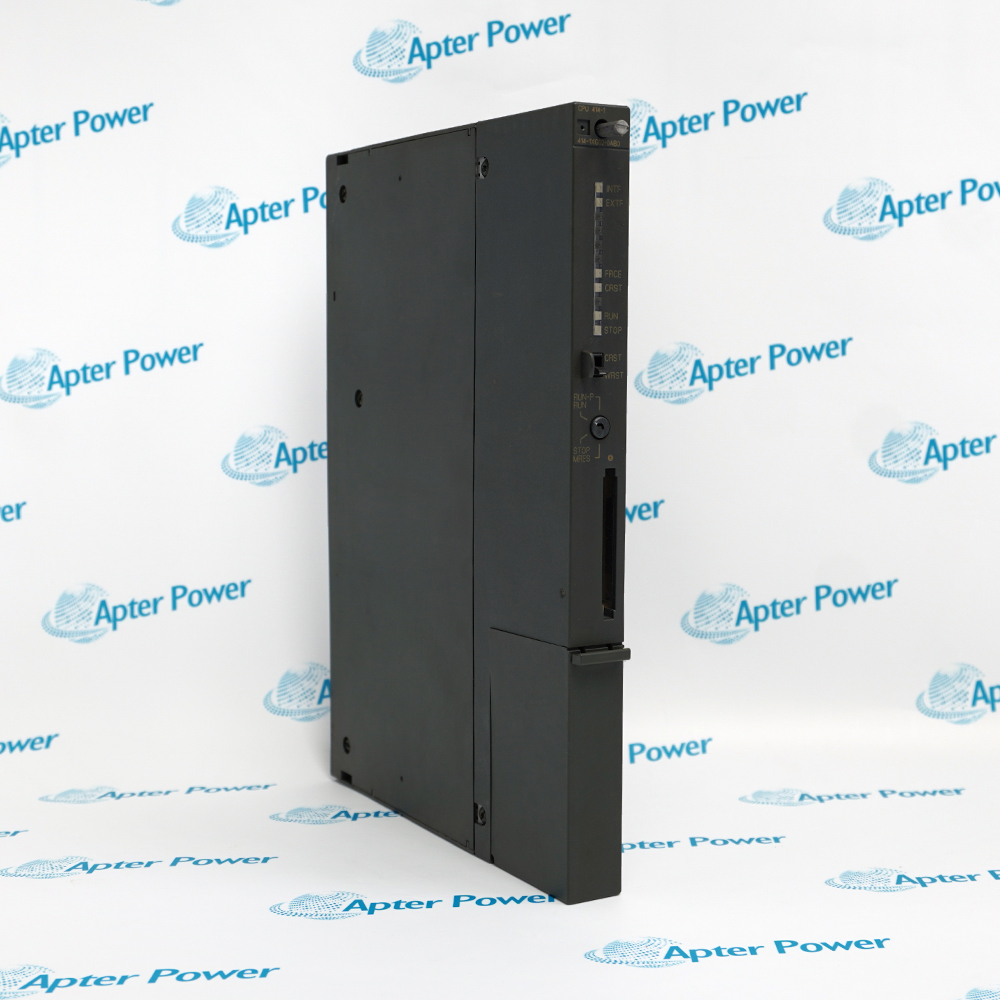

      Siemens 6ES7414-1XG02-0AB0 is a SIMATIC S7-400 CPU 414-1 with 128 KB working memory and an MPI interface. Preserve the complete firmware and project configuration when replacing this legacy CPU.

      Ask our team:

      Get a quick price for： 6ES7414-1XG02-0AB0
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 6ES7414-1XG02-0AB0

      Technical specifications for 6ES7414-1XG02-0AB0

      • Manufacturer:
        Siemens
      • Product Category:
        PLC Systems
      • Spare Part Number:
        6ES7414-1XG02-0AB0
      • Estimated shipping dimensions:
        2.5x21.7x29cm
      • Weight:
        0.88 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Controller family:
        SIMATIC S7-400
      • CPU:
        CPU 414-1
      • Working memory:
        128 KB
      • Integrated interface:
        MPI
      • Hardware version:
        Version 9 listed for this order number
      • DPV1 mode:
        Not supported for this older CPU; use the GSD-file path documented by Siemens
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Siemens 6ES7414-1XG02-0AB0 is a SIMATIC S7-400 CPU 414-1 with 128 KB working memory and an MPI interface. Preserve the complete firmware and project configuration when replacing this legacy CPU.
      • CPU 414-1 processing
      • 128 KB working memory
      • MPI communication
      • S7-400 rack integration

      Use only the complete Siemens 6ES7414-1XG02-0AB0 identity and the current manufacturer documentation. Confirm installed hardware, wiring, firmware or parameter compatibility and the approved maintenance record before replacement or release.

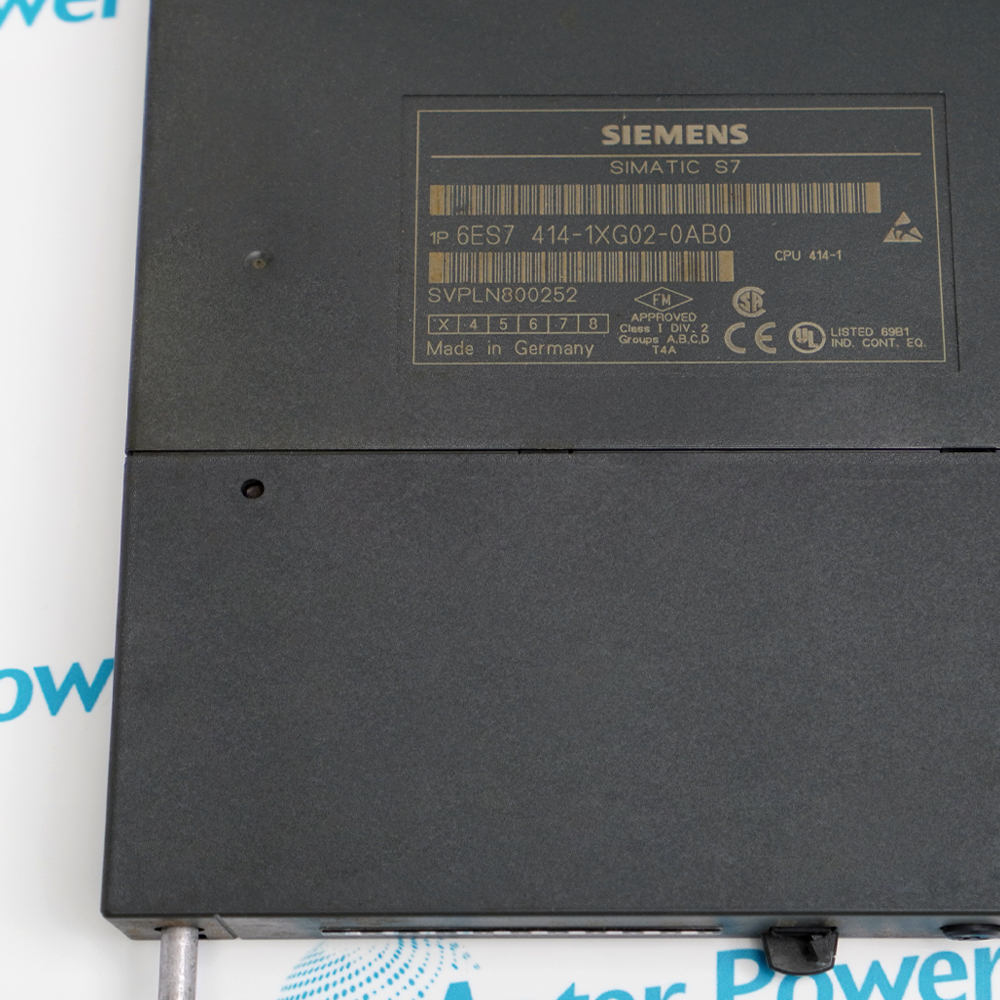

      Important Notice: Verify 6ES7414-1XG02-0AB0 from the physical marking and current manufacturer documentation before installation or configuration.

      6ES7414-1XG02-0AB0 Manuals & Downloads
      6ES7414-1XG02-0AB0 Technical Reference (PDF)6ES7414-1XG02-0AB0 Installation & Commissioning Guide (PDF)

      The first document is the model-specific technical reference. The second is a distinct installation and commissioning guide with checks and acceptance records.

      Process automation
      Executes an approved S7-400 control program.
      Machine sequencing
      Runs configured sequence and interlock logic.
      MPI networking
      Communicates through the documented MPI interface.
      Legacy maintenance
      Maintains an installed CPU 414-1 project.
      Read the applicable Siemens instructions before work. Verify 6ES7414-1XG02-0AB0 and the installed system configuration.
      1
      Verify the complete Siemens 6ES7414-1XG02-0AB0 marking before work.
      2
      Review the current Siemens source documentation and the installed-system record.
      3
      Record the slot, connector, terminal and companion-hardware arrangement before removal.
      4
      Place the controller, drive or machine in the approved maintenance state before handling.
      5
      Use ESD controls and protect keyed connectors, terminals and circuit-board components.
      6
      Confirm the documented electrical and interface values for 6ES7414-1XG02-0AB0 before energization.
      7
      Restore wiring, shielding, grounding and mechanical retention exactly as documented.
      8
      Run model-specific diagnostics and a controlled functional test before production release.

      Technical notes

      Technical notes

      Use only the complete Siemens 6ES7414-1XG02-0AB0 identity and the current manufacturer documentation. Confirm installed hardware, wiring, firmware or parameter compatibility and the approved maintenance record before replacement or release.

      FAQS

      • Which CPU is identified by 6ES7414-1XG02-0AB0?
        It is a SIMATIC S7-400 CPU 414-1 with 128 KB of working memory.
      • Which integrated communication interface is provided?
        The exact order number includes an integrated MPI interface whose address and project settings must be preserved.
      • What hardware version is listed for this order number?
        The Siemens product information lists hardware version 9 for 6ES7414-1XG02-0AB0.
      • Does this older CPU support DPV1 mode?
        The documented older CPU does not support DPV1 mode; use the Siemens GSD-file path applicable to the configured system.
      • What should be backed up before replacing the CPU 414-1?
        Back up the STEP 7 project, MPI settings, memory configuration, rack assignment and current diagnostic information.
      • Can another CPU 414 order number be installed without project review?
        No. Memory, firmware, interfaces and project compatibility must be checked against the complete order number.
      • What should be monitored during the controlled restart?
        Check CPU diagnostics, operating mode, MPI communication, configured I/O and the approved process or machine sequence.
      • What confirms acceptance of the replacement CPU?
        Acceptance requires the exact hardware record, restored project, stable diagnostics, working MPI communication and an approved functional test.
