What is C98043-A7005-L1 6RY1704-0AA00?

It is the standard PMU Operator Panel and interface board for Siemens SIMOREG 6RA70 series DC drives.

What is the difference between C98043-A7005-L1 and 6RY1704-0AA00?

C98043-A7005-L1 is the internal Siemens PCB manufacturing number, whereas 6RY1704-0AA00 is the corresponding official commercial ordering number (MLFB number).

How to use products like C98043-A7005-L1 6RY1704-0AA00?

Snap it directly into the front housing of the 6RA70 DC drive, and connect it to the internal main control board (CUD1 board) via the ribbon cable connector on its back.

Can C98043-A7005-L1 6RY1704-0AA00 connect to external commissioning devices?

Yes, the onboard integrated X300 connector (supporting USS protocol via RS232/RS485) can be used to plug in an advanced OP1S handheld panel or connect a PC running DriveMonitor software via an extension cable.

Can C98043-A7005-L1 6RY1704-0AA00 be plugged or unplugged while the drive is energized?

Hot-plugging is strictly prohibited. To prevent transient current from destroying sensitive solid-state integrated electronics, all main and control power supplies to the drive system must be isolated before handling.

C98043-A7005-L1 6RY1704-0AA00

Name: C98043-A7005-L1 6RY1704-0AA00
Brand: Siemens
SKU: C98043-A7005-L1 6RY1704-0AA00

PMU Operator Panel

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

6RA70 Series PMU
Operator Panel
Utilized for real-time drive monitoring
fault diagnostics and parameterization

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for C98043-A7005-L1 6RY1704-0AA00

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for C98043-A7005-L1 6RY1704-0AA00

Manufacturer:

Siemens
Product Category:

PLC Systems
Spare Part Number:

C98043-A7005-L1 6RY1704-0AA00
Estimated shipping dimensions:

15x8.5x25cm
Weight:

0.82 kg
Tariff Code:

8537101190
Counliy of origin:

Germany
Product Series:

SIMOREG DC-MASTER 6RA70 Series
Hardware Category:

DC Drive Parameterization Unit (PMU) Board
Display Specs:

5-digit, seven-segment high-brightness red LED
Communication Port:

X300 port
Protocol:

Siemens USS serial bus protocol
Power Input:

Power via CUD1 ribbon cable

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

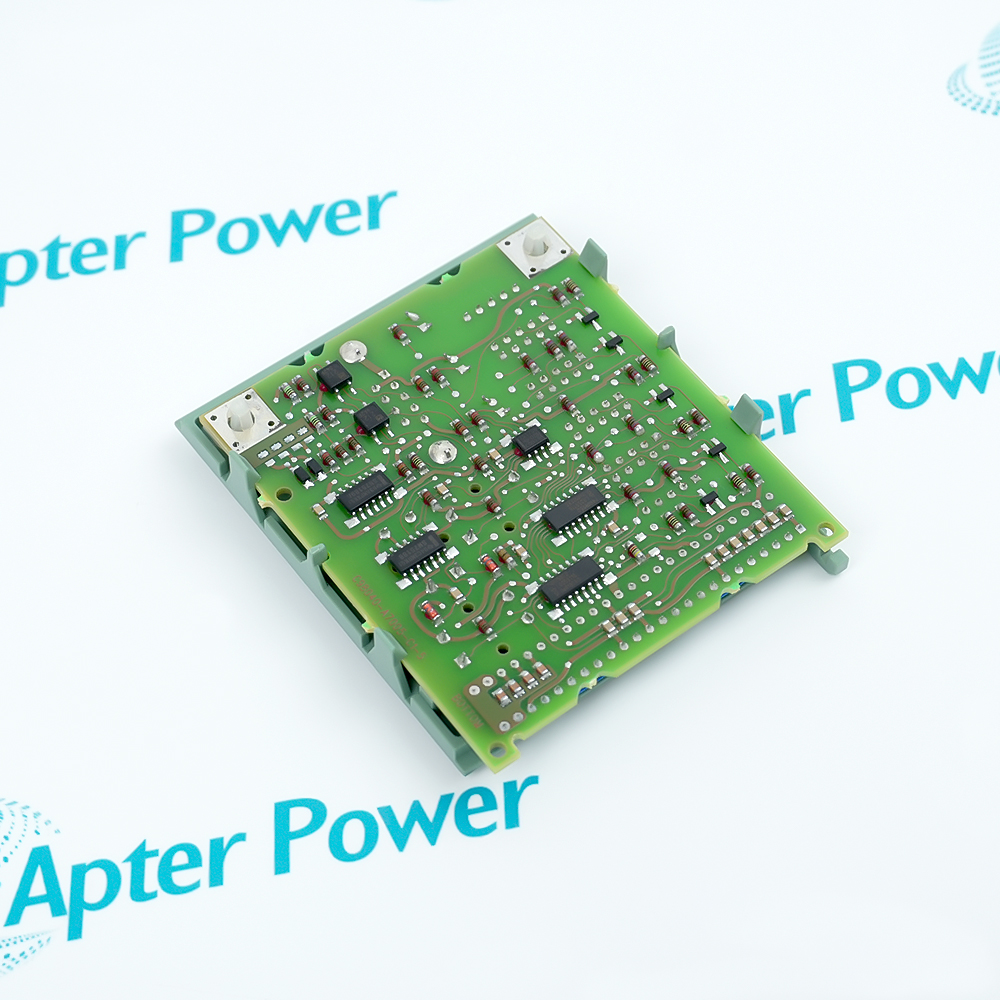

The C98043-A7005-L1 6RY1704-0AA00 is the standard Parameterization Unit (PMU) operator panel board dedicated to Siemens SIMOREG DC-MASTER 6RA70 series DC drives. Mounted directly in the center of the drive's front cover, it integrates a 5-digit red LED display and 4 tactile pushbuttons.

No external power required; ribbon cable links directly to the internal CUD1 board for power and total data access
Connects to a PC via X300 for DriveMonitor/STARTER trace recording and data archiving
Solid-state circuits in an anti-static bracket, ensuring high accuracy in intense electromagnetic and thermal environments

Powered directly via a ribbon cable from the internal CUD1 main control board without requiring an external supply, the board is utilized for on-site drive parameterization, real-time running status monitoring, and reading system alarm or fault diagnostic codes. Additionally, its onboard X300 port supports the USS communication protocol, allowing direct insertion of an advanced OP1S LCD handheld panel or connection to a PC running DriveMonitor software.

Electrically, this control board requires no independent external power supply input. Its necessary low-voltage operating current is drawn entirely via an integrated multi-conductor flat ribbon cable connected straight to the drive's internal CUD1 main control board. Beyond basic code readouts and button inputs, the board also incorporates a standard X300 port on its lower-left corner. This interface supports serial RS232 and RS485 connections utilizing the USS communication protocol, which allows technicians to plug in an advanced OP1S LCD handheld operator panel or establish a cable link to a PC running the DriveMonitor software.

Utilizing solid-state integrated circuits and sealed micro-switches, this board is fully capable of withstanding the intense electromagnetic and thermal interference present inside high-voltage, heavy-current three-phase fully controlled rectifying DC drive converters, completing parameter routing, diagnostic code capturing, and real-time status feedback without latency.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Siemens C98043-A7005-L1 6RY1704-0AA00 PMU Operator Panel Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Metallurgy & Iron and Steel Industry

Used for the speed and torque control of high-power DC motors in blast furnace hoists, main rolling mills (roughing/finishing), and continuous casting machines.

Paper and Printing Industry

Used for high-precision tension and synchronized speed control in the main drives and winders of large multi-section paper machine production lines.

Cement and Building Materials Industry

Used in the main drive systems of large rotary kilns in cement plants, providing high torque output during low-speed start and smooth deceleration.

Oil and Gas Drilling Industry

Used for the DC drives of critical drilling equipment including oil rig mud pumps, drawworks, and rotary tables.

Rubber and Plastics

Used for the DC main motors of large internal mixers, twin-screw extruders, and rubber calenders to handle high overload shocks.

Metal Machine Tool Machining Industry

Used for the DC speed regulation retrofit and upgrading of spindles and feed systems in legacy large gantry planers and gantry milling machines.

When servicing this control board, hot-plugging the rear flat ribbon cable is strictly prohibited; all main and control power supplies to the drive must be completely isolated before handling to prevent transient high-voltage currents from damaging sensitive solid-state integrated circuits. During daily operation, ensure the drive's front protective cover remains intact, and never allow conductive metal dust, moisture, or oil grease to infiltrate the panel gaps.

Furthermore, field technicians must execute strict electrostatic discharge (ESD) mitigation protocols (such as wearing an anti-static wrist strap) before touching or replacing the board to avoid static breakdown of onboard electronic components.

Alternative Names

C98043-A7005-L1 6RY1704-0AA00 C98043-A7005-L1/6RY1704-0AA00 C98O43-A7OO5-L1 6RY1704-0AA00 C98043-A7005-L1 6RY17O4-OAAOO C98043-A7005-LI 6RY1704-0AA00 C98043-A7005-L1 6RYI704-0AA00 C98O43-A7OO5-LI 6RYI7O4-OAAOO

Technical notes

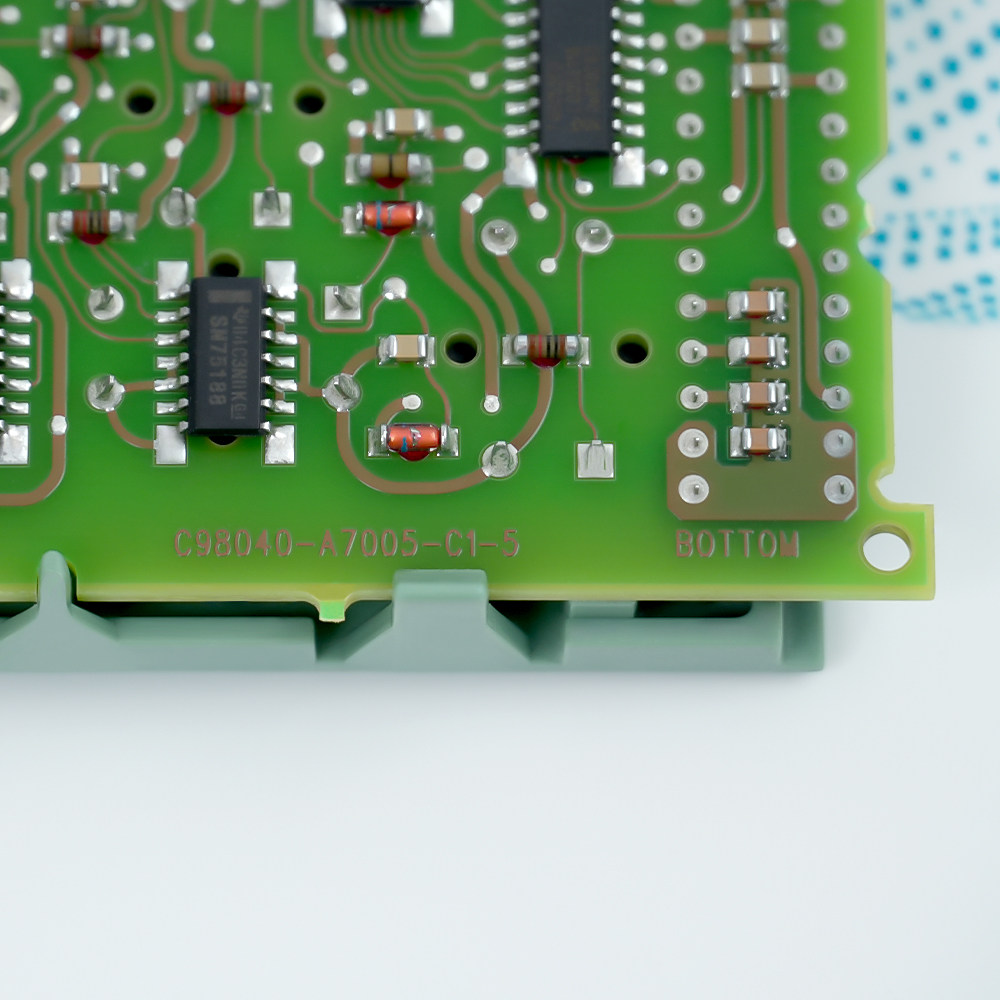

This control board assembly is the standard on-site human-machine interface core hardware component utilized across the Siemens SIMOREG DC-MASTER 6RA70 series DC drives. The component is physically identified by two distinct codes: C98043-A7005-L1 denotes the internal Siemens printed circuit board manufacturing code, while 6RY1704-0AA00 serves as the official commercial ordering number for global logistics and spare parts procurement. Embedded directly into the center of the drive’s front cover, the board operates as the Parameterization Unit (PMU). Its surface integrates a 5-digit, seven-segment high-brightness LED display alongside several tactile buttons for parameter addressing, value adjustment, fault resetting, and local inching toggles, providing field technicians with a direct window to oversee the drive’s condition without external devices.
