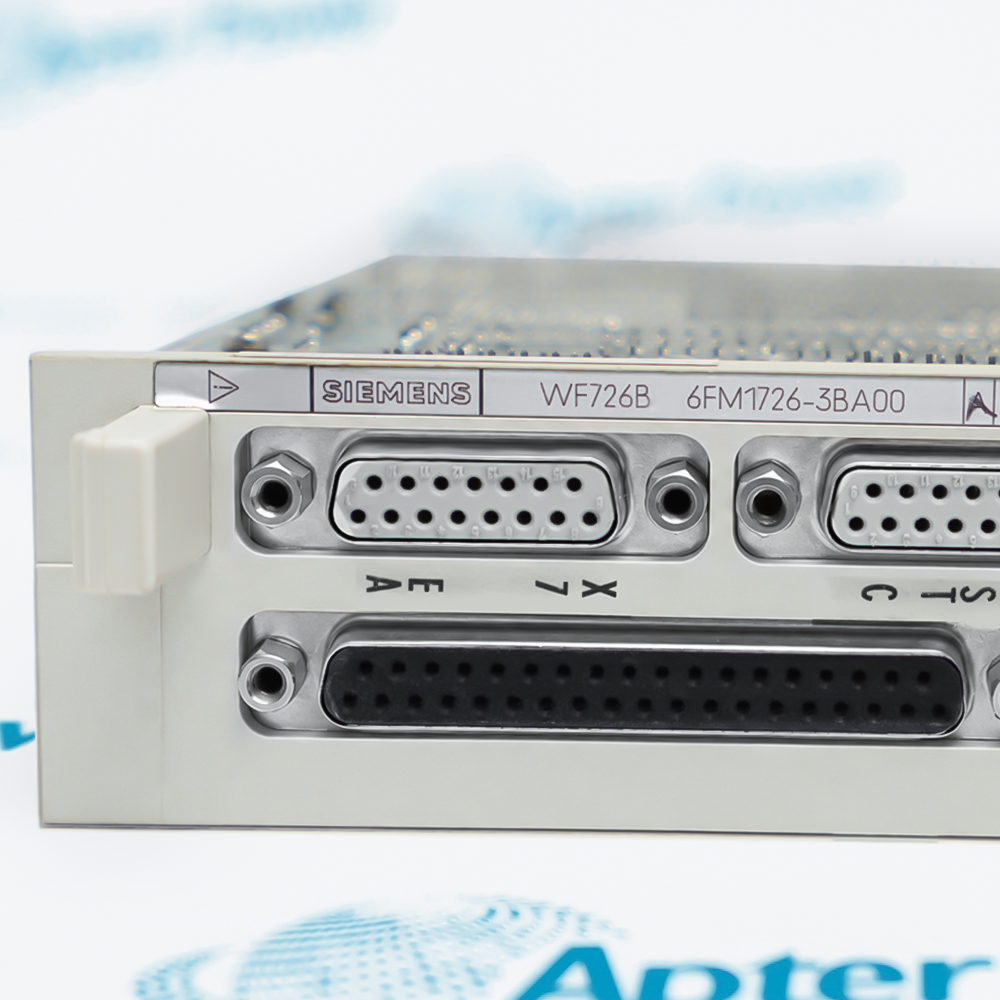

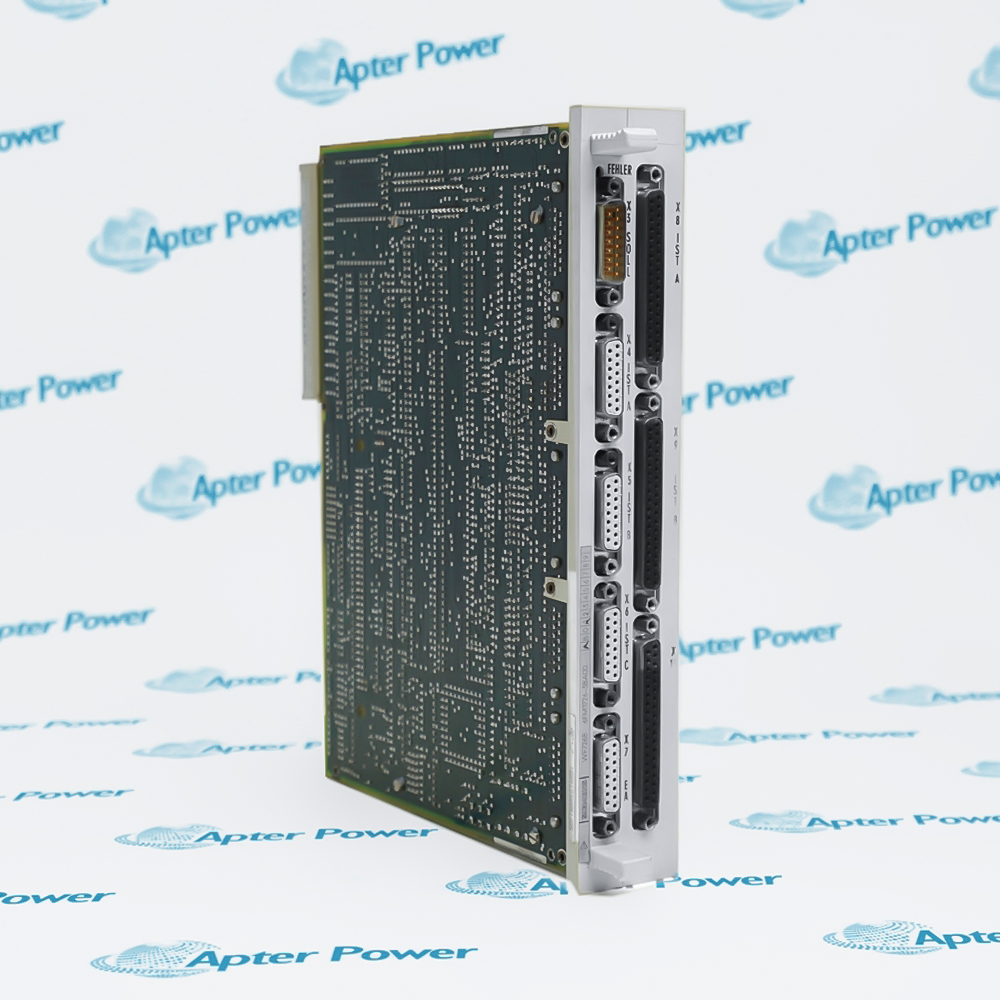

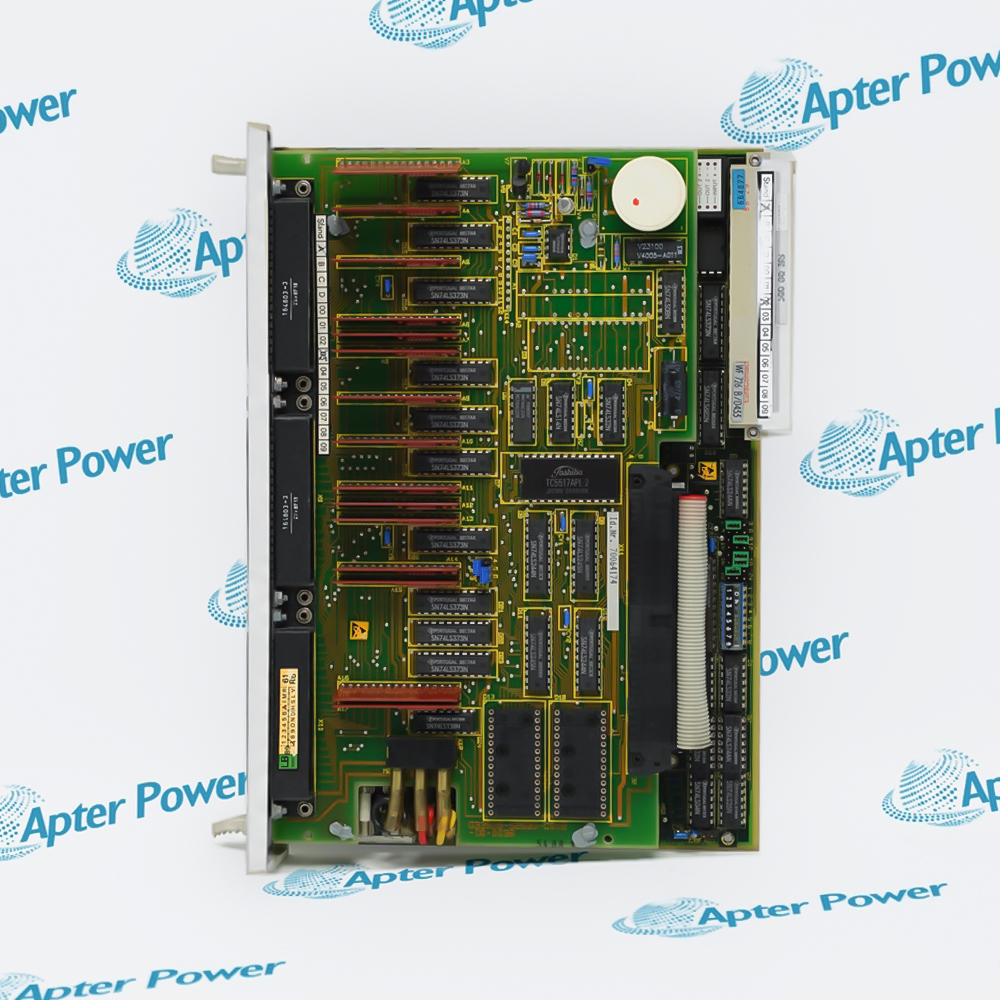

      Siemens 6FM1726-3BA00
      Siemens 6FM1726-3BA00
      Siemens 6FM1726-3BA00
      Siemens 6FM1726-3BA00
      Siemens 6FM1726-3BA00
      Siemens 6FM1726-3BA00
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      6FM1726-3BA00

      WF726B Positioning Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Siemens 6FM1726-3BA00 is a WF 726 B positioning module for SIMATIC S5 systems. The documented WF726B architecture supports incremental or parallel absolute encoder feedback and multiaxis positioning functions configured with COM 726.

      Ask our team:

      Get a quick price for： 6FM1726-3BA00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 6FM1726-3BA00

      Technical specifications for 6FM1726-3BA00

      • Manufacturer:
        Siemens
      • Product Category:
        PLC Systems
      • Spare Part Number:
        6FM1726-3BA00
      • Estimated shipping dimensions:
        4.1x19.3x24.3cm
      • Weight:
        0.64 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Module designation:
        WF 726 B
      • Function:
        Positioning module
      • Host platform:
        SIMATIC S5-135U / S5-155U
      • Encoder support:
        Incremental or parallel absolute
      • Absolute-encoder channels:
        Up to 3 documented
      • Absolute code:
        Gray code recommended
      • Engineering package:
        COM 726
      • Positioning steps:
        Up to 16,777,215
      • Machine-data scope:
        Feed, acceleration, deceleration and encoder parameters
      • Direction assignment:
        Configured in machine data
      • M-function handling:
        Configurable output type and time
      • Fast outputs:
        Configurable
      • Travel limits:
        Limit and pre-limit values configurable
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Siemens 6FM1726-3BA00 is a WF 726 B positioning module for SIMATIC S5 systems. The documented WF726B architecture supports incremental or parallel absolute encoder feedback and multiaxis positioning functions configured with COM 726.
      • Multiaxis positioning: Executes documented positioning functions for the configured machine axes.
      • Flexible encoder feedback: Supports the approved incremental or parallel absolute encoder arrangement.
      • COM 726 engineering: Uses the Siemens engineering package for machine-data and axis configuration.
      • Machine-data control: Stores the controlled feed, ramp, encoder, direction and limit settings.

      Verify the complete 6FM1726-3BA00 marking, WF726B hardware revision, encoder type, machine-data record, COM 726 project and host S5 configuration before replacement or recommissioning.

      Important Notice: Confirm the complete Siemens 6FM1726-3BA00 identity and controlled configuration before commissioning.

      Siemens 6FM1726-3BA00 Manuals & Downloads
      Siemens 6FM1726-3BA00 Technical Reference (PDF)Siemens 6FM1726-3BA00 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      SIMATIC S5 motion station
      Adds positioning functions to a documented S5-135U or S5-155U system.
      Absolute-encoder positioning
      Processes parallel absolute encoder feedback for configured axes.
      Incremental-encoder positioning
      Coordinates approved incremental encoder feedback and axis commands.
      Legacy positioning renewal
      Restores a WF726B application from the controlled COM 726 and machine-data records.
      Read the applicable Siemens instructions before work. Verify Siemens 6FM1726-3BA00 and the installed system configuration before commissioning.
      1
      Verify the complete 6FM1726-3BA00 and WF726B identity.
      2
      Place the machine and S5 system in the approved maintenance state.
      3
      Back up the COM 726 project and all machine data.
      4
      Record the encoder type, code format, wiring and axis assignment.
      5
      Confirm host rack, CPU and interface compatibility.
      6
      Preserve configured direction, travel limits, ramps and M-function behavior.
      7
      Restore only the approved machine-data set.
      8
      Complete reference, positioning, limit and interlock tests before production release.

      Technical notes

      Technical notes

      Verify the complete 6FM1726-3BA00 marking, WF726B hardware revision, encoder type, machine-data record, COM 726 project and host S5 configuration before replacement or recommissioning.

      FAQS

      • What is Siemens 6FM1726-3BA00?
        6FM1726-3BA00 is a Siemens WF 726 B positioning module.
      • Which system uses Siemens 6FM1726-3BA00?
        Available product records identify it for SIMATIC S5-135U and S5-155U systems.
      • Which encoder types support Siemens 6FM1726-3BA00?
        WF726B documentation covers incremental and parallel absolute encoders.
      • How many parallel absolute encoders can Siemens 6FM1726-3BA00 support?
        Siemens WF726B documentation describes configurations with up to three parallel absolute encoders.
      • Which absolute code is recommended for Siemens 6FM1726-3BA00?
        The Siemens documentation recommends Gray code for parallel absolute encoders.
      • Which engineering package configures Siemens 6FM1726-3BA00?
        The documented engineering package is COM 726.
      • Which machine data should be preserved for Siemens 6FM1726-3BA00?
        Preserve feed, acceleration, deceleration, encoder, direction, output and travel-limit settings.
      • What confirms Siemens 6FM1726-3BA00 commissioning?
        Reference, encoder feedback, positioning, travel limits, M-functions and machine interlocks must pass the approved functional test.
