The A5F00133580-014 C98043-A7100 is a core central control unit board component specifically designed for large-scale industrial DC rectifier and drive cabinets. During major overhauls or on-site configurations of DC drive equipment in large factories, this board, as an independent electronic module, is vertically inserted into the left-side slot inside the unit, interconnecting with surrounding power conversion modules and main power circuits via onboard sockets and multi-core ribbon cables.
The entire panel is coated with a conformal coating process that meets industrial anti-corrosion standards
During operation, this hardware directly acts as the central brain of the entire unit, issuing 6 channels of complementary thyristor gate opening and closing control commands through its internally integrated arithmetic architecture and highly integrated copper-clad contact pathways while converting the collected multi-channel thermal analog signals, digital switch pulses, and mechanical variations from the tachogenerator into the logical code streams required by the equipment.
Dual-port PROFINET or classic PROFIBUS-DP physical interfaces are soldered directly onto the edge of the circuit board, allowing maintenance personnel to seamlessly merge the entire speed control device into the factory’s master PLC topology network or remote SCADA displays via external industrial network cables.
The highly transparent industrial composite coating covering its surface, combined with the underlying impedance-matching components, forms a mechanical barrier against dust penetration, which prevents external hash from back-feeding and protects internal logical calculations from being cut off by high-voltage electric arcs while cooperating with its unique extractable clip structure to assist field maintenance teams in achieving rapid in-situ replacement of spare parts within limited shutdown overhaul cycles.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens A5F00133580-014 C98043-A7100 DC CUD board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Metallurgy and Steel Industry
Used in the main drive systems of hot rolling mills, cold rolling mills, and blast furnace blowers to control high-power DC motors, ensuring constant rolling torque under extreme overload and high-speed impacts.
Papermaking and Printing Industry
Used for multi-unit synchronous drive control in large papermaking machine production lines and multi-color high-speed printing presses, preventing paper breakage caused by uneven tension through precise speed adjustment across sections.
Rubber and Plastics Industry
Used in the power systems of large internal mixers, rubber extruders, and calenders, providing powerful low-speed and high-torque output when processing high-viscosity raw materials.
Oil and Gas
Used for the DC drive control of oil rig mud pumps, drawworks, and rotary tables (Top Drive systems), meeting strict working conditions of frequent forward/reverse rotations and stalling in field drilling engineering.
Chemical and Electrochemical Industry
Used for high-precision, high-power DC power supply rectification control in large industrial electrolytic cells (e.g., aluminum smelting, brine electrolysis), precisely maintaining the constant current required for the electrolysis process.
Wastewater Treatment Industry
Captures continuous current signals from aeration tank dissolved oxygen (DO) sensors, sludge return flowmeters, and aeration blower pressure transmitters to achieve environmental compliance discharge control.
During the use of A5F00133580-014 (C98043-A7100), it is mandatory to wear a grounded anti-static wrist strap (ESD protection) after the DC drive is completely powered down before touching the board to prevent static destruction of the microprocessors.
As it functions as the control hub of the DC system, the hardware suffixes like L1 or L2 on the right side must be verified upon replacement, and the motor parameters along with firmware configurations must be flashed back via STARTER software.
Furthermore, external encoder and network cables must receive proper single-ended shield grounding, the enclosure temperature should be kept below 55°C, and the dual PROFINET ports and terminal blocks must be regularly blown clean with dry low-pressure compressed air in dusty environments to prevent high-frequency switching hash or pin short circuits from triggering a CUD logic collapse.
As the control hub and logic calculation core of the entire industrial DC drive system, this board relies on a highly integrated multi-layer epoxy resin circuit layout to handle complex motor speed control algorithms, thyristor trigger pulse logic, and various advanced fieldbus communication tasks. Equipped with a high-capability central microprocessor, the mainboard executes closed-loop dynamic adjustments for both the speed and current loops with a microsecond-level response cycle while precisely delivering 6 channels of complementary thyristor gate trigger commands to the underlying power bridge rectifier unit through onboard proprietary high-frequency pulse isolation output pathways.
It is the CUD (Control Unit) mainboard assembly for Siemens SINAMICS DCM series 6RA80 DC drives (bare board number C98043-A7100).
How to properly use products like A5F00133580-014 C98043-A7100 on industrial sites?
It must be vertically plugged inside the left electronic bay of the 6RA80 DC converter, interconnecting with the power board and main unit via ribbon cables and onboard sockets.

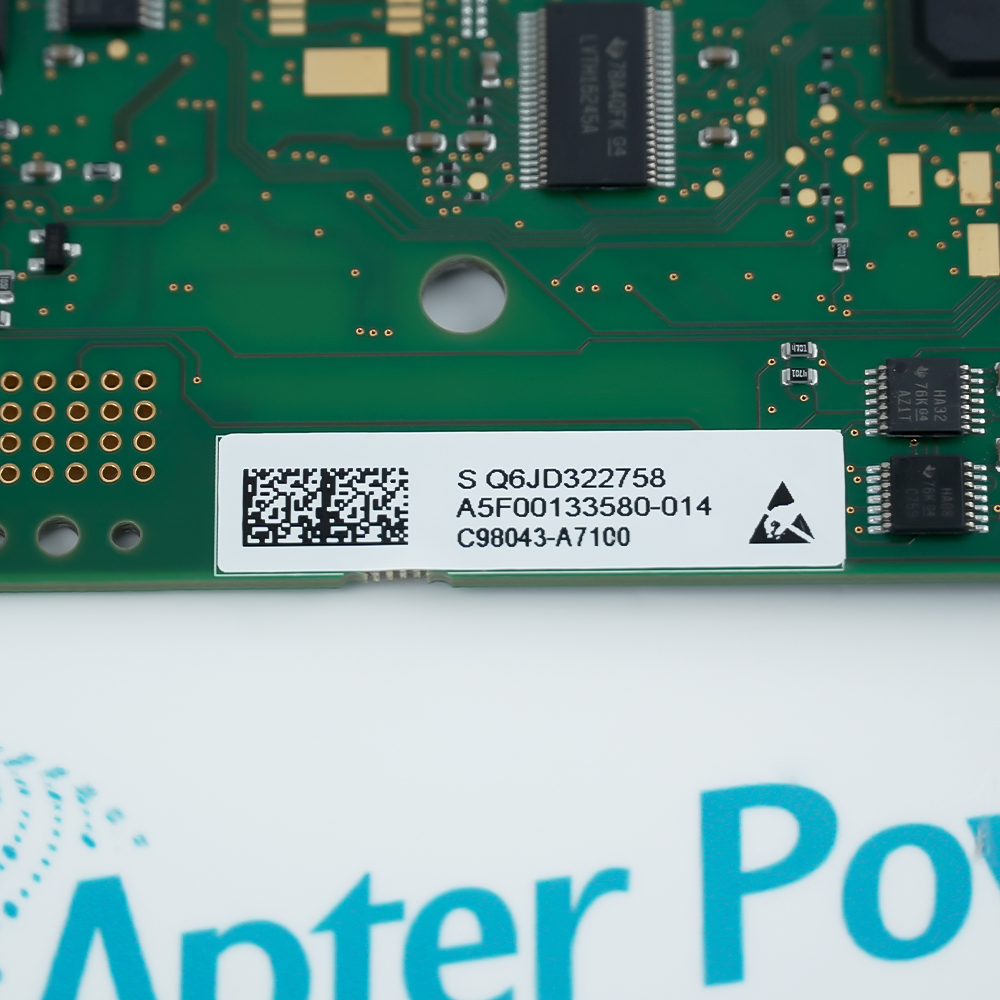

Why are two different numbers marked on this single mainboard?
C98043-A7100 is the etched part number of the bare printed circuit board, whereas A5F00133580-014 is the finished product catalog number after population.
What motor feedback signals can A5F00133580-014 C98043-A7100 receive?
Its onboard physical interfaces can directly receive incremental encoders, tachogenerators, and PTC sensors for motor over-temperature protection.
How to judge if the power distribution of A5F00133580-014 C98043-A7100 is normal without removal?
A preliminary evaluation can be made by observing the colors and blinking patterns of the diagnostic LED lights (such as power and ready LEDs) on the board's front edge.
