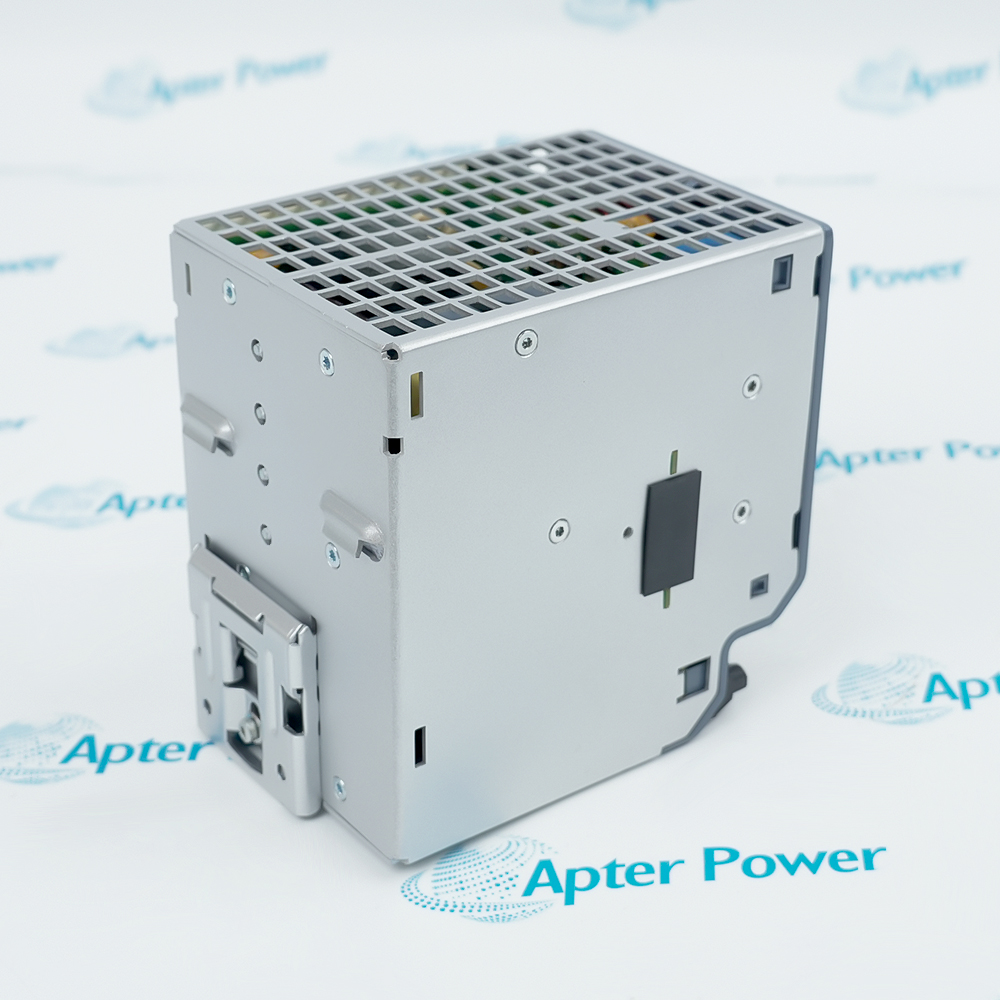

      6EP1336-3BA10

      SITOP PSU8200 24 V DC 20 A Power Supply
      In Stock
      Ships by Tuesday, August 18
      Fast Shipping Available

      Product Describe：

      Siemens 6EP1336-3BA10 feeds PLCs, HMIs, sensors, relays, and other control equipment while providing the voltage reserve and industrial behavior defined for the PSU8200 family.

      Ask our team:

      Get a quick price for： 6EP1336-3BA10
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 6EP1336-3BA10

      Technical specifications for 6EP1336-3BA10

      • Manufacturer:
        Siemens
      • Product Category:
        General Automation
      • Spare Part Number:
        6EP1336-3BA10
      • Estimated shipping dimensions:
        Siemens
      • Weight:
        2.646 lbs (1.2 kg)
      • Tariff Code:
        General Automation
      • Counliy of origin:
        Siemens AG
      • Input:
        120 to 230 V AC or 110 to 220 V DC nominal
      • AC input range:
        85 to 275 V
      • DC input range:
        88 to 350 V
      • Frequency:
        47 to 63 Hz
      • Output:
        24 V DC / 20 A
      • Adjustable output:
        24 to 28.8 V DC
      • Weight:
        1.200 kg (2.646 lb) product weight — official manufacturer data for the exact model.
      • Lifecycle:
        PM300 active product
      • Dimensions:
        90 × 125 × 125 mm (W × H × D) — Siemens current official technical product data.
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      The Siemens 6EP1336-3BA10 is a SITOP PSU8200 regulated power supply. It converts single-phase AC or compatible DC input power into an adjustable, stabilized 24 V DC supply rated at 20 A for industrial control loads.
      • 120 to 230 V AC or 110 to 220 V DC nominal
      • 85 to 275 V
      • 88 to 350 V
      • 47 to 63 Hz

      It feeds PLCs, HMIs, sensors, relays, and other control equipment while providing the voltage reserve and industrial behavior defined for the PSU8200 family.

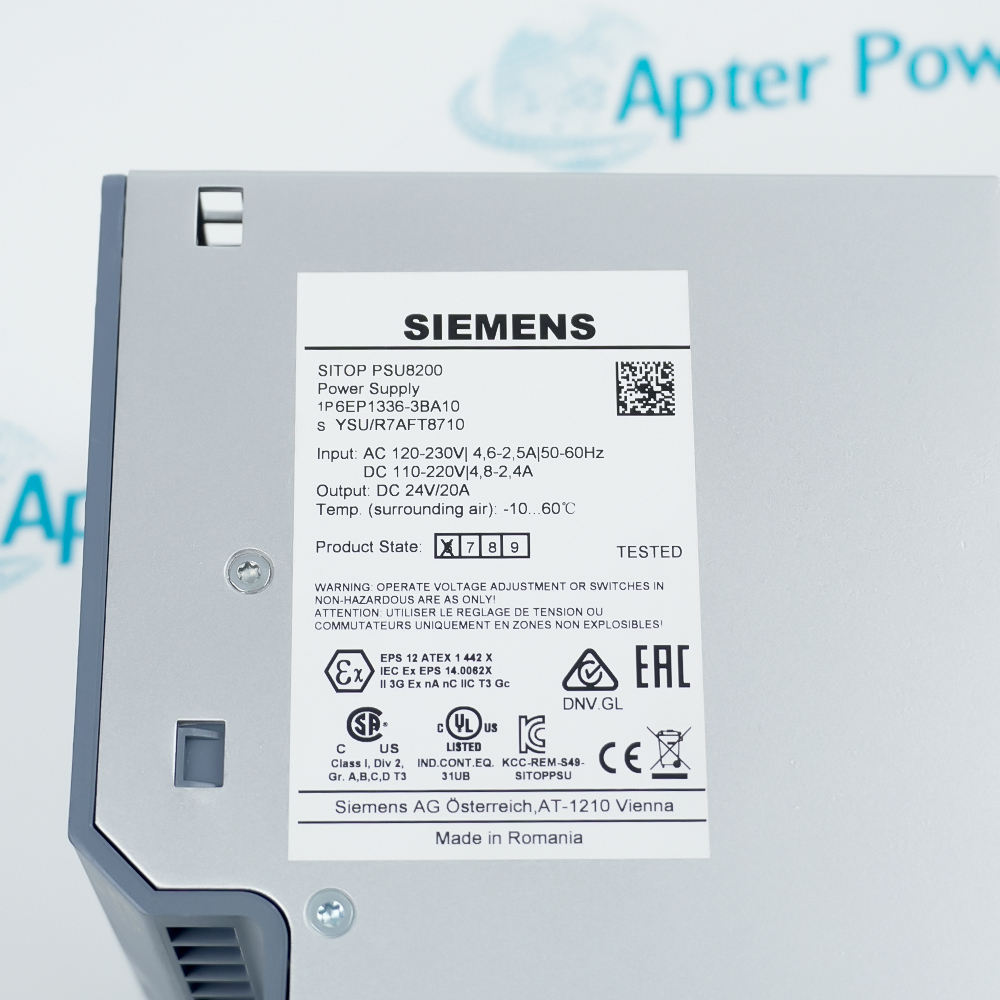

      Important Notice: Use the complete 6EP1336-3BA10 code and verify the physical nameplate and current Siemens documentation before installation or replacement.

      Apter Power 6EP1336-3BA10 Manuals and Guides

      Important Notice: These are two separate Apter Power documents prepared from the manufacturer-published Siemens information named in each document. Confirm the physical nameplate, current Siemens documents, and host-system requirements before installation or replacement.

      Automation cabinets
      Power PLC, HMI, I/O, and network equipment.
      Machine controls
      Provide stabilized 24 V DC for sensors and control circuits.
      Process skids
      Support a high-current control-power distribution branch.
      Read and follow the exact Siemens documentation and host-equipment instructions before use. Verify 6EP1336-3BA10 from the physical nameplate.
      1
      Isolate mains before wiring
      2
      Verify AC or DC input range and protective device
      3
      Size output conductors for 20 A
      4
      Maintain ventilation clearances
      5
      Set output voltage only within the documented range

      Alternative Names

      Alternative Names

      6EP1336-3BA10 6EP1336 3BA10 Siemens 6EP1336-3BA10 6EPI336-3BA10 6EPI336-3BAIO

      Technical notes

      Technical notes

      Use the complete 6EP1336-3BA10 identifier. Siemens lists 6EP1336-3BA10 as a PM300 active product. Values not published in the cited Siemens source are intentionally not inferred.

      FAQS

      • What is Siemens 6EP1336-3BA10?
        The Siemens 6EP1336-3BA10 is a SITOP PSU8200 regulated power supply. It converts single-phase AC or compatible DC input power into an adjustable, stabilized 24 V DC supply rated at 20 A for industrial control loads.
      • What is the specific function of 6EP1336-3BA10?
        It feeds PLCs, HMIs, sensors, relays, and other control equipment while providing the voltage reserve and industrial behavior defined for the PSU8200 family.
      • Which signals, power, or data does 6EP1336-3BA10 handle?
        Input: 120 to 230 V AC or 110 to 220 V DC nominal. AC input range: 85 to 275 V. DC input range: 88 to 350 V. Frequency: 47 to 63 Hz.
      • Which system uses 6EP1336-3BA10?
        6EP1336-3BA10 belongs to the SITOP context described in the cited Siemens source.
      • Which components are compatible with 6EP1336-3BA10?
        Industrial control loads within the 24 V DC / 20 A rating SITOP selectivity, redundancy, or buffering components approved for the design Panel protection, conductors, and ventilation sized to the installation manual
      • Where is 6EP1336-3BA10 applied?
        Automation cabinets: Power PLC, HMI, I/O, and network equipment. Machine controls: Provide stabilized 24 V DC for sensors and control circuits. Process skids: Support a high-current control-power distribution branch.
      • What is the lifecycle status of 6EP1336-3BA10?
        Siemens lists 6EP1336-3BA10 as a PM300 active product.
      • What must be checked before installing 6EP1336-3BA10?
        Isolate mains before wiring Verify AC or DC input range and protective device Size output conductors for 20 A Maintain ventilation clearances Set output voltage only within the documented range
