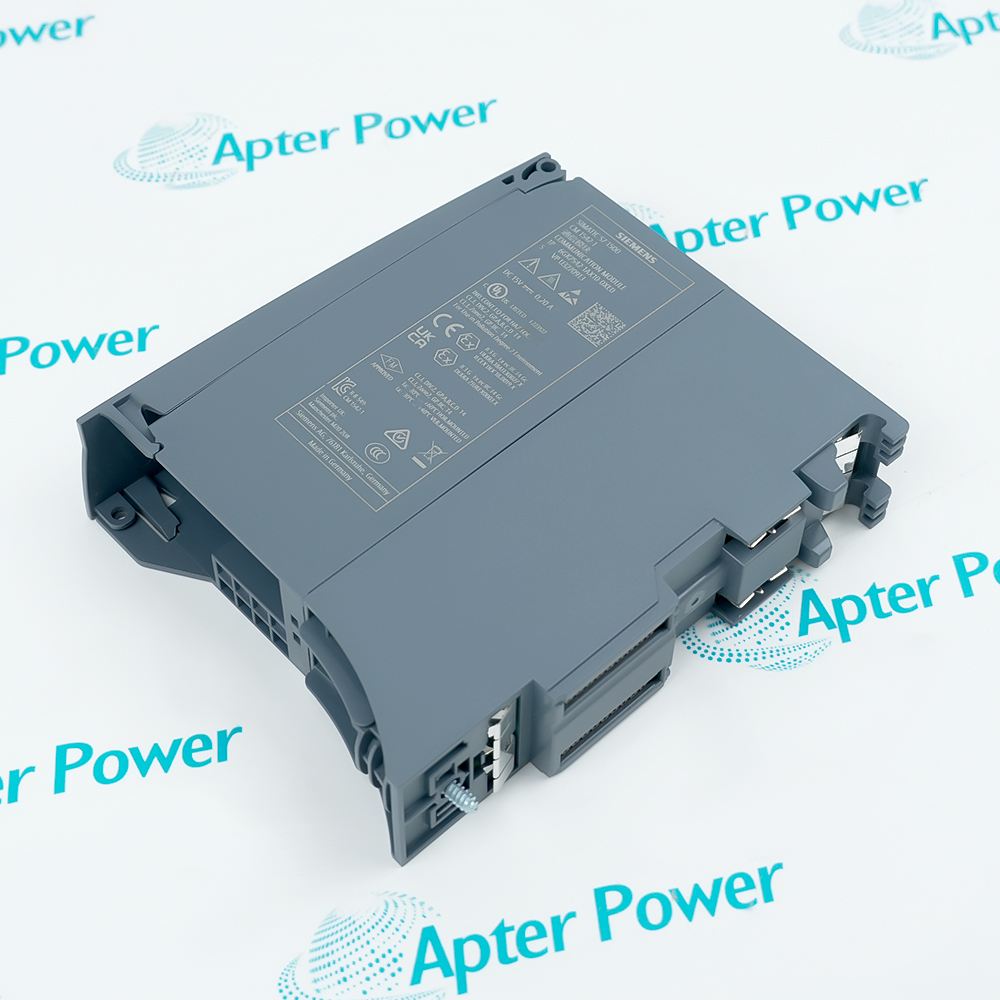

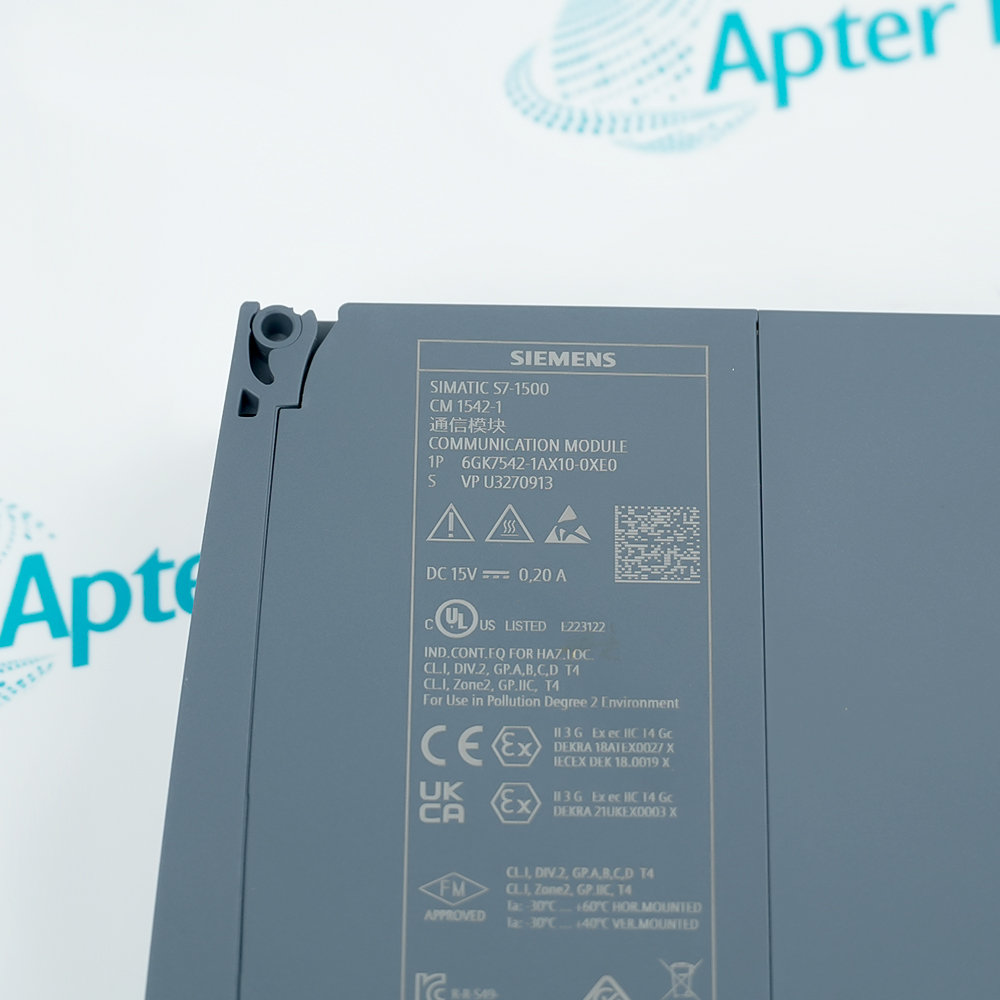

CM 1542-1 communications module for connecting
SIMATIC S7-1500 to PROFINET as IO Controller or IO Device,
TCP/IP, ISO-on-TCP, UDP, S7 communication, IP broadcast multicast,
SNMPV1, time synchronization via NTP, 2xRJ45 (100 Mbps).
The 6GK7542-1AX10-0XE0 is a single-width communication module supporting Industrial Ethernet connections at 100 Mbit/s. It operates with a 15 V DC supply via the backplane bus and is designed for PROFINET IO communication as a controller or device, configured with STEP 7 Professional V18 or higher.
Compact module S7-1500 single width
IP20 protection rating
Supports cross-segment static IPv4 routing forwarding up to 1 Mbps
The 6GK7542-1AX10-0XE0 integrates one Industrial Ethernet interface with switch functionality, providing two external RJ45 ports supporting a 100 Mbit/s transfer rate. Powered directly via the S7-1500 backplane bus (15 V DC) , it eliminates external 24V cabling. The firmware supports PROFINET IO (Controller/Device), open TCP/IP via T-blocks , S7 communication , MRP , static IP routing, and NTP/SICLOCK synchronization. Additionally, this 35 mm module supports up to 64 concurrent connections and manages 128 PROFINET IO devices. It operates from -30 to +60 °C and holds ATEX and IECEx hazardous-area certifications.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6GK7542-1AX10-0XE0 Communications Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Used for PROFINET control and data exchange between the main PLC, robot controllers, frequency inverters, and distributed I/O on automotive final assembly lines.
Water & Wastewater Treatment
Used to achieve cross-regional coordinated communication between multiple remote S7-1500 controllers in large pump stations or wastewater treatment plants via multi-protocol operation.
Oil & Gas
Used to connect control systems of natural gas pipeline compressor stations to the upper plant network, enabling real-time TCP/IP transmission of scheduling data.
Food & Beverage Processing
Functions as a PROFINET IO controller on automated canning and packaging lines to precisely control the synchronous operation of valve manifolds, filling heads, and conveyors.
Power Generation
Used in wind turbine generators to ensure precise timestamp consistency between inverters and the master control system using NTP time synchronization.
Semiconductor & Electronics
Integrates ultrapure water and gas supply systems within cleanrooms into the central monitoring network as an IO device.
When using 6GK7542-1AX10-0XE0, note that its two ports belong to a switch with a single IP address and cannot isolate two different subnets. Never connect both ports to the same external switch to prevent network loops. Ensure the firmware version in TIA Portal matches the physical module during configuration. Monitor communication loads via built-in web diagnostics or SNMP to prevent CPU cycle timeouts caused by excessive traffic.
The 6GK7542-1AX10-0XE0 supports PROFINET IO controller/device mode (up to 128 PN IO devices), open TCP/IP communication, and Media Redundancy Protocol (MRP), with an operating temperature range of -30 to +60 °C.
What interfaces does the 6GK7542-1AX10-0XE0 feature?
It features 1 Industrial Ethernet interface with 2 RJ45 ports (integrated switch functionality).
What is the transfer rate of the 6GK7542-1AX10-0XE0?
The Ethernet transfer rate of this module is 100 Mbit/s.
How is the 6GK7542-1AX10-0XE0 powered?
It is powered directly via the S7-1500 backplane bus (15 V DC), with a typical current consumption of 0.22 A.
