      6ES7288-3AQ02-0AA0

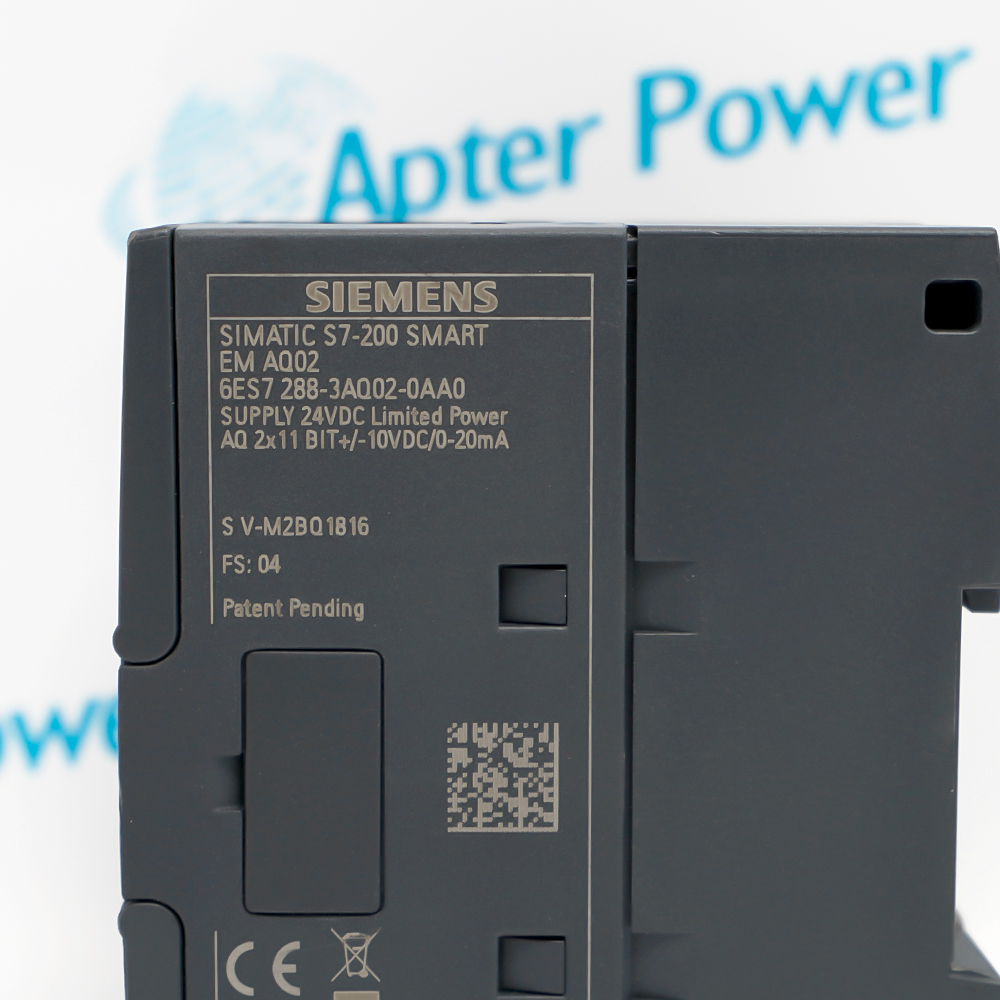

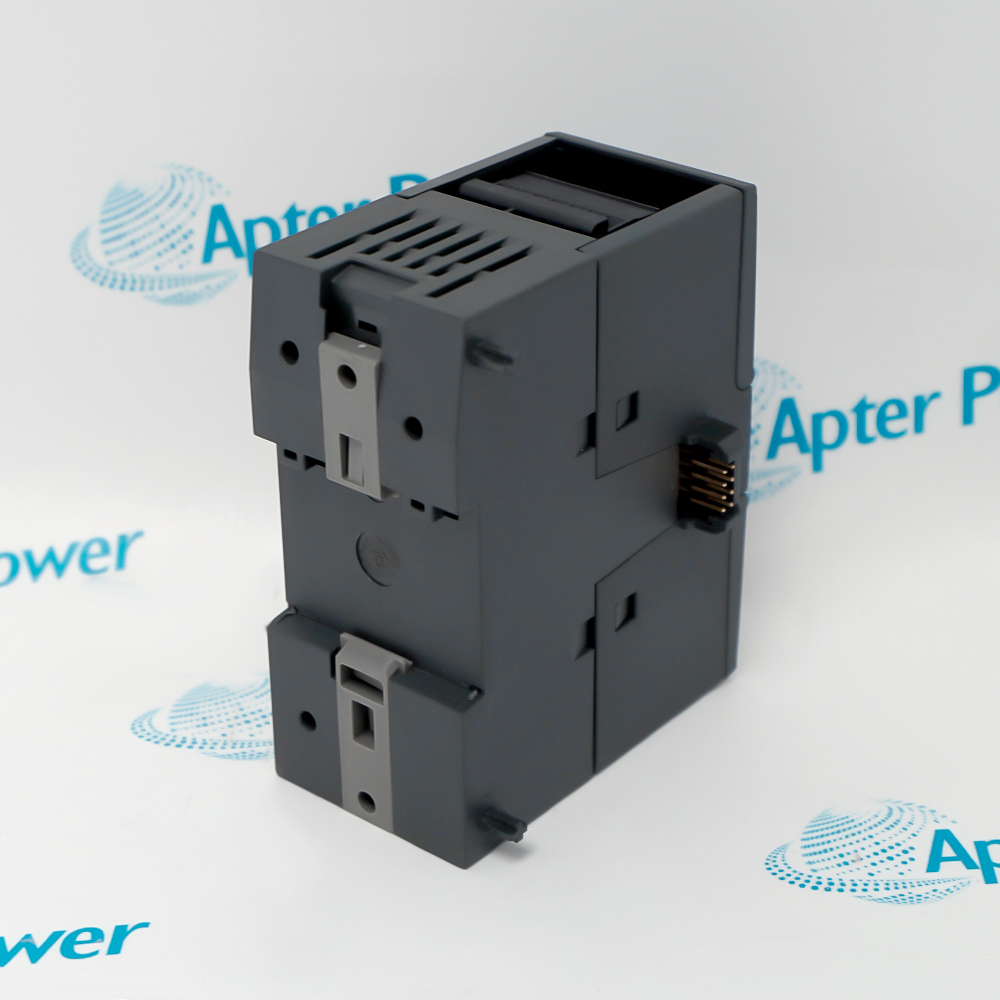

      SIMATIC S7-200 SMART SM AQ02 Analog Output Module

      Product Describe：

      Siemens 6ES7288-3AQ02-0AA0 provides channels that can be engineered for a supported output type so the compact controller can regulate two continuous field devices from the automation program.

      Ask our team:

      Get a quick price for： 6ES7288-3AQ02-0AA0
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 6ES7288-3AQ02-0AA0

      Technical specifications for 6ES7288-3AQ02-0AA0

      • Manufacturer:
        Siemens
      • Product Category:
        PLC Systems
      • Spare Part Number:
        6ES7288-3AQ02-0AA0
      • Estimated shipping dimensions:
        5.4x8x10cm
      • Weight:
        0.324 lbs (0.14 kg)
      • Tariff Code:
        8537101101
      • Counliy of origin:
        Germany
      • Module:
        SM AQ02
      • Analog outputs:
        2
      • Voltage output:
        +/-10 V, 11-bit
      • Current output:
        4 to 20 mA, 10-bit
      • Supply:
        24 V DC; 20.4 to 28.8 V
      • Voltage load:
        Minimum 1 kohm
      • Current load:
        Maximum 500 ohm
      • Protection:
        IP20
      • Dimensions:
        45 × 100 × 81 mm (W × H × D) — Siemens official technical data.
      • Weight:
        Approx. 0.1471 kg (0.324 lb) — Siemens official technical data for complete article number 6ES7288-3AQ02-0AA0.
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      The Siemens 6ES7288-3AQ02-0AA0 is an S7-200 SMART SM AQ02 analog output module with two channels. It converts PLC command values into standard voltage or current signals for actuators, drives, valves, and external indicators.
      • SM AQ02
      • 2
      • +/-10 V, 11-bit
      • 4 to 20 mA, 10-bit

      Each channel can be engineered for a supported output type so the compact controller can regulate two continuous field devices from the automation program.

      Important Notice: Use the complete 6ES7288-3AQ02-0AA0 code and verify the physical nameplate and current Siemens documentation before installation or replacement.

      Apter Power 6ES7288-3AQ02-0AA0 Manuals and Guides

      Important Notice: These are two separate Apter Power documents prepared from the manufacturer-published Siemens information named in each document. Confirm the physical nameplate, current Siemens documents, and host-system requirements before installation or replacement.

      Valve and actuator control
      Issue continuous 4 to 20 mA commands.
      Drive speed reference
      Provide a signed voltage setpoint where supported.
      Machine process control
      Generate two independently scaled analog outputs.
      Read and follow the exact Siemens documentation and host-equipment instructions before use. Verify 6ES7288-3AQ02-0AA0 from the physical nameplate.
      1
      Configure voltage or current mode before connecting the load
      2
      Respect minimum and maximum load resistance
      3
      Separate analog wiring from power switching cables
      4
      Verify scaling and safe fallback values
      5
      Test each channel with the actuator isolated where possible

      Alternative Names

      Alternative Names

      6ES7288-3AQ02-0AA0 6ES7288 3AQ02 0AA0 Siemens 6ES7288-3AQ02-0AA0

      Technical notes

      Technical notes

      Use the complete 6ES7288-3AQ02-0AA0 identifier. Siemens lists 6ES7288-3AQ02-0AA0 as an active S7-200 SMART module. Values not published in the cited Siemens source are intentionally not inferred.

      FAQS

      • What is Siemens 6ES7288-3AQ02-0AA0?
        The Siemens 6ES7288-3AQ02-0AA0 is an S7-200 SMART SM AQ02 analog output module with two channels. It converts PLC command values into standard voltage or current signals for actuators, drives, valves, and external indicators.
      • What is the specific function of 6ES7288-3AQ02-0AA0?
        Each channel can be engineered for a supported output type so the compact controller can regulate two continuous field devices from the automation program.
      • Which signals, power, or data does 6ES7288-3AQ02-0AA0 handle?
        Module: SM AQ02. Analog outputs: 2. Voltage output: +/-10 V, 11-bit. Current output: 4 to 20 mA, 10-bit.
      • Which system uses 6ES7288-3AQ02-0AA0?
        6ES7288-3AQ02-0AA0 belongs to the SIMATIC S7-200 SMART context described in the cited Siemens source.
      • Which components are compatible with 6ES7288-3AQ02-0AA0?
        SIMATIC S7-200 SMART CPU and expansion bus Valves, drives, and instruments accepting a documented output range 24 V DC module supply and field wiring designed to Siemens limits
      • Where is 6ES7288-3AQ02-0AA0 applied?
        Valve and actuator control: Issue continuous 4 to 20 mA commands. Drive speed reference: Provide a signed voltage setpoint where supported. Machine process control: Generate two independently scaled analog outputs.
      • What is the lifecycle status of 6ES7288-3AQ02-0AA0?
        Siemens lists 6ES7288-3AQ02-0AA0 as an active S7-200 SMART module.
      • What must be checked before installing 6ES7288-3AQ02-0AA0?
        Configure voltage or current mode before connecting the load Respect minimum and maximum load resistance Separate analog wiring from power switching cables Verify scaling and safe fallback values Test each channel with the actuator isolated where possible
