      6ES7153-2AA02-0XB0

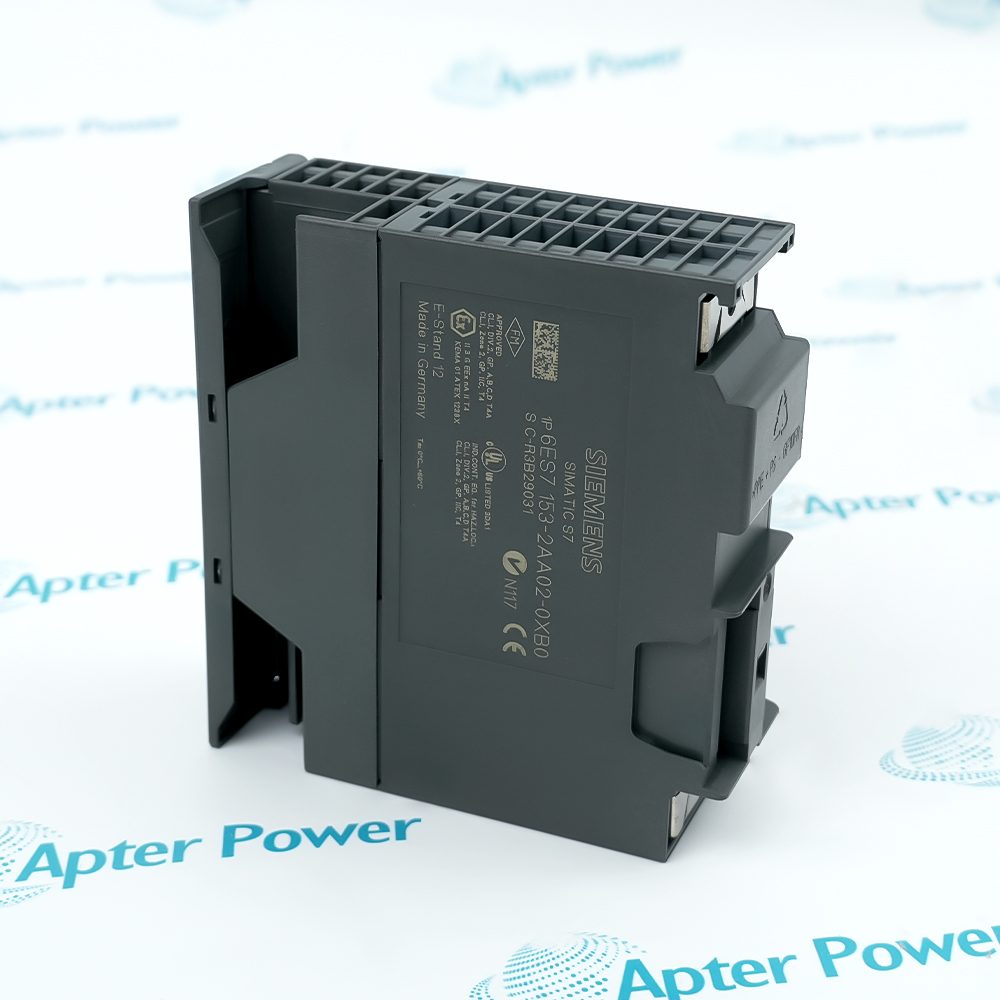

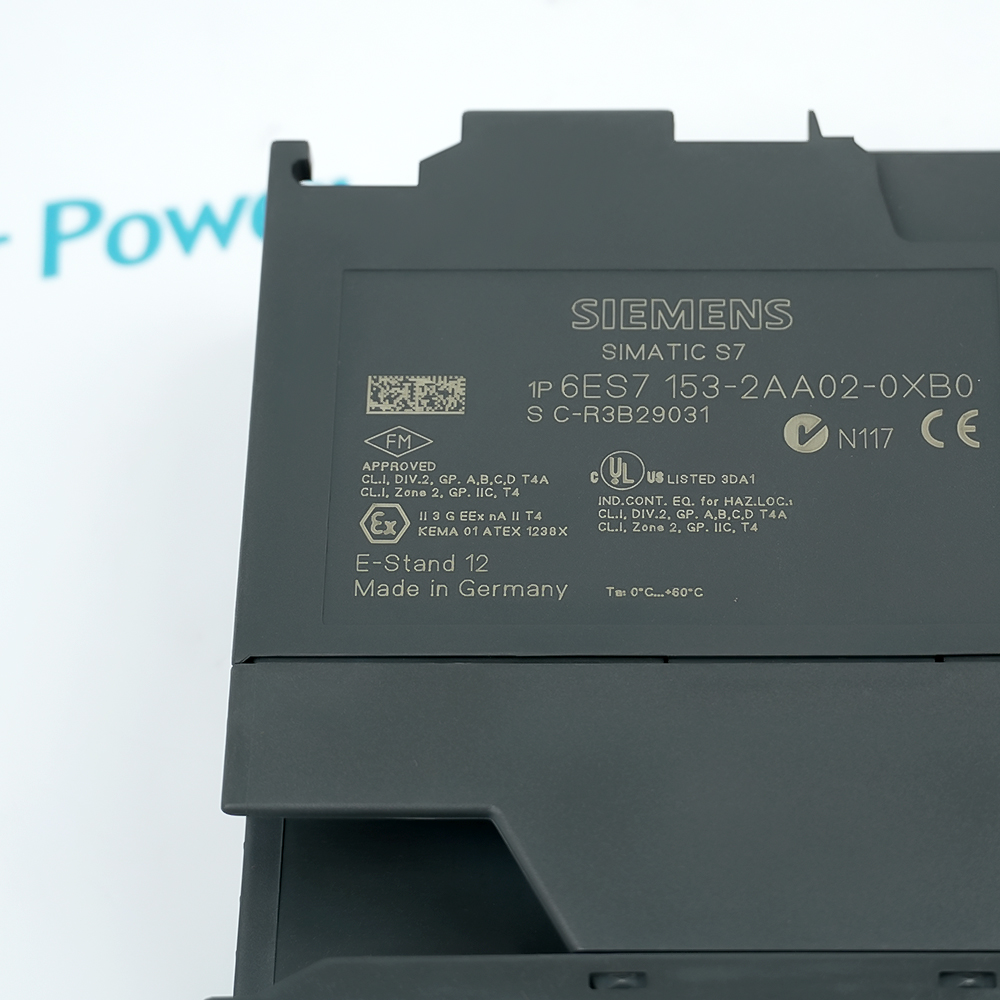

      SIMATIC ET 200M IM 153-2 DP Interface Module
      In Stock
      Ships by Thursday, November 12
      Fast Shipping Available
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      Siemens 6ES7153-2AA02-0XB0 is an IM 153-2 interface module for the SIMATIC ET 200M distributed I/O device. It links S7-300 signal modules to a PROFIBUS DP master for cyclic process-data exchange.

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 6ES7153-2AA02-0XB0
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 6ES7153-2AA02-0XB0

      • Manufacturer:
        Siemens
      • Product Category:
        PLC Systems
      • Spare Part Number:
        6ES7153-2AA02-0XB0
      • Estimated shipping dimensions:
        4x11.6x12.5cm
      • Weight:
        0.26 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Interface designation:
        IM 153-2
      • Distributed I/O family:
        ET 200M
      • Fieldbus:
        PROFIBUS DP
      • Redundancy modes:
        Software redundancy; System Redundancy (SR)
      • GSD redundant mode:
        DPV0
      • GSD revision:
        5
      • Active bus module options:
        6ES7195-7HD10-0XA0; 6ES7195-7HD80-0XA0
      • Dual-interface bus module:
        BM IM/IM
      • Supported H-system host:
        SIMATIC S7-400H
      • Order number:
        6ES7153-2AA02-0XB0
      View as PDF Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      Siemens 6ES7153-2AA02-0XB0 is an IM 153-2 interface module for the SIMATIC ET 200M distributed I/O device. It links S7-300 signal modules to a PROFIBUS DP master for cyclic process-data exchange.
      • Operates S7-300 signal modules as an ET 200M DP slave
      • Exchanges cyclic I/O data with a PROFIBUS DP master
      • Supports software and system redundancy arrangements
      • Provides a defined interface position for distributed I/O commissioning

      6ES7153-2AA02-0XB0 installs with ET 200M active bus module, S7-300 digital or analog signal modules, PROFIBUS DP master, STEP 7 project with the applicable GSD in an engineered SIMATIC ET 200M distributed I/O configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this simatic et 200m im 153-2 dp interface module.

      Important Notice: Confirm the complete 6ES7153-2AA02-0XB0 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 6ES7153-2AA02-0XB0 Manuals and Guides
      Apter Power 6ES7153-2AA02-0XB0 Product Technical Reference PDFRequest document
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      ET 200M remote I/O stationsOperates S7-300 signal modules as an ET 200M DP slave
      S7-400H redundant automationExchanges cyclic I/O data with a PROFIBUS DP master
      Distributed process instrumentationSupports software and system redundancy arrangements
      Software-redundant DP installationsProvides a defined interface position for distributed I/O commissioning
      Read the applicable Siemens installation instructions before work. Verify 6ES7153-2AA02-0XB0 and the installed SIMATIC ET 200M distributed I/O configuration.
      1Verify the complete 6ES7153-2AA02-0XB0 marking and the assigned SIMATIC ET 200M distributed I/O position before field work.
      2Isolate the applicable power, bus and field energy before disconnecting 6ES7153-2AA02-0XB0.
      3Use ESD controls and protect the keyed connectors and backplane interface of 6ES7153-2AA02-0XB0.
      4Record the installed wiring, station address and configuration before replacement of 6ES7153-2AA02-0XB0.
      5Confirm ET 200M active bus module and S7-300 digital or analog signal modules against the approved project configuration.
      6Restore 6ES7153-2AA02-0XB0 under controlled conditions and review module diagnostics before release.
      7Run a limited functional test for et 200m remote i/o stations before returning the process to automatic control.
      8Retain the as-left settings, diagnostic status and test evidence for 6ES7153-2AA02-0XB0 in the maintenance record.

      Technical notes

      Mount the IM 153-2 on the documented ET 200M bus module, import the applicable GSD revision into the engineering tool, and verify the PROFIBUS station address before commissioning.
