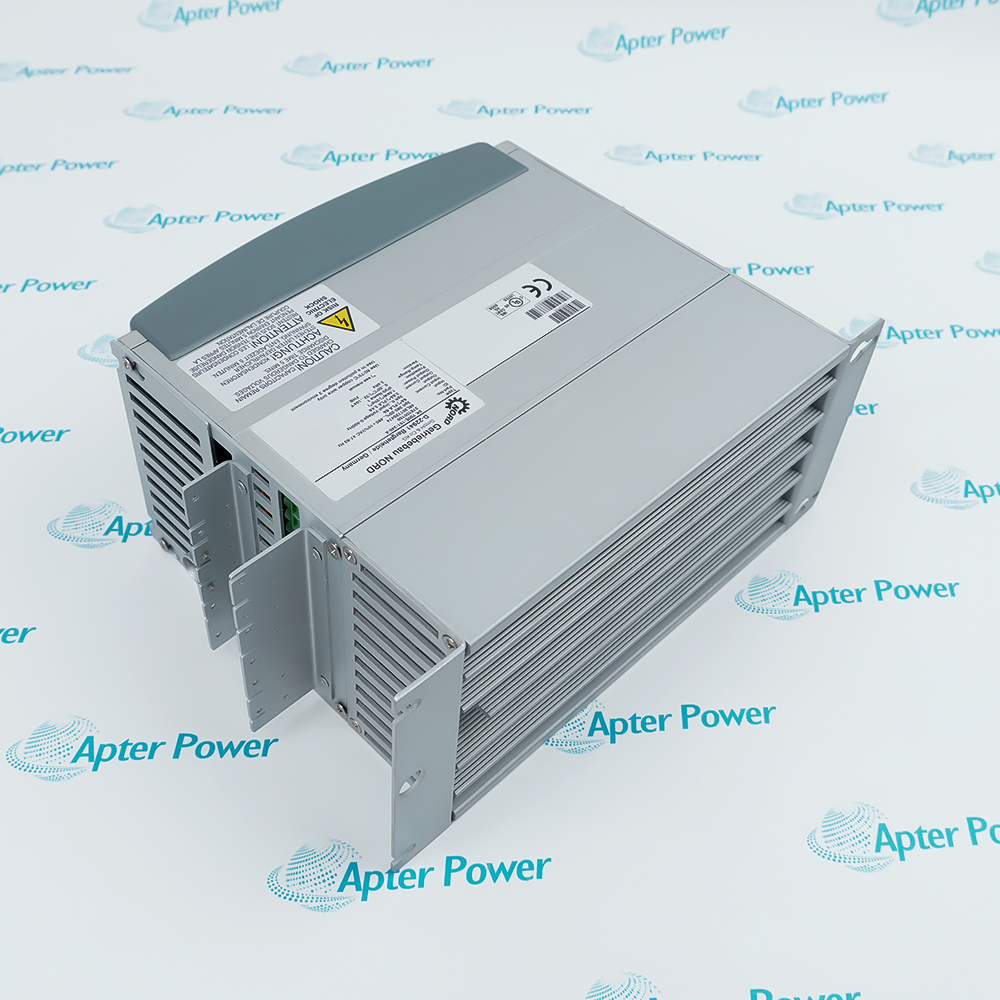

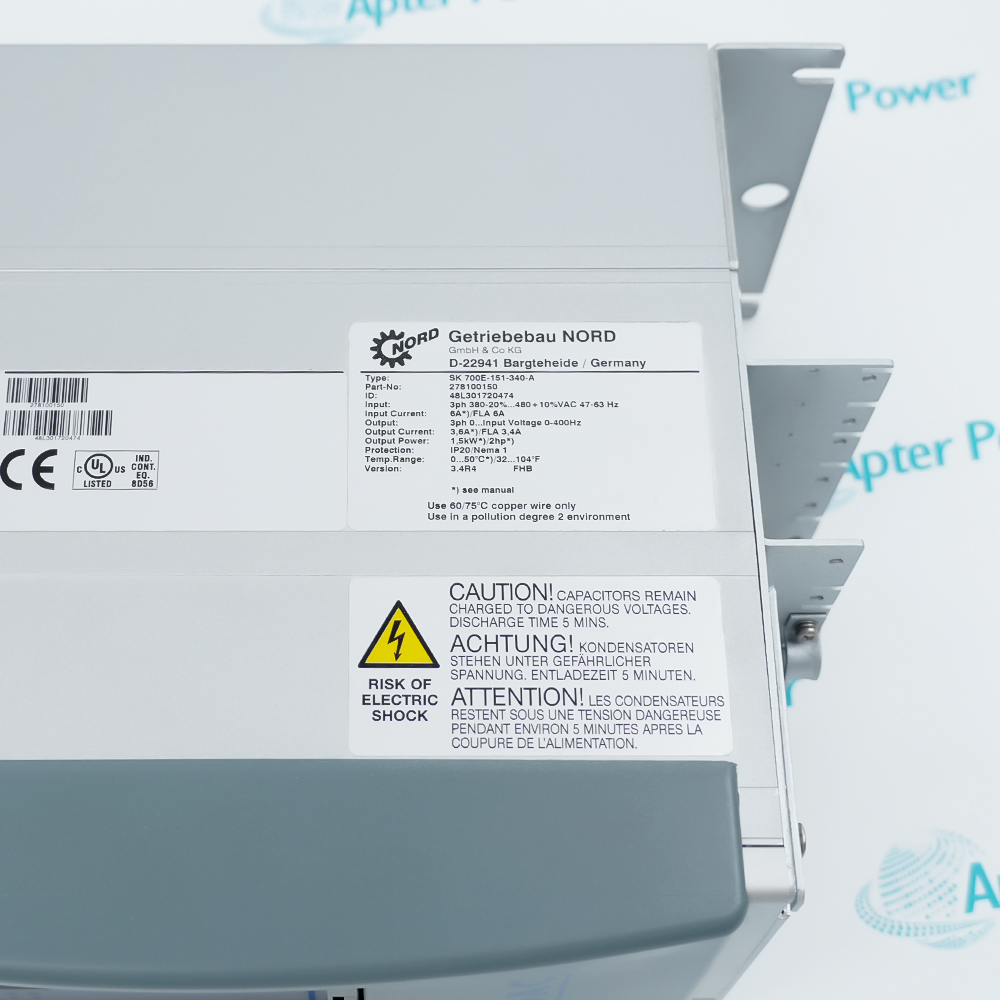

Technical specifications for SK700E-151-340-A
-
Manufacturer:Nord
-
Product Category:General Automation
-
Spare Part Number:SK700E-151-340-A
-
Estimated shipping dimensions:21.9×12.3×28.1cm
-
Weight:4 kg
-
Tariff Code:8537101190
-
Counliy of origin:Germany
-
Product type:Frequency inverter
-
Construction size:1
-
Rated motor power at 400 V:1.5 kW
-
Rated motor power at 460...480 V:2 hp
-
Mains voltage:3 AC 380...480 V; -20% / +10%
-
Mains frequency:47...63 Hz
-
Output voltage:3 AC 0 V to mains voltage
-
Output current, RMS:3.6 A
-
Input current, RMS:6 A
-
Recommended mains fuse:10 A
-
Recommended braking resistance:200 ohm
-
Minimum braking resistance:90 ohm
-
Cooling method:Convection
-
VDE terminal cross-section:4 mm2
-
UL/cUL terminal range:AWG 24...10
-
UL full-load output current:3.4 A
-
UL Class J fuse:LPJ 10 A
-
Bottom-mount line filter:SK LF1-460/14-F
-
Standard line filter:HLD 110-500/8
Information
Overview
Manuals
Common Applications
Product Precautions
NORDAC SK 700E Frequency Inverter provides the documented interface for its installed NORDAC SK 700E variable-frequency drive system.
- Delivers variable output voltage from zero to the applied mains level
- Uses convection cooling in construction size 1
- Provides an integrated braking-resistor connection for dynamic deceleration
- Supports parameterized motor control through the NORDAC SK 700E control interfaces
Controls the speed and torque-producing frequency supplied to a three-phase motor within the documented NORDAC SK 700E drive arrangement. The installation uses the manufacturer-specified host position, companion hardware and field/control wiring for the intended industrial application.
System commissioning includes identity checks, connection verification, controlled energization and functional diagnostics for SK700E-151-340-A.
Important Notice: Confirm the complete SK700E-151-340-A marking, approved system arrangement, connection records and controlled functional test before commissioning or replacement.
Apter Power SK700E-151-340-A Manuals and Guides
Apter Power SK700E-151-340-A Product Technical Reference PDFNORD SK700E-151-340-A Operating Instructions PDF
The first document organizes model-specific technical identity and engineering data. The second is the directly related NORD operating manual for installation, electrical connection, parameterization and commissioning.
Conveyor and material-handling drivesThree-phase 380...480 V mains supply supports the engineered SK700E-151-340-A arrangement.
Pump and fan speed regulationThree-phase induction motor supports the engineered SK700E-151-340-A arrangement.
Machine-axis retrofitSpecified braking resistor when required supports the engineered SK700E-151-340-A arrangement.
Process-equipment motor controlApproved line filter and shielded motor cable supports the engineered SK700E-151-340-A arrangement.
Read the applicable Nord installation instructions before work. Verify SK700E-151-340-A and the installed-system configuration.
1Verify the complete SK700E-151-340-A designation and construction-size 1 enclosure before disconnecting conductors.
2Open the upstream disconnect and confirm the DC link is discharged before touching mains, motor or braking terminals.
3Record the installed motor nameplate data, active parameter set and terminal assignments before replacement.
4Use the documented 4 mm2 VDE or AWG 24...10 UL/cUL terminal range and maintain protective-earth continuity.
5Route the motor and braking-resistor conductors separately from low-level control wiring and maintain shield termination.
6Confirm that any SK LF1-460/14-F or HLD 110-500/8 line filter remains in the documented location and wiring order.
7Restore the approved motor, acceleration, deceleration and protection parameters before enabling run commands.
8Commission at controlled speed, verify motor rotation and braking response, and record the final fault-free operating state.
Technical notes
Isolate the three-phase mains and wait for the DC link to discharge before terminal work; preserve the motor data and parameter set, then verify rotation, acceleration, braking and fault handling under controlled conditions.
FAQ View All FAQ
-
What motor power is assigned to NORD SK700E-151-340-A?NORD BU 0700 lists 1.5 kW at 400 V and 2 hp at 460...480 V for SK700E-151-340-A.
-
Which mains supply is required by NORD SK700E-151-340-A?The manual specifies a three-phase 380...480 V supply with -20% / +10% voltage tolerance and 47...63 Hz frequency.
-
What output current should be used when checking NORD SK700E-151-340-A?The technical table lists 3.6 A RMS output current; the separate UL table lists 3.4 A full-load output current.
-
Which fuse rating is documented for NORD SK700E-151-340-A?The standard technical table specifies a 10 A mains fuse, while the UL/cUL table identifies an LPJ 10 A Class J fuse.
-
Which braking resistor matches NORD SK700E-151-340-A?BU 0700 lists 200 ohm as the recommended resistance and 90 ohm as the minimum permitted resistance for this drive size.
-
What terminal conductor range applies to NORD SK700E-151-340-A?NORD specifies 4 mm2 for VDE wiring and AWG 24...10 for UL/cUL terminal conductors in the applicable size group.
-
Which line filters are listed for NORD SK700E-151-340-A?The manual groups this model with the SK LF1-460/14-F bottom-mount filter and the HLD 110-500/8 standard line filter.
-
How should NORD SK700E-151-340-A be commissioned after replacement?Restore the approved motor and drive parameters, then check rotation, acceleration, deceleration, braking and fault handling with the machine in a controlled state.
