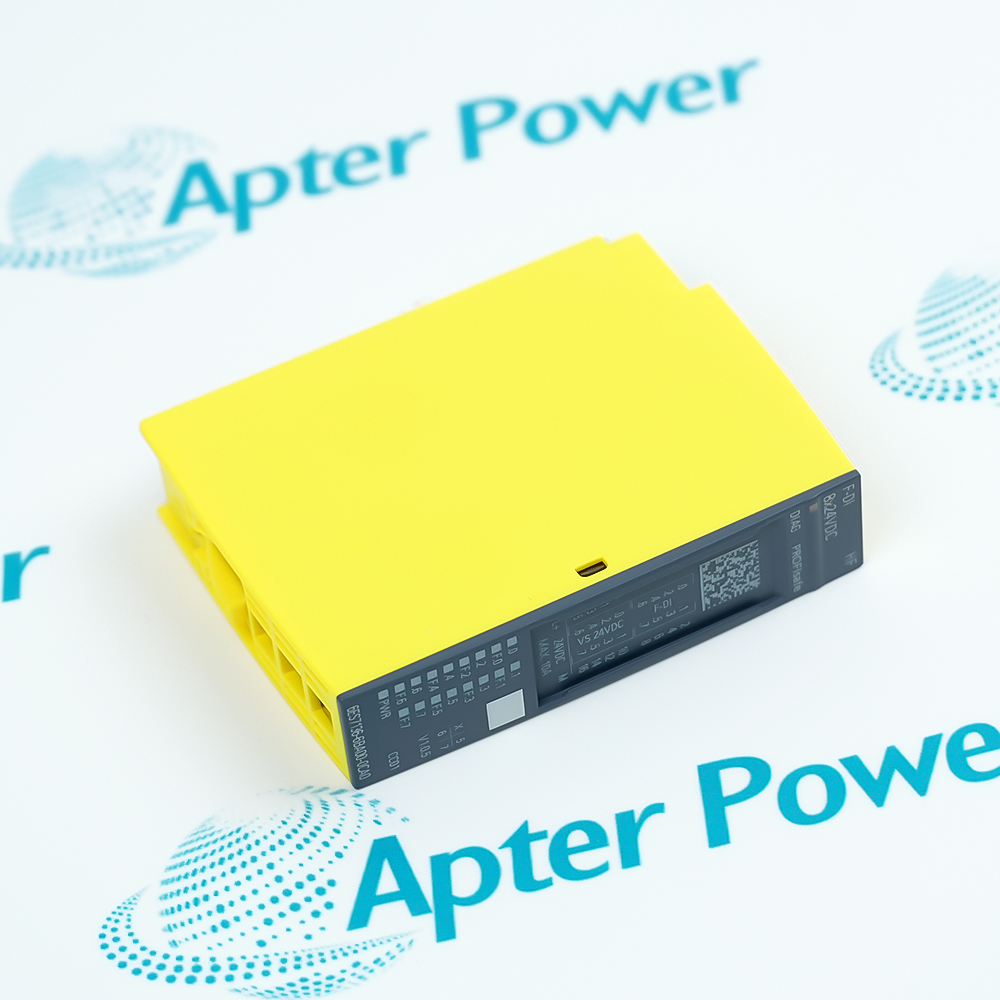

6ES7136-6BA00-0CA0 is a Siemens SIMATIC ET 200SP fail-safe digital input module with eight 24 V DC high-feature inputs in a 15 mm housing. In a correctly engineered safety application it supports safety functions up to PL e and SIL 3.
- Siemens
- F-DI 8x24VDC HF
- 8
- 24 V DC
The module acquires safety-related 24 V DC signals from devices such as emergency-stop contacts, guard switches, and safety sensors, evaluates configured discrepancy and diagnostics, and transfers fail-safe input data to an F-CPU.
Important Notice: Use the complete 6ES7136-6BA00-0CA0 code and verify the physical nameplate and current Siemens documentation before installation or replacement.
Apter Power 6ES7136-6BA00-0CA0 Manuals and Guides
Important Notice: These are two separate Apter Power documents with distinct layouts and model-specific content, prepared from the manufacturer-published Siemens information named in each document. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.
SIMATIC ET 200SP fail-safe I/O
Maintains the documented fail-safe signal acquisition and safety validation role in a correctly matched installation.
Process and machine automation
Supports the control, communication, power, safety, measurement, or protection duty stated in the official source for this exact or verified family identity.
Lifecycle-controlled maintenance
Requires complete-code, nameplate, host-system, and project verification before replacement or recommissioning.
Read and follow the exact Siemens documentation and host-equipment instructions before use. Verify 6ES7136-6BA00-0CA0 from the physical nameplate.
Check 1

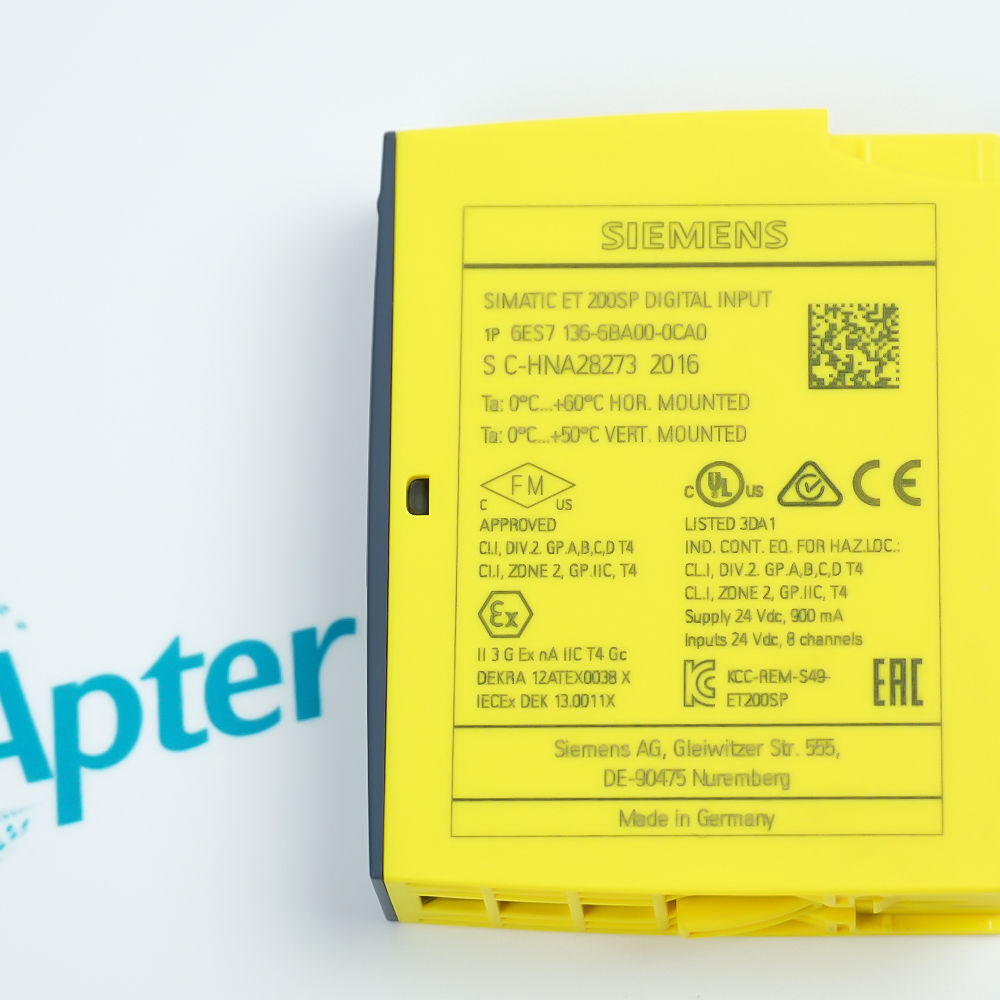

Match every character of 6ES7136-6BA00-0CA0 to the physical nameplate before work.
Check 2
Use the exact Siemens manual, wiring drawing, and safety instructions for the installed revision.
Check 3
De-energize and apply the required lockout, discharge, ESD, and stored-energy controls before removal.
Check 4
Back up firmware, parameters, controller project, calibration, and network settings where applicable.
Check 5
Verify supply, signal type, polarity, grounding, shielding, connector pinout, load, and environmental limits.
Check 6
Commission with the manufacturer test procedure and record results before returning equipment to service.
