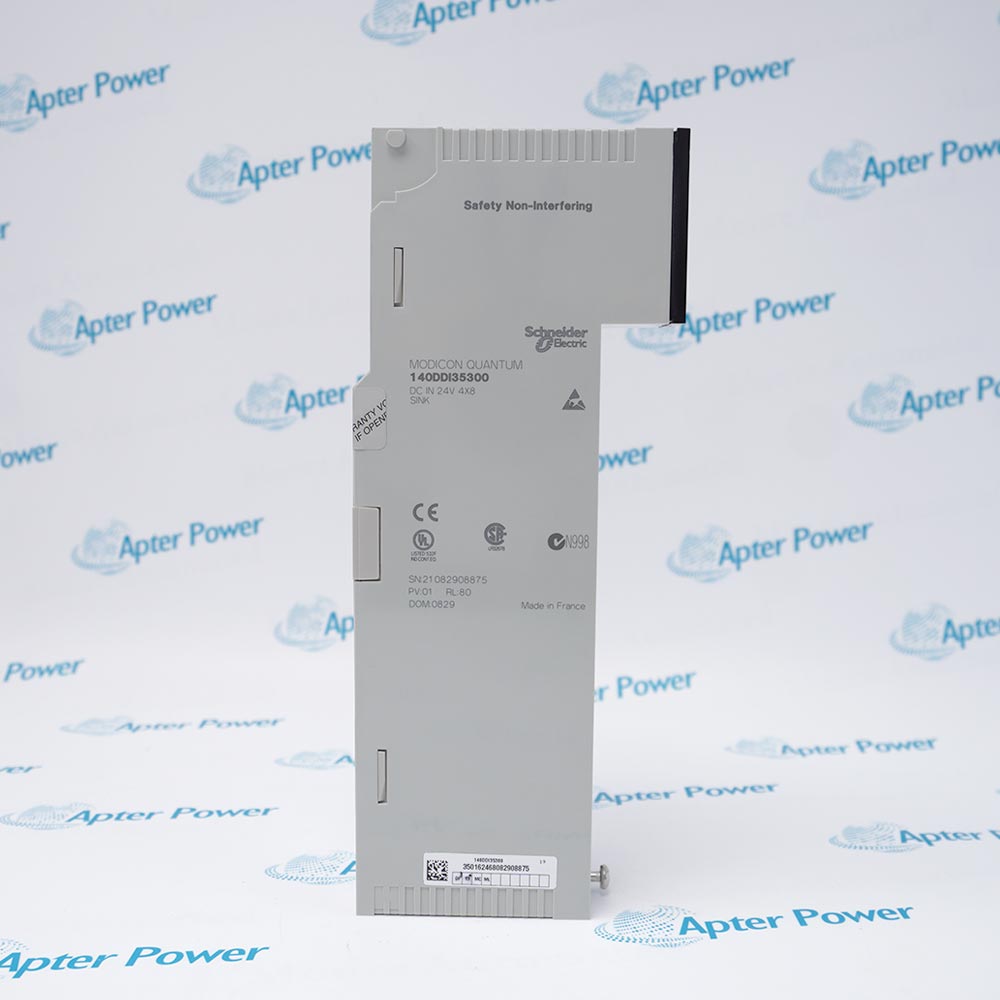

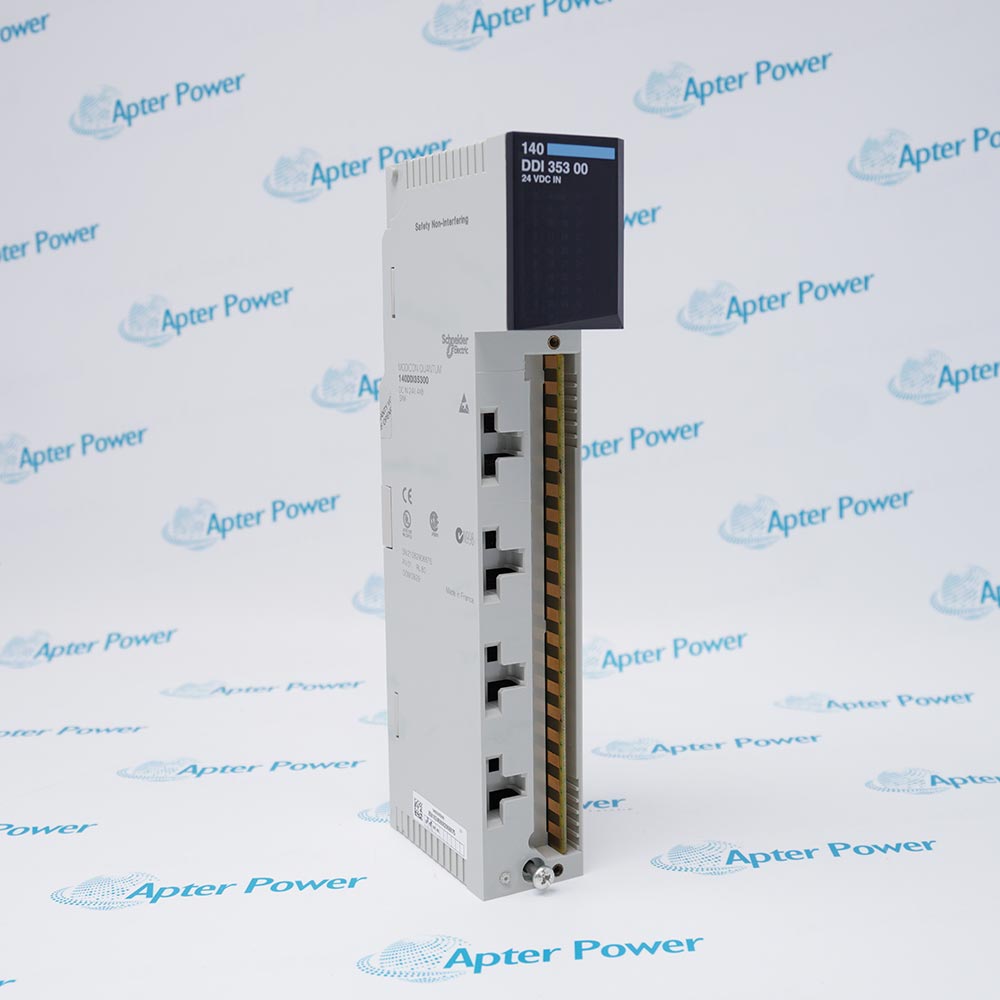

      140DDI35300

      Discrete Input Module
      In Stock
      Ships by Sunday, October 18
      Fast Shipping Available

      Product Describe：

      Schneider Electric 140DDI35300 is a Modicon Quantum 32-channel, 24 V DC discrete input module arranged as four positive-logic sink groups.

      Ask our team:

      Get a quick price for： 140DDI35300
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 140DDI35300

      Technical specifications for 140DDI35300

      • Manufacturer:
        Schneider Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        140-DDI-353-00
      • Estimated shipping dimensions:
        31x16.5x5cm
      • Weight:
        0.4 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        France
      • Input count:
        32
      • Nominal input:
        24 V DC
      • Logic / topology:
        Positive logic / sink input
      • Channel grouping:
        4 groups of 8
      • Addressing:
        2 input words
      • Backplane current:
        330 mA
      • Hot-swap behavior:
        Non-interfering module
      • Platform:
        Modicon Quantum
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Schneider Electric 140DDI35300 collects thirty-two 24 V DC field states for the Quantum controller through four groups of eight inputs.
      • 32 discrete inputs
      • 24 V DC positive logic
      • Four groups of eight
      • Two input-word addressing

      The module reads field voltage through its grouped terminal circuits and transfers two input words across the Quantum backplane. Input commons, sensor supply, channel labels and the PLC address map form the installation baseline.

      Important Notice: Verify the sink-input wiring convention, field-supply polarity and group commons before energizing. Do not assume an output module or another DDI suffix uses the same terminal arrangement.

      Schneider Electric 140DDI35300 Manuals & Downloads
      Schneider Electric 140DDI35300 Technical Reference (PDF)Schneider Electric 140DDI35300 Official Manual Excerpt (PDF)

      The technical reference is specific to 140DDI35300. The official Schneider Electric Quantum hardware manual directly lists 140DDI35300 and covers the applicable input-module configuration and wiring details.

      Sensor-state acquisition
      Reads 24 V DC proximity switches and other documented discrete sources.
      Machine permissives
      Supplies field interlock states to the Quantum application.
      Alarm contacts
      Collects configured dry-contact circuits through the designed field supply.
      Input module renewal
      Restores channel labels, group commons and input-word mapping for the exact reference.
      Schneider Electric 140DDI35300 installation checks: retain the exact identity, installed configuration and witnessed acceptance record throughout the work.
      1
      Confirm 140DDI35300 and the associated terminal block.
      2
      Place the controlled process in the approved maintenance condition.
      3
      Record input addresses, group commons and sensor-supply polarity.
      4
      Label every conductor and retain the cabinet drawing reference.
      5
      Remove rack and field power before module or terminal work.
      6
      Inspect field fusing, grounding and cable condition.
      7
      Restore each input to its documented terminal and word bit.
      8
      Energize safely and prove all thirty-two states against the PLC monitor.

      Technical notes

      Technical notes

      For 140DDI35300, retain the exact manufacturer identifier with the installed drawing, software or wiring baseline. Return the equipment to service only after the relevant diagnostics and model-specific field response have been recorded.

      FAQS

      • How many inputs does Schneider Electric 140DDI35300 provide?
        It provides 32 discrete inputs arranged as four groups of eight.
      • What signal level does Schneider Electric 140DDI35300 use?
        It is specified for 24 V DC positive-logic input circuits.
      • How is Schneider Electric 140DDI35300 addressed?
        The module occupies two input words in the Quantum I/O map.
      • What backplane current does Schneider Electric 140DDI35300 require?
        The manufacturer catalogue specifies 330 mA.
      • Is Schneider Electric 140DDI35300 non-interfering?
        Yes. The published Quantum module data identifies it as non-interfering.
      • What wiring data must be retained for Schneider Electric 140DDI35300?
        Keep channel labels, group commons, field-supply polarity, terminal numbers and input-word mapping.
      • What should be checked before energizing Schneider Electric 140DDI35300?
        Check terminal identity, conductor placement, common polarity, fusing and secure module seating.
      • How is Schneider Electric 140DDI35300 functionally tested?
        Operate or simulate each approved field state and compare the physical circuit, LED indication and PLC input bit.
