Technical specifications for QUINT-PS-100-240AC/24DC/10 2938604
-
Manufacturer:Phoenix Contact
-
Product Category:General Automation
-
Spare Part Number:QUINT-PS-100-240AC/24DC/10
-
Estimated shipping dimensions:12.7 cm x 12.7 cm x 12.7 cm
-
Weight:0.8 kg
-
Tariff Code:8537101190
-
Counliy of origin:Germany
-
Nominal input voltage range:100 V AC ... 240 V AC
-
Input voltage range:85 V AC ... 264 V AC
-
AC frequency range:45 Hz ... 65 Hz
-
Discharge current to PE:< 3.5 mA
-
Nominal power consumption:264 W
-
Inrush surge current:< 15 A (typical)
-
Mains buffering:> 50 ms (120 V AC)
-
Input fuse:6.3 A
-
Choice of suitable circuit breakers:10 A ... 16 A
Information
Overview
Manuals
Main functional features
Need More Info
- DIN rail power supply unit 24 V DC/10 A
- primary-switched
- Transient surge protection; Varistor

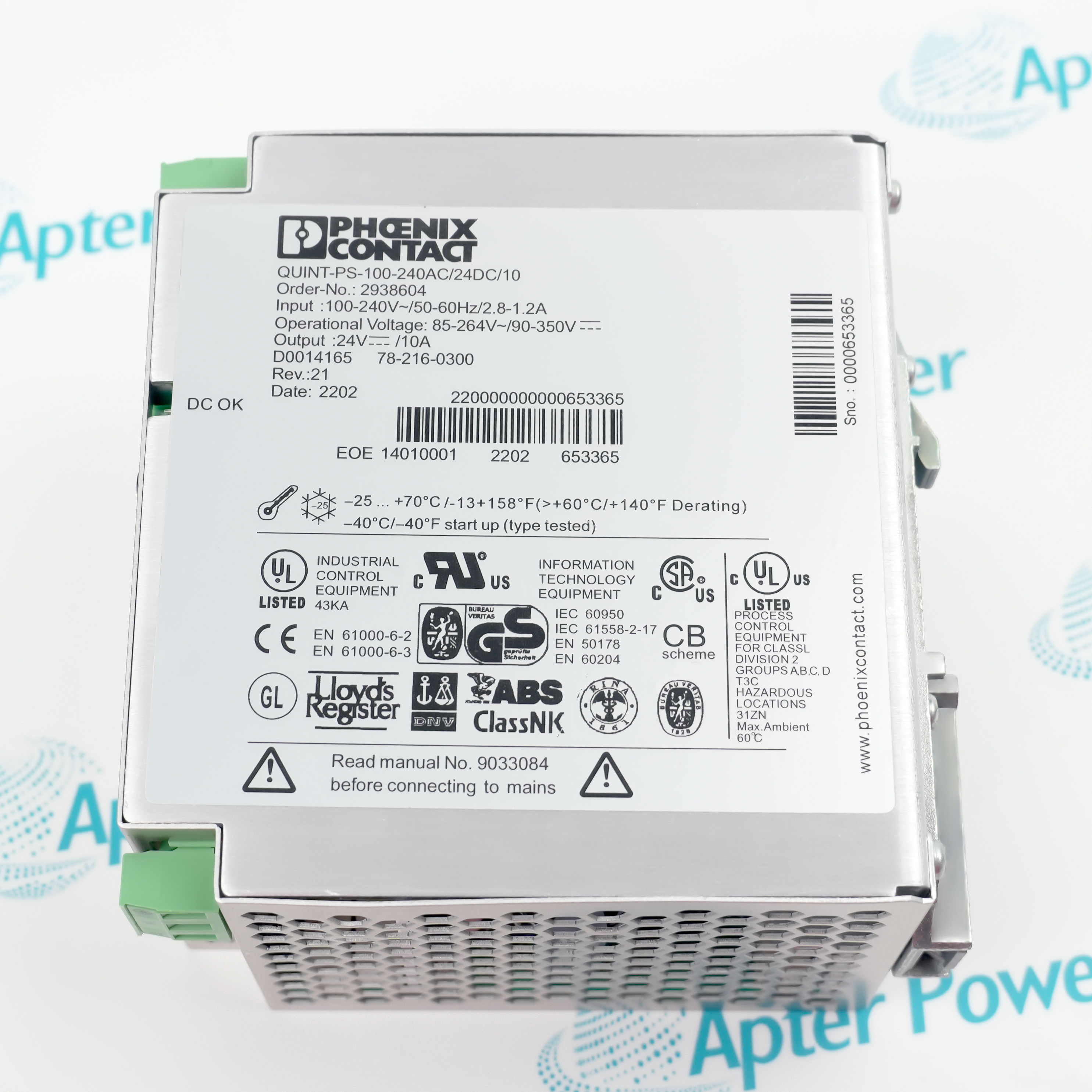

The QUINT-PS-100-240AC/24DC/10 (order number 2938604) is an industrial grade QUINT POWER series single-phase rail mounted switch power supply produced by Phoenix Contact. This model provides stable 24V DC output, mainly used to provide reliable power supply for heavy-duty equipment in factories and special projects.
This power supply features high efficiency and robust design, providing continuous 10 A output while maintaining voltage stability under varying load conditions. Its built-in protection mechanisms safeguard connected equipment from overload, short circuits, and voltage fluctuations.
Built for demanding industrial applications, the QUINT-PS100-240AC/24DC/10 supports long-term operation in control cabinets and automation setups. Its durable construction and reliable performance make it ideal for manufacturing, process control, and energy management systems.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
PHOENIX CONTACT QUINT-PS100-240AC/24DC/10 2938604 POWER SUPPLY Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Boost: It can reliably start heavy loads without causing voltage drops.
Preventive functional monitoring: equipped with "DC OK" active switch output and no voltage relay contacts for remote diagnosis and status indication (LED lights).
Durable design: Adopting a metal casing with IP20 protection level, supporting parallel connection for redundancy or increased capacity.
Certification: Obtained multiple international certifications, including UL 508 (listed), UL 60950-1 (recognized), DNV GL (ship certification), and Class I, Division 2 hazardous area certification.
We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.
With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!
FAQ View All FAQ
-
What is the PHOENIX CONTACT QUINT-PS100-240AC/24DC/10 2938604 Power Supply?The QUINT-PS100-240AC/24DC/10 2938604 is an industrial power supply module that converts AC voltage into a stable 24 VDC output for automation and control systems.
-
What are the basic specifications of the QUINT-PS100-240AC/24DC/10 2938604 Power Supply?It provides a regulated 24 VDC output with a maximum current of 10 A, high efficiency, and supports standard industrial input voltages from 100–240 VAC.
-
What applications commonly use this PHOENIX CONTACT power supply?It is commonly used in industrial automation, control cabinets, machinery monitoring systems, and energy management equipment requiring stable DC power.
-
Is the QUINT-PS100-240AC/24DC/10 2938604 suitable for harsh industrial environments?Yes, it is designed for industrial conditions, with protection against overload, short circuits, and voltage fluctuations, ensuring reliable operation.
-
What are the installation guidelines for the QUINT-PS100-240AC/24DC/10 2938604 Power Supply?The module should be mounted in a control cabinet, connected to a stable AC input, and properly grounded to maintain safety and performance.
-
What is the main function of the QUINT-PS100-240AC/24DC/10 2938604 Power Supply?Its main function is to provide stable 24 VDC power to industrial automation and control devices, supporting reliable system operation.
