      P0917MF

      Compression Termination Assembly

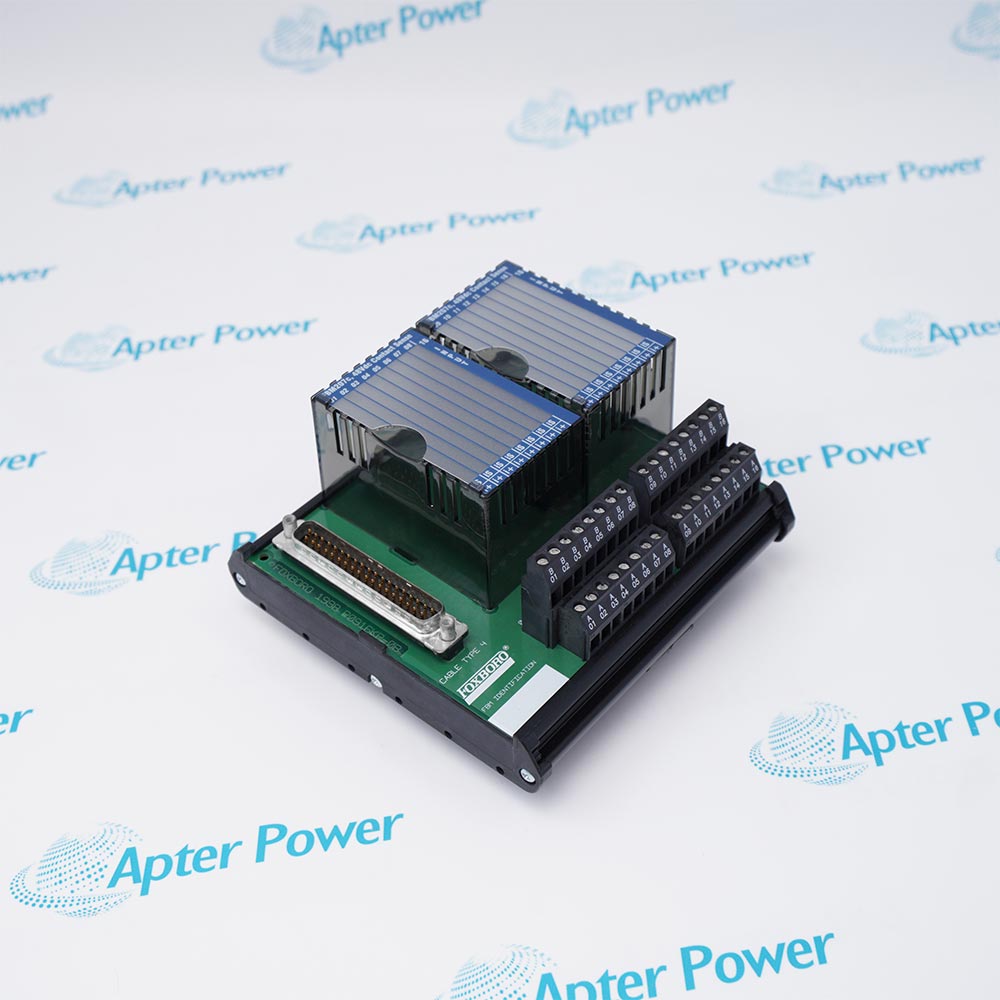

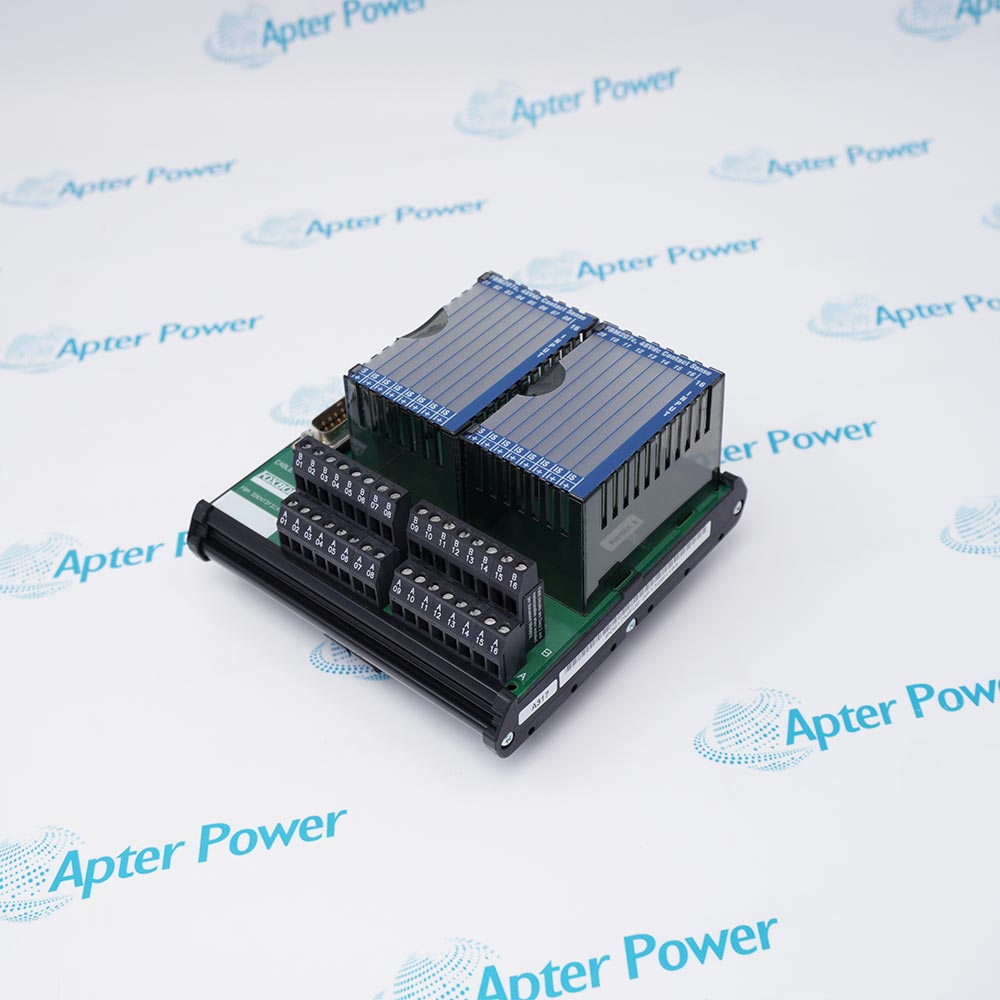

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      Foxboro P0917MF is a compression termination assembly for contact input termination in the documented installation.
      • Manufacturer part number
        P0917MF
      • Shipping
        Swift global dispatch
      • Condition
        New, original product
      • Shipping size (est.)
        12.8cm × 12cm × 7.8cm
      • Country of Origin
        USA

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for P0917MF
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 0

        Requirement review

        We review the complete Foxboro P0917MF marking, the installed connection and the required quantity. Please include the existing host or mating-part details and any service symptoms.

      • 1

        Quotation and availability

        We confirm the offered P0917MF identity, New, original product condition, available quantity and proposed dispatch date in the quotation. Matching cables, termination hardware and accessories are itemized separately.

      • 2

        Order confirmation and dispatch

        After the P0917MF quotation and purchasing details are agreed, your contact coordinates the order and confirms the dispatch information for the identified compression termination assembly.

      • Check the offered item before ordering

        Please request current front, rear and identification-label photos of Foxboro P0917MF. Have your maintenance team compare the complete marking, compression termination assembly connections and installed configuration with the manufacturer documents before ordering.

      • Dispatch Confirmation

        Quantity and dispatch date are confirmed in the quotation.

      Technical specifications for P0917MF

      • Manufacturer:
        Invensys
      • Product Category:
        DCS Systems
      • Spare Part Number:
        P0917MF
      • Weight:
        0.28 kg
      • Tariff Code:
        8537101190
      • Field input form:
        Two-wire contact or solid-state switch at paired FBM
      • Matched I/O module:
        FBM207c contact-sense input
      • Matched module channels:
        16 discrete inputs on FBM207c
      • Contact wetting:
        48 V DC supplied by FBM207c
      • Field termination:
        Compression terminals
      • Assembly function:
        Passive field-wiring interface
      • Mounting context:
        DIN-rail termination assembly
      • Later successor reference:
        RH917MG; fit requires system review
      View as PDF Ask for Quote

      Information

      Overview Downloads Applications / Compatibility Product Precautions
      • Match P0917MF to the FBM207c termination drawing and the contact-input wiring schedule.
      Connection path: Field contact → compression terminals → FBM207c
      Engineering boundary: The terminal assembly does not process input states
      Acceptance focus: Check each transferred conductor against the schedule
      P0917MF is a compression termination assembly listed for the FBM207c contact-sense input arrangement. It forms the field-wiring interface rather than the I/O processing module. Its compression terminals provide the field landing points; input interpretation, filtering and host reporting remain functions of the paired FBM207c.

      The matched FBM207c system provides sixteen 48 V DC contact-sense channels. That channel and voltage description belongs to the paired module; the P0917MF assembly must be matched to its intended cable and terminal arrangement. The cited 48 V contact-wetting supply comes from FBM207c and must not be presented as an independent supply rating of this passive assembly.

      During replacement, retain conductor identification and terminal order. Verify the complete assembly marking, compatible FBM and cable before reconnecting contacts, then exercise each affected input under the site procedure. Preserve commons and wire numbers during transfer; one mistaken landing point can change the state seen at a different controller input.
      Controller platform reference: Foxboro I/A Series. Verify the installed host, peripheral or termination arrangement.
      Three files for P0917MF: the Foxboro FBM207c/TA specification, a wire-transfer field guide and the product dossier.
      The terminal schedule and paired FBM207c marking govern wire transfer; the TA does not supply an independent input function.
      System and supply context: This passive compression assembly is the field-wiring end of a documented FBM207c contact-sense path.

      Application scope: Select it by the installed module, cable and terminal schedule; the paired FBM supplies the contact-wetting and input-processing functions.
      Installation and commissioning checks for Foxboro P0917MF.
      Label wires

      Record each conductor and terminal before disconnection. Retain the as-found contact state and common wiring for each of the 16 paired inputs.

      Isolate circuits

      Apply the approved 48 V contact-sense isolation procedure. Treat the FBM207c contact-wetting supply as live until the site procedure proves isolation.

      Match hardware

      Confirm FBM207c, termination cable and assembly marking. The later RH917MG listing does not remove the need to match the installed cable.

      Inspect contacts

      Check conductor seating and compression hardware. A loose clamp can mimic an open or intermittent field contact.

      Preserve commons

      Recreate the approved common and return wiring scheme. An incorrect return can shift several channel indications at once.

      Test inputs

      Exercise all affected contact points and host indications. Capture the as-left terminal list and test both contact states where possible.

      Alternative Names

      Foxboro P0917MF

      Technical notes

      Installation relationship: The matched FBM207c system provides sixteen 48 V DC contact-sense channels. That channel and voltage description belongs to the paired module; the P0917MF assembly must be matched to its intended cable and terminal arrangement.

      Service check: Exercise all affected contact points and host indications.

      Technical reference: Foxboro PSS 31H-2S207. Product and purchasing information are separate.

      FAQ View All FAQ

      • Which I/O module is documented with P0917MF?
        Foxboro lists it as a compression termination assembly for an FBM207c contact-sense arrangement; check the installed module and cable.
      • Does P0917MF itself perform sixteen-channel contact sensing?
        No. The channel function belongs to the paired FBM207c module; this item provides field-side termination.
      • How should a wire transfer to P0917MF be controlled?
        Label and record every terminal, isolate the circuit, move conductors by the approved terminal schedule, then verify each input.
      • What if an FBM207c input stays active after P0917MF is changed?
        Check field contact state, terminal landing, common return, cable connection and module diagnostics.
      • Can RH917MG automatically replace P0917MF?
        Later material identifies RH917MG as a successor; confirm mechanical and cable compatibility for the installed system.
      • Why must the cable marking be checked with P0917MF?
        The termination assembly and FBM form a defined cable-and-terminal path; a physically fitting connector alone does not prove the intended channel mapping.
      • What should be inspected on a used P0917MF terminal?
        Review insulation, conductor clamping, corrosion and signs of overheating under the site maintenance standard.
      • What commissioning evidence is useful for P0917MF?
        Retain an as-left terminal schedule and a witnessed state check for every affected contact-sense point.
