Check the offered item before ordering

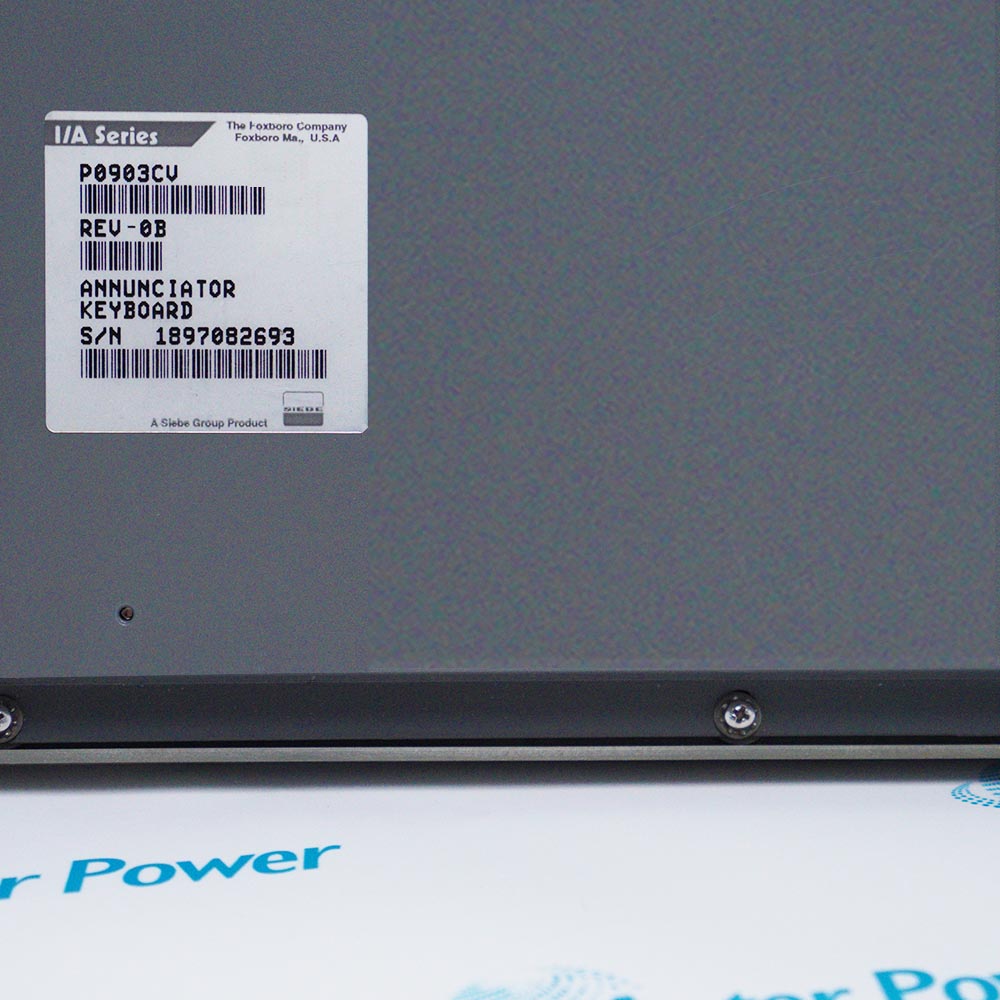

Please request current front, rear and identification-label photos of Foxboro P0903CV. Have your maintenance team compare the complete marking, gcio annunciator keyboard connections and installed configuration with the manufacturer documents before ordering.
-
Dispatch Confirmation
Quantity and dispatch date are confirmed in the quotation.
Technical specifications for P0903CV
-
Manufacturer:Invensys
-
Product Category:DCS Systems
-
Spare Part Number:P0903CV
-
Weight:0.45 kg
-
Tariff Code:8537101190
-
Alarm output:Visual LED and audible alarm functions
-
LED/switch pairs:48
-
Front-panel layout:12 columns × 4 rows
-
LED states:On, off or flashing under workstation control
-
Position LED colors:Red and yellow
-
Operator controls:Horn silence and lamp test
-
Host connection:Serial link through GCIO interface
-
Host prerequisite:Available serial port on compatible station
-
Label arrangement:One insert pocket per four-switch column
-
Mounting modes:Free-standing or workstation/panel mounted
Information
- P0903CV annunciation depends on the GCIO workstation alarm map and the physical operator-panel legends.
Engineering boundary: Panel legends follow configured event assignments
Acceptance focus: Exercise both indication and operator action
The keyboard provides operator alarm interaction, including horn-silence and lamp-test functions. Its GCIO serial connection and workstation configuration determine how panel events and indications map into the installed system. The serial keyboard reaches a compatible station through GCIO, which requires an available host serial port. Its operator actions are defined by workstation software.
Before replacement, document the installed label set, alarm assignments and serial connection. After fitting, test key response, LED indications, horn silence and lamp test under an approved workstation test plan. A lamp test checks the local indicators but does not prove that a live alarm is mapped to the intended key, color and audible response.
-
Foxboro P0903CV technical reference
Foxboro PSS 21H-4E1 B4 excerpt: 12-column by four-row panel, GCIO serial path, labels and alarm controls. PDF, 4 pages. -
Foxboro P0903CV installation guide
Apter Power guide: record legends and alarm mapping, then verify LEDs, switches, horn and lamp test. PDF, 2 pages.
Application scope: A GCIO serial path and host port are required; label, LED and switch assignments must match the installed alarm database.
-
Alarm annunciation
Present configured alarm states with dedicated LED indications. Workstation software determines whether each indicator is on, off or flashing. -
Operator acknowledgement
Provide assigned switch actions for workstation alarm handling. A physical switch position invokes only the action configured for that workstation. -
Horn control
Use the documented horn-silence function in the configured system. Silence behavior must be checked with the assigned alarm and audible path. -
Lamp verification
Exercise the lamp-test function to check panel indicators. Lamp test checks panel LEDs; separately verify live alarm indication and key response.
Record each alarm label and switch mapping. Keep the column label inserts aligned with the alarm database.
Match the GCIO cable and workstation port. The GCIO interface requires the supported workstation serial connection.
Plan alarm coverage while the panel is offline. Maintain an alternative alarm view while this operator device is unavailable.
Check legends, switches and LED condition. The two-color LED choice and raised keys support operator recognition.
Apply the approved workstation mapping. Restoring the panel alone does not restore workstation event mappings.
Verify keys, LEDs, horn silence and lamp test. Exercise a controlled alarm as well as the local lamp-test function.
Alternative Names
Technical notes
Installation relationship: The keyboard provides operator alarm interaction, including horn-silence and lamp-test functions. Its GCIO serial connection and workstation configuration determine how panel events and indications map into the installed system.
Service check: Verify keys, LEDs, horn silence and lamp test.
Technical reference: Foxboro PSS 21H-4E1 B4. Product and purchasing information are separate.
FAQ View All FAQ
-
How are the 48 positions on P0903CV assigned?The panel supplies LED/switch pairs; alarm text and actions are defined by the installed GCIO workstation configuration.
-
What should be checked if an LED on P0903CV does not follow an alarm?Compare the alarm mapping, GCIO serial link, panel LED test and host event state.
-
Does P0903CV replace the workstation alarm database?No. It is an operator interface; the system configuration supplies event mapping and alarm logic.
-
How is horn silence tested on P0903CV?Use a controlled alarm test under site procedures and verify that horn-silence action affects the intended annunciator function.
-
Why should the legends on P0903CV be recorded before service?Physical labels must correspond to the configured alarm and switch positions after replacement.
-
What if every switch on P0903CV stops responding?Check GCIO serial connection, workstation recognition, configured device identity and panel power before isolating an individual key.
-
Can the lamp-test result alone approve P0903CV for operation?No. Lamp test checks indicators; also verify alarm mapping, switch action and communication.
-
What handover evidence belongs with P0903CV?Retain an as-left position map and results for LED, key, horn and serial communication checks.
