      P0922YU FPS400-24

      Power Supply
      In Stock

      Product Describe：

      P0922YU FPS400-24
      Power Supply
      85 to 265 V ac
      or 108 to 145 V dc
      125 V dc nominal
      5.6 A at 85 V ac input
      (RMS maximum)
      2.5 A at 230 V ac input
      (RMS maximum)

      Ask our team:

      Get a quick price for： P0922YU FPS400-24
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for P0922YU FPS400-24

      Technical specifications for P0922YU FPS400-24

      • Manufacturer:
        Invensys
      • Product Category:
        DCS System
      • Spare Part Number:
        FPS400-24
      • Estimated shipping dimensions:
        21.6x18x10.5cm
      • Weight:
        2.84 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Efficiency:
        90% typical at 240 V ac input
      • Output Voltage:
        Factory set at 24.0 V dc
      • Input Frequency Range:
        47 to 63 Hz
      • Input Voltage Range:
        85 to 265 V ac or 108 to 145 V dc,125 V dc
      • Input Power:
        441 W typica lat 230 Vac,50Hz
      • Power Capacity:
        400 W
      • Efficiency:
        Up to 95%
      Ask for Quote

      Information

      Information

      Overview Manuals Key application scenarios

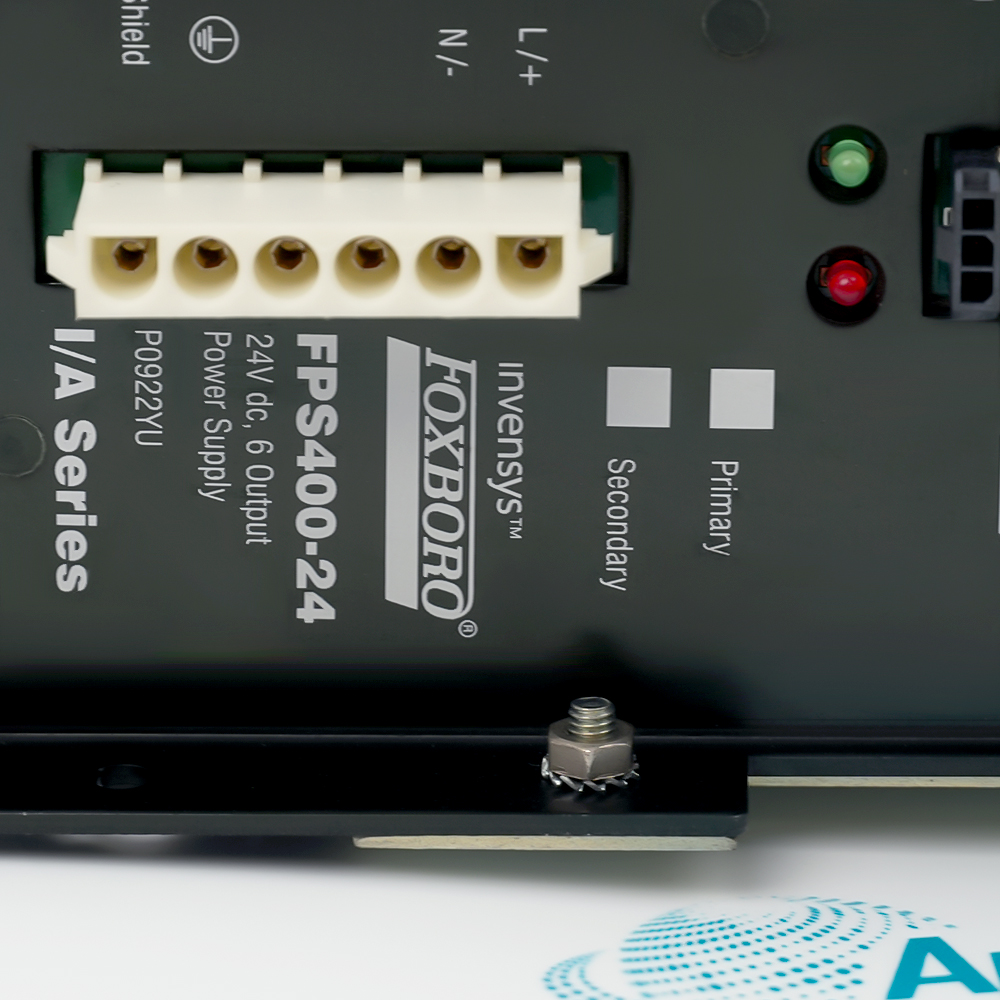

      The Foxboro P0922YU (FPS400-24) is a high-efficiency, DIN rail-mounted power supply module for I/A Series 200 Series FBMs. It accepts wide-range AC/DC inputs (85-265V AC or 108-145V DC) and outputs 24V DC.
        • Extremely High Efficiency
        • Power Factor Correction
        • Dual Stage Current Limiting
      The/Invensys/Foxboro FPS400-24 I/A Series DIN Rail Mounted Power Supplies provide 24 V dc to DIN rail mounted baseplates. It is a 400 W power supply that is agency certified for use in Division 2 and Zone 2 applications. There are 2 input voltage power supplies offered: 120/240 V ac or 125 V dc input (P0922YU) and 24 V dc input (P0922YC). These are the only power supplies that have been tested and qualified by for use with 200 Series FBMs.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Foxboro P0922YU Power Supply Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      DCS/PLC system power supply: As the official and only designated power supply solution for Foxboro 200 series FBM (fieldbus module). Hazardous environment control: Due to compliance with Class 1 and Div 2 standards, it can be safely deployed in specific industrial areas where explosive gases may be present. On site equipment in harsh environments: Its G3 level coating design makes it suitable for on-site environments with high levels of corrosive gases.

      FAQS

      • What is P0922YU?
        P0922YU is Power Supply
      • What is the function of the P0922YU Power Supply?
        The P0922YU Power Supply provides stable DC power to industrial control and monitoring systems, ensuring reliable operation of connected equipment.
      • What is the output voltage of the P0922YU Power Supply?
        It delivers a regulated DC voltage suitable for powering control modules, sensors, and other industrial devices.
      • What is the typical operating temperature range of the P0922YU Power Supply?
        The unit typically operates reliably in industrial environments from approximately 0 to 60°C.
      • What protection features does the P0922YU Power Supply include?
        It includes overvoltage, overcurrent, and short-circuit protection to safeguard connected equipment.
      • How is the P0922YU Power Supply installed?
        It is typically mounted in a control cabinet or system rack and connected to the AC mains and load devices using standard industrial wiring.
