      TC-301-02-4M5

      Trusted TMR Expander Interface Communications Cable
      In Stock
      Ships by Sunday, November 8
      Fast Shipping Available
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

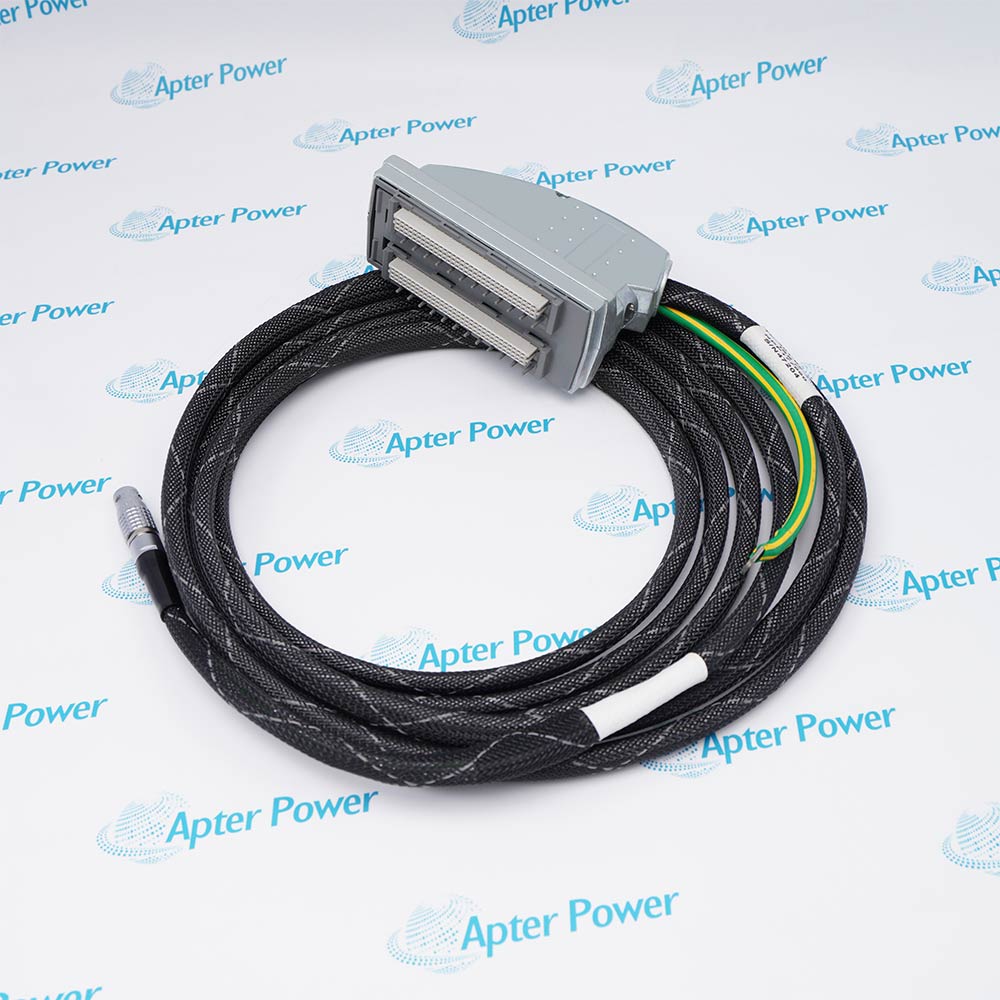

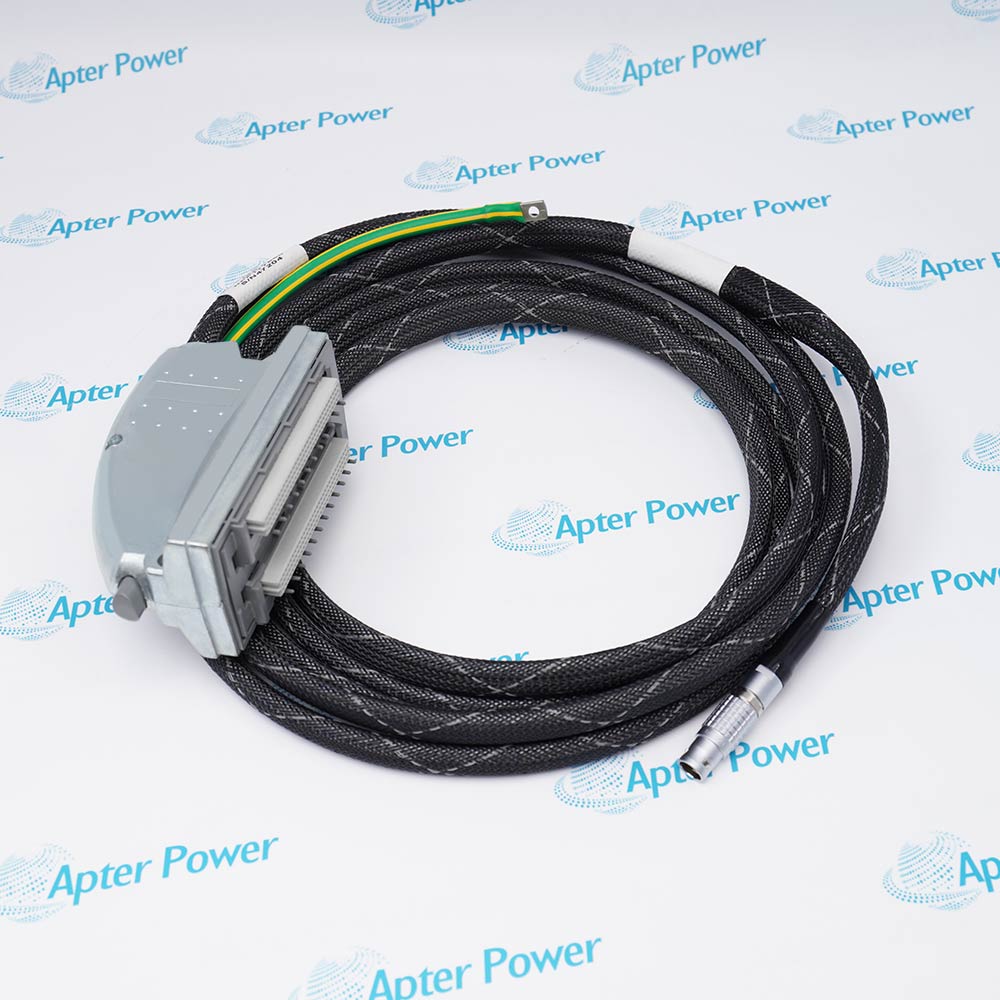

      ICS Triplex TC-301-02-4M5 is a 4.5 m screened LSZH communications cable for the Trusted expander interface. It connects a T8310 Expander Processor to the designated position on a T8312 Expander Interface Adapter Unit.

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for TC-301-02-4M5
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for TC-301-02-4M5

      • Manufacturer:
        ICS Triplex
      • Product Category:
        PLC Systems
      • Spare Part Number:
        TC-301-02-4M5
      • Estimated shipping dimensions:
        35x35x10cm
      • Weight:
        1.14 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Cable family:
        TC-301-02
      • Cable construction:
        Cat 6 Plus, screened
      • Outer sheath:
        LSZH
      • Processor-end connector:
        96-way type C, double-width hood
      • Adapter-end connector:
        12-way LEMO plug
      • Earth connection:
        Hood earth braid
      • Maximum family length:
        30 m
      • Connected processor:
        T8310
      • Connected adapter:
        T8312
      View as PDF Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      TC-301-02-4M5 carries the Trusted expander communications and interface connection across a defined 4.5 m assembly. Its two connector ends are dedicated to the T8310 processor and T8312 adapter roles.
      • Links the T8310 Expander Processor to the T8312 interface adapter
      • Uses screened Cat 6 Plus cable with an LSZH sheath
      • Provides dedicated 96-way and 12-way connector terminations
      • Maintains a model-coded 4.5 m Trusted communications path

      Route the screened LSZH cable between the correct Trusted chassis positions without crushing, twisting or exceeding the allowed bend and length constraints. Acceptance includes connector seating, earth-braid continuity, cable identification and expander-interface communication diagnostics.

      Important Notice: Confirm TC-301-02-4M5 identity and length, T8310 and T8312 endpoints, connector keying, 96-way hood, 12-way LEMO plug, earth braid, cable route, grounding, chassis assignments and restored expander communications before commissioning.

      Apter Power TC-301-02-4M5 Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      Trusted chassis expansion
      Carries the expander link between the processor and interface adapter in a distributed Trusted arrangement.
      Safety-system cabinet interconnect
      Provides a screened communications route between designated Trusted rack positions.
      Legacy expander cable replacement
      Restores the same connector roles and ordered length during controlled maintenance.
      Low-smoke cabinet wiring
      Uses the documented LSZH cable construction for an engineered enclosure route.
      Read the applicable ICS Triplex installation instructions before work. Verify TC-301-02-4M5, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm the complete TC-301-02-4M5 marking and 4.5 m length.
      2
      Place the Trusted expander link in the approved maintenance state.
      3
      Identify the T8310 and T8312 ends before disconnecting either plug.
      4
      Inspect the 96-way hood, 12-way LEMO plug and all keying features.
      5
      Protect the earth braid and maintain the screened grounding arrangement.
      6
      Route the LSZH cable without crushing, abrasion, tension or sharp bends.
      7
      Seat connectors squarely and secure them using the specified hardware.
      8
      Restore communications and verify expander diagnostics before release.

      Technical notes

      Align the 96-way type C and 12-way LEMO connectors before insertion and tighten only by the specified connector hardware; never use the cable body to pull a plug into place. Verify the hood earth braid, screened route and exact 4.5 m article marking before restoring the expander link.

      FAQ View All FAQ

      • What is the exact system role of TC-301-02-4M5?
        It is the 4.5 m TC-301-02 cable used for the Trusted TMR expander processor-to-adapter connection.
      • Which host, rack or carrier is required for TC-301-02-4M5?
        Connect the 96-way type C end to the T8310 Expander Processor and the 12-way LEMO end to the correct T8312 position.
      • What wiring or connector checks apply to TC-301-02-4M5?
        Check connector keying, hood condition, LEMO seating, earth braid and screened route before tightening hardware.
      • How is TC-301-02-4M5 configured for service?
        The cable has no software configuration; the chassis and expander positions must remain consistent with the Trusted system design.
      • Which diagnostics should be reviewed for TC-301-02-4M5?
        Review T8310/T8312 link status, expander communications, chassis recognition and any interface faults after reconnection.
      • What must be preserved when replacing TC-301-02-4M5?
        Preserve the exact 4.5 m article, endpoint labels, cable route, connector orientation and grounding record.
      • How should TC-301-02-4M5 be commissioned after installation?
        Restore the link under control and confirm all remote modules communicate without new chassis or expander alarms.
      • What model-specific limitation must be checked for TC-301-02-4M5?
        Do not substitute another TC-301 length or a TC-301-03 cable; the ordered length and Cat 6 Plus LSZH construction are part of this identity.
