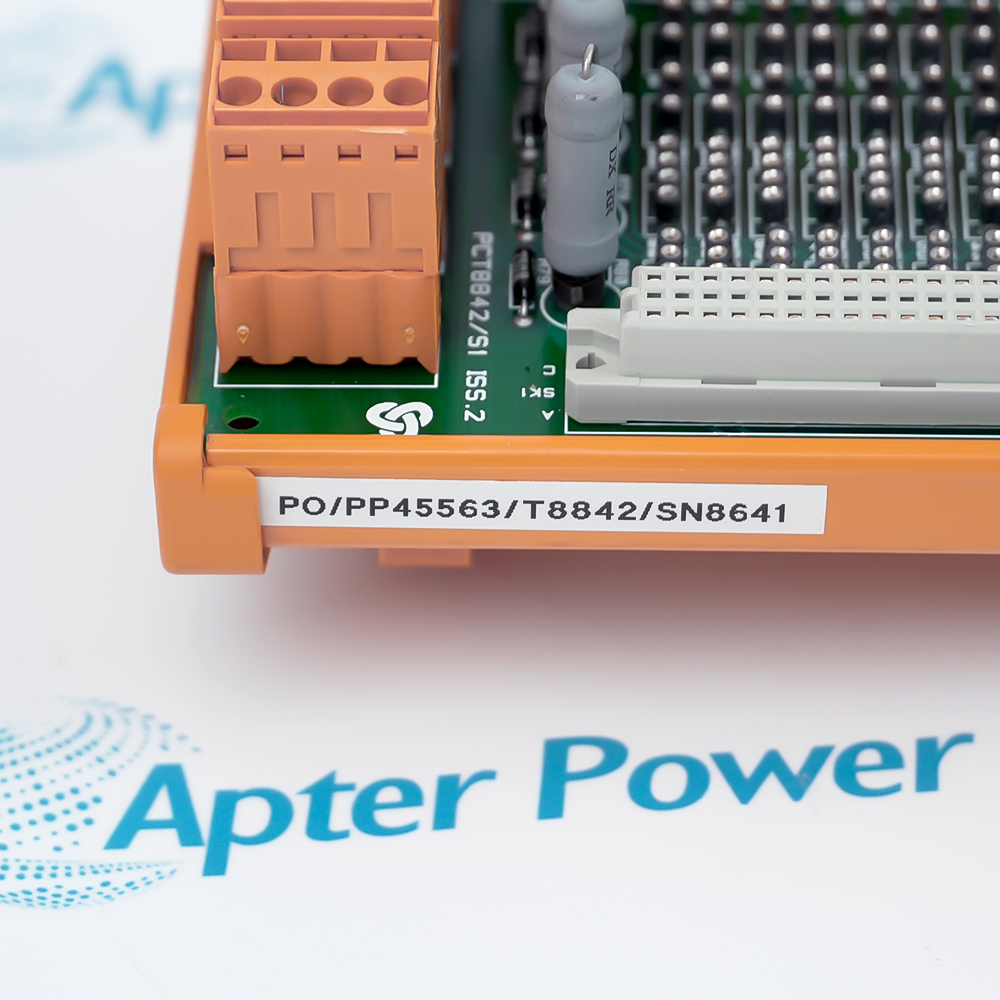

      ICS Triplex PP45563-T8842
      ICS Triplex PP45563-T8842
      ICS Triplex PP45563-T8842
      ICS Triplex PP45563-T8842
      ICS Triplex PP45563-T8842
      ICS Triplex PP45563-T8842
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      PP45563-T8842

      Trusted 40-Channel Versatile Field Termination Assembly
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

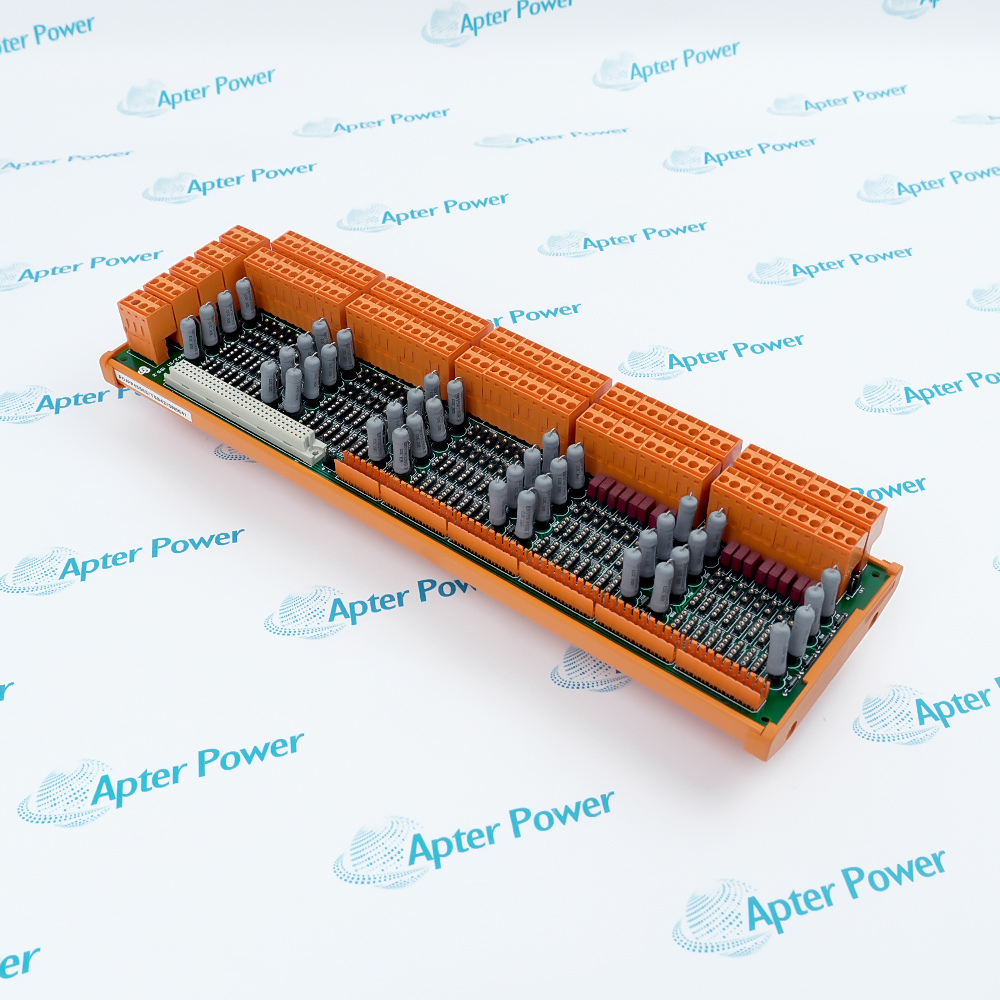

      ICS Triplex PP45563-T8842 is a Trusted 40-channel Versatile Field Termination Assembly. It terminates grouped analogue-input, digital-input or digital-output field circuits for the matched Trusted I/O arrangement.

      Ask our team:

      Get a quick price for： PP45563-T8842
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for PP45563-T8842

      Technical specifications for PP45563-T8842

      • Manufacturer:
        ICS Triplex
      • Product Category:
        PLC Systems
      • Spare Part Number:
        T8842
      • Estimated shipping dimensions:
        23.5x12.5x6cm
      • Weight:
        0.85 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Field channels:
        40
      • Channel groups:
        5 groups of 8
      • Input signal:
        0 to 20 mA analogue or digital
      • Output use:
        Digital output
      • Field supply:
        18 to 28 V DC
      • Maximum field current:
        2.52 A per group
      • Recommended current:
        220 mA per channel
      • Maximum power dissipation:
        9 W
      • Operating temperature:
        -5 to +60 deg C
      • Humidity:
        5 to 95 percent, non-condensing
      • Input limiting resistor:
        250 ohm, 7 W, 1 percent
      • Measurement resistor:
        250 ohm, 0.25 W, 0.1 percent
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      PP45563-T8842 organizes forty Trusted field channels into five independently documented groups for versatile I/O termination.
      • Terminates forty versatile field I/O channels
      • Separates the channels into five groups of eight
      • Supports analogue or digital input and digital output use
      • Provides individual channel fuse and resistor arrangements

      The FTA is paired with the selected Trusted input or output module and uses grouped field-supply and terminal connections. Commissioning verifies group function, fuse and resistor execution, polarity, field supply and point-to-point response.

      Important Notice: Confirm PP45563-T8842, Trusted T8842 execution, paired I/O module, five eight-channel groups, terminal assignments, fuse and resistor options, 18–28 V DC field supply, polarity, grounding, system configuration and complete proof-test results before commissioning.

      Apter Power PP45563-T8842 Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      Trusted analogue input marshalling
      Terminates 0–20 mA field signals for the configured Trusted input module.
      Trusted digital input grouping
      Organizes discrete field contacts into five documented channel groups.
      Trusted digital output distribution
      Routes controlled field supply to configured digital output circuits.
      Safety-system FTA replacement
      Restores an exact versatile termination position with recorded channel evidence.
      Read the applicable ICS Triplex installation instructions before work. Verify PP45563-T8842, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm PP45563-T8842 and T8842 on the assembly record.
      2
      Place the safety function and all associated final elements in the approved maintenance state.
      3
      Isolate each field-supply group and use ESD controls at the Trusted interface.
      4
      Record TB1–TB40 channels and TBG/TBFP group terminals before disconnection.
      5
      Confirm each fitted fuse and resistor matches the channel's configured function.
      6
      Restore the approved Trusted module, cable and FTA configuration.
      7
      Verify field supply, polarity, fuse status and channel diagnostics group by group.
      8
      Perform controlled point-to-point and safety-function proof tests before release.

      Alternative Names

      Alternative Names

      T8842

      Technical notes

      Technical notes

      Mount PP45563-T8842 in the documented Trusted Versatile FTA position and map all five eight-channel groups before disturbing wiring. Match fuse and resistor selections to each channel function, restore field supply and terminations, then validate every channel from the Trusted module to the field device.

      FAQS

      • How should the complete PP45563-T8842 identity be verified before replacement?
        Confirm PP45563-T8842, Trusted T8842 execution, paired I/O module, five eight-channel groups, terminal assignments, fuse and resistor options, 18–28 V DC field supply, polarity, grounding, system configuration and complete proof-test results before commissioning.
      • What system role does PP45563-T8842 perform in the documented installation?
        ICS Triplex PP45563-T8842 is a Trusted 40-channel Versatile Field Termination Assembly. It terminates grouped analogue-input, digital-input or digital-output field circuits for the matched Trusted I/O arrangement.
      • Which host or carrier must be checked before installing PP45563-T8842?
        The FTA is paired with the selected Trusted input or output module and uses grouped field-supply and terminal connections. Commissioning verifies group function, fuse and resistor execution, polarity, field supply and point-to-point response.
      • What isolation and ESD controls apply when handling PP45563-T8842?
        Place the safety function and all associated final elements in the approved maintenance state. Isolate each field-supply group and use ESD controls at the Trusted interface.
      • Which wiring or connector records should be retained for PP45563-T8842?
        Record TB1–TB40 channels and TBG/TBFP group terminals before disconnection. Confirm each fitted fuse and resistor matches the channel's configured function.
      • How should the approved configuration for PP45563-T8842 be restored?
        Restore the approved Trusted module, cable and FTA configuration.
      • Which diagnostics must be reviewed after fitting PP45563-T8842?
        Verify field supply, polarity, fuse status and channel diagnostics group by group.
      • What controlled acceptance test completes work on PP45563-T8842?
        Perform controlled point-to-point and safety-function proof tests before release.
