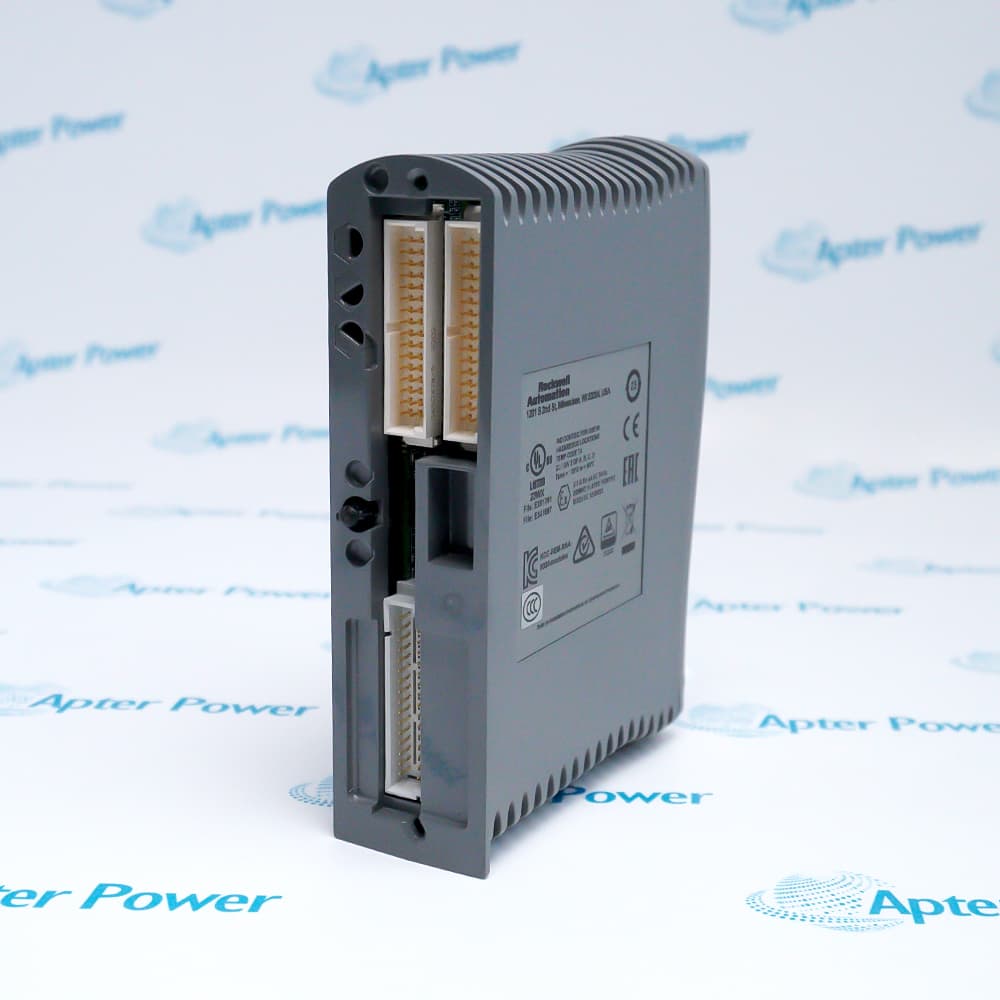

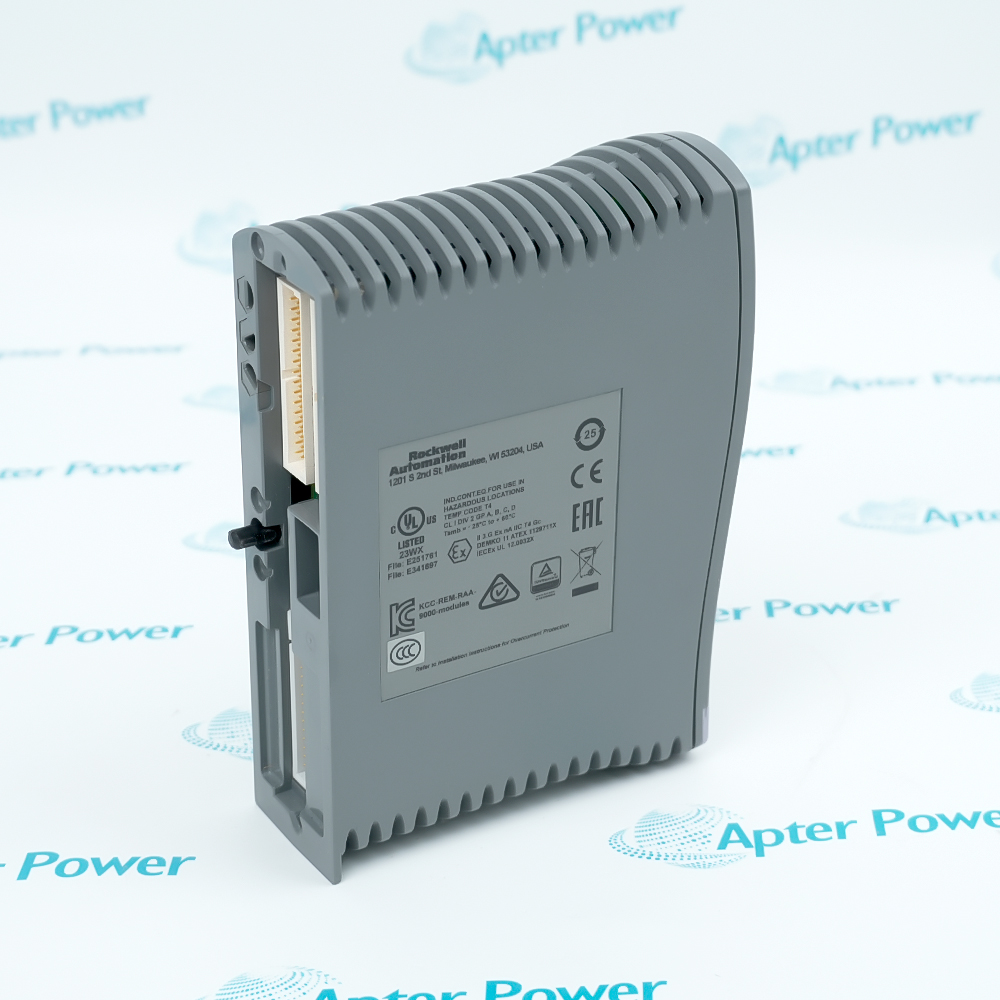

The ICS Triplex T9432 is an AADvance 16-Channel Analogue Input Module that acquires isolated analogue field signals for the safety application.
- AADvance 16-channel analogue input module
- 16 isolated analogue input channels
- Analogue transmitter signal acquisition
- T9831, T9832 or T9833 termination architecture
In an AADvance safety system, the T9432 acquires analogue transmitter signals through the engineered termination assembly and supplies channel data and diagnostics to the application. Confirm the matched T9831, T9832 or T9833 termination architecture, field wiring, channel configuration and controlled project records before use.

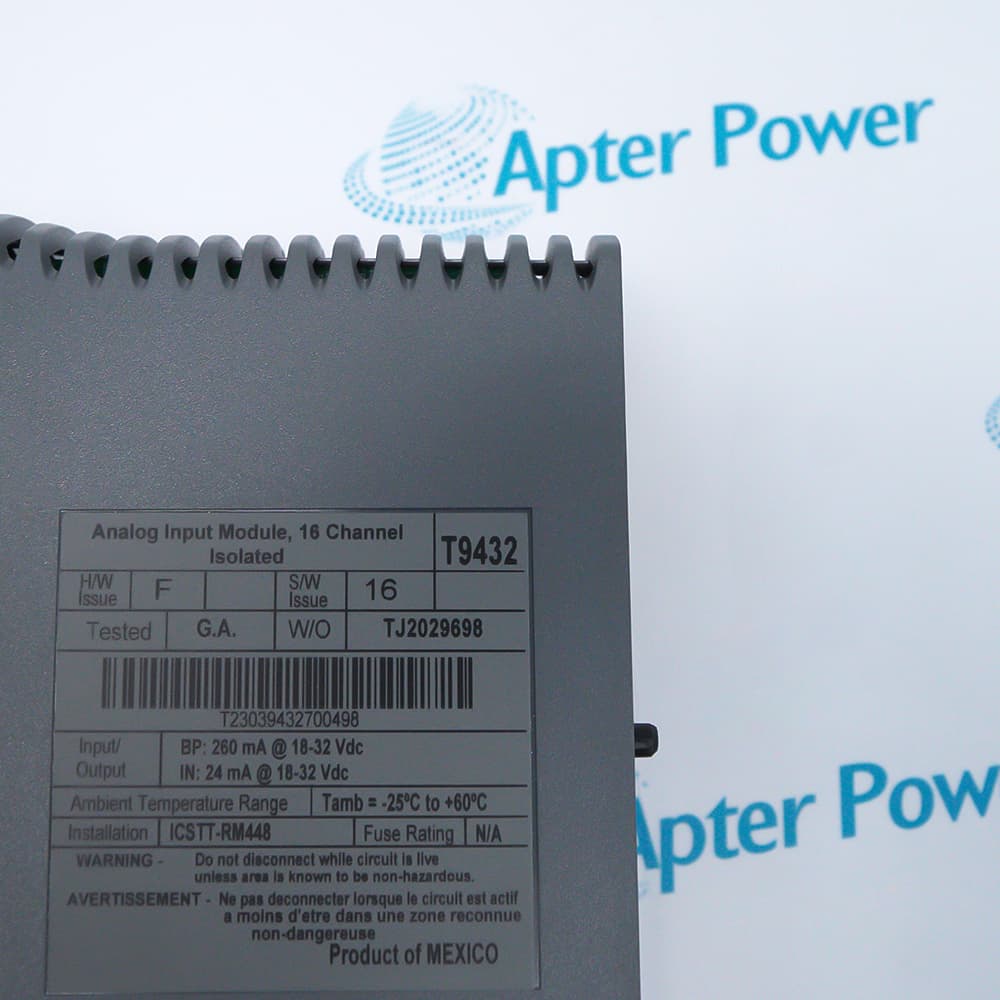

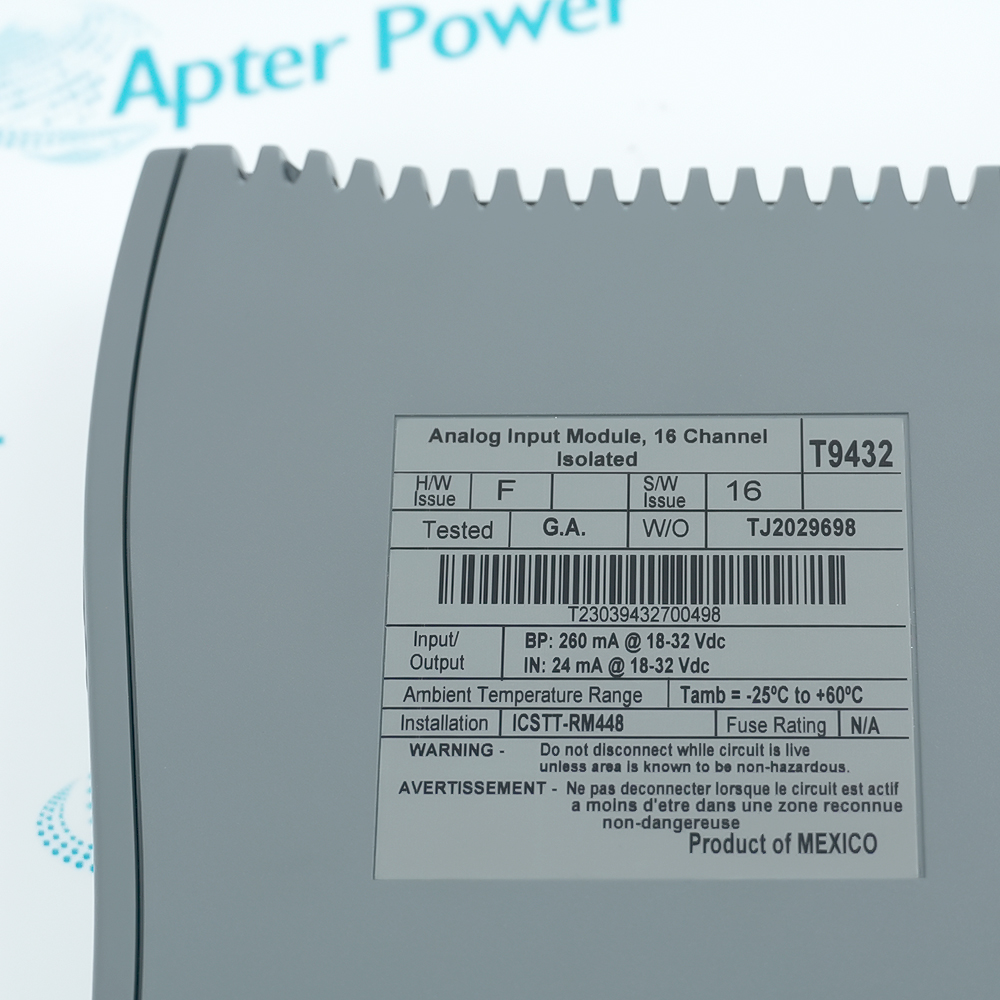

Important Notice: Use the complete T9432 code and verify the physical nameplate, current ICS Triplex / Rockwell Automation documentation, field wiring, project, and compatible system hardware before installation or replacement.
Apter Power T9432 Manuals and Guides
Important Notice: These are two separate Apter Power documents prepared from the official ICS Triplex source named in each document. Confirm the physical nameplate, current Rockwell Automation documentation, and applicable installation instructions before installation or replacement.
SIS process transmitters
Uses the T9432 aadvance 16-channel analogue input module in a model-appropriate AADvance control or protection function.
Pressure trip measurement
Handles system status and diagnostics under the official engineering limits.
Temperature protection
Uses the T9432 aadvance 16-channel analogue input module in a model-appropriate AADvance control or protection function.
Flow and level shutdown
Handles system status and diagnostics under the official engineering limits.
Read Rockwell Automation ICSTT-RM448N-EN-P and the applicable system installation instructions before use. Verify the physical nameplate, revision, slot and matched termination hardware.
1
Verify the exact model, hardware revision, firmware and nameplate before substitution.
2
Install only with T9300 I/O base unit and T9831 simplex, T9832 dual or T9833 TMR termination assembly; do not mix unmatched termination or base hardware.
3
De-energize or follow the approved live-insertion procedure and site safety plan before removal.
4
Preserve module keying, slot assignment, wiring polarity, shields, grounding and field power limits.
5
Complete application download, diagnostics, proof testing and functional acceptance before return to service.
