      ICS Triplex T8480
      ICS Triplex T8480
      ICS Triplex T8480
      ICS Triplex T8480
      ICS Triplex T8480
      ICS Triplex T8480
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      T8480

      Trusted TMR 4-20 mA Analog Output Module
      In Stock

      Product Describe：

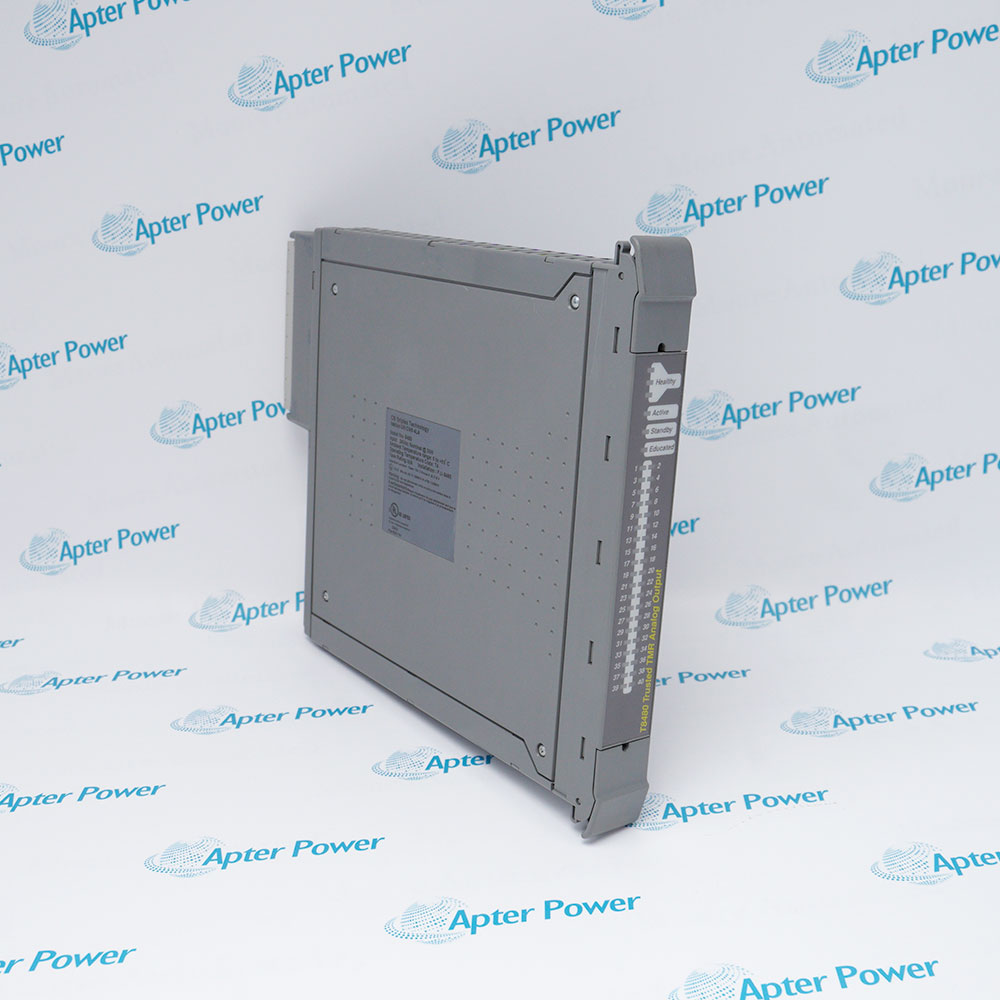

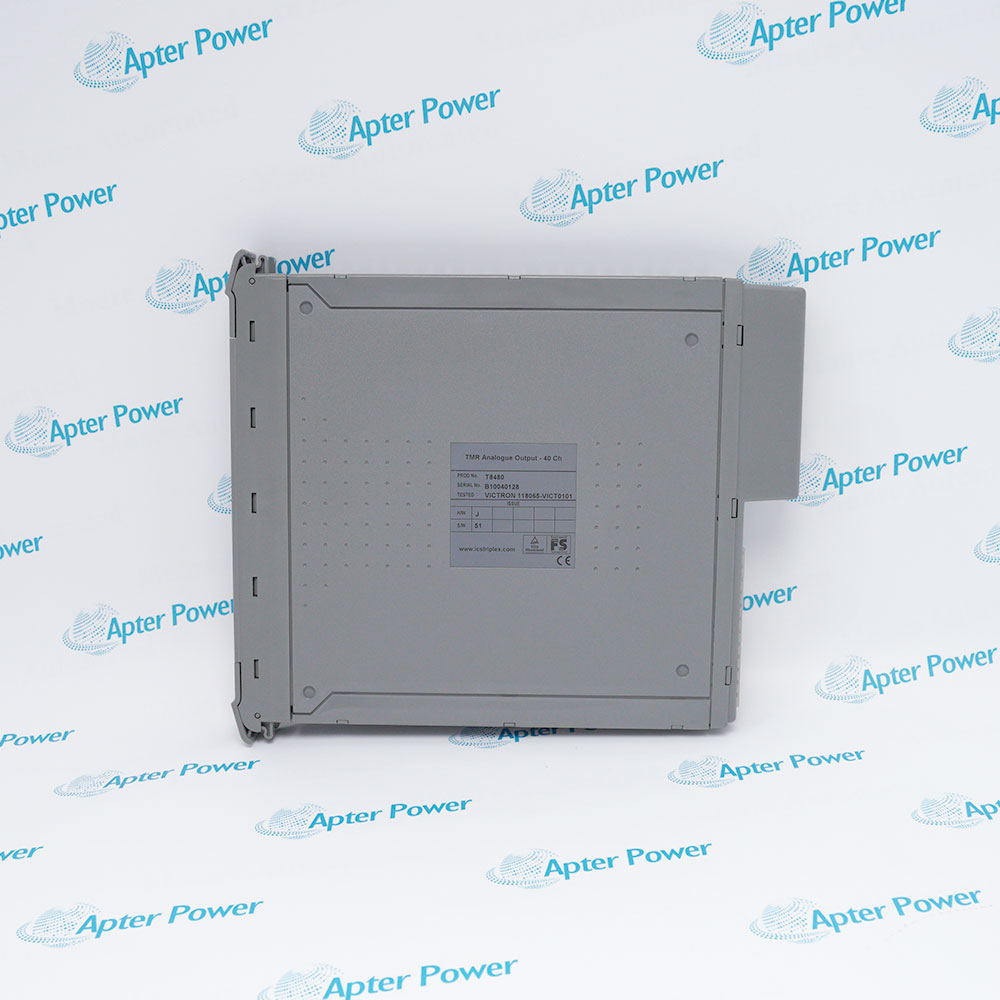

      ICS Triplex T8480 is a Trusted TMR analog output module with 40 current-controlled channels. It delivers 4-20 mA commands and monitors field voltage and load current for output diagnostics.

      Ask our team:

      Get a quick price for： T8480
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for T8480

      Technical specifications for T8480

      • Manufacturer:
        ICS Triplex
      • Product Category:
        PLC Systems
      • Spare Part Number:
        T8480
      • Estimated shipping dimensions:
        3.1x30.5x26.5cm
      • Weight:
        1.28 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Backplane supply:
        20 to 32 Vdc
      • Backplane power:
        22 W
      • Field supply:
        18 to 32 Vdc
      • Field current:
        0.9 A maximum
      • Outputs:
        40
      • Power groups:
        5 groups of 8
      • Continuous current range:
        1 to 22 mA
      • Recommended output:
        4 to 20 mA
      • Calibration accuracy:
        +/-0.1% FS at 25 deg C
      • Overall accuracy:
        +/-0.25% FS, 0 to 60 deg C
      • Step response:
        Less than 50 ms to 1%
      • Short-circuit behavior:
        22 mA into 0 ohm
      • SOE resolution:
        1 ms
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      T8480 provides forty monitored analog command loops for the Trusted platform. Its current-controlled channels compare demanded and measured output behavior to support field fault diagnostics.
      • Generates forty current-controlled analog outputs
      • Organizes channels into five separately supplied groups
      • Measures output voltage and load current for diagnostics
      • Supports monitored 4-20 mA control of field devices

      The module connects through a Trusted field termination unit and is defined in the IEC 61131 Toolset as a 40-channel analog output device. Commissioning includes current-loop calibration, load and supply checks, standby-swap behavior, discrepancy limits and final-element stroke or response tests.

      Important Notice: Confirm T8480 identity and revision, T8100/T8300 slot, field termination unit, five supply groups, loop polarity and shielding, load resistance, Toolset scaling, discrepancy settings, firmware/application versions and complete 4-20 mA functional tests before commissioning.

      Apter Power T8480 Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      Control-valve positioning
      Commands modulating valve positioners with supervised 4-20 mA current loops.
      VFD speed-reference outputs
      Provides monitored analog setpoints to compatible drive interfaces.
      Process actuator demand
      Delivers current commands to analog final elements in Trusted control applications.
      Redundant analog-output service
      Supports configured Trusted module-pair arrangements and controlled standby replacement checks.
      Read the applicable ICS Triplex installation instructions before work. Verify T8480, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm T8480, hardware revision and the assigned Trusted slot.
      2
      Place all affected analog final elements in manual or safe state.
      3
      Isolate the five field-power groups before disturbing loop wiring.
      4
      Record loop polarity, shield termination, load and engineering range.
      5
      Verify termination hardware, keying and the approved module grouping.
      6
      Restore Toolset channel scaling and discrepancy parameters.
      7
      Inject commanded currents and compare measured feedback on every channel.
      8
      Complete actuator response, diagnostics and standby-swap tests before release.

      Technical notes

      Technical notes

      Install T8480 in a T8100 or T8300 I/O-module slot with the documented analog-output termination hardware and five field-power groups. Verify loop polarity, load resistance, channel scaling and measured current feedback before releasing any 4-20 mA final element.

      FAQS

      • What is the exact system role of T8480?
        It is the 40-channel Trusted TMR module that generates and supervises analog current outputs.
      • Which host, rack or carrier is required for T8480?
        Use a T8100 or T8300 I/O slot with the approved analog-output field termination arrangement.
      • What wiring or connector checks apply to T8480?
        Check loop polarity, field group return, shield grounding, load resistance and the 18 to 32 Vdc field supply.
      • How is T8480 configured for service?
        The application download configures the hardware; verify Toolset module type, engineering scaling and any discrepancy settings.
      • Which diagnostics should be reviewed for T8480?
        Review demanded current, measured load current and voltage, line faults, group supply state, slice discrepancies and module health.
      • What must be preserved when replacing T8480?
        Preserve slot, termination type, group supplies, loop scaling, shield treatment and validated application release.
      • How should T8480 be commissioned after installation?
        Command several controlled current points on each affected loop, verify feedback and final-element response, then check diagnostics.
      • What model-specific limitation must be checked for T8480?
        T8480 is a 4-20 mA output module with 40 channels; do not use the legacy two-channel or voltage-output assumptions found in the old record.
