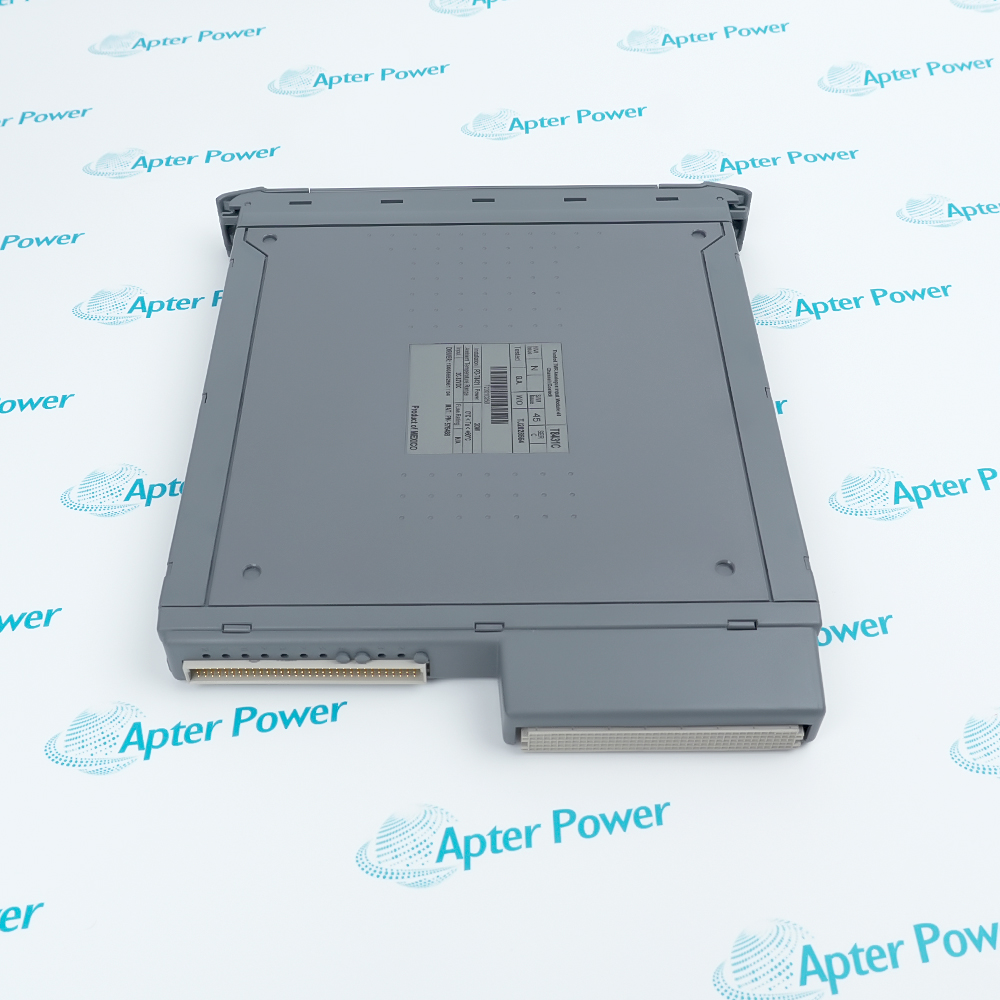

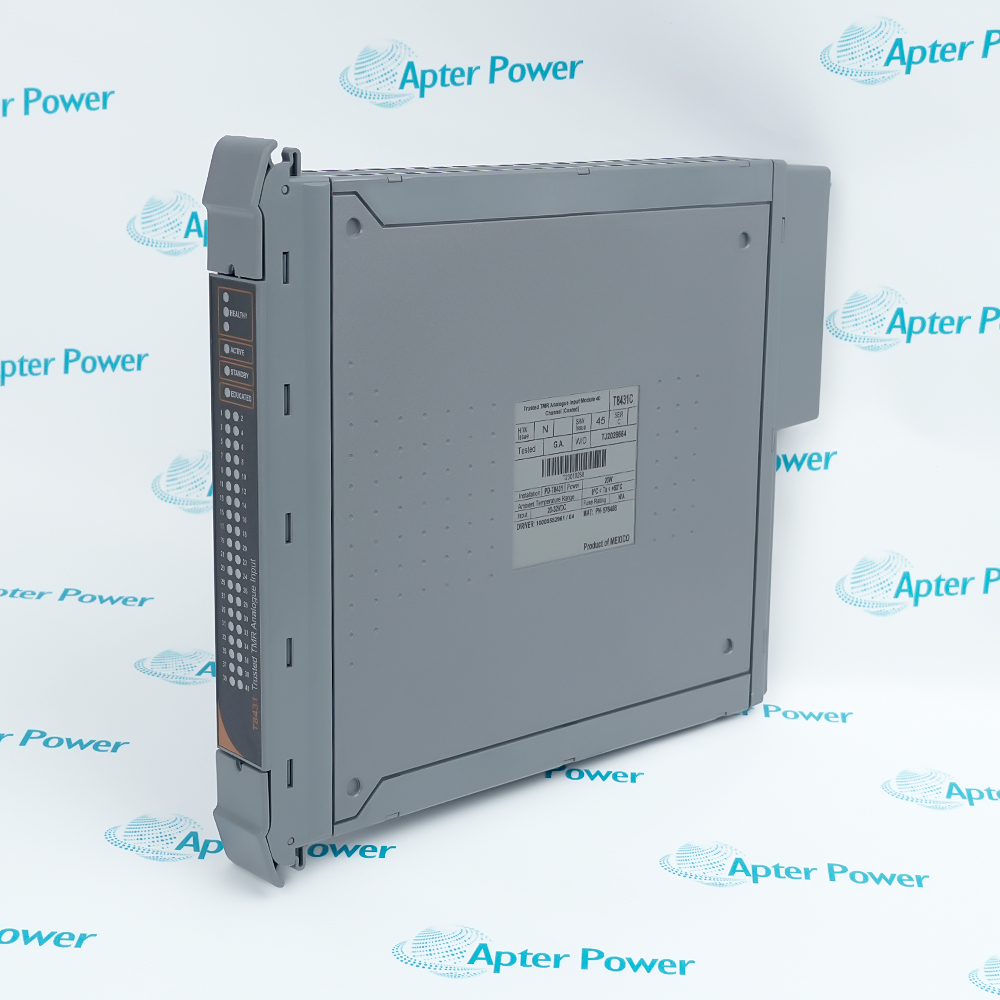

Technical specifications for T8431C
-
Manufacturer:ICS Triplex
-
Product Category:PLC Systems
-
Spare Part Number:T8431C
-
Estimated shipping dimensions:26.6x3.1x30.3cm
-
Weight:1.149 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Backplane supply:20 to 32 Vdc
-
Backplane power:20 W
-
Inputs:40
-
FTA impedance:250 ohm
-
Module impedance:16.967 kohm
-
Current range:0 to 22 mA
-
Voltage range:0 to 5.5 Vdc
-
Resolution:3.906 uA
-
Safety accuracy:+/-200 uA
-
Calibration accuracy:+/-0.15%
-
SOE resolution:1 ms
-
Operating temperature:0 to 60 deg C
Information
Overview
Manuals
Common Applications
Product Precautions
T8431C converts forty analog field signals for a Trusted application while comparing triplicated internal measurements. The field termination and application scaling define how loop current becomes engineering data.
- Acquires forty monitored analog input channels
- Measures standard field current through the approved termination interface
- Supports configurable thresholds and sequence-of-events logging
- Provides channel data for Trusted safety and process applications
The module requires the configured Trusted slot and approved field termination hardware; an external barrier is needed where intrinsic safety applies. Commissioning includes loop-power checks, zero/span verification, channel discrepancy review, SOE setup and calibration maintenance records.
Important Notice: Confirm T8431C identity and revision, T8100/T8300 slot, analog termination assembly, loop power and polarity, 250 ohm interface, barriers, shielding, Toolset scaling and thresholds, calibration record and controlled process tests before commissioning.
Apter Power T8431C Manuals and Guides
- Apter Power T8431C Technical Data and System Reference PDF
- Apter Power T8431C Installation, Wiring and Acceptance Workbook PDF
The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.
Process transmitter inputs
Measures current-loop signals from pressure, flow, level or temperature transmitters.
Safety analog voting
Supplies calibrated measurements to application logic used for protective trip decisions.
Line-fault monitoring
Uses configured thresholds to distinguish process state from field wiring faults.
Redundant analog acquisition
Supports paired-module arrangements where the project requires online replacement capability.
Read the applicable ICS Triplex installation instructions before work. Verify T8431C, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
1
Confirm T8431C, hardware revision and the assigned Trusted slot.
2
Place affected process loops in the approved maintenance condition.
3
Isolate loop power and record polarity, shield and barrier details.
4
Verify the matched termination assembly and 250 ohm field interface.
5
Confirm Toolset channel scaling, thresholds and SOE configuration.
6
Use the approved calibration procedure and traceable source equipment.
7
Review slice discrepancy and line-fault diagnostics for each channel.
8
Complete zero, span and process-response checks before release.
Technical notes
Install T8431C in a T8100 or T8300 I/O-module slot with the matched analog-input termination assembly. Confirm the 250 ohm field interface, loop polarity, channel calibration and Toolset scaling before accepting live process measurements.
FAQ View All FAQ
-
What is the exact system role of T8431C?It is the 40-channel Trusted TMR analog input module for monitored current and voltage measurements.
-
Which host, rack or carrier is required for T8431C?Install it in a T8100 or T8300 I/O-module slot with the approved analog-input field termination assembly.
-
What wiring or connector checks apply to T8431C?Check loop polarity, 250 ohm field impedance, shield grounding and any required external intrinsic-safety barrier.
-
How is T8431C configured for service?The application configures scaling, thresholds and SOE variables; verify that definition against the exact installed module.
-
Which diagnostics should be reviewed for T8431C?Review engineering values, raw current, line faults, slice discrepancy, SOE records and calibration status.
-
What must be preserved when replacing T8431C?Preserve slot, hardware revision, terminal map, loop scaling, alarm thresholds, shielding and calibration records.
-
How should T8431C be commissioned after installation?Apply controlled loop values, verify zero and span, prove fault thresholds and compare all affected process indications.
-
What model-specific limitation must be checked for T8431C?Partner modules change the effective input impedance, so the installed redundancy arrangement must be included in loop calculations.
