Technical specifications for FC-BKM-0001-V1.1
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:FC-BKM-0001
-
Estimated shipping dimensions:3.5x22.5x17.5cm
-
Weight:0.65 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Datasheet version:1.1
-
Supply:24 V DC, -15 to +30 percent
-
Supply current:20 mA maximum; 7 mA typical with shared supply
-
5VR supply:5 V DC +/-10 percent
-
5VR current:10 mA maximum
-
Output voltage:14 to 31 V DC
-
Output resistance:Approximately two 1.1 kohm resistors in parallel
-
Output protection:Continuous short-circuit proof
-
Battery type:SAFT LS14500CFG Li-SOCl2
-
Battery voltage:3.6 V nominal
-
Battery capacity:Greater than 2 Ah
-
Operating temperature:-5 to +70 deg C
-
Storage temperature:-40 to +85 deg C
-
Humidity:10 to 95 percent, non-condensing
Information
Overview
Manuals
Common Applications
Product Precautions

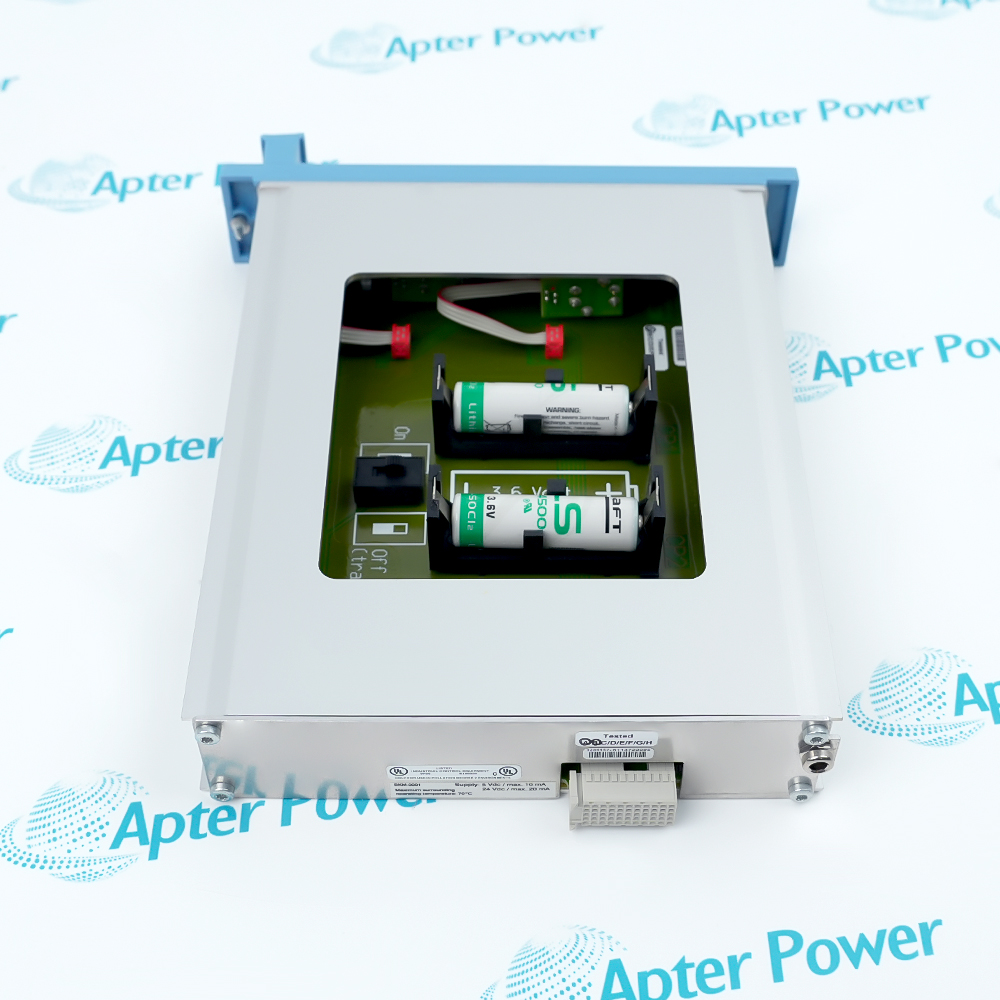

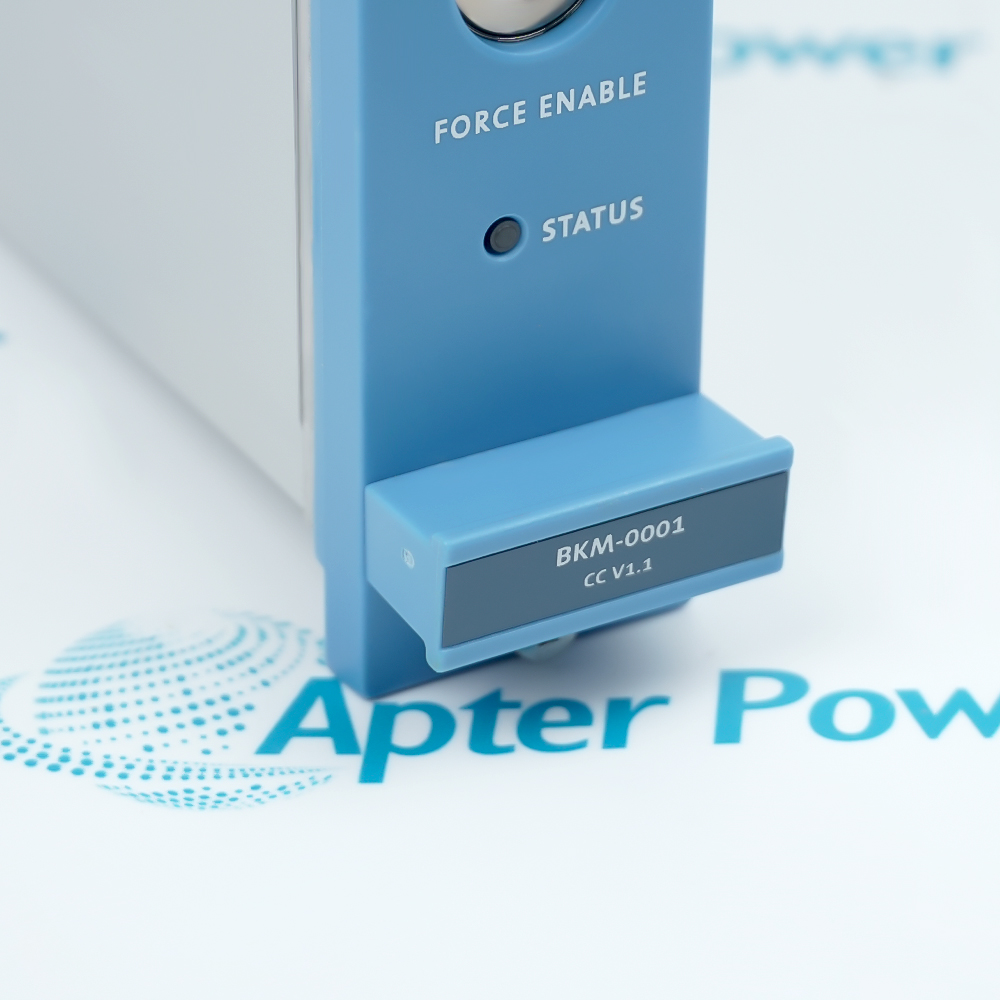

FC-BKM-0001-V1.1 provides the documented battery and key-module functions for a Honeywell Safety Manager installation.
- Provides the Safety Manager battery interface
- Carries the documented keyed module function
- Uses short-circuit-protected output circuitry
- Supports the specified lithium battery execution
The module is connected to the Safety Manager hardware using the documented 24 V and 5VR supplies and fitted battery arrangement. Commissioning checks supply polarity, battery identity, key position, outputs and controller diagnostics.
Important Notice: Confirm FC-BKM-0001-V1.1, Safety Manager host, module revision, 24 V and 5VR supplies, key position, specified SAFT batteries, polarity, output wiring, connectors, grounding, controller configuration and functional-test results before commissioning.
Apter Power FC-BKM-0001-V1.1 Manuals and Guides
- Apter Power FC-BKM-0001-V1.1 Electrical and Battery Technical Reference PDF
- Apter Power FC-BKM-0001-V1.1 Key, Battery and Safety Validation Workbook PDF
The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.
Safety Manager memory support
Maintains the documented battery-backed function during an approved controller outage.
Controller key management
Provides the installed keyed interface used during authorized maintenance.
Safety-system module replacement
Restores an exact BKM hardware position with controlled configuration checks.
Battery condition verification
Supports documented battery identity, polarity and diagnostic inspection.
Read the applicable Honeywell installation instructions before work. Verify FC-BKM-0001-V1.1, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
1
Confirm FC-BKM-0001-V1.1, module version and installed Safety Manager position.
2
Place the affected safety functions in the approved bypass or maintenance state.
3
Isolate the module supplies and use ESD-safe handling procedures.
4
Record 24 V, 5VR, output, key and battery connections before removal.
5
Inspect connector keying and fit only the specified battery type with correct polarity.
6
Restore the approved Safety Manager hardware and key configuration.
7
Verify supply, battery, output and controller diagnostics after power-up.
8
Complete the documented safety-function test before returning the process to service.
Alternative Names
FC-BKM-0001 V1.1
FS-BKM-0001
Technical notes
Install FC-BKM-0001-V1.1 only in the documented Safety Manager position and record key state, battery polarity and module connections before removal. Use ESD controls, fit the specified batteries, restore the approved hardware arrangement and verify module, battery and controller diagnostics before release.
FAQ View All FAQ
-
How should the complete FC-BKM-0001-V1.1 identity be verified before replacement?Confirm FC-BKM-0001-V1.1, Safety Manager host, module revision, 24 V and 5VR supplies, key position, specified SAFT batteries, polarity, output wiring, connectors, grounding, controller configuration and functional-test results before commissioning.
-
What system role does FC-BKM-0001-V1.1 perform in the documented installation?Honeywell FC-BKM-0001-V1.1 is a Battery and Key Module for Safety Manager hardware. It provides battery-backed service support and keyed module-interface functions within the documented safety-controller arrangement.
-
Which host or carrier must be checked before installing FC-BKM-0001-V1.1?The module is connected to the Safety Manager hardware using the documented 24 V and 5VR supplies and fitted battery arrangement. Commissioning checks supply polarity, battery identity, key position, outputs and controller diagnostics.
-
What isolation and ESD controls apply when handling FC-BKM-0001-V1.1?Place the affected safety functions in the approved bypass or maintenance state. Isolate the module supplies and use ESD-safe handling procedures.
-
Which wiring or connector records should be retained for FC-BKM-0001-V1.1?Record 24 V, 5VR, output, key and battery connections before removal. Inspect connector keying and fit only the specified battery type with correct polarity.
-
How should the approved configuration for FC-BKM-0001-V1.1 be restored?Restore the approved Safety Manager hardware and key configuration.
-
Which diagnostics must be reviewed after fitting FC-BKM-0001-V1.1?Verify supply, battery, output and controller diagnostics after power-up.
-
What controlled acceptance test completes work on FC-BKM-0001-V1.1?Complete the documented safety-function test before returning the process to service.
