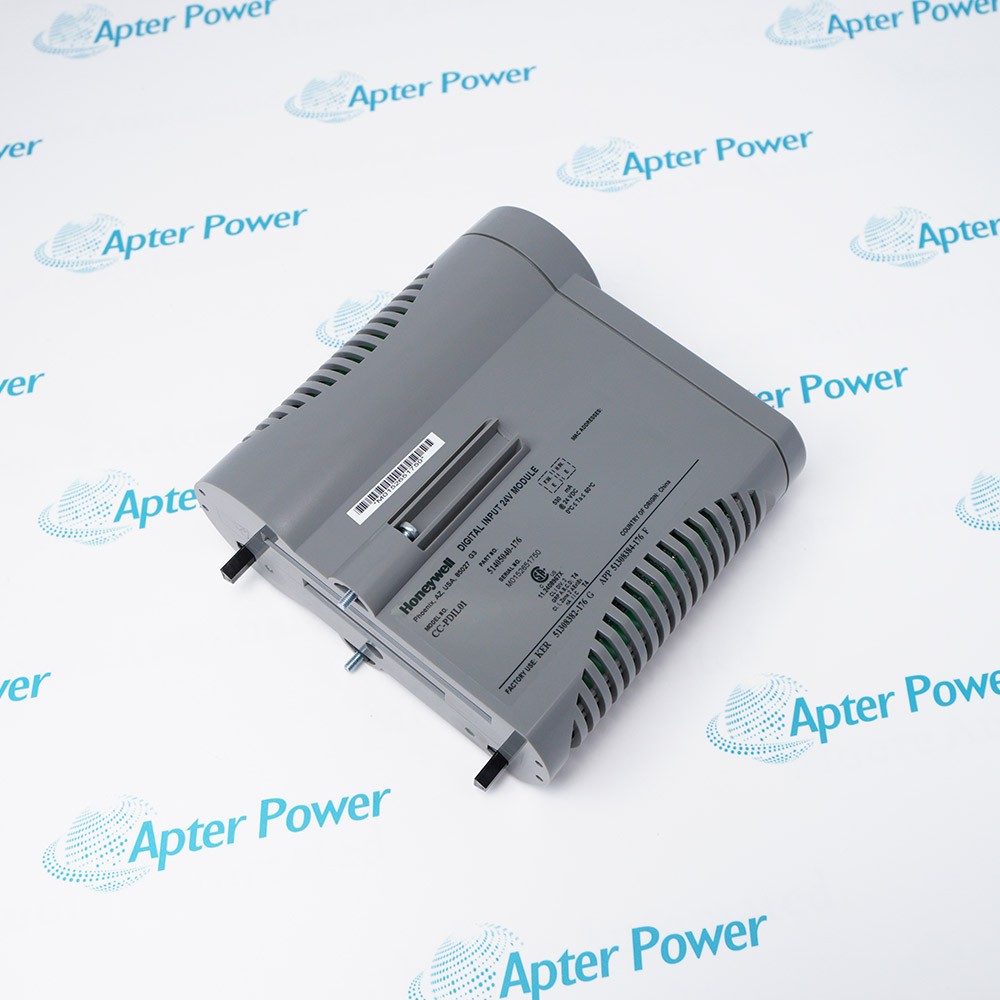

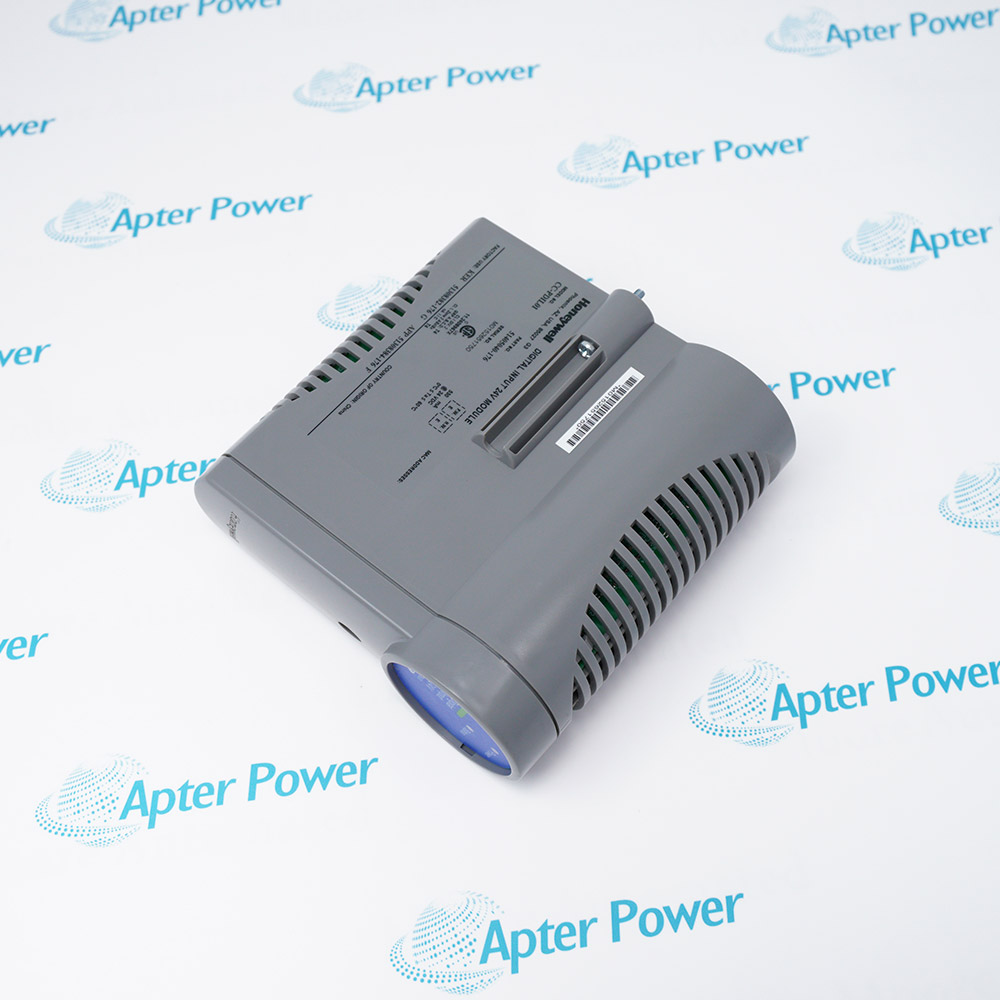

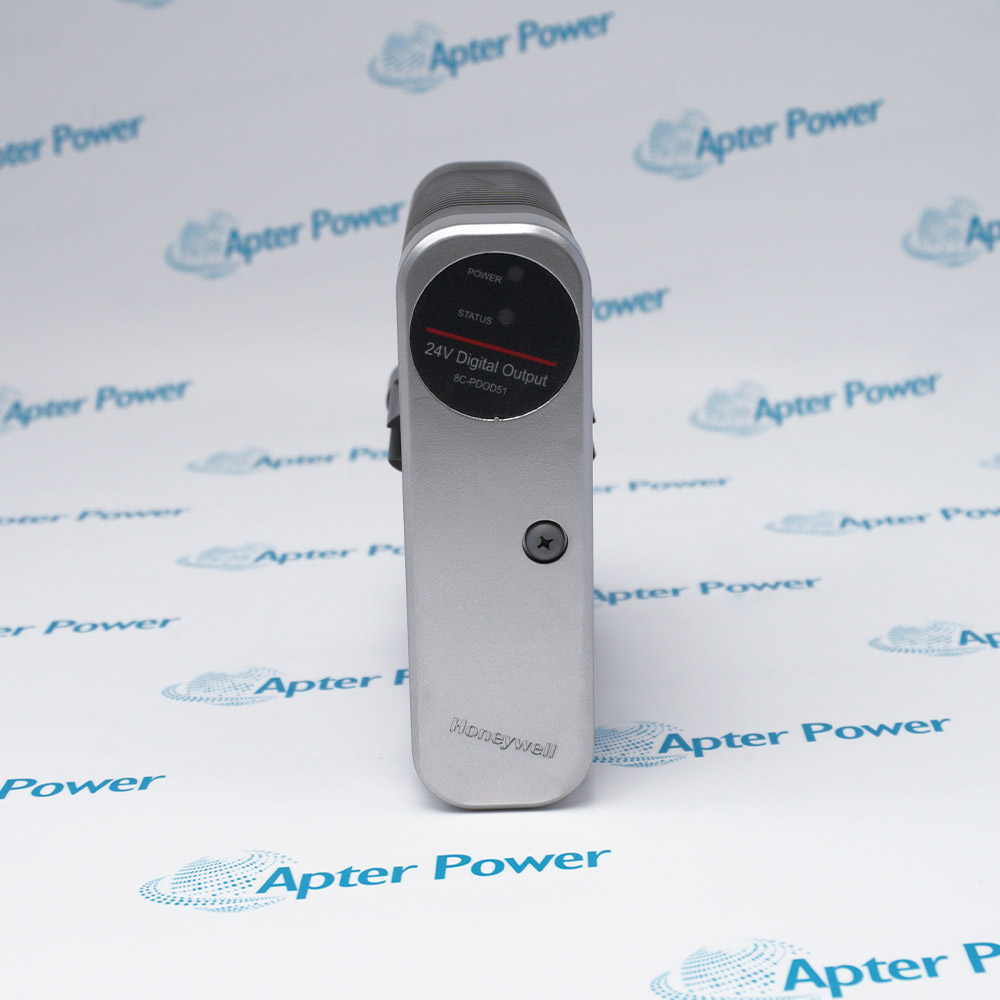

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for CC-PDIL01 51405040-175
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for CC-PDIL01 51405040-175
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:51405040-175
-
Estimated shipping dimensions:5.5x16x14.5cm
-
Weight:0.36 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
I/O model:CC-PDIL01 - 24 V Digital Input
-
Spare part number:51405040-175
-
Input channels:32
-
DI power voltage range:18 to 30 VDC
-
ON sense:13 VDC minimum or 3 mA minimum
-
OFF sense:5 VDC maximum or 1.2 mA maximum
-
Input impedance:4.2 kOhm
-
Isolation:1500 VAC RMS or +/-1500 VDC
-
Isolation technique:Optical in IOM
-
Input delay:5 ms +/-20%
Information
Overview
Manuals
Common Applications
Product Precautions
Honeywell CC-PDIL01 51405040-175 acquires thirty-two 24 VDC discrete field states for an Experion Series C I/O position. The module combines optical input isolation with open-wire status handling so invalid field conditions can be identified before control action.
- Thirty-two discrete input channels
- 18 to 30 VDC field-power range
- Optical input isolation
- Open-wire detection with invalid-status handling
CC-PDIL01 works with the documented Series C termination arrangement, field-power selection and project channel configuration to deliver discrete states to the controller.
Important Notice: Confirm the complete CC-PDIL01 51405040-175 identity, assigned IOTA, channel map, field-power method and open-wire behavior before replacement or commissioning.
Honeywell CC-PDIL01 51405040-175 Manuals & Downloads
Honeywell CC-PDIL01 51405040-175 Official Technical Reference (PDF)Honeywell CC-PDIL01 51405040-175 Installation & Commissioning Guide (PDF)
The official technical reference preserves selected Honeywell source pages for exact-model identification and verified data; the separate Installation & Commissioning Guide organizes identity control, interface checks, channel testing and acceptance records.
Discrete equipment status
Acquires documented 24 VDC on/off states from engineered field circuits.
Alarm and interlock inputs
Feeds assigned discrete conditions into the configured control strategy.
Series C cabinet renewal
Supports controlled replacement of an existing CC-PDIL01 input position.
Redundant input positions
Supports approved redundant arrangements when the documented IOTA and project configuration provide them.
Apply these controls specifically to Honeywell CC-PDIL01 51405040-175 before isolation, replacement, reconnection and final release.
1
Verify CC-PDIL01 and the complete 51405040-175 item identity before work.
2
Confirm the assigned Series C IOTA model and whether the position is nonredundant or redundant.
3
Isolate applicable field energy and apply approved ESD controls before module handling.
4
Record all 32 channel assignments, field-power selection and direct/reverse settings.
5
Keep the digital-input power supply within the documented 18 to 30 VDC range.
6
Check ON and OFF states against the documented voltage and current thresholds.
7
Investigate an open-wire diagnostic before accepting the associated process value.
8
Commission every used channel from field contact through controller indication before service.
Alternative Names
CC-PDIL01 51405040-175 CC PDIL01 51405040175
Technical notes
Record all 32 channel assignments, the installed IOTA, field-power selection and direct/reverse settings before isolation. After reconnection, stimulate every used input and verify controller state, open-wire diagnostics and dependent logic before release.
FAQ View All FAQ
-
How many discrete inputs does Honeywell CC-PDIL01 51405040-175 provide?Honeywell CC-PDIL01 51405040-175 provides 32 discrete input channels.
-
What field-power range applies to Honeywell CC-PDIL01 51405040-175?The documented digital-input power range is 18 to 30 VDC.
-
What ON threshold should be checked for Honeywell CC-PDIL01 51405040-175?An input is in the documented ON region at 13 VDC minimum or 3 mA minimum.
-
What OFF threshold should be checked for Honeywell CC-PDIL01 51405040-175?The documented OFF threshold is 5 VDC maximum or 1.2 mA maximum.
-
How is Honeywell CC-PDIL01 51405040-175 isolated?The module uses optical isolation in the I/O module and is rated at 1500 VAC RMS or plus/minus 1500 VDC from an input terminal to common.
-
What does the open-wire function do on Honeywell CC-PDIL01 51405040-175?It detects and annunciates an open field wire and marks the affected process value invalid so it is not treated as a valid field state.
-
Which IOTA arrangement must be verified for Honeywell CC-PDIL01 51405040-175?Match the installed position to the exact project drawing and one of the CC-PDIL01 IOTA arrangements listed in the Series C specification.
-
How should Honeywell CC-PDIL01 51405040-175 be commissioned?Verify field power, stimulate each used input, confirm the channel state and diagnostic status, and retain the results before return to service.
