Technical specifications for CC-TDIL01
-
Manufacturer:Honeywell
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:51308386-175
-
Estimated shipping dimensions:26x15.2x7.5cm
-
Weight:0.5 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
IOTA type:Digital input; 24 V DC; nonredundant
-
Channels:32
-
Physical size:9 in
-
Compatible modules:CC-PDIL01; CC-PDIS01 SOE
-
Field power:18 to 30 V DC
-
Input isolation:1500 V AC rms or +/-1500 V DC
-
Isolation method:Optical
-
ON state:>=13 V DC or >=3 mA
-
OFF state:<=5 V DC or <=1.2 mA
-
Input impedance:4.2 kOhm
-
Input delay:5 ms +/-20%
-
Guaranteed ON field resistance:300 Ohm maximum at 15 V
-
Guaranteed OFF field resistance:30 kOhm minimum at 30 V
-
Normal scan:20 ms
-
Fast scan:5 ms
-
SOE resolution:1 ms
Information
Overview
Manuals
Common Applications
Product Precautions

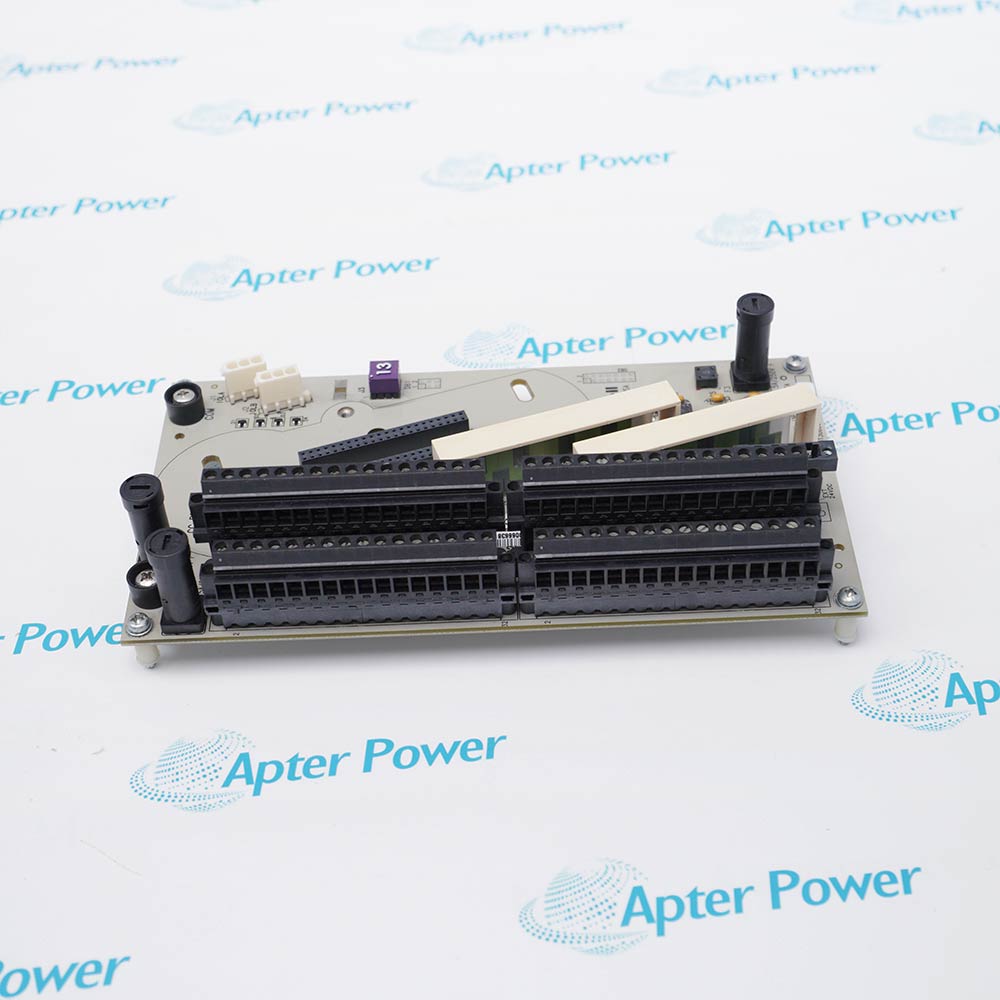

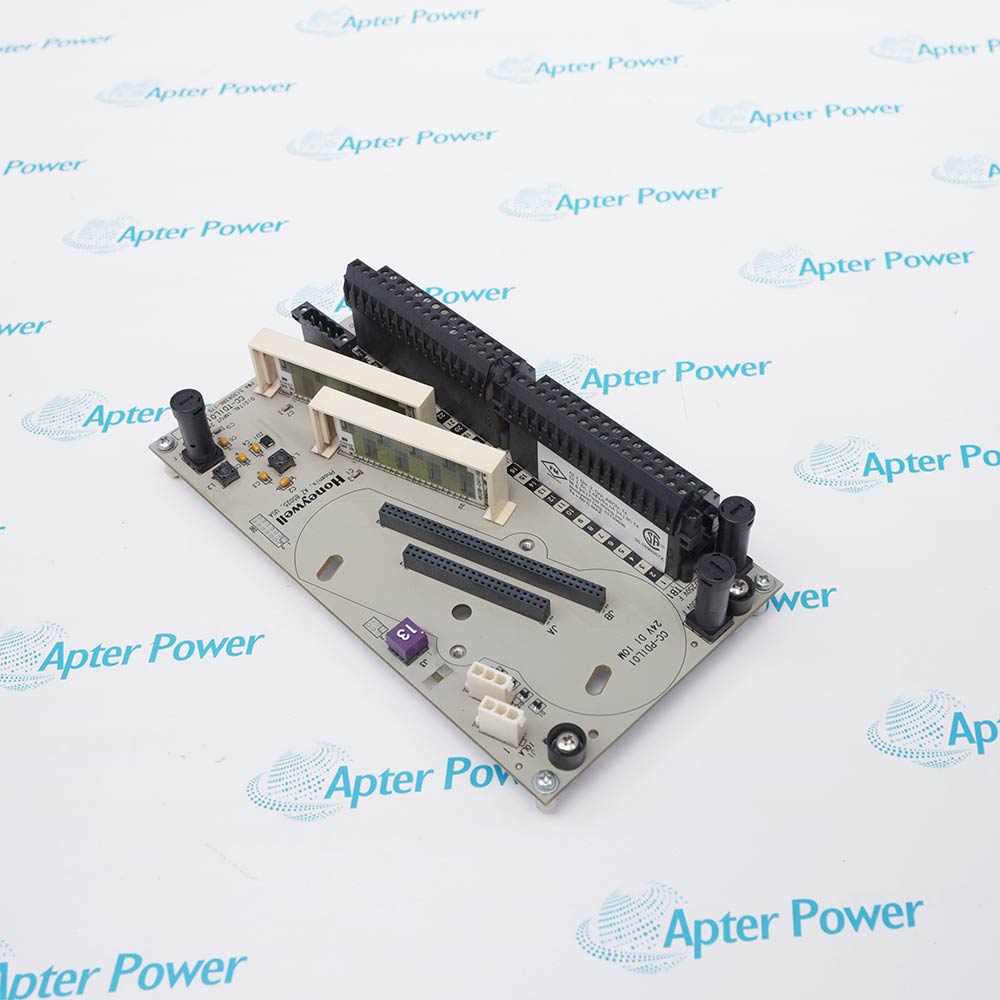

Honeywell CC-TDIL01 is thirty-two-point 24 v dc digital input iota. It terminates thirty-two 24 V DC discrete field inputs for either standard digital acquisition or sequence-of-events service.
- Terminates thirty-two 24 V DC input circuits
- Supports normal or fast digital-input scanning
- Pairs with the CC-PDIS01 sequence-of-events processor
- Provides one-millisecond SOE timestamp resolution when configured
CC-TDIL01 operates with CC-PDIL01 or CC-PDIS01 input module, 18 to 30 V DC field supply, two-state field devices, Series-C carrier and project.
Engineered applications include Process interlock input termination, Sequence-of-events capture, Fast discrete status scanning, Digital-input IOTA renewal.
Important Notice: Match the installed PDIL/PDIS processor, preserve every input common and field conductor, then prove ON/OFF thresholds and SOE time synchronization where used.
Apter Power CC-TDIL01 Manuals and Guides
Apter Power CC-TDIL01 Product and System Technical Reference PDFApter Power CC-TDIL01 Field Installation and Functional Acceptance Workbook PDFThe first document organizes model-specific identity, technical data and system context. The second provides a separate installation, connection, commissioning and acceptance workflow.
Process interlock input termination
Terminates permissive and interlock contact circuits.
Sequence-of-events capture
Captures event order for post-trip analysis.
Fast discrete status scanning
Supports faster status acquisition where configured.
Digital-input IOTA renewal
Replaces the field termination while preserving channel and conductor identity.
Read the applicable Honeywell instructions before work. Verify CC-TDIL01 and the installed Experion Series-C I/O configuration.
1
Verify the complete CC-TDIL01 marking and its assigned thirty-two-point digital-input IOTA position before work.
2
Place the connected process and control strategy in the approved maintenance state.
3
Isolate the applicable cabinet supply and 24 V discrete field energy before disconnecting conductors.
4
Record terminal numbers, channel assignments, polarity, shields and configured ranges before removal.
5
Use ESD controls and protect the backplane connector, terminal hardware and coated electronics.
6
Confirm the installed CC-PDIL01 or CC-PDIS01 module and carrier arrangement against the approved project.
7
Restore power in a controlled sequence and clear only diagnostics created by the maintenance activity.
8
Complete channel transition and SOE timestamp verification and retain the measured result before returning the channel to automatic service.
Technical notes
Match CC-TDIL01 to the documented CC-PDIL01 or CC-PDIS01 processor and preserve channel wiring, input commons and the 18 to 30 V DC field supply. After installation, verify ON/OFF transitions, scan configuration and SOE timing where used.
FAQ View All FAQ
-
What exact Honeywell system position is intended for CC-TDIL01?CC-TDIL01 is assigned to the documented Experion Series-C I/O role as thirty-two-point 24 v dc digital input iota; confirm that role against the installed cabinet record.
-
Which field signal or controlled function is handled by CC-TDIL01?Its documented signal duty is thirty-two optically isolated 24 v dc discrete-input connections. The controlling source lists channels as 32.
-
Which companion hardware must be checked before installing CC-TDIL01?Match CC-TDIL01 with CC-PDIL01 or CC-PDIS01 input module and 18 to 30 V DC field supply; also retain the approved carrier, cable and project identity.
-
What electrical limit should an engineer verify before wiring CC-TDIL01?Verify the model-specific value for Compatible modules: CC-PDIL01; CC-PDIS01 SOE. Do not transfer a limit from another module revision.
-
How should the installed configuration be preserved when replacing CC-TDIL01?Record the as-found slot, connector, channel assignment and project revision, then restore only the approved Experion Series-C I/O configuration.
-
Which isolation or handling check applies to CC-TDIL01?Apply the isolation and ESD sequence stated for CC-TDIL01; the source also identifies input isolation as 1500 V AC rms or +/-1500 V DC.
-
What diagnostic or commissioning evidence is required for CC-TDIL01?Complete the model-specific functional check for process interlock input termination, review host diagnostics and retain the final test result.
-
Can CC-TDIL01 be substituted for a visually similar Honeywell assembly?No automatic substitution is assumed. Compare the complete CC-TDIL01 marking, iota type, companion hardware, signal duty and approved system revision.
