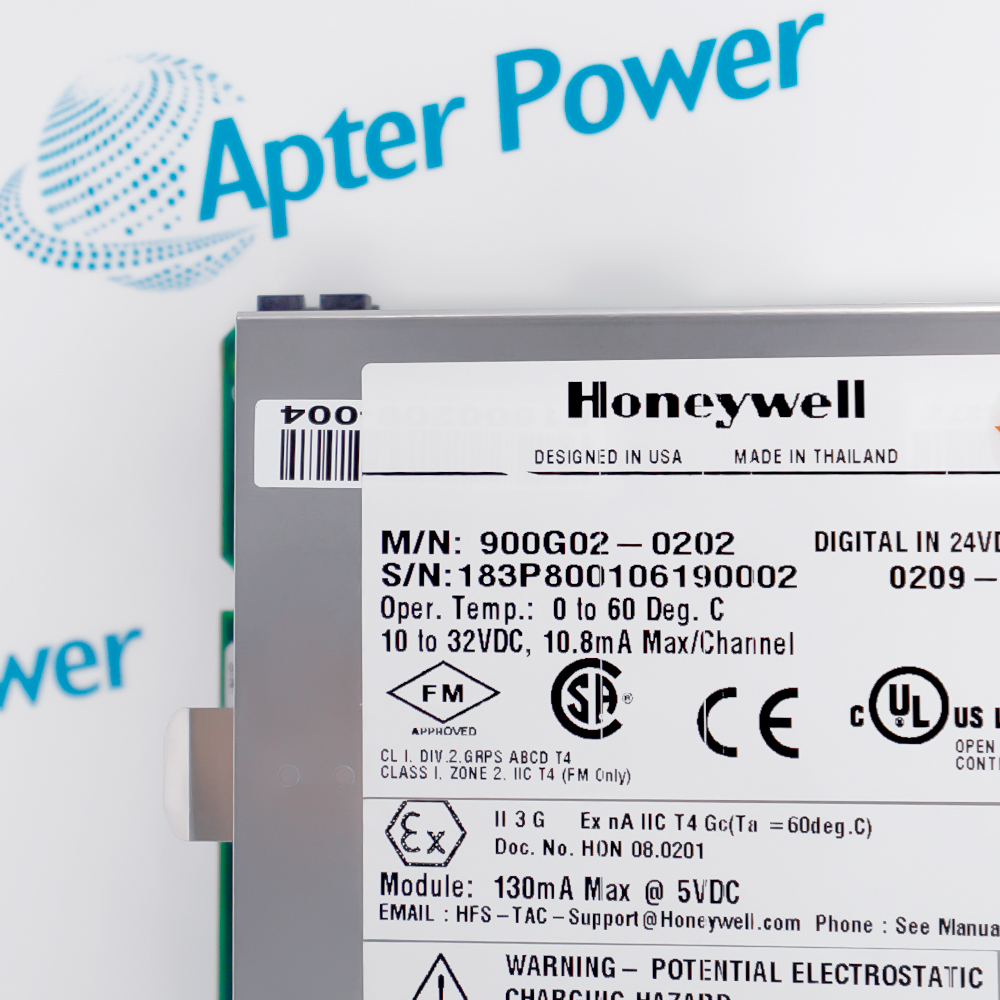

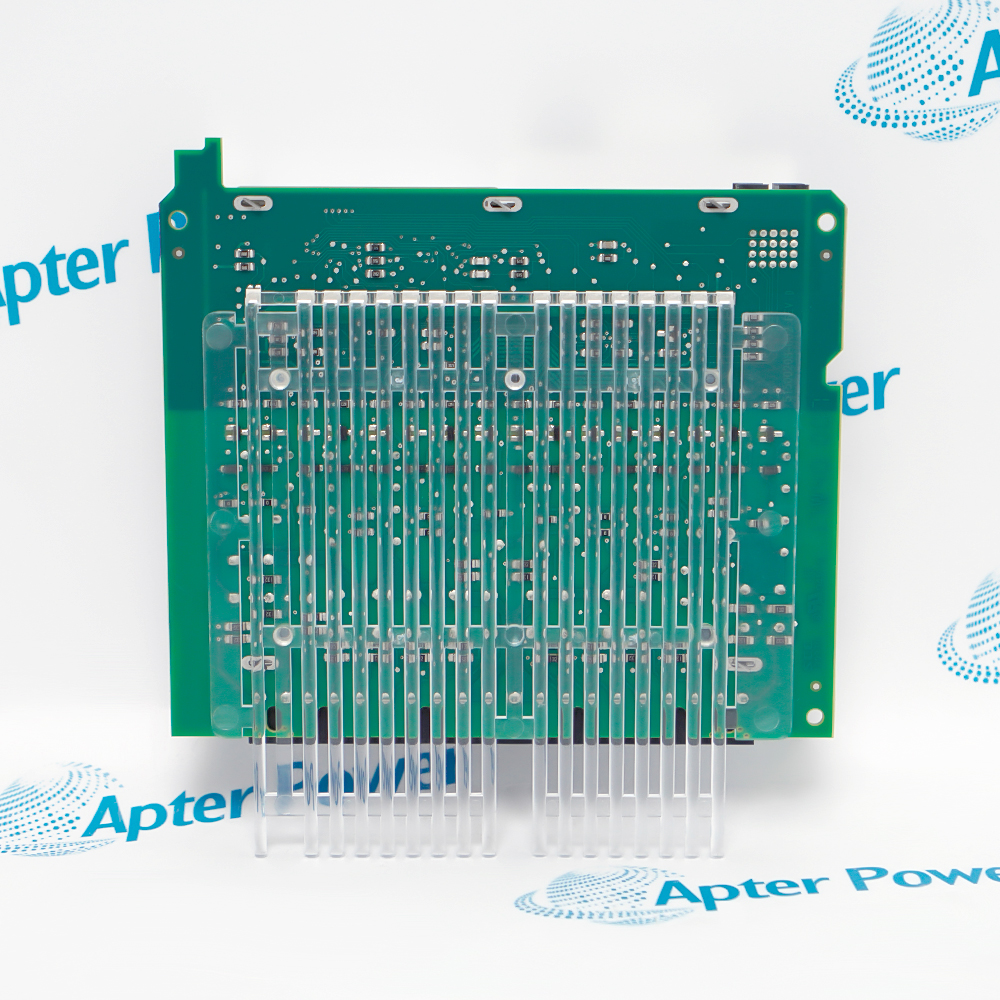

      Honeywell 900G02-0202
      Honeywell 900G02-0202
      Honeywell 900G02-0202
      Honeywell 900G02-0202
      Honeywell 900G02-0202
      Honeywell 900G02-0202
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      900G02-0202

      ControlEdge HC900 Sixteen-Channel Digital Input Module
      In Stock

      Product Describe：

      Honeywell 900G02-0202 is a sixteen-channel DC digital input module for ControlEdge HC900. It senses current-sinking field states and transfers their logic condition to the controller.

      Ask our team:

      Get a quick price for： 900G02-0202
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 900G02-0202

      Technical specifications for 900G02-0202

      • Manufacturer:
        Honeywell
      • Product Category:
        DCS System
      • Spare Part Number:
        900G02-0202
      • Estimated shipping dimensions:
        13.5x14.1x3.3cm
      • Weight:
        0.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Input channels:
        16
      • Channel grouping:
        2 groups of 8
      • Input type:
        Current sinking
      • Input voltage:
        10 to 32 Vdc
      • Peak input voltage:
        32 Vdc
      • Group isolation:
        42.4 Vdc maximum
      • ON-state threshold:
        9.5 Vdc minimum
      • OFF-state threshold:
        3.5 Vdc maximum
      • Input impedance:
        2.6 kOhm nominal
      • Input current at 12 V:
        2.3 mA
      • Input current at 24 V:
        6.9 mA
      • Minimum ON current:
        1 mA
      • Maximum OFF current:
        0.7 mA
      • OFF-to-ON response:
        4 ms maximum
      • ON-to-OFF response:
        4 ms maximum
      • 5 V loading:
        130 mA maximum
      • 24 V loading:
        0 mA
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Honeywell 900G02-0202 is a sixteen-channel DC digital input module for ControlEdge HC900. It senses current-sinking field states and transfers their logic condition to the controller.
      • Acquires sixteen DC discrete input states
      • Separates field inputs into two isolated groups of eight
      • Applies defined voltage and current thresholds to logic-state detection
      • Reports channel states to ControlEdge HC900 control strategies

      900G02-0202 installs with ControlEdge HC900 rack, 10-32 Vdc field supply, dry contacts or compatible DC sensors, HC Designer configuration in an engineered ControlEdge HC900 I/O configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this controledge hc900 sixteen-channel digital input module.

      Important Notice: Confirm the complete 900G02-0202 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 900G02-0202 Manuals and Guides
      Apter Power 900G02-0202 Product Technical Reference PDFHoneywell 900G02-0202 Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Machine permissive and status inputsAcquires sixteen DC discrete input states
      Limit-switch monitoringSeparates field inputs into two isolated groups of eight
      Package-unit discrete indicationApplies defined voltage and current thresholds to logic-state detection
      Two-group isolated field-state acquisitionReports channel states to ControlEdge HC900 control strategies
      Read the applicable Honeywell installation instructions before work. Verify 900G02-0202 and the installed ControlEdge HC900 I/O configuration.
      1Verify 900G02-0202 and its documented HC900 rack position before work.
      2Place affected control logic and equipment in a safe maintenance state.
      3Isolate the field supply before disturbing input terminals.
      4Record the two group commons and all sixteen channel assignments.
      5Confirm each connected device stays within the documented input-voltage range.
      6Use ESD controls and protect module and rack connectors during handling.
      7Test OFF and ON thresholds with controlled field states after installation.
      8Review channel indication, controller diagnostics and intended logic response before release.

      Technical notes

      Technical notes

      Match field voltage and commoning to the two groups of eight, preserve channel polarity, then force controlled OFF and ON states while confirming response and diagnostics in HC Designer.

      FAQS

      • How should engineers isolate 900G02-0202 before replacement?
        Place the associated process function in its approved maintenance state and isolate the power, signal or pneumatic energy connected to ControlEdge HC900 rack.
      • What connection information should be recorded before removing 900G02-0202?
        Record every terminal, cable, channel, group and companion-component assignment associated with 900G02-0202 before any conductor or connector is moved.
      • Which configuration must be restored after installing 900G02-0202?
        Restore only the approved ControlEdge HC900 I/O configuration for the original position, including the model-specific channel, network, timing or pressure settings.
      • How should 900G02-0202 be commissioned for Machine permissive and status inputs?
        Apply a controlled input, output or operating condition and verify the expected acquires sixteen dc discrete input states response together with the product-specific diagnostics.
      • Which diagnostics should be checked after replacing 900G02-0202?
        Review the applicable power, communication, channel and fault indications for 900G02-0202, then confirm that no unexpected alarm or bypass remains active.
      • Can 900G02-0202 be replaced by a similar family model without engineering review?
        No. The complete model, electrical or pneumatic execution, companion hardware and approved system configuration must match the installed duty.
      • What evidence should be retained after 900G02-0202 returns to service?
        Retain the full 900G02-0202 identity, as-left connections, restored configuration, final diagnostics and the controlled functional-test result.
      • Which installed hardware must be matched before using 900G02-0202?
        Match 900G02-0202 to ControlEdge HC900 rack, 10-32 Vdc field supply and the complete physical marking; do not transfer a configuration from an adjacent model.
