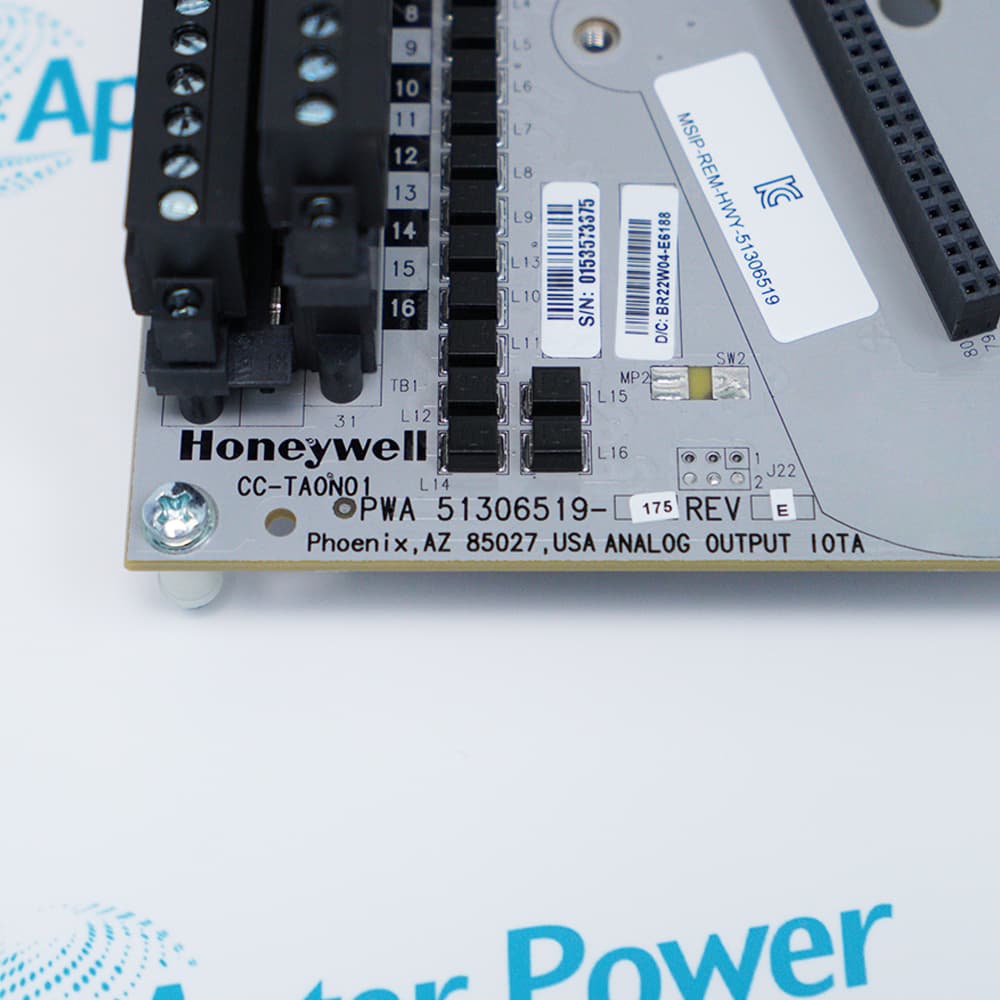

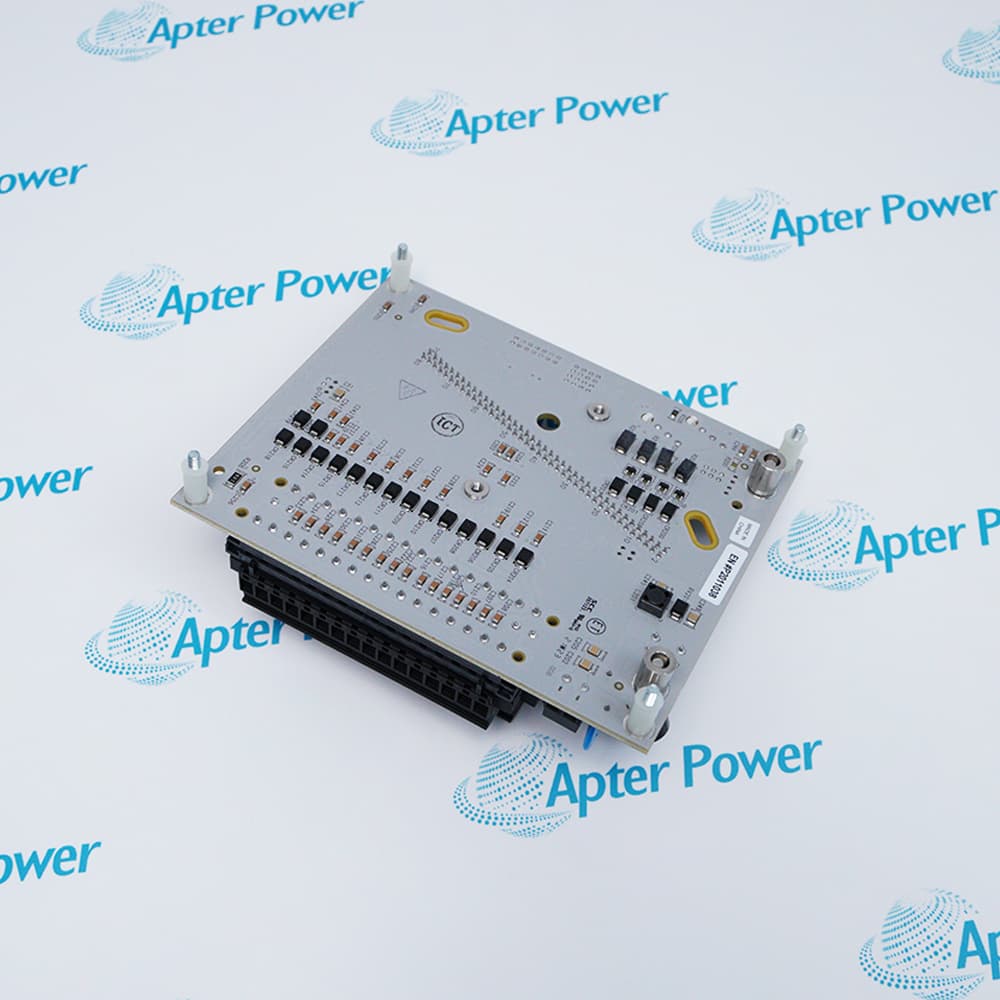

Get a quick price for CC-TAON01
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for CC-TAON01
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:51306519-175
-
Estimated shipping dimensions:12.4x14.5x6.3cm
-
Weight:0.28 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Product type:Analog Output IOTA
-
Associated module:CC-PAON01
-
IOTA configuration:Non-redundant
-
IOTA size:6 in
-
Output type:4-20 mA
-
Output channels:16
-
Output ripple:<100 mV peak-to-peak across 250 ohm load
-
Output temperature drift:0.005% full scale/°C
-
Output readback accuracy:±4% full scale
Information
Overview
Manuals
Common Applications
Product Precautions
Honeywell CC-TAON01 provides the termination interface for a configured Series-C analog-output installation.
- Carrier-mounted termination hardware
- Configured analog-loop integration
- Field-wiring commissioning support
- Maintenance-focused IOTA and module pairing
The Honeywell Series-C I/O guide describes mounting the IOTA on its carrier, pairing it with the I/O module and completing the associated field connections.
Use the installed cabinet drawing and channel records during service work.
Important Notice: Confirm the complete part marking, carrier location, matching module, approved field wiring, grounding practice and channel checkout before commissioning or replacement.
Apter Power CC-TAON01 Manuals and Guides
Important Notice: These are two distinct Apter Power documents: the first is a product technical reference, while the second supports installation planning, application review and commissioning verification.
CC-TAON01 Installed-base maintenance
Like-for-like service of the documented Series-C analog-output termination hardware.
CC-TAON01 Compatibility review
Comparison of carrier hardware, I/O module, field wiring and configuration before replacement.
CC-TAON01 Installation planning
Preparation of terminal, grounding and output-loop checks before field work.
CC-TAON01 Commissioning
Controlled verification of loop wiring, channel assignment, diagnostics and process response.
Read the applicable Honeywell installation instructions before work. Verify CC-TAON01 and the installed-system configuration.
1
Verify CC-TAON01 and the complete part number on the physical nameplate before installation.
2
Confirm the installed Series-C carrier and companion I/O module support the required analog-output arrangement.
3
Isolate applicable power and field energy before removing or installing CC-TAON01.
4
Use ESD controls and protect carrier connectors, terminals and the IOTA assembly.
5
Record existing field wiring, channel assignment and configuration before replacement.
6
Do not transfer wiring or channel assignments from an unrelated Honeywell IOTA.
7
Dress and identify field wiring to the applicable cabinet and terminal instructions.
8
After installation, test the output loop, diagnostics and intended process response.
Technical notes
CC-TAON01 is a non-redundant Series-C analog-output IOTA used with CC-PAON01. Verify the carrier position, module pairing, field-loop wiring, grounding and channel configuration before commissioning.
FAQ View All FAQ
-
What is CC-TAON01 used for?CC-TAON01 is a non-redundant Series-C analog-output IOTA for the documented Honeywell analog-output assembly.
-
Which I/O module is paired with CC-TAON01?CC-TAON01 is specified for use with the CC-PAON01 analog-output module.
-
Is CC-TAON01 a redundant IOTA?No. CC-TAON01 is the non-redundant analog-output IOTA configuration.
-
How many output channels does CC-TAON01 support?CC-TAON01 supports the 16-channel CC-PAON01 analog-output module configuration.
-
What wiring should be checked before energizing CC-TAON01?Verify loop polarity, 4-20 mA field wiring, load, shielding, grounding and the documented channel assignment.
-
What should be checked before replacing CC-TAON01?Confirm the complete CC-TAON01 marking, carrier position, CC-PAON01 pairing and all field-loop identifications.
-
How should CC-TAON01 be commissioned?Test each affected output in a controlled sequence and verify output response, readback, diagnostics and alarms.
-
Which documents should be used for CC-TAON01 service?Use the project wiring drawings, installed-system configuration, Honeywell Series-C instructions and the applicable Apter Power guide.
