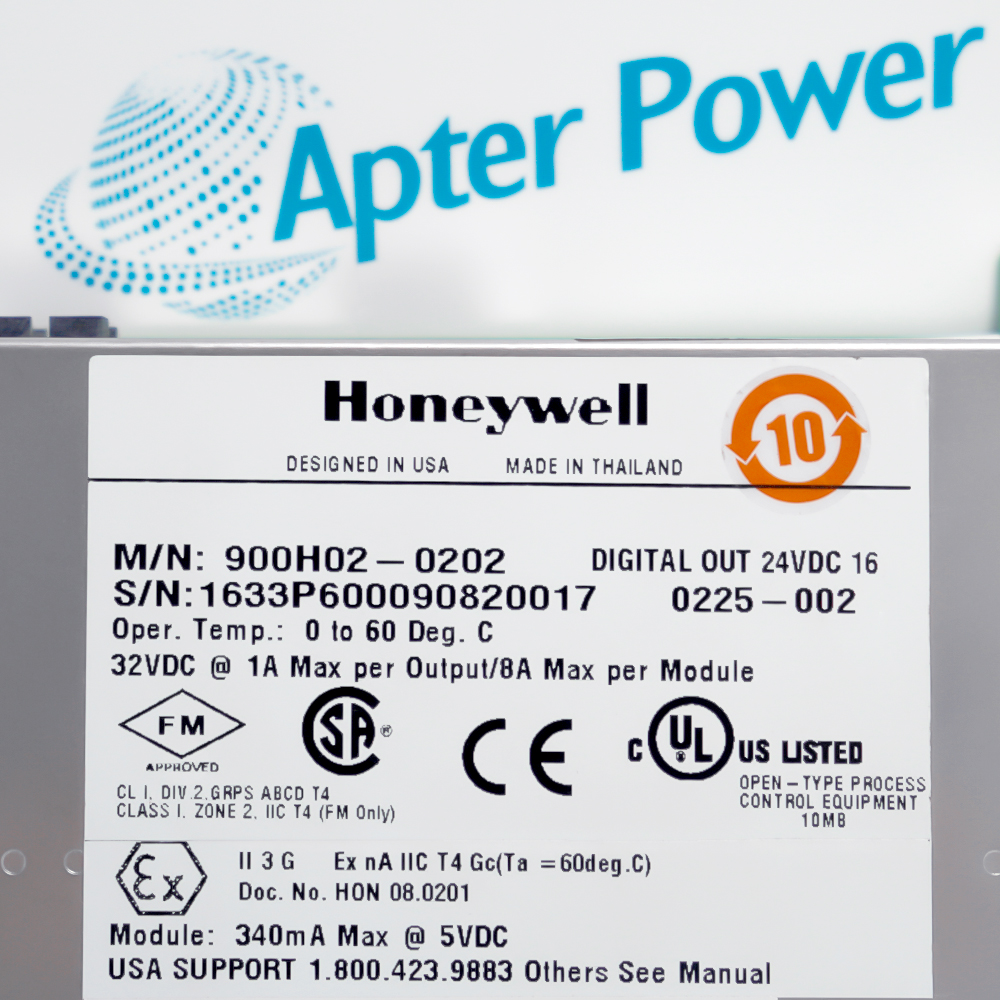

      Honeywell 900H02-0202
      Honeywell 900H02-0202
      Honeywell 900H02-0202
      Honeywell 900H02-0202
      Honeywell 900H02-0202
      Honeywell 900H02-0202
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      900H02-0202

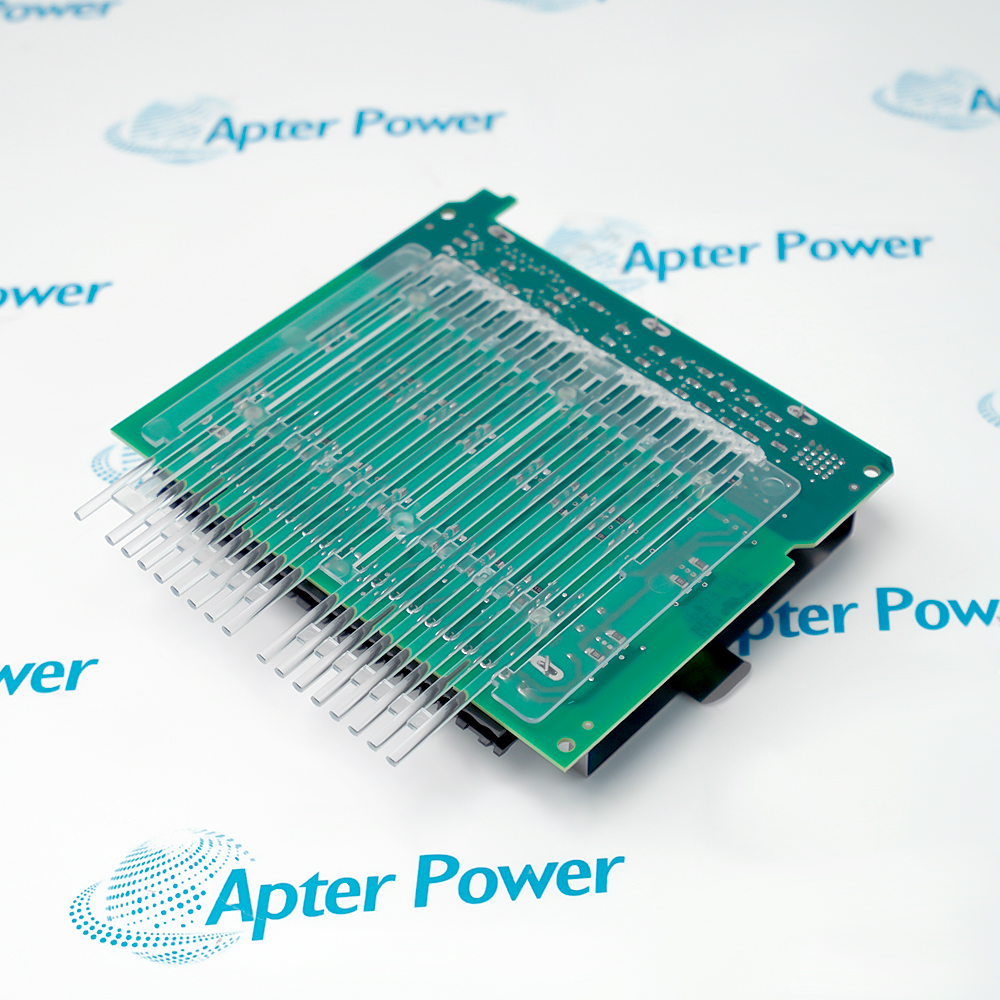

      ControlEdge HC900 Sixteen-Channel Digital Output Module
      In Stock

      Product Describe：

      Honeywell 900H02-0202 is a sixteen-channel current-sinking digital output module for ControlEdge HC900. It switches grouped DC field loads from controller commands and provides electronic output protection.

      Ask our team:

      Get a quick price for： 900H02-0202
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 900H02-0202

      Technical specifications for 900H02-0202

      • Manufacturer:
        Honeywell
      • Product Category:
        DCS System
      • Spare Part Number:
        900H02-0202
      • Estimated shipping dimensions:
        13.5x14.1x3.3cm
      • Weight:
        0.16 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Output channels:
        16
      • Channel grouping:
        2 isolated groups of 8
      • Output type:
        Current-sinking low-side
      • Operating voltage:
        6.5 to 32 Vdc
      • Low-voltage operation:
        5 to 6.5 Vdc below 0.5 A per channel
      • Peak output voltage:
        34 Vdc
      • ON-state voltage drop:
        0.3 Vdc at 1 A
      • Resistive load:
        1 A per point; 8 A per module
      • Incandescent load:
        0.5 A per point
      • Inductive load:
        5 mH maximum
      • OFF-state leakage:
        0.15 mA at 32 V
      • Inrush current:
        4 A for 10 ms
      • Minimum load:
        0 mA
      • OFF-to-ON response:
        6 ms maximum
      • ON-to-OFF response:
        6 ms maximum
      • 5 V loading:
        340 mA maximum
      • 24 V loading:
        0 mA
      • Protection:
        Electronic high-current and high-temperature limiting
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Honeywell 900H02-0202 is a sixteen-channel current-sinking digital output module for ControlEdge HC900. It switches grouped DC field loads from controller commands and provides electronic output protection.
      • Switches sixteen low-side DC field loads
      • Separates outputs into two isolated groups of eight
      • Limits excessive current and device temperature electronically
      • Executes ControlEdge HC900 logic commands at the field interface

      900H02-0202 installs with ControlEdge HC900 rack, 6.5-32 Vdc field supply, compatible resistive or limited inductive loads, HC Designer control strategy in an engineered ControlEdge HC900 I/O configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this controledge hc900 sixteen-channel digital output module.

      Important Notice: Confirm the complete 900H02-0202 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 900H02-0202 Manuals and Guides
      Apter Power 900H02-0202 Product Technical Reference PDFHoneywell 900H02-0202 Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Solenoid and relay-coil command outputsSwitches sixteen low-side DC field loads
      Machine actuator enable circuitsSeparates outputs into two isolated groups of eight
      Grouped DC annunciator outputsLimits excessive current and device temperature electronically
      Protected package-unit command interfaceExecutes ControlEdge HC900 logic commands at the field interface
      Read the applicable Honeywell installation instructions before work. Verify 900H02-0202 and the installed ControlEdge HC900 I/O configuration.
      1Verify 900H02-0202 and the assigned output slot before field work.
      2Secure all commanded equipment and isolate both output-group supplies.
      3Record channel loads, common returns and safe-state requirements.
      4Check resistive, incandescent and inductive loads against their applicable limits.
      5Use ESD controls and inspect the rack and module connectors before insertion.
      6Restore controller configuration without energizing field loads initially.
      7Apply field power and test outputs individually while monitoring load current.
      8Clear any protection trip by the documented field-power cycle and verify final diagnostics.

      Technical notes

      Technical notes

      Confirm load type, group supply and per-channel current before wiring, then command each output under controlled conditions and verify that protective limiting and field response operate correctly.

      FAQS

      • What connection information should be recorded before removing 900H02-0202?
        Record every terminal, cable, channel, group and companion-component assignment associated with 900H02-0202 before any conductor or connector is moved.
      • Which configuration must be restored after installing 900H02-0202?
        Restore only the approved ControlEdge HC900 I/O configuration for the original position, including the model-specific channel, network, timing or pressure settings.
      • How should 900H02-0202 be commissioned for Solenoid and relay-coil command outputs?
        Apply a controlled input, output or operating condition and verify the expected switches sixteen low-side dc field loads response together with the product-specific diagnostics.
      • Which diagnostics should be checked after replacing 900H02-0202?
        Review the applicable power, communication, channel and fault indications for 900H02-0202, then confirm that no unexpected alarm or bypass remains active.
      • Can 900H02-0202 be replaced by a similar family model without engineering review?
        No. The complete model, electrical or pneumatic execution, companion hardware and approved system configuration must match the installed duty.
      • What evidence should be retained after 900H02-0202 returns to service?
        Retain the full 900H02-0202 identity, as-left connections, restored configuration, final diagnostics and the controlled functional-test result.
      • Which installed hardware must be matched before using 900H02-0202?
        Match 900H02-0202 to ControlEdge HC900 rack, 6.5-32 Vdc field supply and the complete physical marking; do not transfer a configuration from an adjacent model.
      • How should engineers isolate 900H02-0202 before replacement?
        Place the associated process function in its approved maintenance state and isolate the power, signal or pneumatic energy connected to ControlEdge HC900 rack.
