Technical specifications for MC-TDOR62
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:51309150-275
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Relay outputs:16
-
Contact form:Form A; Form B jumper-selectable
-
Contact material:Silver alloy
-
Maximum switched voltage:265 Vac; 140 Vdc
-
Rated current:2.5 A at 240 Vac; 2 A at 30 Vdc; 0.5 A at 125 Vdc
-
Minimum switched current:100 mA
-
Isolation:1500 Vac rms; +/-1500 Vdc
-
Operate time:10 ms typical; 15 ms maximum
-
Maximum switching rate:360 cycles/hour
-
Fuse:3 A, 250 V, slow-blow
-
Snubber:51 ohm; 0.022 uF
-
Terminal type:Screw
-
Coating:Conformal
Information
Overview
Manuals
Common Applications
Product Precautions

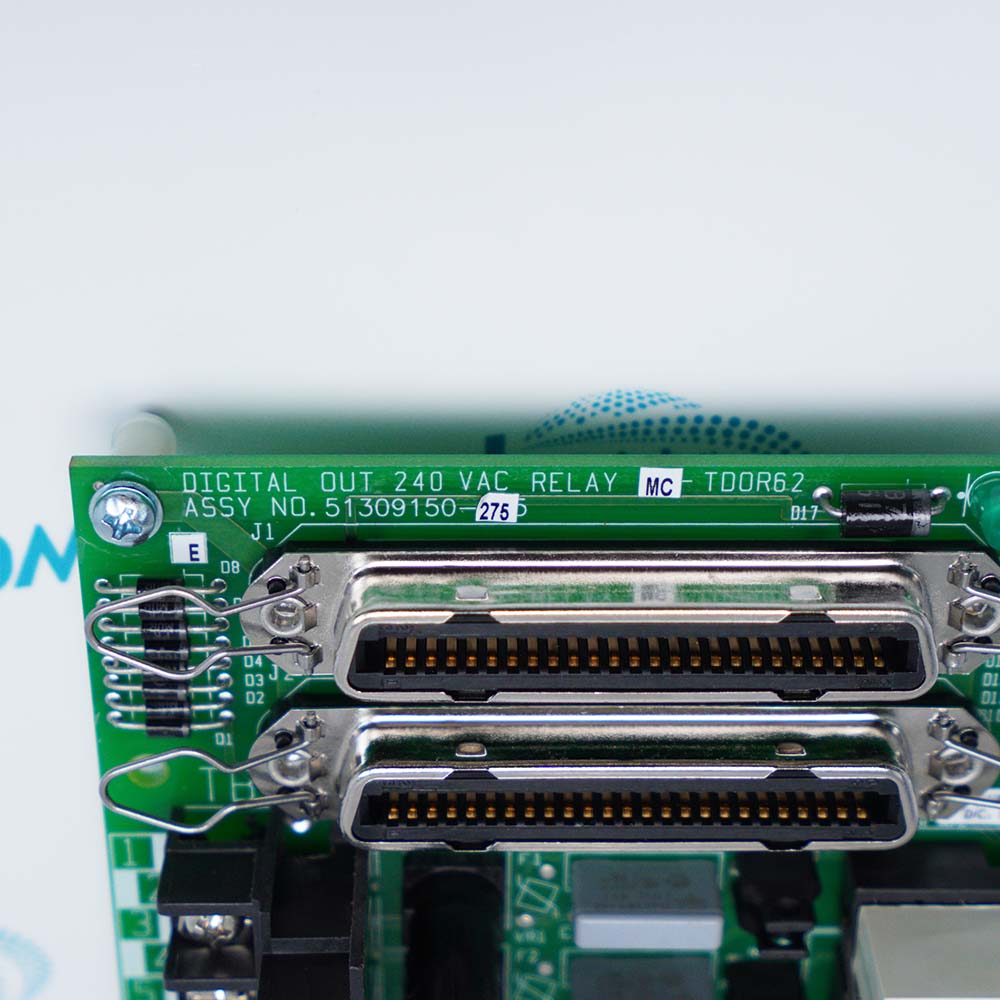

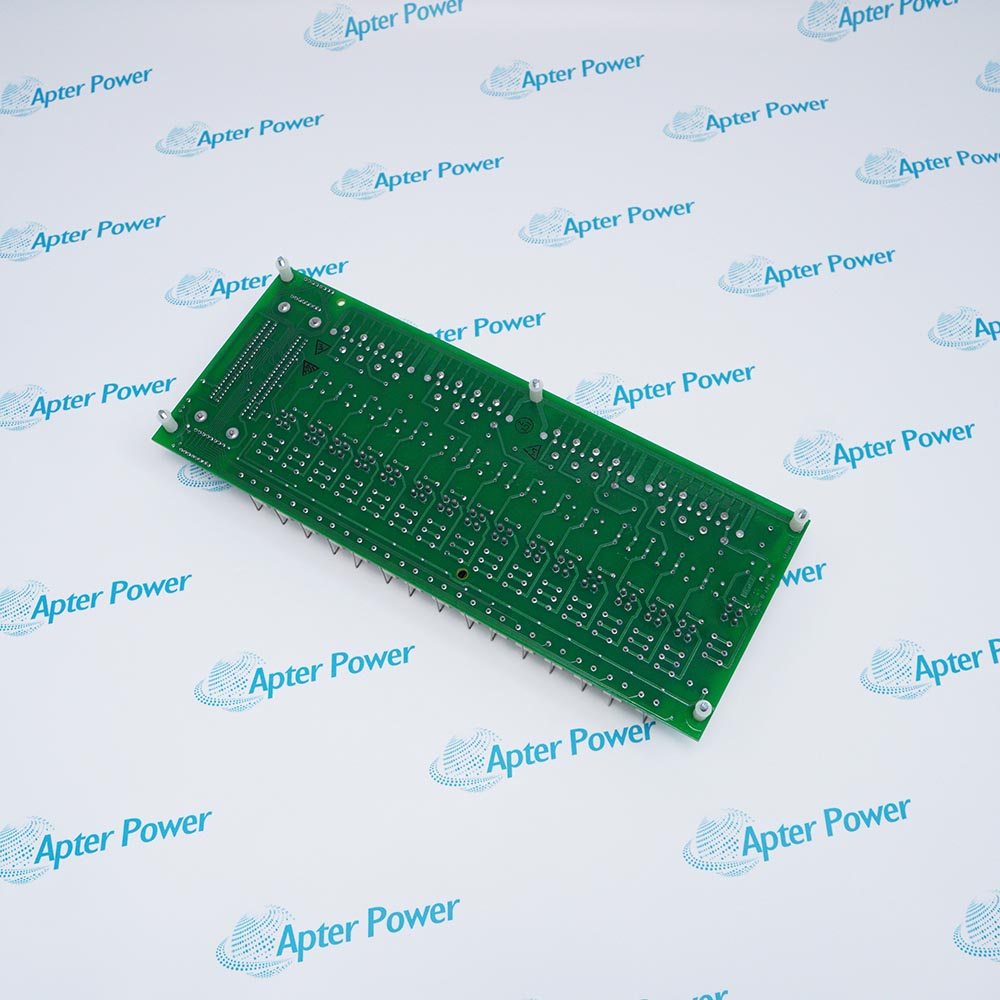

Honeywell MC-TDOR62 is a conformally coated 16-channel relay-output field termination assembly. It switches isolated Form A or Form B contacts for TPS Process Manager output duties.
- Switches isolated process loads through relay contacts
- Provides jumper-selected normally open or normally closed duties
- Separates field load circuits from the output processor
- Supports mixed AC and DC command circuits
MC-TDOR62 installs with TPS relay-output processor, FTA-to-IOP cable, Protected AC or DC field load, External field supply in an engineered TPS Process Manager I/O configuration.
The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this sixteen-channel relay output fta.
Important Notice: Confirm the complete MC-TDOR62 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.
Apter Power MC-TDOR62 Manuals and Guides
Apter Power MC-TDOR62 Product Technical Reference PDFApter Power MC-TDOR62 Installation and Verification PDFThe first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
Motor-starter interposing commandsSwitches isolated process loads through relay contacts
Valve and solenoid switchingProvides jumper-selected normally open or normally closed duties
Alarm annunciation circuitsSeparates field load circuits from the output processor
Package-equipment relay interfacingSupports mixed AC and DC command circuits
Read the applicable Honeywell installation instructions before work. Verify MC-TDOR62 and the installed TPS Process Manager I/O configuration.
1Verify the complete MC-TDOR62 marking and its assigned TPS Process Manager I/O position before work.
2Isolate the energy associated with TPS relay-output processor before disconnecting MC-TDOR62.
3Protect the MC-TDOR62 connectors and electronic assembly using approved ESD controls.
4Record the as-found FTA-to-IOP cable connections and configured assignment before replacement.
5Confirm Protected AC or DC field load matches the approved installation record for MC-TDOR62.
6Restore MC-TDOR62 under controlled conditions and review its model-specific diagnostics.
7Complete a documented functional test for motor-starter interposing commands before release.
Technical notes
Set each contact-form jumper before energization, apply the required external suppression and verify contact state with field energy isolated before the functional load test.
FAQ View All FAQ
-
Can MC-TDOR62 be moved to a different slot or duty without review?No. Confirm keying, companion hardware and the approved configuration before assigning MC-TDOR62 to another position or function.
-
Which technical value is especially important during MC-TDOR62 commissioning?Verify Rated current is 2.5 A at 240 Vac; 2 A at 30 Vdc; 0.5 A at 125 Vdc and use the named manufacturer procedure for the controlled functional test.
-
What should be checked if MC-TDOR62 does not support valve and solenoid switching after installation?Check seating, FTA-to-IOP cable, Protected AC or DC field load, field energy and the model-specific diagnostics before replacing additional hardware.
-
What evidence should be retained after MC-TDOR62 returns to service?Retain the full model identity, as-left connections, configuration, diagnostic result and the final controlled test record for motor-starter interposing commands.
-
How is MC-TDOR62 identified before installation in a TPS Process Manager I/O cabinet?Match the full MC-TDOR62 marking and part number 51309150-275 to the assigned position and installed TPS relay-output processor.
-
Which companion hardware must be checked when replacing MC-TDOR62?Verify TPS relay-output processor, FTA-to-IOP cable and Protected AC or DC field load against the approved cabinet and project record before fitting the Sixteen-Channel Relay Output FTA.
-
What wiring information should be recorded before removing MC-TDOR62?Record terminal identifiers, polarity or phase, shields, cable tags and the as-found channel or port assignment for MC-TDOR62.
-
How should engineers validate MC-TDOR62 after configuration?Restore the documented TPS Process Manager I/O assignment, review diagnostics and run a controlled test of its role: switches isolated process loads through relay contacts.
