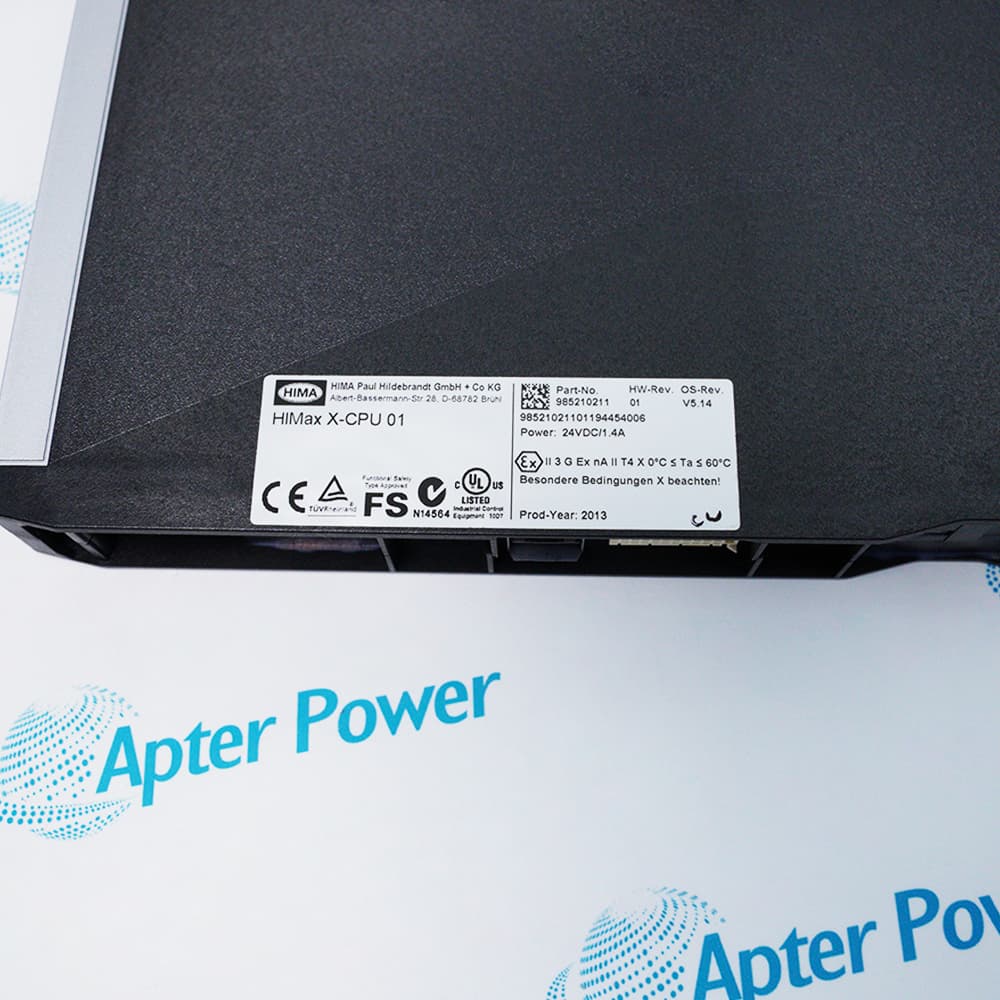

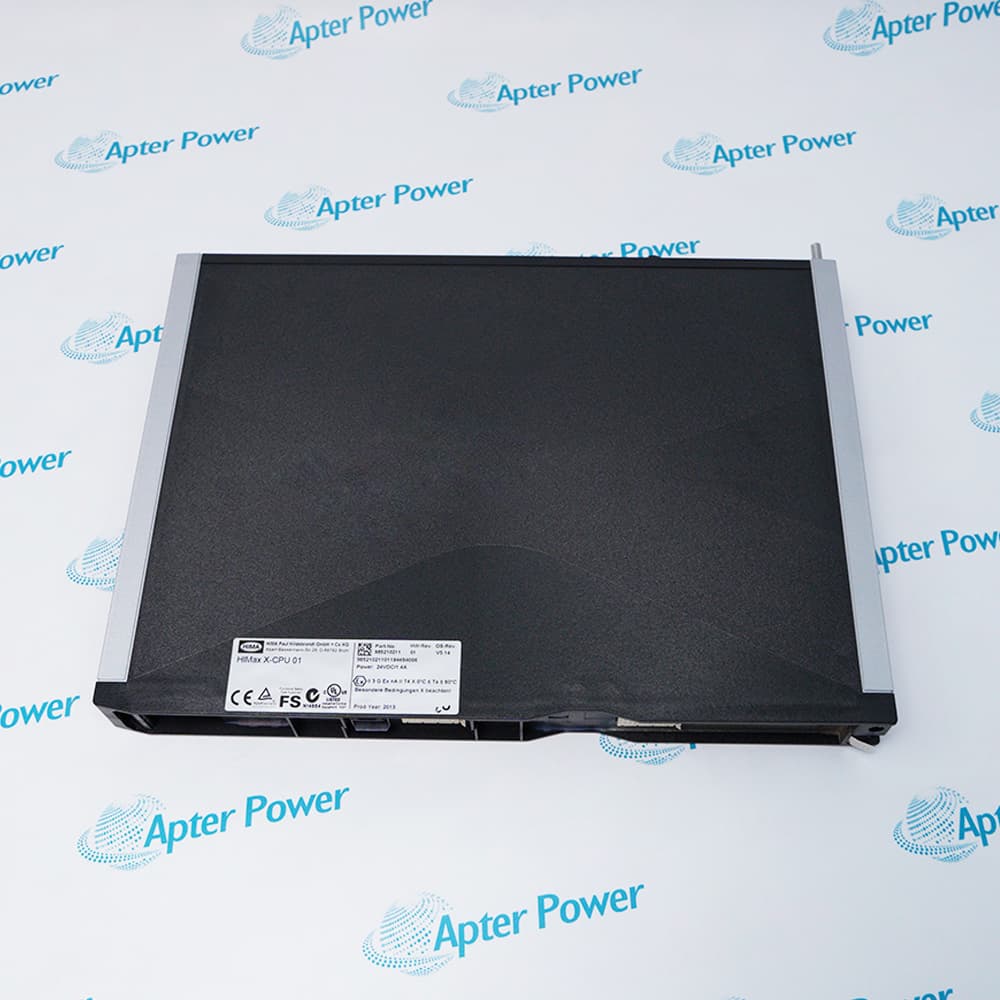

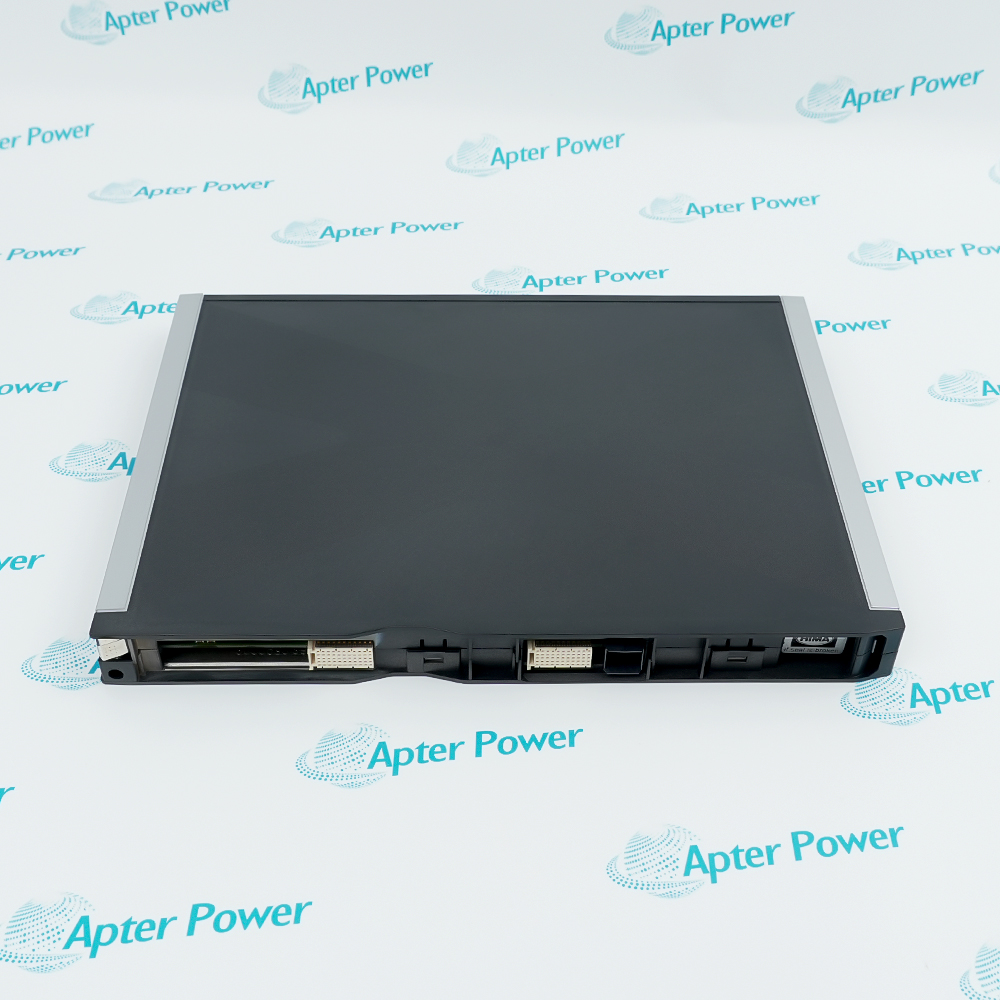

The HIMAX X-CPU01 is the central processing unit module specially designed for the HIMax safety control system. It is the core component responsible for system operation, logic processing and communication management in the whole equipment.
SIL 3 Safety Certified
Redundant System Support
High Reliability & Stability
HIMAX X‑CPU01 has obtained TÜV certification up to SIL 3, Cat.4 and PL e. It supports redundant operation, powerful diagnostic functions and stable SafeEthernet communication, ensuring high safety and reliability in industrial safety applications.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
HIMA HIMAX X-CPU01 Processor module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Used in onshore/offshore oil and gas facilities for ESD and FGS systems. Ensures rapid shutdown and gas/fire monitoring to prevent hazards.
Petrochemical
Applied in refining and chemical synthesis for safety interlock control. Monitors pressure, temperature and level to avoid explosion and leakage.
Power
Used for boiler and turbine safety protection in thermal and nuclear power plants. Guarantees stable operation of key equipment and reduces accident risks.
Metallurgy
Provides safety interlock for blast furnace and converter processes. Protects against risks in high-temperature and high-pressure environments.
Pharmaceutical
Ensures safe control in production lines meeting GMP standards. Stabilizes processes and avoids downtime or quality issues.
Rail Transit
Used in railway signaling and switch control for high-safety scenarios. Meets railway safety standards and ensures reliable train operation.
The HIMAX X-CPU01 must only be installed in the designated slots of the HIMax system base plate, operated with the required X-FAN 01 forced cooling and compatible connector board, and handled in an ESD-protected workspace with proper wrist strap to prevent electrostatic discharge damage.
The module shall only be operated by trained personnel in compliance with local safety requirements, with its mode switch set correctly for safety-related applications, and all installation, removal, and maintenance procedures performed per the official manual to avoid damage to the controller, bus, or power sockets. The module is a core component of the system's safety equipment, and in the event of a failure, the system will automatically transition to a safe state, ensuring protection for critical industrial applications.
HIMAX X‑CPU01 is the mandatory processor module for HIMax system, processing up to 32 user programs and handling redundancy & SafeEthernet communication.
What safety certifications does HIMAX X‑CPU01 have?
HIMAX X‑CPU01 is TÜV certified up to SIL 3 (IEC 61508/61511/62061), Cat.4 (EN 954‑1) and PL e (EN ISO 13849‑1).
How many HIMAX X‑CPU01 modules can be used in one system?
A maximum of four HIMAX X‑CPU01 modules are allowed, only installable in specified slots of rack 0 and rack 1.
What are the mode switch positions of HIMAX X‑CPU01?
HIMAX X‑CPU01 mode switch has three positions: Init, Stop, Run; Run position is for safety‑related operation.
How does HIMAX X‑CPU01 indicate module status?

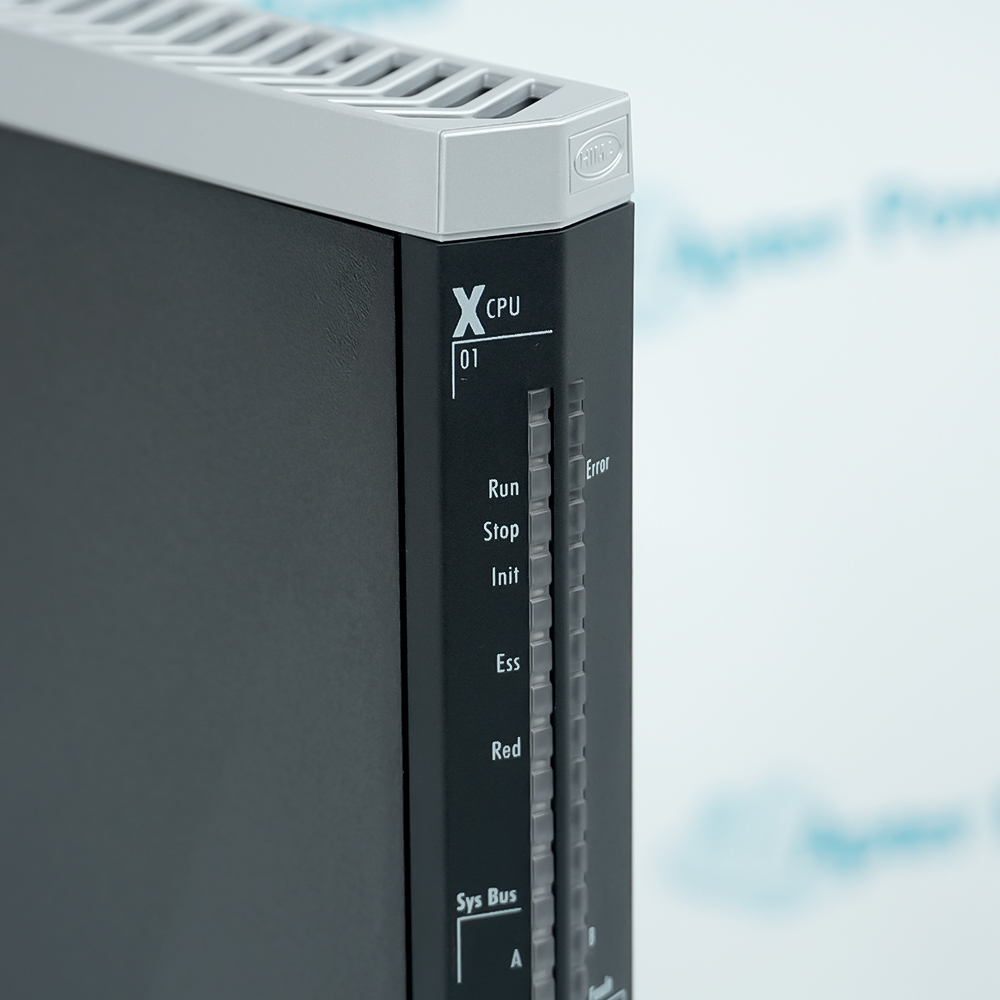

Front LEDs (Run Green, Error Red, Stop Yellow, Init Yellow) show running, fault, stop and init states clearly.
