PCIE-5565PIORC-100A00

Name: PCIE-5565PIORC-100A00
Brand: General Electric
SKU: PCIE-5565PIORC-100A00

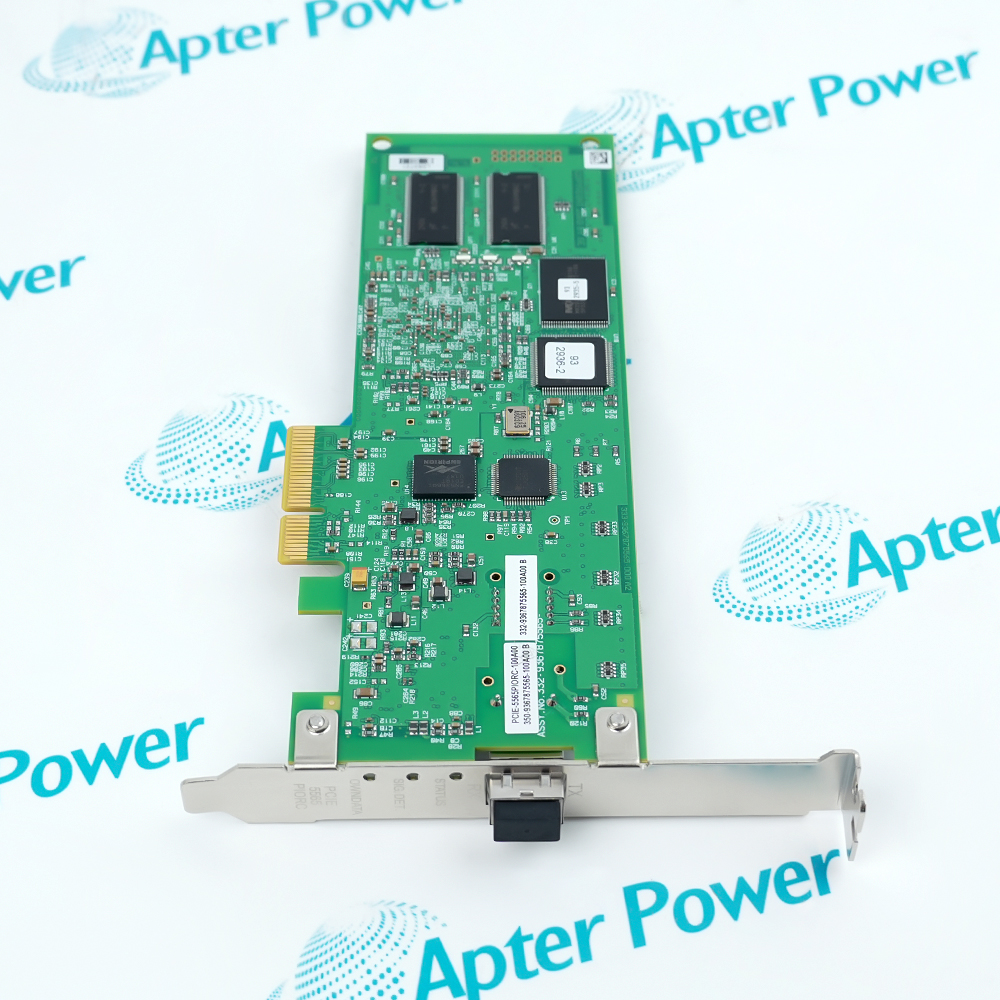

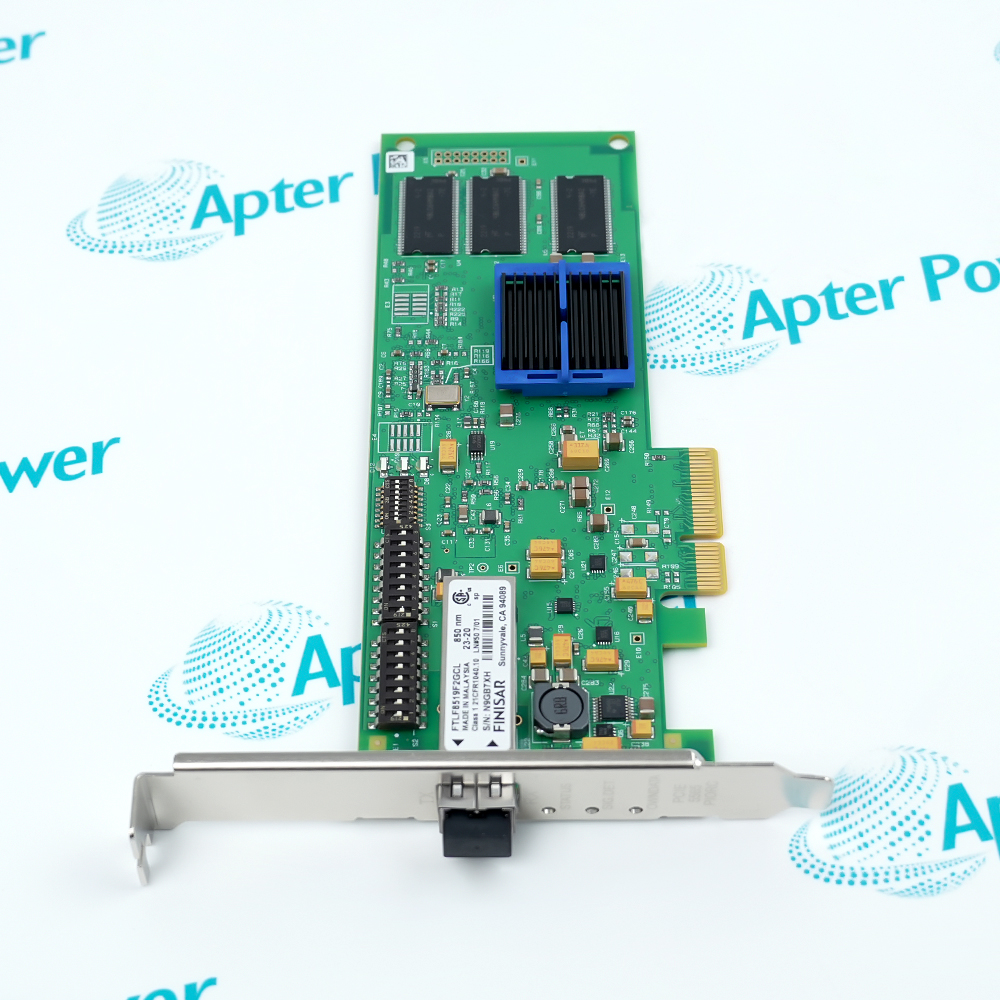

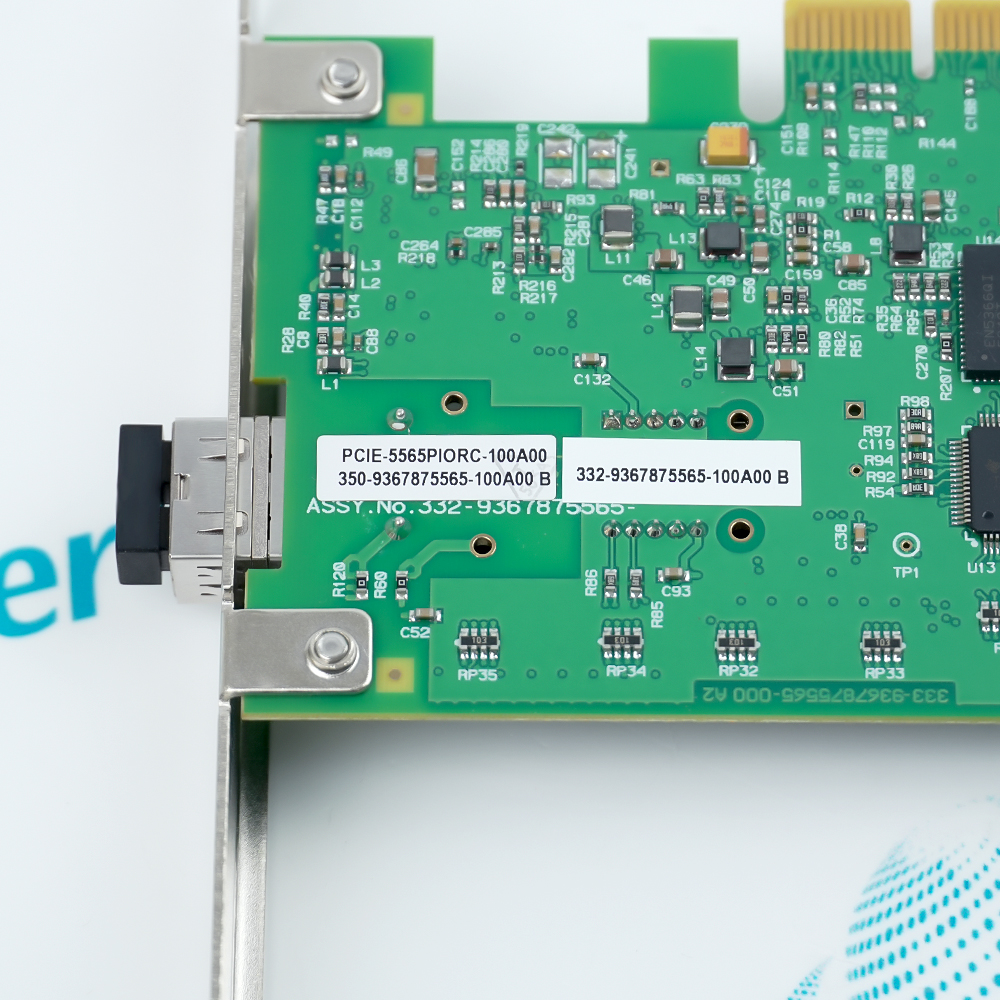

Reflective Memory PCI Express Node Card

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

Reflective Memory PCI Express Node Card
Ultra-high-speed, fiber optic
network for distributed
processing using Reflective Memory

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for PCIE-5565PIORC-100A00

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for PCIE-5565PIORC-100A00

Manufacturer:

General Electric
Product Category:

Gas Turbine Control
Spare Part Number:

PCIE-5565PIORC-100A00
Estimated shipping dimensions:

2.1x8.5x12cm
Weight:

0.05 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Memory Capacity:

128 MByte SDRAM
Transfer Rate:

43 MByte/s up to 170 MByte/s
Bus Type:

PCI Express 4 lanes at 2.5 Gbit/s
Operating Input Voltage:

+3.3V DC and +12V DC
Nominal Power Consumption:

10 Watts to 15 Watts
Relative Humidity Limit:

5% to 95%
Maximum Network Nodes:

256 independent nodes per ring topology

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The PCIE-5565PIORC-100A00 is a Reflective Memory (RFM) node card in a low-profile PCI Express form factor. The hardware architecture provides physical data synchronization across network nodes without executing software communication stacks or incurring CPU protocol overhead.

A variety of form factors, operating system support, and configurations for network flexibility
Ease of integration and migration
Robust lifecycle management

This specific product configuration contains 128 MB of onboard SDRAM and integrates a multimode fiber optic transceiver. The module establishes a deterministic shared memory network environment, integrating diverse hardware platforms running different operating systems into a single real time data ring. Operating on the GE 5565 Reflective Memory platform, the node card implements a hardware-based data broadcast mechanism. Any data written to the local SDRAM partition is automatically replicated to all independent network nodes via the fiber-optic link.

The system architecture supports up to 256 nodes per network loop, delivering connection distances up to 300 meters between adjacent nodes using multimode fiber. The low-profile design includes a pre-installed short bracket for high-density server integration and includes a standard-height bracket assembly for modular expansion.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

General Electric PCIE-5565PIORC-100A00 Reflective Memory PCI Express Node Card Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Aerospace Flight Simulation

Links computing nodes for 6-DOF motion platforms, visual generation computers, and cockpit instrument control hosts in full-mission flight simulators to achieve microsecond-level global data synchronization.

Nuclear Power Plant Full-Scope Simulators

Integrated into full-scope simulation systems for nuclear power plant operator training, interconnecting distributed reactor thermal-hydraulic model computing nodes and physical operator console digital I/Os at high speeds.

Marine & Naval Engineering Simulation

Applied in joint real-time simulations of large vessel thrusters and Dynamic Positioning (DP) systems, constructing a real-time data bridge between physical thruster controllers and ocean environment simulators.

Gas Turbine Control Systems

Connects gas turbine dynamics simulators to physical control cabinets on test platforms for heavy-duty power-generation gas turbine control systems, executing hard real-time data mapping of rotor dynamics.

Rolling Mill Automation Systems

Deployed in hot or cold continuous rolling mill high-inertia motor control networks, executing nanosecond-level sharing of thickness and tension closed-loop control data among multiple mill variable frequency drive (VFD) controllers.

For the PCIE-5565PIORC-100A00, the fiber optic network requires a closed loop ring topology with the transmit port connected to the adjacent receive port. A single point physical break interrupts the entire network, which requires a hub like the 5595 for automatic port self healing. The physical distance between adjacent nodes using multimode fiber must not exceed 300 meters, and the fiber connectors must remain free of contamination.

Because the card integrates high speed burst microchips and interfaces directly with PCIe slots, Electrostatic Discharge safety protocols must be executed during unboxing and physical handling. Removal and insertion under power are prohibited.

Alternative Names

PCIE-5565PIORC-100A0O PCIE-5565PIORC-100AO0 PCIE-5565PIORC-10OA00 PCIE-5565PIORC-1O0A00 PCIE-5565PIORC-I00A00 PCIE-5565P1ORC-100A00 PC1E-5565PIORC-100A00

Technical notes

The PCIE-5565PIORC-100A00 integrates 128 MB of onboard SDRAM allocated for storing global network physical mapping mirror data. The onboard physical interface consists of one multimode fiber-optic transceiver port with dual LC connectors, enabling point-to-point physical connection to adjacent network node cards via multimode fiber-optic patch cables.
