How many relay outputs are provided by GE IS200TRLYH1BGG?

The applicable TRLY H1B hardware provides twelve relay-output positions.

Which I/O boards are associated with GE IS200TRLYH1BGG?

The Mark VI architecture associates TRLY relay outputs with VCCC or VCRC I/O boards.

Which relay type is used on GE IS200TRLYH1BGG?

The H1B terminal-board family uses twelve plug-in magnetic relays.

Can GE IS200TRLYH1BGG serve simplex and TMR systems?

Yes. The applicable Mark VI documentation identifies TRLY use in simplex or TMR arrangements, with the project design defining the actual circuit.

What can the first six GE IS200TRLYH1BGG circuits be configured to drive?

They can be jumper-selected for external solenoid duty or dry Form-C contact outputs.

Who supplies the load power switched by GE IS200TRLYH1BGG?

The external relay and solenoid circuits use customer field power; the board provides the controlled switching boundary.

What should be traced when a GE IS200TRLYH1BGG load stays de-energized?

Trace the VCCC/VCRC command, cable, relay coil, selected contact, branch protection, customer field power and final load.

Which tests close GE IS200TRLYH1BGG commissioning?

Exercise all assigned relay positions, verify contact voltage and load operation, then prove the configured safe response to loss of command and field power.

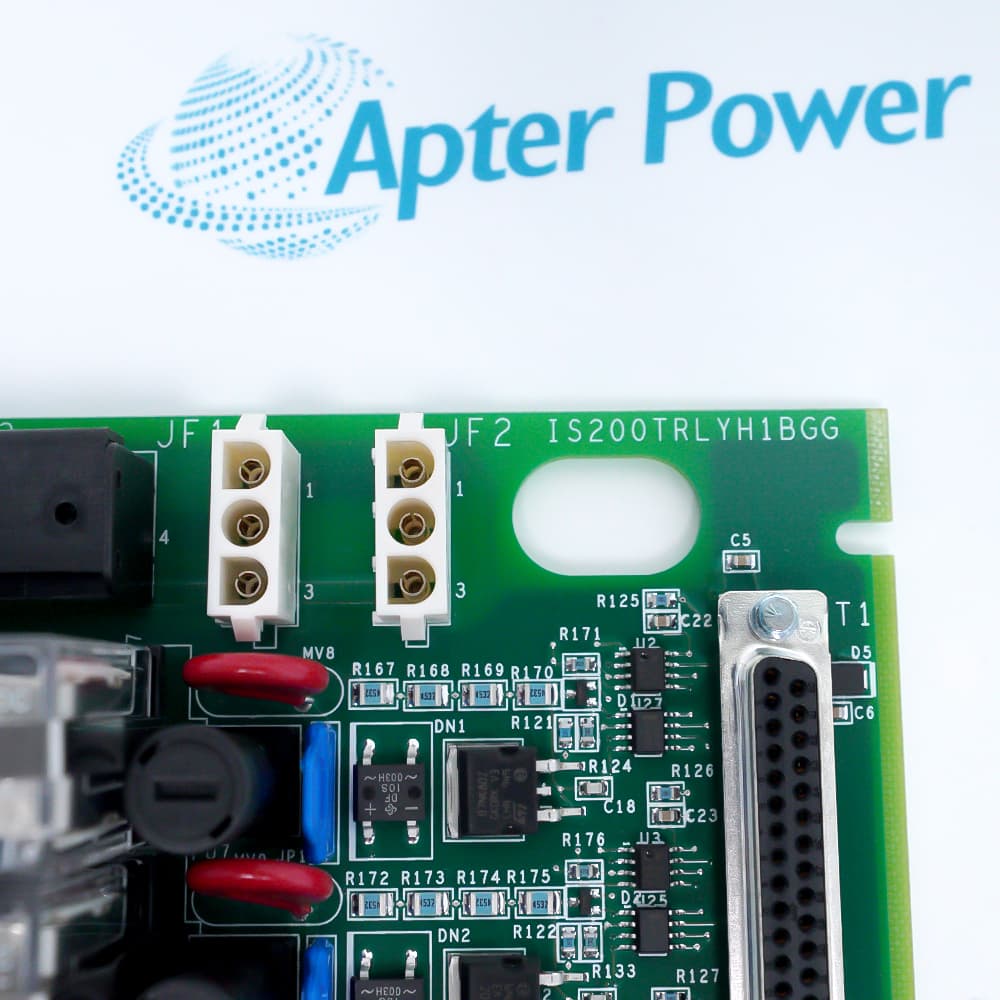

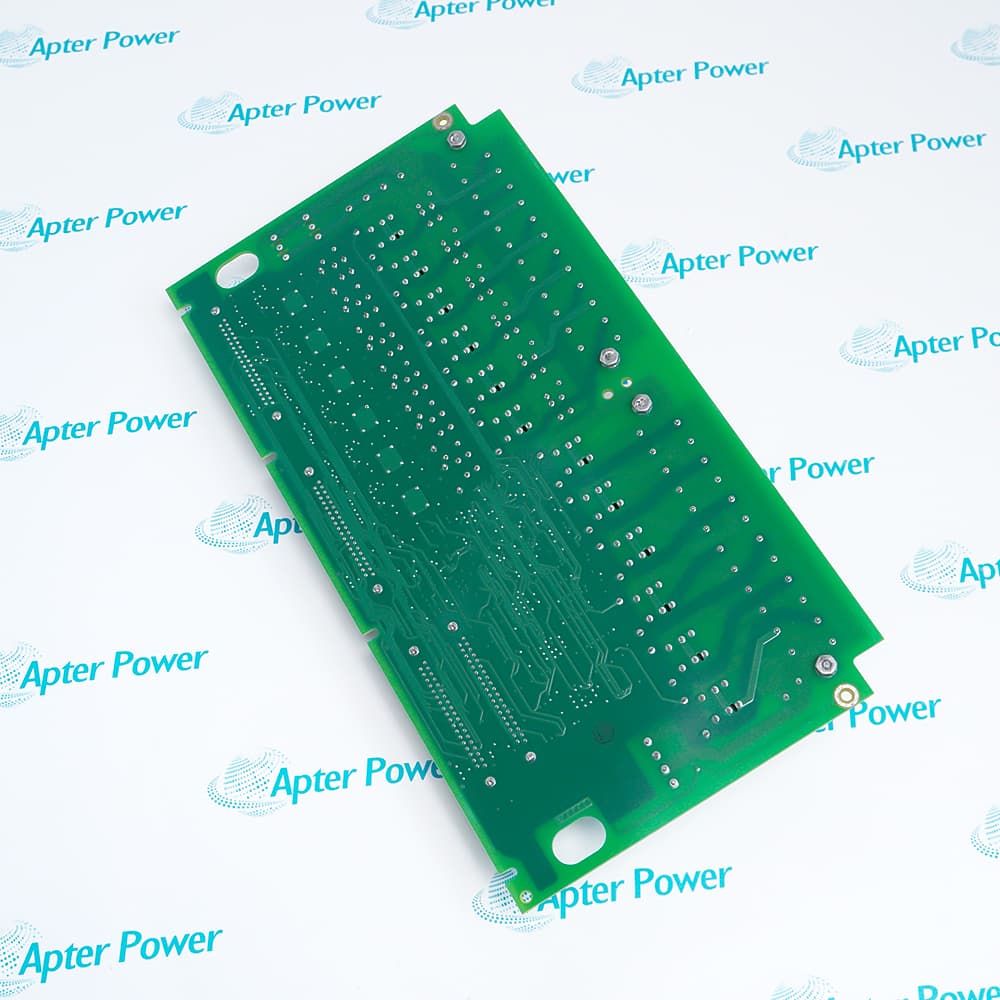

IS200TRLYH1BGG

Name: IS200TRLYH1BGG
Brand: General Electric
SKU: IS200TRLYH1BGG

Relay Terminal Board

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

GE IS200TRLYH1BGG provides the field termination boundary for twelve Mark VI relay-output positions. The H1B hardware supports plug-in magnetic relays and application-dependent dry-contact or solenoid duties.

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for IS200TRLYH1BGG

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for IS200TRLYH1BGG

Manufacturer:

General Electric
Product Category:

Gas Turbine Control
Spare Part Number:

IS200TRLYH1BGG
Estimated shipping dimensions:

33x17.7x5.5cm
Weight:

1.16 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Product family:

Mark VI
Board function:

Relay output terminal board
Terminal-board family:

TRLY H1B
Relay count:

12
Relay type:

Plug-in magnetic
Associated I/O boards:

VCCC or VCRC
System arrangements:

Simplex or TMR
First six circuits:

Jumper-selectable solenoid or dry Form-C duty
Field-power basis:

Customer-powered output circuits
Complete revision:

BGG

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

GE IS200TRLYH1BGG routes Mark VI relay commands through twelve plug-in magnetic relays. The installed circuit design defines simplex or TMR use and customer field-power distribution.

Mark VI TRLY H1B terminal board
Twelve plug-in magnetic relays
VCCC or VCRC associated I/O boards
Simplex or TMR system arrangements

The controlled system path is VCCC or VCRC output command → IS200TRLYH1BGG relay coils → Dry-contact or solenoid field circuit → Customer-powered external load. Verify each boundary against the installed project record.

Important Notice: Isolate customer field power and verify every relay terminal is de-energized before handling IS200TRLYH1BGG.

GE IS200TRLYH1BGG Manuals & Downloads

GE IS200TRLYH1BGG Technical Reference (PDF)GE IS200TRLYH1BGG Installation & Commissioning Guide (PDF)

The Technical Reference consolidates the verified data available for GE IS200TRLYH1BGG; the Installation & Commissioning Guide organizes controlled field preparation, checks and acceptance.

Turbine auxiliary outputs

Switches application-assigned contactors, alarms or permissive circuits through documented relay contacts.

Solenoid control

Uses configured relay circuits for external solenoids where the approved power and suppression arrangement is present.

Voted output duties

Supports the TMR output arrangement defined by the installed Mark VI design.

Simplex relay termination

Provides twelve relay-output positions for nonredundant Mark VI field circuits.

Apply these controls to GE IS200TRLYH1BGG before isolation, removal, reconnection, energization and release.

Isolate customer field power and verify every relay terminal is de-energized before handling IS200TRLYH1BGG.

Record whether the installed Mark VI path uses VCCC or VCRC and whether the application is simplex or TMR.

Map all twelve relay positions to their loads, contact usage and safe states before removing conductors.

Preserve the complete IS200TRLYH1BGG revision identity and do not treat another H1B suffix as automatically equivalent.

Record jumper positions on the first six circuits before changing any dry-contact or solenoid selection.

Verify field-voltage class, polarity, branch protection and suppression from the controlled site drawings.

After reconnection, test each commanded relay at the board and at the field load instead of relying only on software status.

Complete acceptance by proving de-energize behavior for communication loss, controller fault and the documented emergency state.

Technical notes

GE IS200TRLYH1BGG is a Mark VI TRLY H1B relay output terminal board that interfaces VCCC or VCRC output control with customer-powered relay and solenoid circuits.

FAQ View All FAQ

How many relay outputs are provided by GE IS200TRLYH1BGG?

The applicable TRLY H1B hardware provides twelve relay-output positions.
Which I/O boards are associated with GE IS200TRLYH1BGG?

The Mark VI architecture associates TRLY relay outputs with VCCC or VCRC I/O boards.
Which relay type is used on GE IS200TRLYH1BGG?

The H1B terminal-board family uses twelve plug-in magnetic relays.
Can GE IS200TRLYH1BGG serve simplex and TMR systems?

Yes. The applicable Mark VI documentation identifies TRLY use in simplex or TMR arrangements, with the project design defining the actual circuit.

What can the first six GE IS200TRLYH1BGG circuits be configured to drive?

They can be jumper-selected for external solenoid duty or dry Form-C contact outputs.
Who supplies the load power switched by GE IS200TRLYH1BGG?

The external relay and solenoid circuits use customer field power; the board provides the controlled switching boundary.
What should be traced when a GE IS200TRLYH1BGG load stays de-energized?

Trace the VCCC/VCRC command, cable, relay coil, selected contact, branch protection, customer field power and final load.
Which tests close GE IS200TRLYH1BGG commissioning?

Exercise all assigned relay positions, verify contact voltage and load operation, then prove the configured safe response to loss of command and field power.
