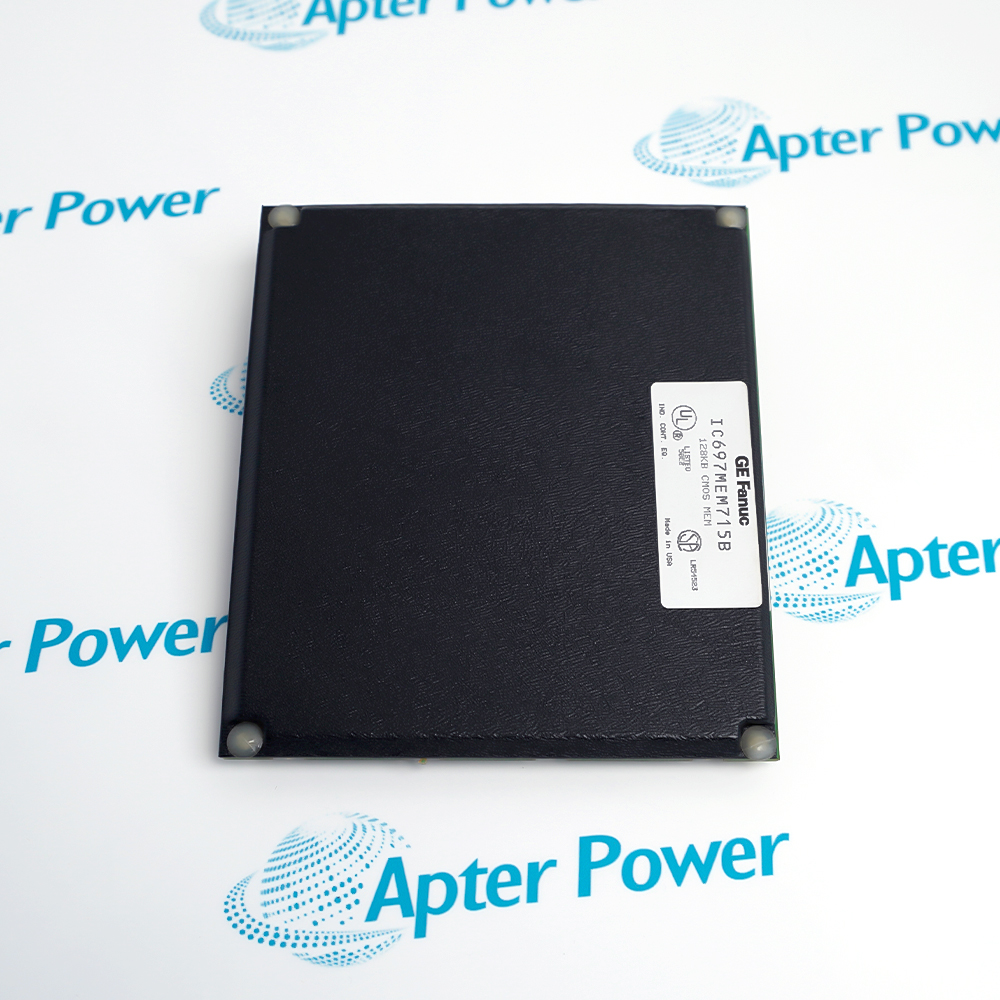

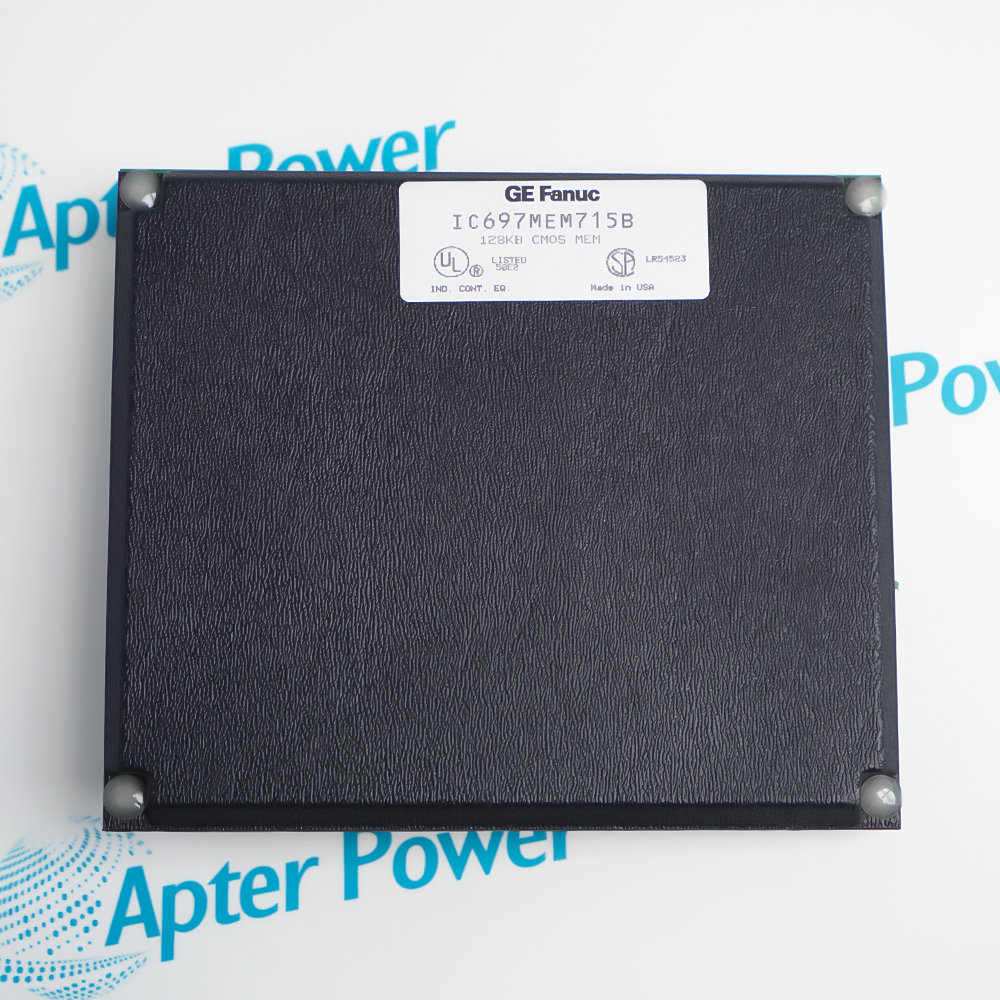

      General Electric IC697MEM715
      General Electric IC697MEM715
      General Electric IC697MEM715
      General Electric IC697MEM715
      General Electric IC697MEM715
      General Electric IC697MEM715
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      IC697MEM715

      128 KB CMOS Expansion Memory
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

      GE IC697MEM715 is a 128 KB CMOS expansion-memory daughter board for supported Series 90-70 CPU and programmable coprocessor modules. It expands program and data storage without occupying an additional rack slot.

      Ask our team:

      Get a quick price for： IC697MEM715
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for IC697MEM715

      Technical specifications for IC697MEM715

      • Manufacturer:
        General Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        IC697MEM715
      • Estimated shipping dimensions:
        12.7x10.9x2.6cm
      • Weight:
        0.1 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Memory capacity:
        128 KB
      • Memory technology:
        CMOS RAM
      • Installation format:
        Daughter board on supported base module
      • Rack slots required:
        No additional slot
      • Supported CPU modules:
        IC697CPU771 and IC697CPU772
      • Supported coprocessor:
        IC697PCM711 family
      • Memory use:
        Program and data memory
      • Retention source:
        Battery on the base module
      • Battery shelf life:
        10 years at 20 °C
      • Nominal retention without power:
        6 months
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      GE IC697MEM715 is a 128 KB CMOS expansion-memory daughter board for supported Series 90-70 CPU and programmable coprocessor modules. It expands program and data storage without occupying an additional rack slot.
      • Adds 128 KB of battery-backed CMOS memory
      • Mounts as a daughter board without consuming another rack slot
      • Supports documented Series 90-70 CPU and PCM modules
      • Can be configured for program and data storage

      Install IC697MEM715 on the documented base module only after rack power is removed and the retained program is backed up. Verify CPU or PCM compatibility, memory configuration and battery-backed retention before returning the controller to service.

      Important Notice: Verify IC697MEM715 from the physical marking and current manufacturer documentation before installation or configuration.

      Apter Power IC697MEM715 Manuals and Guides
      Apter Power IC697MEM715 Product Technical ReferenceApter Power IC697MEM715 Installation and Verification Guide

      Important Notice: Use these model-specific records together with the current manufacturer publication and the installed-system documentation.

      Series 90-70 program expansion
      Adds retained memory to a compatible CPU when the installed application exceeds base memory.
      PCM application storage
      Expands supported programmable coprocessor memory for documented logic or data duties.
      Legacy controller maintenance
      Restores the exact 128 KB daughter-board configuration in an installed Series 90-70 system.
      Controlled memory migration
      Supports a documented backup, replacement and restore process without adding another chassis slot.
      Read the applicable GE instructions before work. Verify IC697MEM715 and the installed system configuration.
      1
      Confirm the complete IC697MEM715 marking and the supported base-module part number before work.
      2
      Back up the retained program and configuration before removing rack power.
      3
      Remove all rack power before installing or removing the daughter board.
      4
      Use ESD controls and avoid contact with CMOS components and connector fingers.
      5
      Verify the base-module battery condition before relying on retained memory.
      6
      Seat IC697MEM715 evenly on the documented connectors without bending pins.
      7
      Confirm configured program and data memory allocation after installation.
      8
      Restore the approved application and complete a controlled controller functional test.

      Technical notes

      Technical notes

      Install IC697MEM715 on the documented base module only after rack power is removed and the retained program is backed up. Verify CPU or PCM compatibility, memory configuration and battery-backed retention before returning the controller to service.

      FAQS

      • What capacity does GE IC697MEM715 add?
        IC697MEM715 provides 128 KB of CMOS expansion memory.
      • Does GE IC697MEM715 consume another rack slot?
        No. It installs as a daughter board on the supported CPU or PCM and uses no additional chassis slot.
      • Which CPUs are documented for GE IC697MEM715?
        The expansion-memory data sheet lists IC697CPU771 and IC697CPU772 among the supported base modules.
      • Can GE IC697MEM715 be used with a programmable coprocessor module?
        Yes. The manufacturer data sheet includes supported IC697PCM711-family programmable coprocessor modules.
      • How is GE IC697MEM715 retained when rack power is removed?
        The memory is retained by the battery installed on the base CPU or PCM module.
      • What nominal unpowered retention is published for GE IC697MEM715?
        The data sheet specifies a nominal six-month retention period, subject to battery condition and service history.
      • Can GE IC697MEM715 be configured for both program and data?
        Yes. The supported base module can allocate the expansion memory for program and data storage.
      • What evidence should be recorded after replacing GE IC697MEM715?
        Record the base-module identity, memory capacity, battery status, restored application, configured allocation and successful controller test.
