What is the A06B-6096-H104?

It is a FANUC Alpha series single-axis servo amplifier module (model SVM1-40L), used to receive control commands and precisely control the speed, torque, and position of a single servo motor.

How to use the A06B-6096-H104?

It must be powered by a high-voltage DC bus (supplied by a power supply module), connected to the CNC system via FSSB fiber optic cables, and then have its output terminal wired to a compatible servo motor.

What is the primary function of the A06B-6096-H104?

Its core function is to perform motor commutation control and real-time closed-loop control for current and speed loops, working alongside the motor encoder to achieve high-precision positioning.

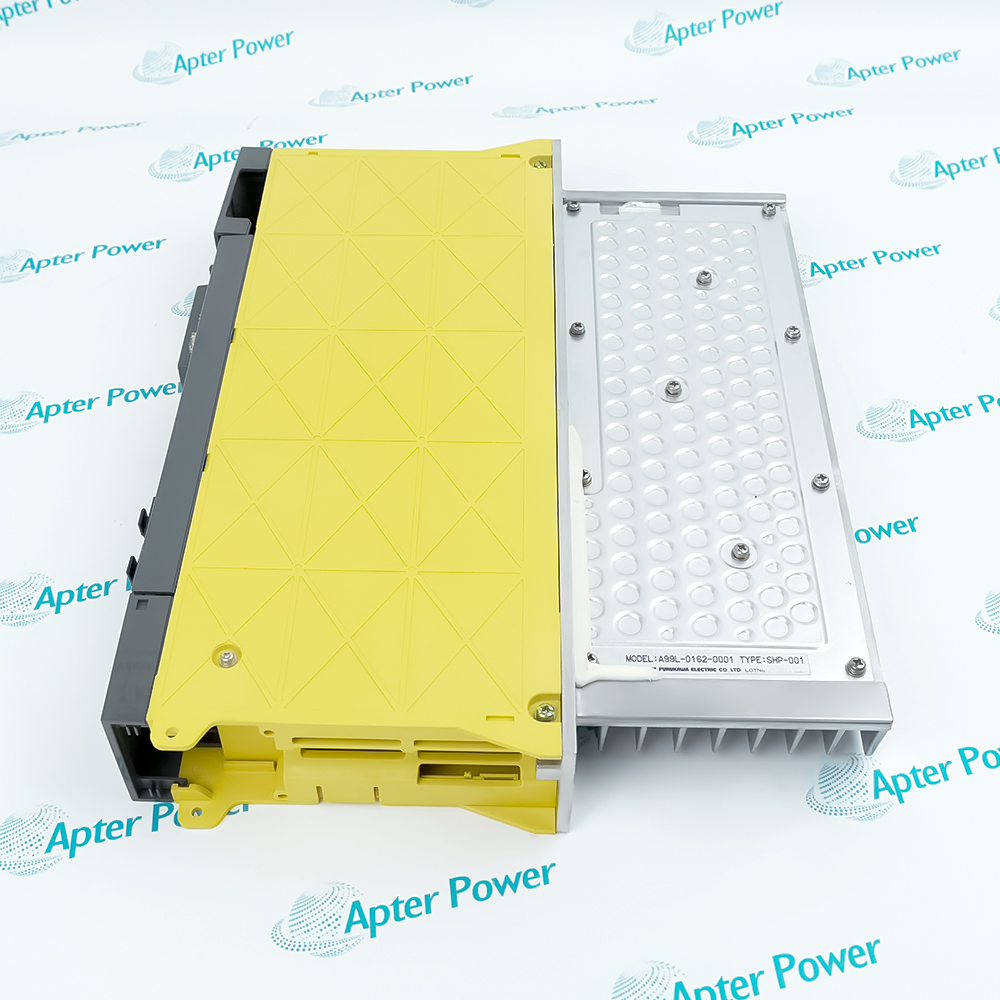

A06B-6096-H104

Name: A06B-6096-H104
Brand: General Electric
SKU: A06B-6096-H104

ALPHA Servo Amplifier Module

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

Single-axis servo amplifier module
40A rated output current
CNC machine tool axis drive
Alpha series SVM1-40L drive

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for A06B-6096-H104

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for A06B-6096-H104

Manufacturer:

General Electric
Product Category:

Servo Drives
Spare Part Number:

A06B-6096-H104
Estimated shipping dimensions:

14.8x28.5x38cm
Weight:

8.3 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Power Supply:

200-240V AC
Rated Power:

40 kW
Operating Temperature:

0°C to +40°C
Torque Control:

Closed-loop
Current Rating:

100 A
Environmental Protection:

IP20
Cooling Type:

Forced air cooling
Efficiency:

0.98

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

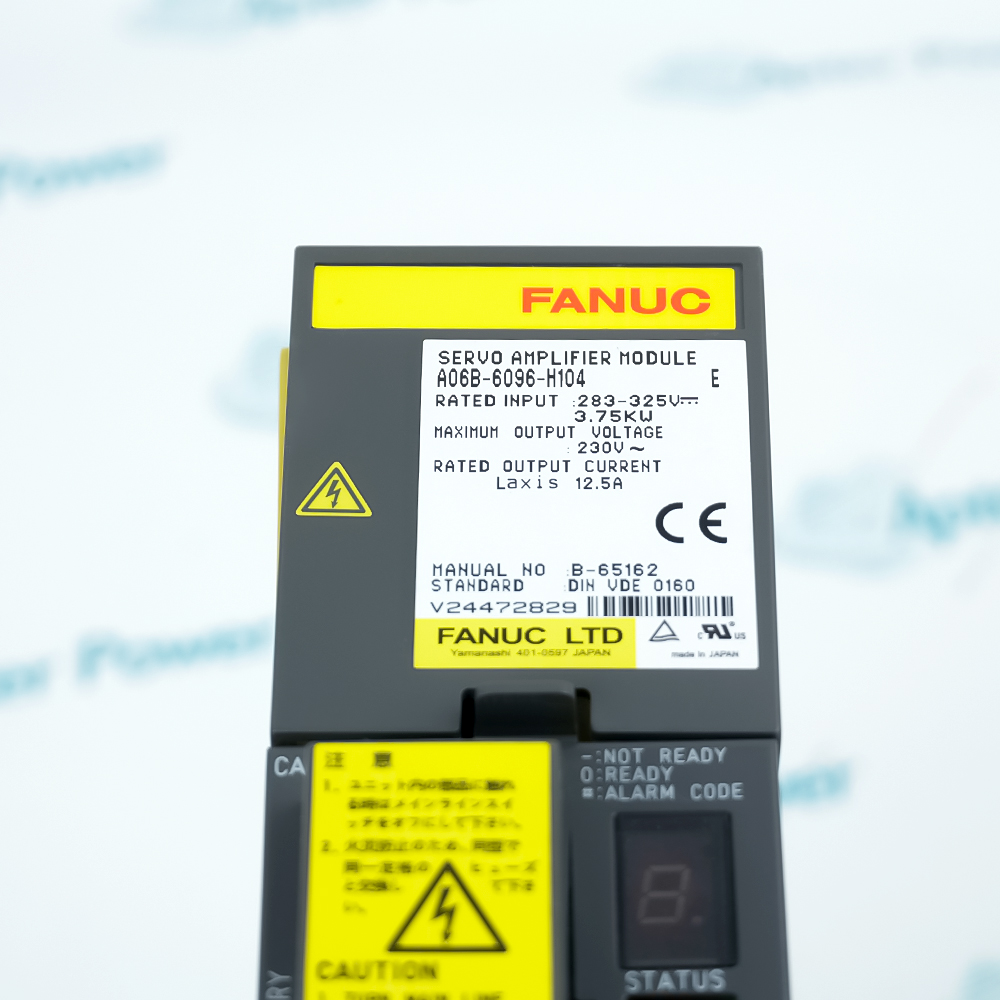

The A06B-6096-H104 is a single-axis ALPHA servo amplifier module applicable to FANUC CNC systems and compatible AC servo motors. Driven by a 283V to 325V DC bus input, this L-axis delivers a 230V AC output with a rated current of approximately 12.5A.

The module can withstand a transient current load of 40A
Compliant with an IP20 protection rating
Establishes a zero-latency bidirectional data link

The control core establishes a digital, bidirectional data link via a high-speed FSSB fiber-optic interface, resolving the speed and current loops in real time to achieve precise closed-loop motor control. Compliant with an IP20 protection rating, this module is suitable for vertical mounting inside sealed industrial electrical cabinets with good dust-proof conditions.

To manage the heat generated during operation, a forced-air cooling assembly is equipped at the bottom of the device to draw heat upward through a preset airflow channel, ensuring a long-term, stable rated output within an ambient temperature range of 0°C to +40°C.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

General Electric A06B-6096-H104 ALPHA Servo Amplifier Module Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Automotive Components Manufacturing

Powers the localized cross-travel slide or indexing tool carrier, maintaining micron-scale geometric uniformity throughout mass production runs.

Medical Device Machining

Controls the sub-spindle feed axis or turning tool slide, maintaining tight geometric tolerances and flawless surface finishes on titanium parts.

Mold and Die Finishing

Operates the Z-axis slide or tool head via a zero-play feedback loop, executing minute position increments to machine high-precision cavity profiles.

Battery and Renewable Energy Manufacturing

Multi-tier roll-to-roll battery electrode coating and slitting systems. Controls localized edge-rectification actuators to execute instantaneous track adjustments, preventing metallic foil misalignment during high-velocity spooling.

Industrial Printing and Graphic Arts

Drives secondary web-pull rollers or positioning correction axes, maintaining micron-scale registration accuracy between successive ink applications.

When using this module, ensure the electrical cabinet is fully sealed against metal dust and oil mist, and regularly maintain the bottom cooling fan and vertical airflow channel to guarantee proper heat dissipation.

Never touch or alter wiring until the DC bus indicator light goes out and residual voltage is fully discharged, and always use original FSSB fiber-optic cables while avoiding overly tight bend radii to prevent communication dropouts.

Alternative Names

A068-6096-H104 A0686096H104 A06B-6096-H10A A06B-6096-H1O4 A06B-6096-HI04 A06B-6O96-H104 A06B6096H104 A06B6096H10A A06B6096H1O4 A06B6096HI04 A06B6O96H104 AO68-6O96-HIOA AO686O96HIOA AO6B-6096-H104 AO6B-6O96-H1O4 AO6B6096H104 AO6B6O96H1O4

Technical notes

A06B-6096-H104 supports standard vertical wall-mount mechanical fastening, effectively saving horizontal space inside the CNC electrical control cabinet. A long-lifespan forced cooling fan is equipped at the bottom of the module to draw heat upward through a dedicated vertical airflow channel.
