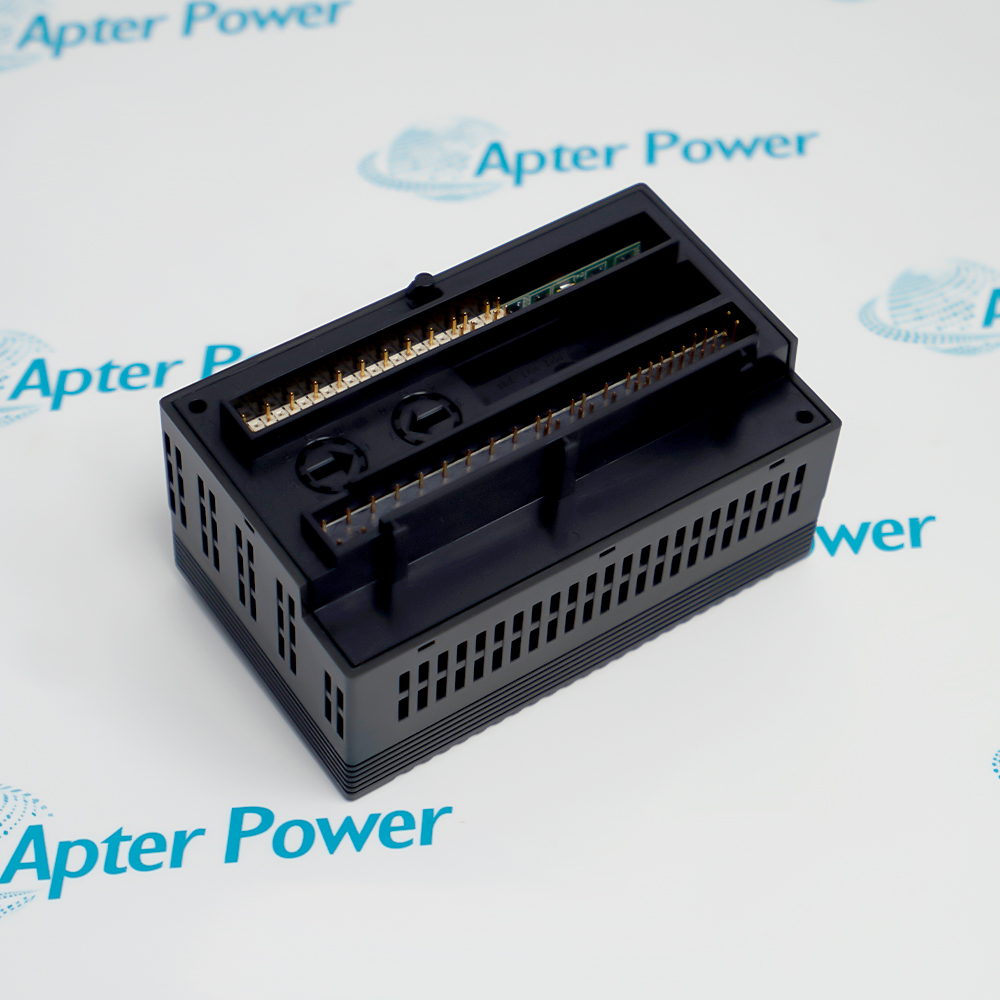

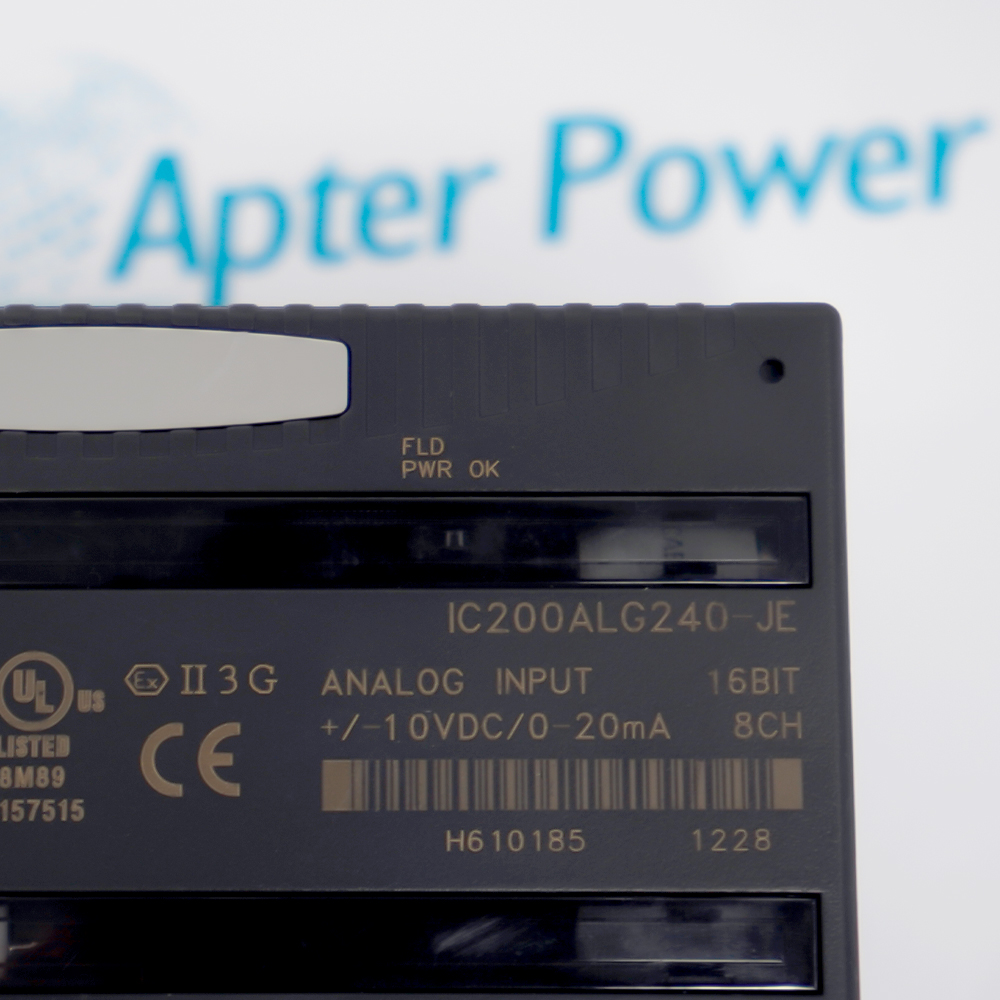

      General Electric IC200ALG240
      General Electric IC200ALG240
      General Electric IC200ALG240
      General Electric IC200ALG240
      General Electric IC200ALG240
      General Electric IC200ALG240
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      IC200ALG240

      Analog Input
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      GE IC200ALG240 is a VersaMax eight-channel isolated analog input module for voltage and current signals. It provides 16-bit conversion and 1500 VAC channel-group-to-system isolation as documented by Emerson.

      Ask our team:

      Get a quick price for： IC200ALG240
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for IC200ALG240

      Technical specifications for IC200ALG240

      • Manufacturer:
        General Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        IC200ALG240
      • Estimated shipping dimensions:
        11x5.5x6.5cm
      • Weight:
        0.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • I/O family:
        VersaMax
      • Module type:
        Isolated voltage/current analog input
      • Input channels:
        8
      • Conversion resolution:
        16 bit
      • Isolation:
        1500 VAC
      • Genius NIU recommendation:
        Firmware revision 1.20 or later
      • PROFINET Scanner support:
        Module version 1.25 or later
      • Signal configuration:
        Voltage/current selection must match the installed channel setup
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      GE IC200ALG240 is a VersaMax eight-channel isolated analog input module for voltage and current signals. It provides 16-bit conversion and 1500 VAC channel-group-to-system isolation as documented by Emerson.
      • Acquires eight voltage or current analog inputs
      • Provides 16-bit conversion
      • Uses 1500 VAC isolation in the documented VersaMax architecture
      • Supports Genius and PROFINET remote-I/O configurations with the cited revisions

      Apply GE IC200ALG240 only in the documented system position after checking its interfaces, companion hardware and configured values.

      Important Notice: Confirm the full IC200ALG240 marking, installed revision, compatible hardware and approved commissioning record before release.

      GE IC200ALG240 Manuals & Downloads
      GE IC200ALG240 Technical Reference (PDF)GE IC200ALG240 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Process measurement
      Acquires isolated current and voltage signals from field transmitters.
      VersaMax remote I/O
      Adds eight analog channels to a configured Genius or PROFINET station.
      Machine monitoring
      Collects isolated analog feedback for controller scaling and alarms.
      Legacy module replacement
      Restores an identical channel map after firmware and wiring checks.
      Read the applicable GE instructions before work. Verify GE IC200ALG240 and the installed system configuration before commissioning.
      1
      Verify the complete IC200ALG240 marking and module revision.
      2
      Remove field and backplane power before insertion or removal.
      3
      Record all eight channel signal types, ranges and scaling values.
      4
      Preserve isolation, commons, shields and grounding exactly.
      5
      Use revision 1.20 or later where required for a Genius NIU application.
      6
      Use module version 1.25 or later where required by the cited PROFINET Scanner manual.
      7
      Check every voltage/current channel against the configured mode before applying a signal.
      8
      Calibrate and function-test every enabled channel before release.

      Technical notes

      Technical notes

      Use only the complete GE IC200ALG240 identity and the current manufacturer documentation. Verify the installed revision, companion hardware, wiring and saved configuration before replacement or release.

      FAQS

      • What is GE IC200ALG240?
        It is an eight-channel isolated VersaMax voltage/current analog input module.
      • What conversion resolution does GE IC200ALG240 use?
        The official VersaMax data identifies 16-bit conversion.
      • What isolation is documented for GE IC200ALG240?
        The module description specifies 1500 VAC isolation.
      • Which GE IC200ALG240 firmware is recommended on a Genius NIU?
        Emerson recommends revision 1.20 or later for the cited Genius NIU application.
      • Which GE IC200ALG240 version is supported by the cited PROFINET Scanner manual?
        The compatibility table specifies version 1.25 or later.
      • What must be saved before replacing GE IC200ALG240?
        Save all eight channel modes, ranges, scaling, alarm limits, wiring and module-revision records.
      • What confirms successful commissioning of GE IC200ALG240?
        Stable calibrated readings on every enabled channel with correct diagnostics and scaling confirm release.
