Technical specifications for 31F323G1
-
Manufacturer:General Electric
-
Product Category:Gas Turbine Control
-
Spare Part Number:31F323G1
-
Estimated shipping dimensions:16.5x11.5x2.5cm
-
Weight:0.25 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Operating Power Supply:5 V DC or 24 V DC
-
Bus Synchronization Accuracy:< 1 microsecond (1 μs)
-
Data Acquisition Channels:Multi-channel high-speed Analog-to-Digital (A/D) conversions
-
ESD Protection Level:IEC 61000-4-2 Level 3
-
Relative Humidity:5% to 95%, non-condensing
-
Processor Architecture:32-Bit Industrial RISC High-Speed Microprocessor
-
Operating Temperature:0°C to +60°C
-
Storage Temperature:-40°C to +85°C
Information
Overview
Manuals
Common Applications
Product Precautions

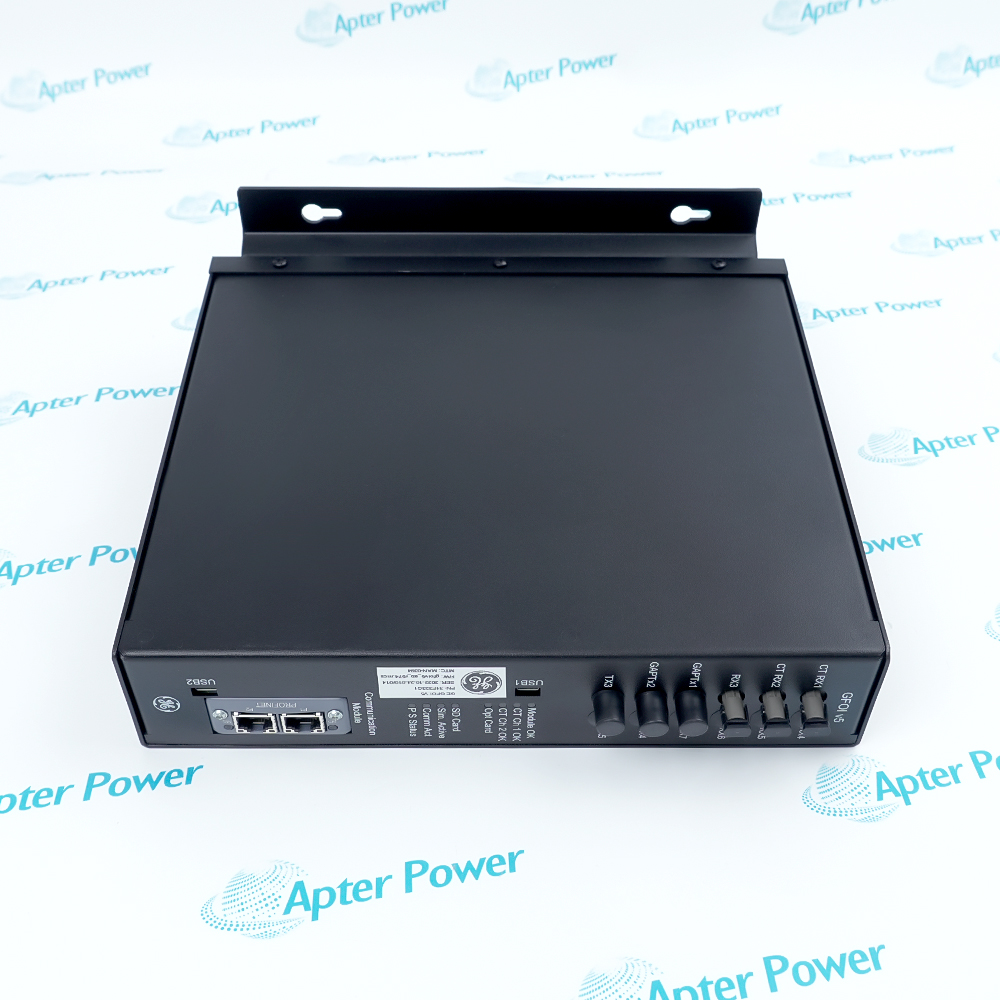

The 31F323G1 GFOI v5 module operates as an integrated communication backbone within the renewable converter system. It features fiber-optic connectivity to ensure reliable, high-speed control loops in high-noise power electronics environments. Any on-site hardware swap must be performed under complete system power-isolation and mandatory ESD protective handling.
- Photonic-to-electronic and electronic-to-photonic conversion chips
- Compatible with multimode or single-mode fiber optic patch cords
- Immunity against electromagnetic interference (EMI) and radio frequency interference (RFI)

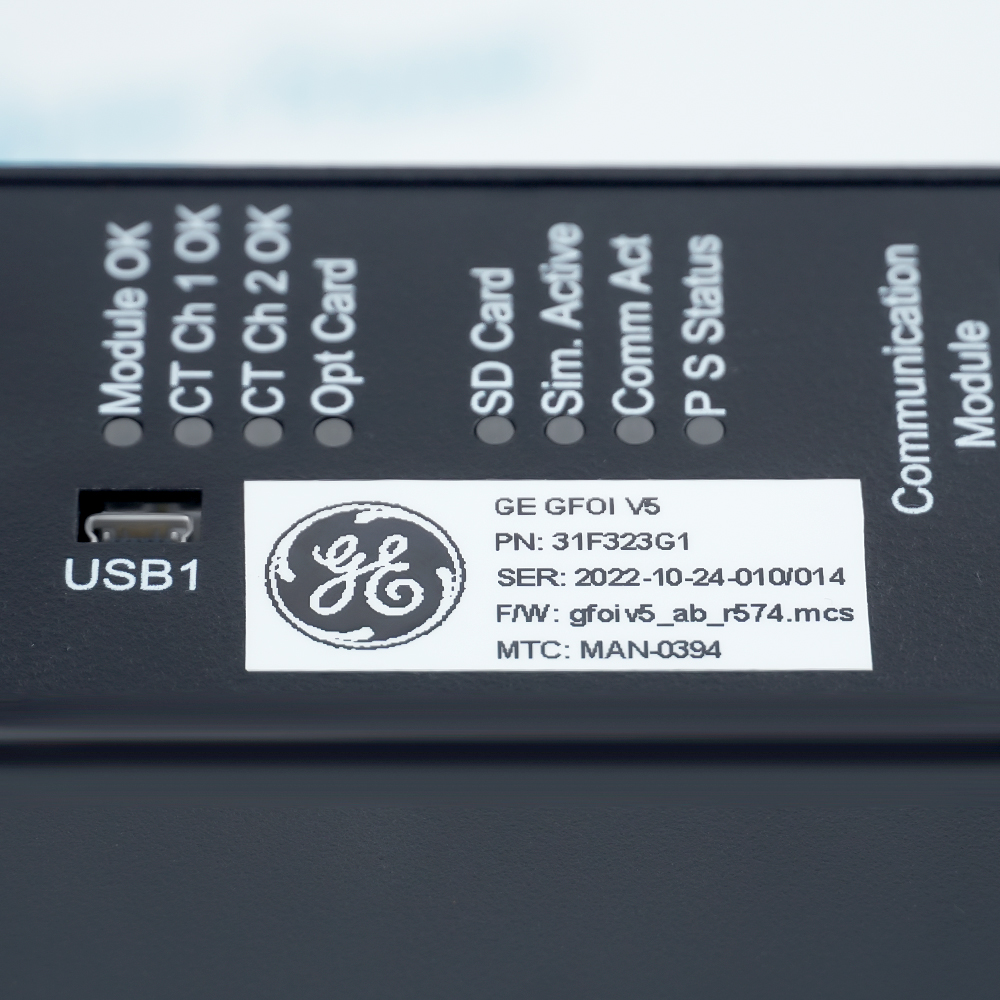

The front faceplate incorporates multi-color LED diagnostics that output active statuses for power supply inputs, backplane synchronization, and communication loop health. For field service engineering, all module replacement procedures dictate complete electrical isolation of the host chassis, and operators must wear grounded ESD wrist straps to prevent electrostatic discharge to the internal microprocessors. Disposal of decommissioned or obsolete units follows regional Waste Electrical and Electronic Equipment (WEEE) regulations for compliant recycling.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
General Electric 31F323G1 Control Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Wind Power
Deployed in the nacelle control cabinets of Doubly-Fed Induction Generator (DFIG) or full-power wind converters, utilizing fiber-optic interfaces for high-speed transmission of rotor current and grid decoupling control data.
Hydroelectric Power
Serves as the control hub for the static excitation system of hydroelectric generators, precisely timing and triggering the thyristor rectifier bridges to regulate generator rotor excitation current.
Thermal Power
Applied in the Generator Field Control (GFOI) of large steam or gas turbine generator sets, synchronizing with the main PLC backplane to ensure generator terminal voltage and reactive power stability.
Nuclear Power
Deployed in the communication gateways of generator excitation and governing systems within the non-safety class (conventional island) of nuclear power plants, responsible for reporting operational data to the Distributed Control System (DCS) at high speeds.
Oil & Gas
Installed in the ultra-high-power synchronous motor drives (such as electrically-driven compressor VFDs) of long-distance gas pipeline compressors, responsible for handling complex closed-loop motor vector control signals.
When using the 31F323G1 control module you must follow standard operating procedures to ensure high system availability. For hardware maintenance as it integrates precision internal microprocessors operators must isolate all power sources to the host chassis and strictly wear grounded ESD wrist straps before wiring, replacing, or handling the board to prevent electrostatic breakdown.
Regarding physical interfaces and environment you should regularly inspect the attenuation and connection tightness of the dual fiber-optic channels to guarantee optical signal integrity in high-noise environments. Furthermore you must maintain adequate ventilation within the control cabinet to strictly regulate the operating temperature between 0°C and +60°C and unauthorized on-site disassembly of this multi-layer industrial circuit board is strictly prohibited.
Regarding physical interfaces and environment you should regularly inspect the attenuation and connection tightness of the dual fiber-optic channels to guarantee optical signal integrity in high-noise environments. Furthermore you must maintain adequate ventilation within the control cabinet to strictly regulate the operating temperature between 0°C and +60°C and unauthorized on-site disassembly of this multi-layer industrial circuit board is strictly prohibited.
Alternative Names
3IF323G1
31F323GI
3IF323GI
Technical notes
This device is a General Electric (GE) 31F323G1 industrial-grade fiber optic interface module, utilizing a plug-in printed circuit board construction. The outer side of the card is equipped with an anti-static metal protective shell, and its physical spacing matches the standard single slot of a control chassis. The hardware achieves low-voltage DC power supply and electrical interconnection with the system backplane through a high-density multi-pin connector at the rear end. Regarding signal transmission and interface specifications, the hardware surface integrates standard fiber optic transceiver physical terminals along with multiple light-emitting diode (LED) status indicators. The internal circuitry utilizes photoelectric and electro-optic converters to achieve a bidirectional media conversion between optical pulse signals and low-voltage digital level signals strictly based on specific serial communication timing. During hardware integration and deployment, the board must be aligned with the base slide rails for insertion, and a specific air convection gap should be reserved inside the control cabinet while ensuring that the operational environment remains in a physical state free from condensation and conductive dust.
FAQ View All FAQ
-
What is the hardware device 31F323G1?It is a GFOI v5 Control Module manufactured by GE (General Electric). In photovoltaic systems or specific industrial control cabinets, it primarily serves as a communication coordination and core control bus unit for photovoltaic converters.
-
What is the primary core function of 31F323G1?It is responsible for collecting the operational status, power output, and grid parameters of on-site inverters, performing analog-to-digital signal conversions, and ensuring high-speed communication between local controllers and the main control network.
-
How is 31F323G1 typically installed?This module utilizes a rail-mounted or rack-mounted vertical installation method, usually embedded directly into the slots or backplanes of standard industrial control cabinets (such as vertical-shower style control cabinets).
-
Can 31F323G1 operate independently as a standalone device?No, it cannot operate independently. It is a subordinate core control unit that must be inserted into a matching host controller system and connected to an external power supply and data communication bus to function.
-
How can system status diagnostics be performed via 31F323G1?The module panel usually integrates multiple LED status indicators (such as Power, Run, Fault, Comm), allowing real-time assessment of module and communication health through their blinking frequencies and colors.
