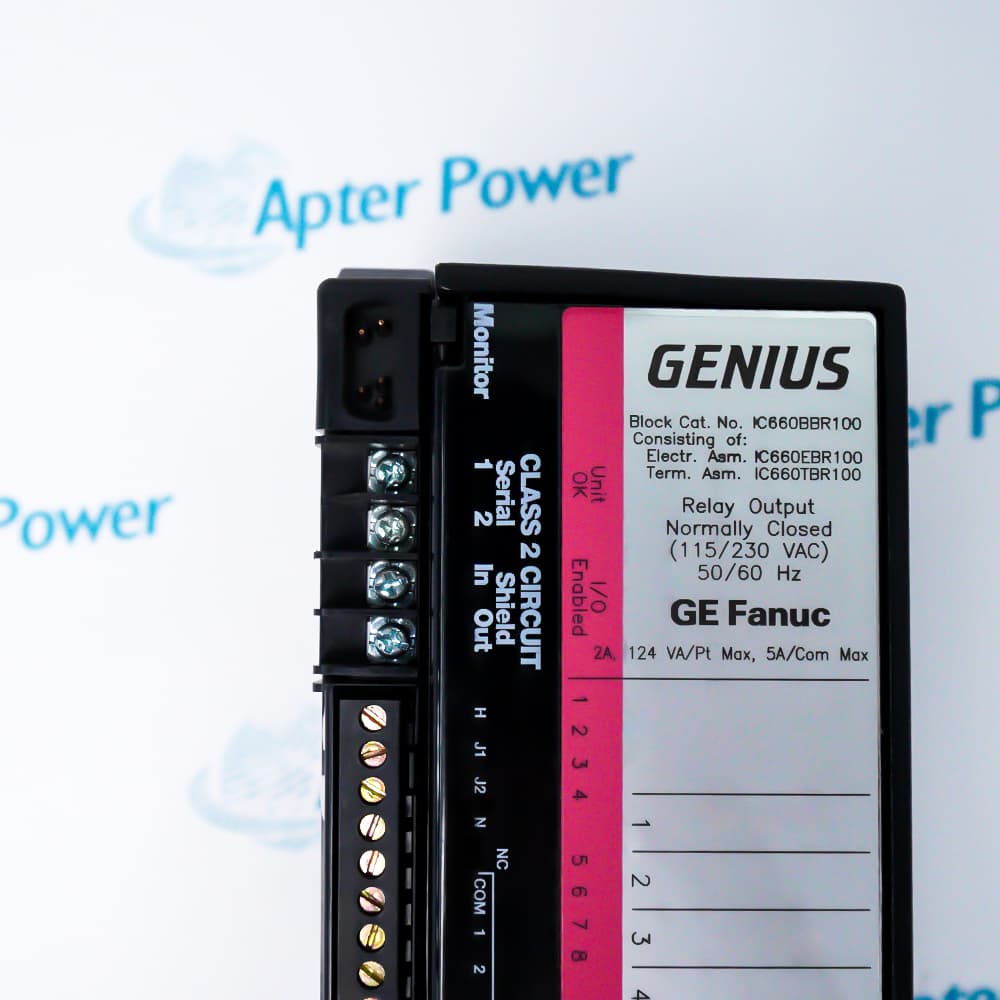

      IC660BBR100

      RELAY OUTPUT MODULE
      • 12-month warranty
      • Immediate dispatch
      • Global delivery

      Product Information

      Product Describe

      IC660BBR100
      I/O MODULE
      GENIUS BLOCK
      RELAY OUTPUT MODULE
      NORMALLY CLOSED
      16 CIRCUITS
      115/230 VAC POWER
      50/60 HZ
      5-250 VAC / 5-220 VDC OUTPUT

      Specifications

      Manufacturer: General Electric
      Product Category: Gas turbine control
      Spare Part Number: IC660BBR100
      Estimated shipping dimensions: 8.7x10.2x22.5cm
      Weight: 1.7 kg
      Tariff Code: 8537101190
      Country of origin: USA
      Place of shipment: Xiamen, Fujian, China
      Points: 16
      Rated Voltage: 115 VAC or 230 VAC
      Operating Voltage: 93-132 VAC / 185-265 VAC
      Points per Common: Four groups of 4
      Output Configuration: 4 Groups of 4 Outputs Each
      Output Voltage Type: AC or DC
      Load Current: 2 Amp
      Response Time: 10 ms
      Isolation Voltage: 1500 Volts
      Operating Temperature: -10°C to 60°C
      By purchasing this item, you agree to the Terms & Conditions
      Apter Power is NOT an authorized distributor of General Electric

      Revisions

      Revision Part #

      Also known as

      IC660BBR100A
      IC660BBR100-A, Series A, Rev A
      Get Parts Quote >>
      IC660BBR100K
      IC660BBR100-K, Series K, Rev K
      Get Parts Quote >>
      IC660BBR100M
      IC660BBR100-M, Series M, Rev M
      Get Parts Quote >>
      IC660BBR100P
      IC660BBR100-P, Series P, Rev P
      Get Parts Quote >>

      • Factory New

        These are new and current items that are procured from the manufacturer.

      • New No Package

        These parts are new. They have not been used, but their original packaging is no longer available.

      • New In Opened Package

        These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.

      • New In Sealed Package

        Parts are new. They have not been used and still have their original package seal intact.

      • New in Original Package

        These parts are new. The packages were not originally sealed by their original manufacturer.
      Why Choose Apter Power?
      1.Full one year warranty on all components
      2.Professional after selling team
      3.Same-day dispatch payment come
      4.All units are fully tested well with certificate
      5.Speak With an Expert Sales Representative
      6.More than 20 years experience in automation
      7.Stable employees more than 10+ years working experience
      Delivery and payment
      Delivery
      Logistic partners UPS, FedEx and DHL
      International delivery available
      Same day dispatch from warehouse inventory
      Warranty
      All parts new original are covered by Apterpower 12 month warranty
      Returns
      No hassle returns policy
      Dedicated customer support team
      Payment options
      We accept Bank transfers and the following methods of payment:

      Ask our team:

      Get a quick price for： IC660BBR100
      Quantity*
      Mobile*
      E-mail*
      Company
      Content*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      • Warranty Bill

        We provide 1 year warranty on every product we sell.

        Service means taking a customer problem and making it your own challenge. Years of experience and listening skills enable us to think and act quickly and accordingly. You have a problem? – We have the solution!
        Apter Power is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
        Speed. Warranty. Everywhere.
        Parts:Learn More
      • How to Make Offers?

        The Sales Team at Apter Power is constantly scanning the web to ensure we are offering the lowest prices possible.

        However, if you think we can do better, feel free to make an offer on any of our products. We pride ourselves on saving you money! Here is how to make an offer.
        Only spare parts that you are seriously considering purchasing. Once your bid is accepted, a sales order will be generated and an invoice will be created. If you have any questions about our quotes, please feel free to contact us. We will be happy to help you further. If you receive a lower price than us, please do not hesitate to contact us. We allow you to quickly obtain the same part at a very low cost. Our extensive knowledge of industrial automation parts means that we can provide you with the best value and innovation. We ensure your satisfaction at all times.
        Thequotation team will do their best to respond to the quotation in a timely manner. The response time for the quotation is generally 2 hours.
        Your Automation Specialists

      More Information

      Overview Manuals Need More Info
      • IC660BBR100 RELAY OUTPUT MODULE
      • Provides multiple relay output channels for switching AC or DC loads
      • Allows easy integration with Genius I/O or compatible control systems.
      The GE Fanuc Emerson IC660BBR100 operates as an efficient relay output block designed to manage various output tasks in automation systems. Featuring 16 outputs, this module operates with a power supply of either 115V or 230V AC, providing flexibility for different applications. The unit is compatible with both AC and DC output voltages, ranging from 5 to 250 volts AC and 5 to 220 volts DC.

      This device is built to endure a variety of temperatures, able to function correctly within an operating range of 0 to 40 degrees Celsius. Additionally, its storage capabilities allow for temperatures of 0 to 50 degrees Celsius. The design also accommodates operational conditions with humidity levels up to 80% relative humidity, non-condensing.

      The IC660BBR100 supports normally-closed relay outputs, which enhance its integration into various automation systems. For geographical applications, it operates effectively at altitudes up to 1000 meters without experiencing derating. Overall, the IC660BBR100 is structured for reliable performance in diverse settings, making it suitable for industrial use.

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      GE IC660BBR100 RELAY OUTPUT MODULE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.

      With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!

      Our World，Made Possible By Manufacturing.

      Manufacturing made possible by Apter Power.
      Watch The Video >>

      FAQS

      • What is the IC660BBR100 ?
        It is a Genius I/O 16-Circuit Normally-Closed Relay Output Block.
      • What terminal assembly is required?
        The block uses the IC660TBR100 terminal assembly.
      • What is the IC660BBR100 operating temperature?
        The unit operates between 0°C and 60°C (32°F to 140°F).
      • How is the IC660BBR100 mounted?
        It supports horizontal and vertical mounting, though vertical is recommended for heat dissipation, with 1.5 inches of side spacing and 3 inches top/bottom spacing.
      • What are its features?
        It includes diagnostics for EEPROM failures and is compatible with various PLC platforms, including Series 90-70 and 90-30.
      • What are the IC660BBR100 load specifications?
        It switches loads ranging from 5Vto 250VAC or 5Vto 220VDC, with a capacity of up to 60W or 125VA.
