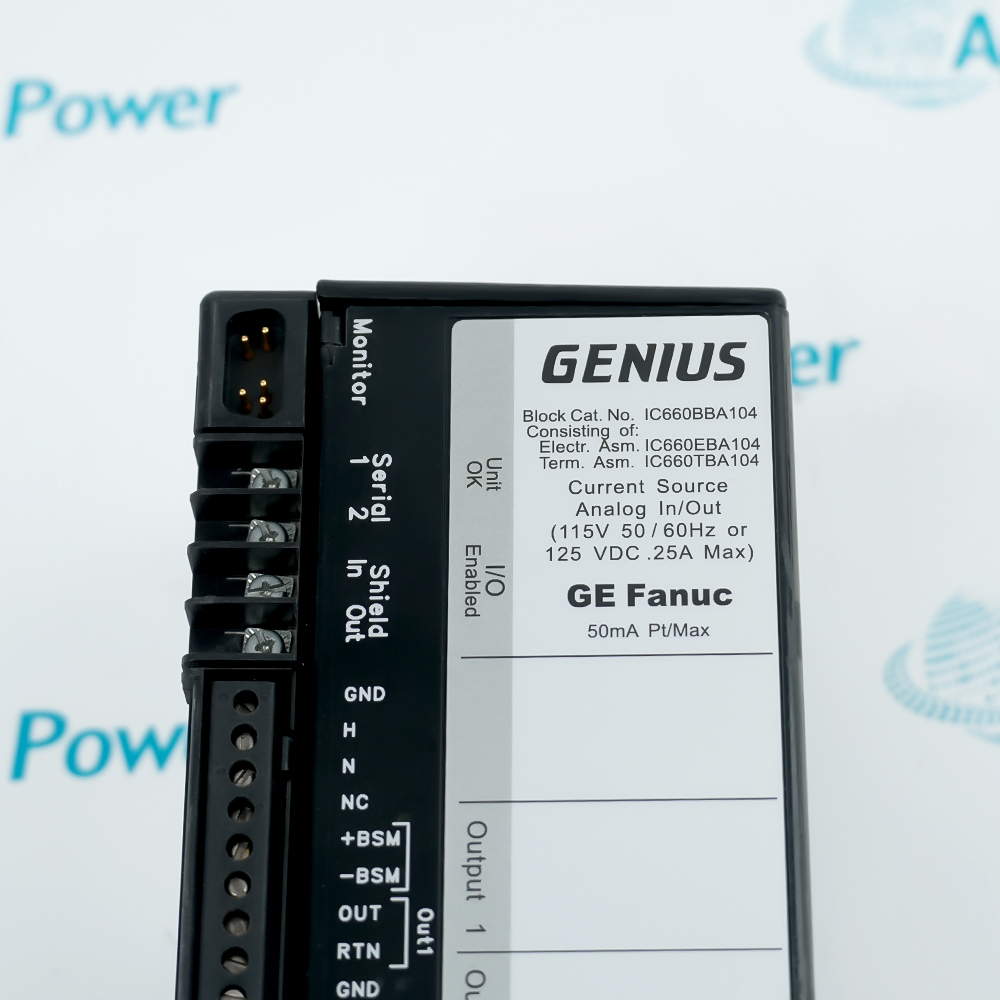

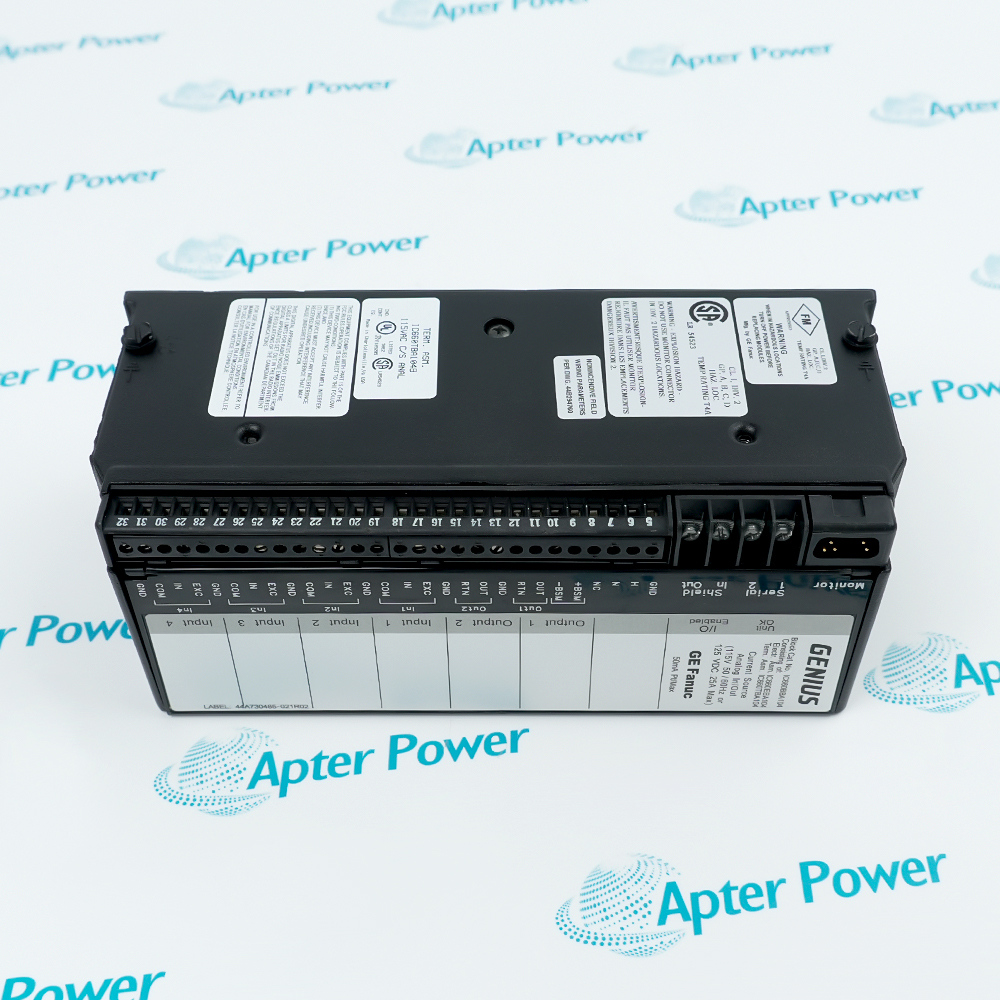

The IC660BBA104 is a current source combination I/O module manufactured by GE Fanuc, typically used in GE Fanuc Genius fieldbus systems or related industrial automation environments.
Isolated channels
Advanced diagnostics
Dedicated Bus Switching Module control
A Current Source Analog I/O block has four 4 to 20mA current inputs. Each input provides a 24 volt current loop power supply and is isolated from all other circuits within the block. The module also includes two output channels that provide both precise control and power for 4-to-20mA current loops. While the output channels and Bus Switching Module (BSM) circuitry share an electrical common, they remain strictly isolated from the input stage, ensuring signal integrity within complex redundant architectures. Furthermore, the IC660BBA104 offers exceptional configuration flexibility, all circuits support independent linear scaling. This allows raw internal values to be converted directly at the block level into engineering units—such as pressure, temperature, or flow—effectively reducing the processing load on the host controller. All circuits on the block support independent selection of linear scaling values. These values can be used to convert the internal values into engineering units suitable for the application.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
General Electric IC660BBA104 115 VAC Current-Source Analog I/O Module Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation
Monitoring boiler water levels and steam pressure to ensure generator set parameters remain within safe limits.
Pulp & Paper
Precisely controlling pulp pump speeds and drying roller temperatures to ensure consistent paper quality.
Steel & Metallurgy
Monitoring cooling water flow in blast furnace cooling systems to prevent overheating damage.
Pharmaceuticals
Monitoring temperature and pH in fermentation tanks, utilizing isolation features to ensure signal integrity for precision sensors.
Natural Gas Pipelines
Serving as distributed I/O to monitor operating pressure and flow at long-distance pipeline booster stations.
Semiconductor
Monitoring conductivity and pressure in ultrapure water systems, operating in high-interference environments.
When using the IC660BBA104, the primary focus should be on the polarity and grounding safety of its 115 VAC control power. As a "current-source" design, it is essential to verify if field instruments require isolated power and to configure loops strictly according to its channel-to-channel isolation features to avoid ground loop interference. Additionally, ensure proper connection to the BSM (Bus Switching Module) ports if used in redundant architectures. During commissioning, prioritize setting correct linear scaling values and diagnostic alarm limits via a Hand-Held Monitor (HHM) or software, and strictly avoid hot-plugging the terminal block while energized.
It is a Genius I/O Analog Input/Output Block manufactured by GE Fanuc (now Emerson).
What is the official name of IC660BBA104?
The official name is 115 VAC Current-Source Analog I/O Block.
Can IC660BBA104 be used in redundant systems?
Yes. It includes dedicated terminals for controlling a Bus Switching Module (BSM) to support dual-bus redundancy.
What is the primary usage of IC660BBA104?
It is widely used for high-performance analog data acquisition and control in distributed environments, such as water level monitoring in power plants or pressure control in chemical facilities.
How to configure IC660BBA104 compared to 1503VC-BMC5-MC1?
Configuration is done via software through a PLC or using a Hand-Held Monitor (HHM); no physical jumpers or DIP switches are needed for scaling.
