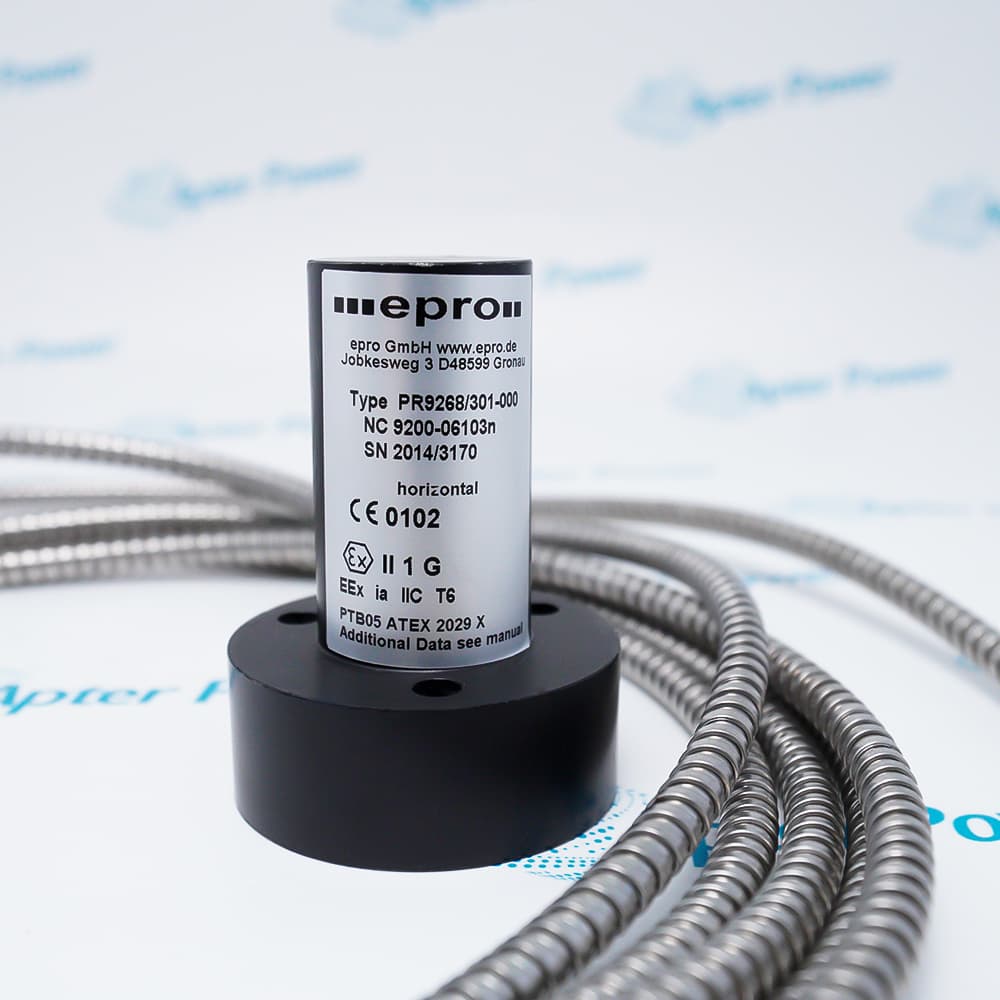

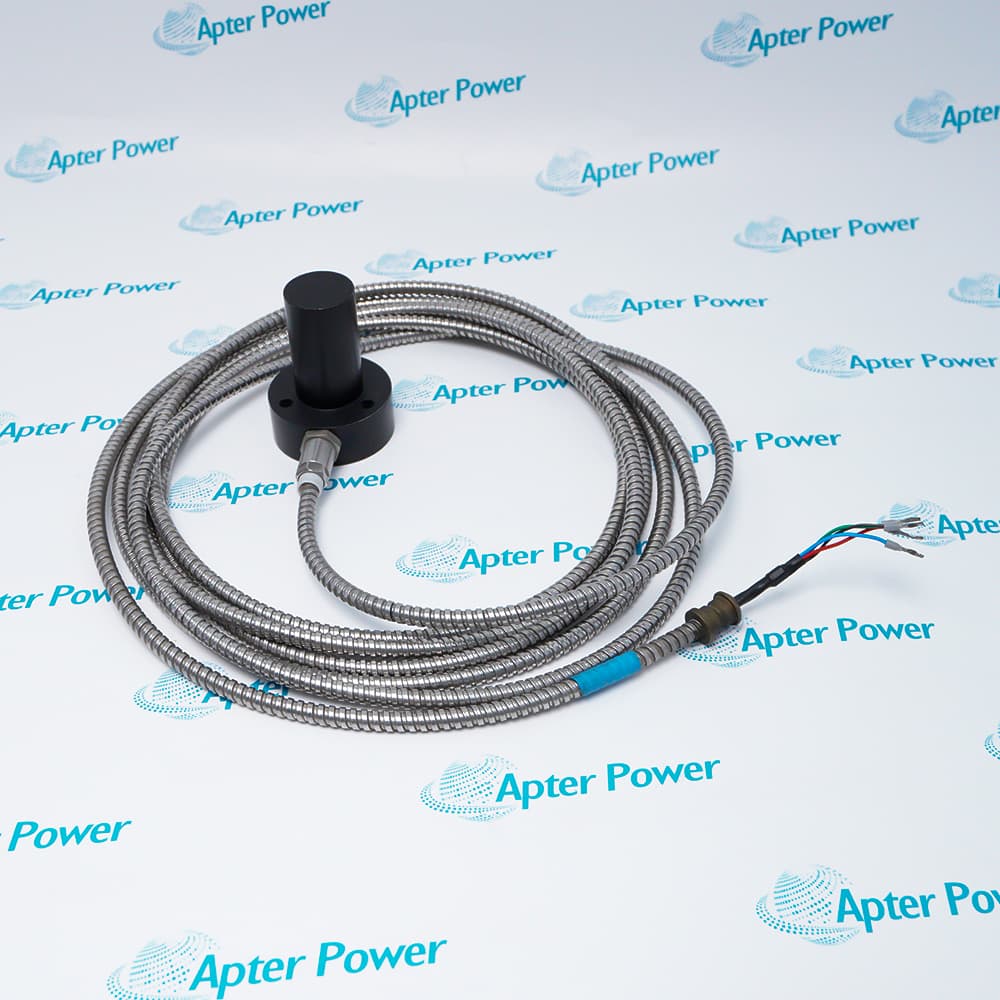

PR9268/301-000

Horizontal Electrodynamic Velocity Sensor
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Epro PR9268/301-000 is a horizontal electrodynamic velocity transducer for absolute casing or bearing-housing vibration monitoring.
  • Manufacturer part number
    PR9268/301-000
  • Shipping
    Swift global dispatch
  • Condition
    New, original product
  • Shipping size (est.)
    18cm × 18cm × 8cm
  • Country of Origin
    Germany
Get a quick price for PR9268/301-000
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 0

    Review your reference

    Share the complete PR9268/301-000 marking, host-system identification and photographs of the installed connection so the requested execution can be matched.

  • 1

    Confirm the offer

    We identify the available PR9268/301-000 item, revision and condition, then itemize cables, connectors and any documents included in the quotation.

  • 2

    Arrange dispatch

    After the PR9268/301-000 scope is agreed, quantity, shipment date and delivery method are confirmed in the quotation before release.

  • Match the complete marking

    Include PR9268/301-000 and any revision or assembly number visible on the item. Keep the exact reference on your enquiry and quotation.

  • Check the offered item before ordering

    Request current label and body and cable-connector photos. Have your maintenance team compare the offered PR9268/301-000 with the installed equipment and applicable Emerson documentation.

Technical specifications for PR9268/301-000

  • Manufacturer:
    Epro
  • Product Category:
    Machinery Monitoring Systems
  • Spare Part Number:
    PR9268/301-000
  • Weight:
    0.75 kg
  • Tariff Code:
    8537101190
  • Sensor family:
    PR9268 electrodynamic velocity
  • Measurement direction:
    Horizontal, PR9268/30x execution
  • Mounting tolerance:
    ±10° from horizontal
  • Sensitivity:
    28.5 mV/mm/s, PR9268/30x family
  • Frequency range:
    4–1,000 Hz, PR9268/30x family
  • Power:
    Self-powered
  • Protection:
    IP55, PR9268/30x family
  • Operating temperature:
    −20 to +100 °C, PR9268/30x family

Information

Overview Downloads Applications / Compatibility Product Precautions
  • The PR9268/301-000 provides a vibration-velocity signal from a rigid horizontal mounting point on a machine casing or bearing housing.
Use case: Absolute casing vibration
Mounting priority: Align the horizontal sensing axis
System dependency: Compatible monitoring input
The PR9268/30x sensing execution uses a moving-coil electrodynamic principle to produce a vibration-velocity signal without an external sensor supply. Its horizontal orientation is relevant to both calibration and field mounting; the housing motion must align with the intended sensitive axis.

A suitable monitor can use this signal for casing-vibration trend and protection on turbomachinery. The PR9268/30x frequency and sensitivity figures apply to this sensor family; the complete 301-000 suffix and connector arrangement should be checked against the physical supplied unit.

For replacement, keep the rigid mounting point, orientation, cable shielding and load conditions. Record a baseline on the same machine state and confirm the monitor channel scaling before interpreting any changed vibration amplitude.
Measurement system reference: PR9268 / MMS6120 vibration chain. Match the installed configuration and interfaces.
Technical downloads for Epro PR9268/301-000: an Apter Power technical reference and an installation and commissioning guide.
These Apter Power documents support product identification and service planning. Apply the approved system and site procedures during installation.
Installation and commissioning checks for Epro PR9268/301-000.
Confirm the full suffix

Match PR9268/301-000 to the supplied label and installed termination before changing the channel.

Preserve the axis

Fit the sensing direction within the documented horizontal orientation tolerance.

Prepare the mounting face

Use a clean, rigid surface so structural looseness does not distort the reading.

Check input loading

Match the sensor signal and cable to the approved monitor input.

Protect the cable

Keep the connector and cable free of mechanical damage and unsuitable routing.

Compare the baseline

Validate the restored vibration value at a known machine speed and operating condition.

Alternative Names

PR9268-301-000 PR 9268/301-000 Epro PR9268/301-000 Emerson PR9268/301-000

Technical notes

Technical basis: Emerson PR9268 Specifications Sheet, Electrodynamic Velocity Sensor, December 2024.

Applicability: PR9268/30x family performance is applicable to the horizontal sensing execution. Confirm 301-000 suffix and supplied connector details from the physical item.

Orientation relationship: The PR9268/30x horizontal sensing execution must be mounted on a rigid surface with its sensitive axis aligned to the intended housing-motion direction. Compare readings at equivalent machine conditions.

FAQ View All FAQ

  • Why does mounting direction matter for PR9268/301-000?
    The PR9268/30x mechanism is calibrated for horizontal installation; orientation error changes its response.
  • How is a noisy reading from PR9268/301-000 isolated?
    Inspect mechanical mounting, cable shield, connector and monitor loading before attributing the change to the sensor.
  • Does PR9268/301-000 need a field power supply?
    The electrodynamic velocity sensor is self-powered, but the monitor input and wiring still must be compatible.
  • How should PR9268/301-000 be compared with a portable instrument?
    Use the same measurement axis, location, speed and bandwidth so the two readings are comparable.
  • What if a replacement PR9268/301-000 reads differently at low speed?
    Check mounting stiffness, orientation, monitor filter and the low-frequency response of the selected sensor execution.
  • Can PR9268/301-000 be used as a shaft-relative displacement probe?
    It measures absolute housing vibration velocity, not the shaft-to-bearing gap measured by a proximity probe.
  • What must be checked before a protection channel using PR9268/301-000 returns to service?
    Verify signal continuity, channel scaling, alarm limits and a controlled baseline under the approved procedure.
  • Which handover record supports PR9268/301-000?
    Keep the exact marking, orientation, mounting point, input channel, cable route and reference vibration reading.
