PCD2.M110

PROCESSOR MODULE
In Stock

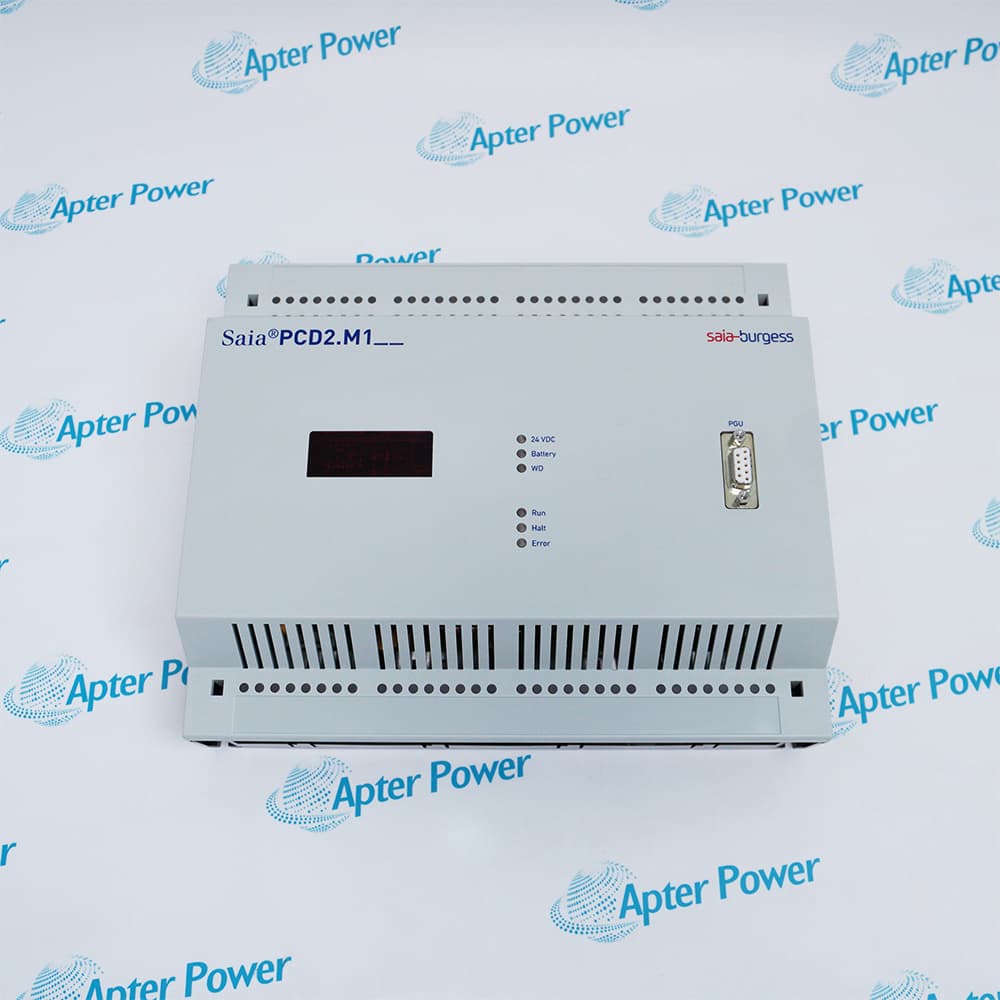

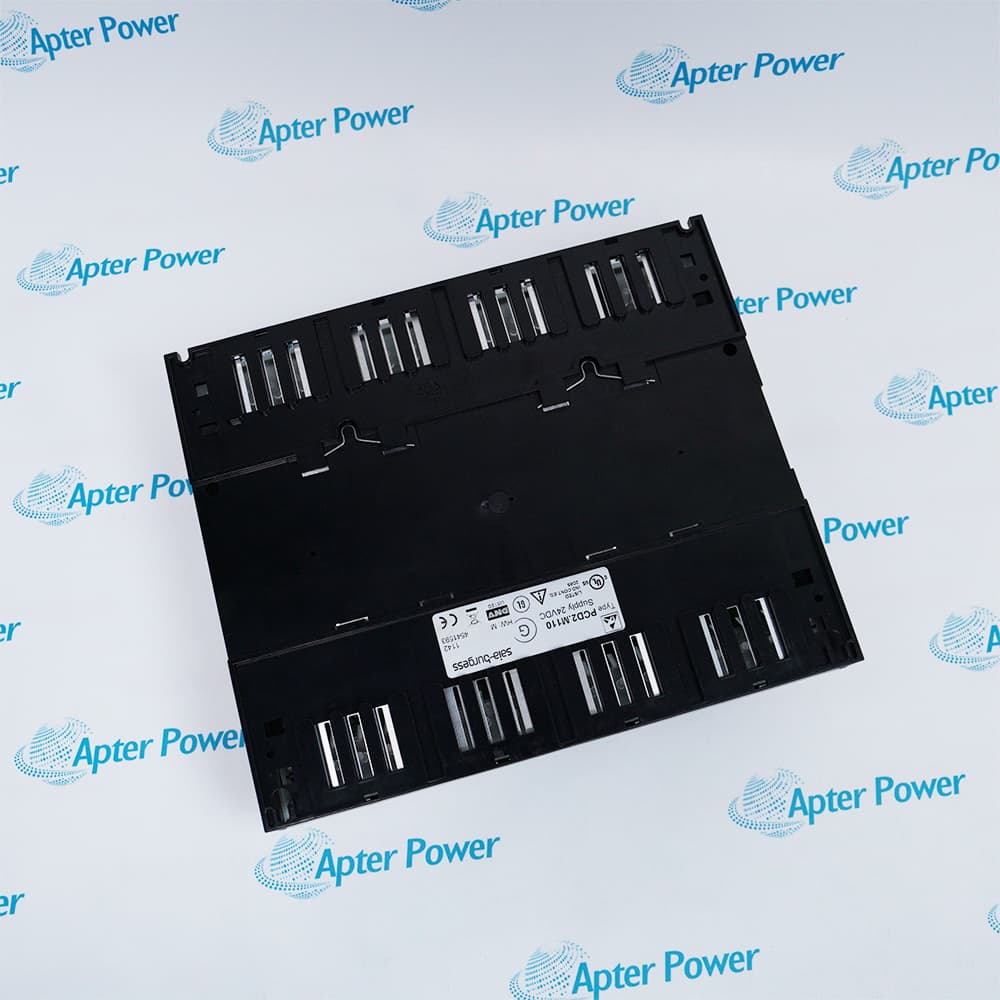

SAIA PCD2.M110
SAIA PCD2.M110
SAIA PCD2.M110
SAIA PCD2.M110
SAIA PCD2.M110
SAIA PCD2.M110
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

DISCONTINUED BY MANUFACTURER
PROCESSOR MODULE
24VDC
128KB
8SOCKET
Get a quick price for PCD2.M110
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for PCD2.M110

  • Manufacturer:
    SAIA
  • Product Category:
    General Automation
  • Spare Part Number:
    PCD2.M110
  • Estimated shipping dimensions:
    24.8×20.8×6.8cm
  • Weight:
    0.9 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    Switzerland
  • Processor:
    32-bit RISC CPU
  • Program Memory:
    512 KB
  • Data Memory:
    256 KB
  • Operating Voltage:
    24V DC
  • Power Consumption:
    Typically 5W
  • Digital I/O Capacity:
    Up to 2048 points
  • Analog I/O Capacity:
    Up to 512 points

Information

Overview Manuals Common Applications User Guide
The PCD2.M110 is a compact base unit with 8 digital inputs and 6 digital outputs already integrated on the board. This model features four slots for I/O modules, providing a modular foundation for small to medium-sized automation systems. As a core component of the PCD2 series, the M110 is designed to process up to 128 central I/O points while maintaining a slim-line industrial form factor.
    • On-board Digital I/O
    • Modular Four-Slot Expansion
    • IEC 1131-2 Compliance
Equipped with 128 Kbytes of user memory and 8192 internal 32-bit registers, the PCD2.M110 ensures reliable execution of logic and data processing tasks. It includes an integrated RS-232 interface for point-to-point communication and is fully compatible with Saia PG5 programming tools. The hardware is engineered to meet IEC 1131-2 standards.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
SAIA PCD2.M110 PROCESSOR MODULE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Building Automation
Used for the integrated control of heating, ventilation, and air conditioning (HVAC) systems in commercial facilities. It manages climate zones and energy consumption through precise monitoring of temperature and humidity sensors.

 Water Treatment
Applied in small to medium-scale pumping stations and wastewater purification plants to monitor fluid levels and flow rates. The controller ensures reliable operation of filtration processes and chemical dosing cycles.

 Infrastructure Management
Deployed in tunnel ventilation and lighting control systems to enhance safety and operational efficiency on highways. It facilitates real-time data acquisition from environmental sensors to automate emergency response protocols.

 Energy Monitoring
Utilized in power distribution substations for the remote monitoring of electrical parameters and load balancing. It supports data logging and communication with supervisory systems to optimize grid performance and stability.

 Marine Engineering
Integrated into shipboard auxiliary systems to control engine room ventilation, bilge pumps, and onboard lighting. Its compact design and vibration resistance meet the stringent requirements for maritime automation and monitoring.

 Machine Manufacturing
Applied in specialized industrial machinery for the automated coordination of material handling and packaging sequences. It provides the necessary logic processing and on-board I/O to manage sensors and actuators in real-time.

The PCD2.M110 must be mounted on a 35 mm DIN rail in a vertical position to ensure heat dissipation via natural convection. All connections to the integrated 8 digital inputs and 6 digital outputs must be made using pluggable terminal blocks for secure contact. The unit requires a nominal supply voltage of 24 VDC according to IEC 1131-2 standards.

The system address for the integrated I/O and expansion modules is determined by their physical position on the PCD2 bus. For maintenance and safety, the onboard Watchdog relay monitors program execution and can be used to switch the controller to a defined safe state. Status LEDs provide immediate diagnostics for Power, Run, and Halt conditions.

FAQ View All FAQ

  • What is the basic hardware configuration of the Saia PCD2.M110 CPU unit?
    The PCD2.M110 is a base unit with 8 digital inputs and 6 digital outputs already integrated on the board. It provides four slots for additional I/O modules and supports up to 128 central I/O points.
  • What are the primary communication interfaces available on the PCD2.M110?
    The PCD2.M110 features an integrated RS-232 port (Port 0) for programming and point-to-point communication. It also supports an optional PGU connection for handheld terminals or PC-based software tools.
  • How is the user program and data memory structured in the PCD2.M110?
    The unit is equipped with 128 Kbytes of user memory and supports up to 8192 registers (32-bit). Programs are stored in non-volatile memory to ensure data integrity during power failures.
  • What is the power supply requirement for the Saia PCD2.M110 controller?
    The PCD2.M110 operates on a nominal supply voltage of 24 VDC (-20% to +25% according to IEC 1131-2). The internal power supply provides the required 5V and 24V for the I/O bus and modules.
  • Can the PCD2.M110 be expanded to handle more complex automation tasks?
    Yes, the PCD2.M110 supports a wide range of plug-in modules for analog I/O, counting, and motion control. It is fully compatible with the Saia PG5 programming tool for advanced logic and visualization.
