A6560

Processor Modul
In Stock

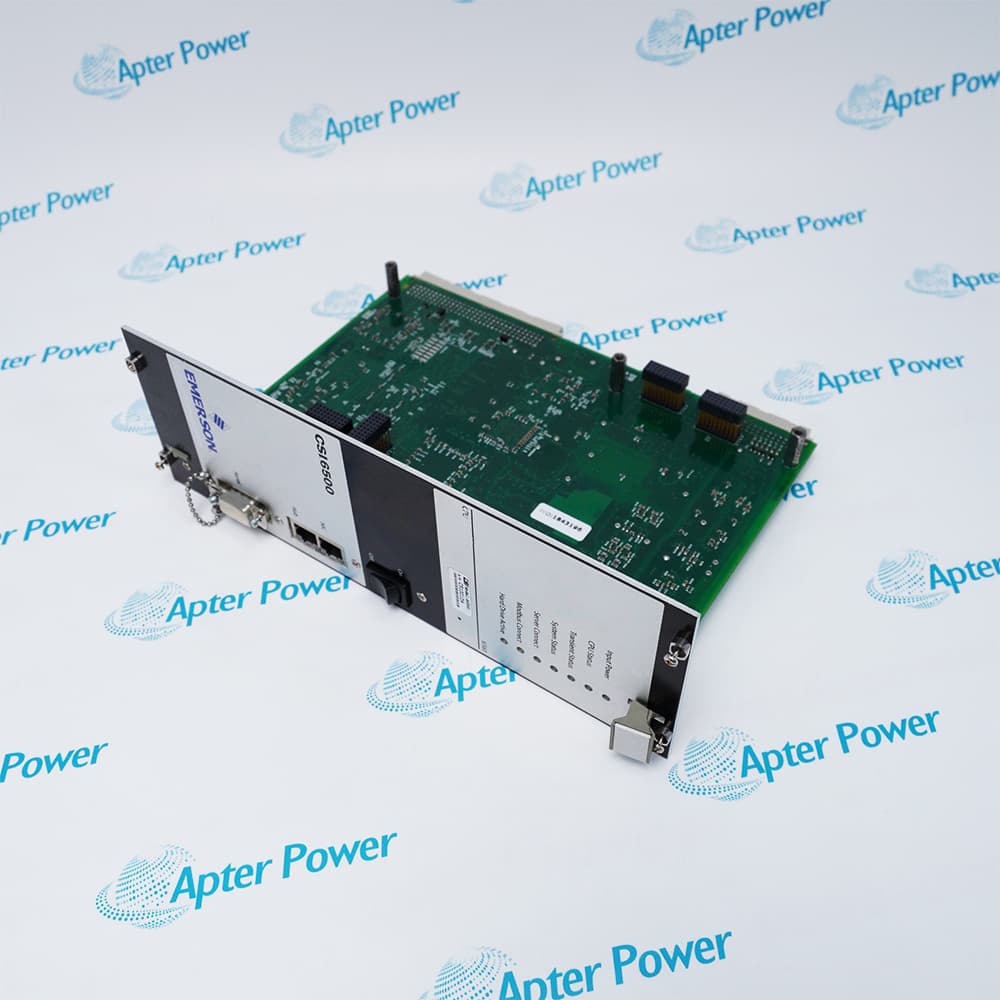

Emerson A6560
Emerson A6560
Emerson A6560
Emerson A6560
Emerson A6560
Emerson A6560
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

DISCONTINUED BY MANUFACTURER
HEALTH MONITOR PROCESSOR CARD
12SENSOR/2TACH/2DIG
REAL-TIME PROCESSOR MODULE
SPARE PART / REPLACEMENT MODULE
Get a quick price for A6560
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for A6560

  • Manufacturer:
    Emerson
  • Product Category:
    DCS Systems
  • Spare Part Number:
    A6560
  • Estimated shipping dimensions:
    9x18.5x26.1cm
  • Weight:
    0.48 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Operating Voltage:
    220 V
  • Current Rating:
    20 A
  • Operating Frequency:
    50 Hz
  • Surge Suppression Rating:
    50 kV
  • Installation Type:
    Plug-in module
  • Certification:
    UL, CE, IEC 61000-4-5
  • Protection Mechanism:
    Fast-acting MOVs and clamping diodes

Information

Overview Manuals Common Applications Application
The A6560 is the core processor module for the AMS 6500 Machinery Health Monitor system. It is designed for real-time monitoring and predictive diagnostics of industrial machinery, providing a reliable and modular solution for critical mechanical assets.
    • High Reliability
    • Advanced Monitoring
    • Modular Flexibility
The A6560 supports 12 analog RMS/DC channels, advanced vibration and waveform analysis,with high-speed data acquisition, precise spectral analysis, and flexible communication interfaces (Ethernet/RS‑232), it ensures accurate assessment of machine health and early detection of potential failures.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Emerson A6560 Processor Modul Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Power Plant Automation
Essential for monitoring turbines, generators, and auxiliary systems in high-availability power plants. Enables predictive maintenance and reduces unexpected downtime.

 Oil & Gas Refineries
Provides reliable vibration and machinery health monitoring for both onshore and offshore processing units. Helps optimize plant efficiency and safety.

 Chemical Processing Plants
Monitors pumps, compressors, and mixers in complex chemical production lines. Supports early fault detection and reduces maintenance costs.

 Water Treatment Infrastructure
Ensures stable operation of intake pumps, filtration systems, and treatment equipment. Improves reliability of water supply and system efficiency.

 Industrial Drive Control
Handles vibration and condition monitoring for motors, gearboxes, and heavy-duty drives in manufacturing lines. Supports predictive maintenance scheduling.

 Thermal Energy Systems
Optimizes operation of boilers, heat exchangers, and feed-water pumps. Monitors machinery health to enhance energy efficiency and reduce unplanned shutdowns.

The Emerson A6560 processor module is the heart of the CSI 6500 / AMS 6500 Machinery Health™ Monitor, providing field‑based predictive intelligence for rotating machinery health. It combines real‑time overall vibration processing with configurable event‑based and adaptive monitoring to diagnose deteriorating machine conditions.

The A6560 enables comprehensive data acquisition and predictive analytics for machinery health by performing real‑time vibration and spectrum analysis, with configurable trend types such as waveform, spectrum, RMS/DC, and order tracking. It computes analysis parameters directly in the field, reducing reliance on central servers.

FAQ View All FAQ

  • What is the Emerson A6560 Processor Module used for?
    The A6560 is the core processing module for the AMS 6500 Machinery Health Monitor system. It performs real-time vibration monitoring, data acquisition, and predictive diagnostics for industrial machinery.
  • How many channels does the Emerson A6560 support?
    The A6560 supports 12 analog RMS/DC channels for standard monitoring. The optional A6560‑T adds transient waveform analysis capabilities for turbine machinery.
  • What types of data analysis can the Emerson A6560 perform?
    The A6560 can perform overall vibration, spectral, waveform, HTFD, and trend analyses. It provides real-time assessment of machine health and helps predict potential failures.
  • What communication interfaces are available on the Emerson A6560?
    The A6560 features 10/100 Base-T Ethernet for network communication and an RS‑232 serial port for local diagnostics. Optional Modbus TCP support is available for remote integration.
  • What is the operating temperature range of the Emerson A6560?
    The A6560 is designed to operate in industrial environments from ‑20 °C to +70 °C. Storage temperature range is ‑40 °C to +85 °C, with relative humidity of 5–95% non-condensing.
