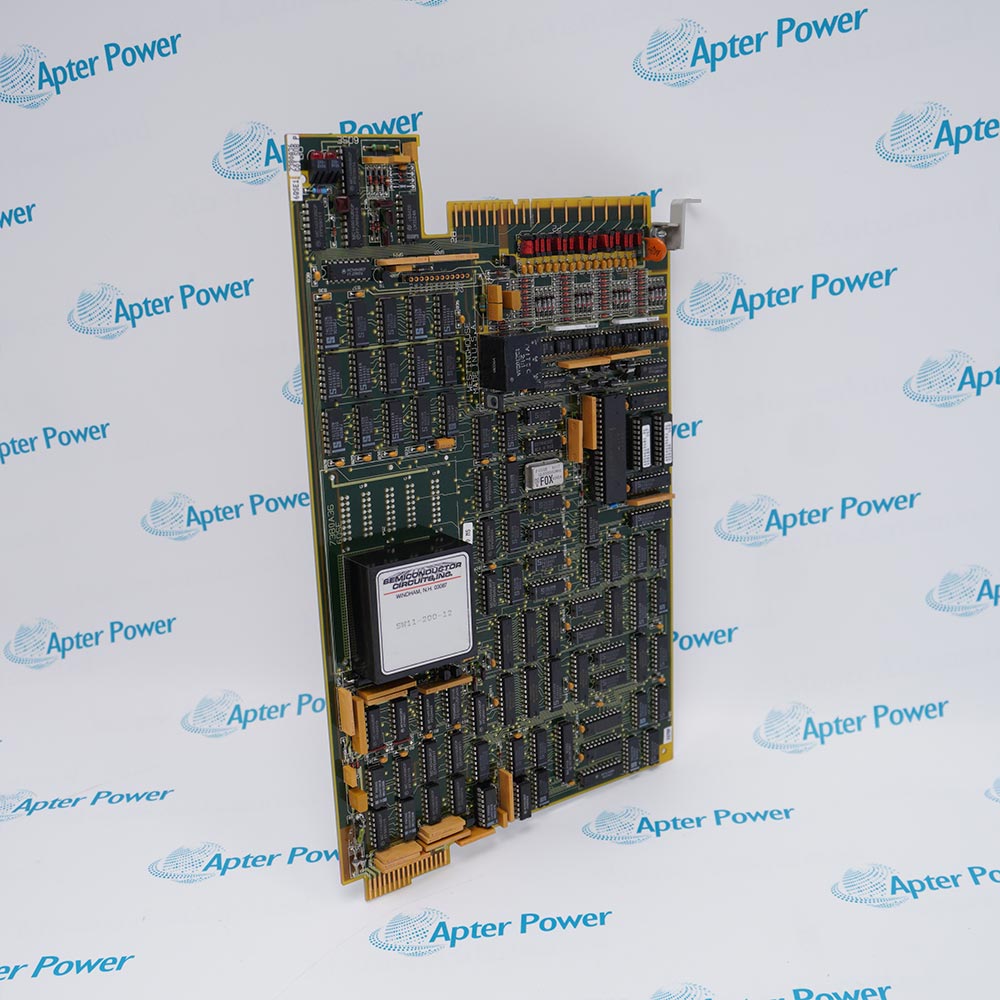

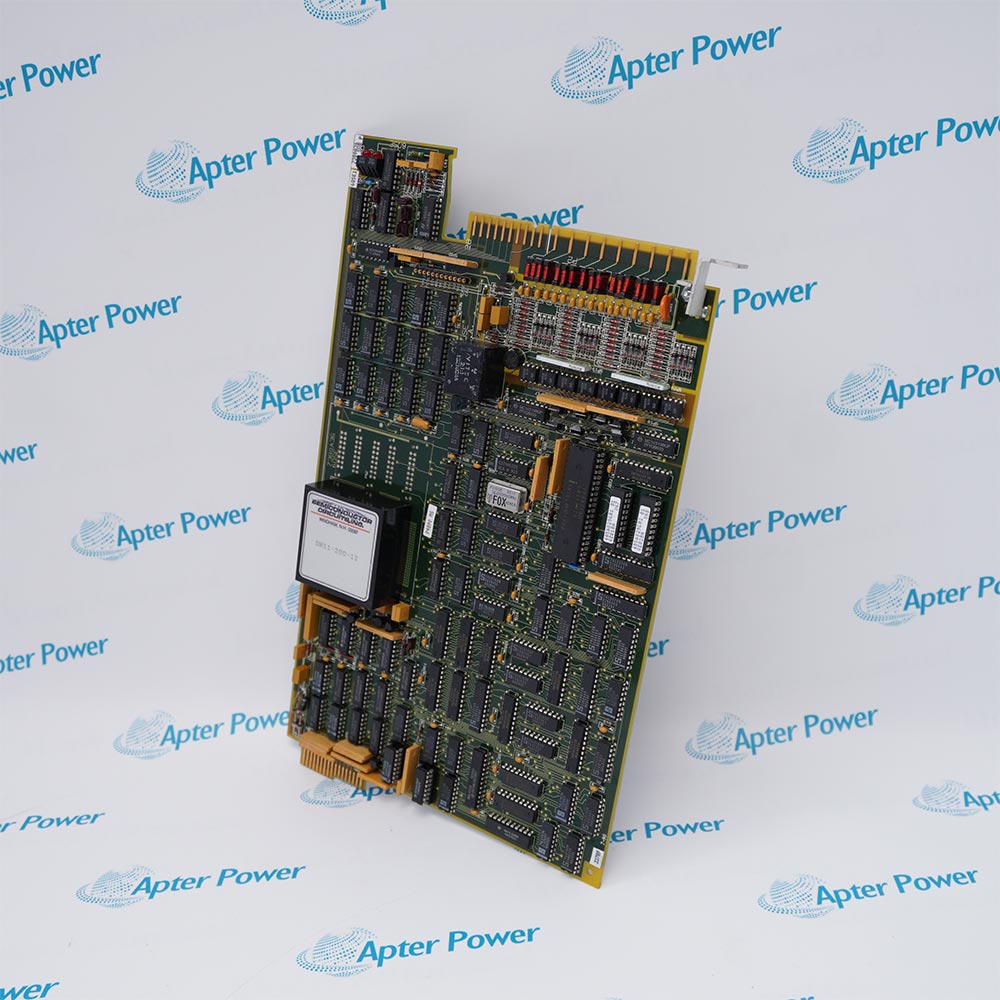

      7380A36G01

      Sequence-of-Events Card
      In Stock
      Ships by Sunday, November 8
      Fast Shipping Available
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      WESTINGHOUSE 7380A36G01 monitors sixteen field contacts, records accepted state changes and time-tags them at 1/8 ms resolution. Group 01 uses dual event buffers and a common-return input arrangement.

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 7380A36G01
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 7380A36G01

      • Manufacturer:
        Emerson
      • Product Category:
        DCS Systems
      • Spare Part Number:
        7380A36G01
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Product type:
        QSE sequence-of-events recorder card
      • Group:
        G01
      • Channel count:
        16
      • Input arrangement:
        Common return
      • Open-contact voltage:
        42 to 56 V; 48 V nominal
      • Closed-contact current:
        7 to 21 mA; 14 mA nominal
      • Event resolution:
        1/8 ms
      • Event-buffer capacity:
        32 events across two buffers
      • Closed-circuit resistance:
        Less than 60 ohms total
      • Open-contact leakage resistance:
        50 kilohms minimum
      View as PDF Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      In a DIOB-based event path, WESTINGHOUSE 7380A36G01 combines optical isolation, digital filtering, masking and synchronized time tagging. Contact resistance, common-return wiring and event-buffer handling must all be commissioned.
      • Sixteen contact inputs
      • 1/8 ms event resolution
      • On-card 48 V wetting
      • Dual event buffers

      Acceptance requires dry-contact simulation across all used points, confirmation of event timestamps and buffers, and verification of masking and common-return wiring.

      Important Notice: Isolate field contacts before handling WESTINGHOUSE 7380A36G01.

      WESTINGHOUSE 7380A36G01 Manuals & Downloads
      WESTINGHOUSE 7380A36G01 Official Technical Reference Excerpt (PDF)WESTINGHOUSE 7380A36G01 Installation & Commissioning Guide (PDF)

      The official excerpt documents QSE inputs, timing and buffering; the installation guide translates those functions into wetting, masking, timestamp and event-path tests.

      Sequence-of-events recording
      Captures ordered changes from sixteen field contacts.
      Trip chronology analysis
      Provides synchronized high-resolution event timestamps.
      Legacy Q-Line service
      Restores the G01 QSE event-recorder position.
      Contact-path troubleshooting
      Separates wetting supply, wiring, filtering and event-buffer checks.
      Safeguard event history, common-return wiring and time synchronization before removing the QSE card.
      1
      Isolate field contacts before handling WESTINGHOUSE 7380A36G01.
      2
      Confirm the full G01 identity and retain the installed DIOB address.
      3
      Record all sixteen point assignments, mask states and common-return wiring.
      4
      Keep closed-circuit resistance below the documented 60-ohm limit.
      5
      Maintain at least 50 kilohms leakage resistance for an open contact.
      6
      Verify the 48 V nominal wetting supply before evaluating field points.
      7
      Synchronize the QSE clock and test event-buffer transfer after startup.
      8
      Release the card only after every used input and its timestamp pass the event test.

      Technical notes

      WESTINGHOUSE 7380A36G01 is a sixteen-input Q-Line QSE sequence-of-events recorder card with on-card 48 V contact wetting.

      FAQ View All FAQ

      • How many contacts does WESTINGHOUSE 7380A36G01 monitor?
        It monitors sixteen field-contact inputs with a common return.
      • Which wetting voltage is provided by WESTINGHOUSE 7380A36G01?
        The card provides 48 V nominal, with an open-circuit range of 42 to 56 V.
      • What closed-contact current applies to WESTINGHOUSE 7380A36G01?
        The closed-contact current is 7 to 21 mA, nominally 14 mA.
      • Which event resolution belongs to WESTINGHOUSE 7380A36G01?
        Group 01 records event time at 1/8 ms resolution.
      • How many events can WESTINGHOUSE 7380A36G01 buffer?
        Its two event buffers hold a total of 32 events.
      • What closed-circuit resistance limit applies to WESTINGHOUSE 7380A36G01?
        The combined closed-contact and cable resistance must remain below 60 ohms.
      • Why must the WESTINGHOUSE 7380A36G01 clock be synchronized?
        Synchronization aligns its one-minute on-card clock with the DIOB controller time base.
      • What completes WESTINGHOUSE 7380A36G01 commissioning?
        Verify every used contact state, filtering, mask behavior, timestamp resolution and event-buffer transfer.
