Technical specifications for 3A99132G02
-
Manufacturer:Emerson
-
Product Category:DCS Systems
-
Spare Part Number:3A99132G02
-
Estimated shipping dimensions:2.2×33×12.8cm
-
Weight:0.44 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Product type:Controller power-supply assembly
-
Controller family:OCR161
-
Board family:PCPS
-
Assembly designation:3PCPS04 W3-DPU
Information
Overview
Manuals
Common Applications
Product Precautions
At the OCR161 power boundary, WESTINGHOUSE 3A99132G02 is evaluated through exact assembly matching, connector condition, cabinet grounding and controller power indications rather than inferred ratings from another power card.
- OCR161 controller power supply
- PCPS assembly
- 3PCPS04 hardware designation
- Exact G02 replacement identity
Close the OCR161 power intervention only after the G02 assembly, connector seating, protective earth and controller power indications agree with the cabinet record.
Important Notice: De-energize the OCR161 cabinet before handling WESTINGHOUSE 3A99132G02.
WESTINGHOUSE 3A99132G02 Manuals & Downloads
WESTINGHOUSE 3A99132G02 Technical Reference (PDF)WESTINGHOUSE 3A99132G02 Installation & Commissioning Guide (PDF)
The Technical Reference captures the controlled PCPS/3PCPS04 identity; the installation guide covers connector condition, grounding, cabinet placement and OCR161 power recovery.
OCR161 power maintenance
Restores the controller's PCPS power-supply position.
Legacy spare matching
Preserves the exact 3PCPS04 G02 assembly identity.
Controller startup service
Provides a defined point for power and status checks.
Power-fault isolation
Separates source, supply assembly, cabling and controller-load diagnosis.
De-energize the OCR161 power boundary and verify stored-energy discharge before touching the G02 assembly.
1
De-energize the OCR161 cabinet before handling WESTINGHOUSE 3A99132G02.
2
Confirm the full G02 part number and 3PCPS04 assembly designation.
3
Record input and output connector positions and controller status before removal.
4
Do not apply ratings taken from another PCPS group or visually similar supply.
5
Inspect connectors, board guides, retention hardware and grounding points.
6
Restore the original cable routing and protective devices before energization.
7
Monitor controller power and diagnostic indications during controlled startup.
8
Return the controller to service only after stable power and dependent hardware checks pass.
Technical notes

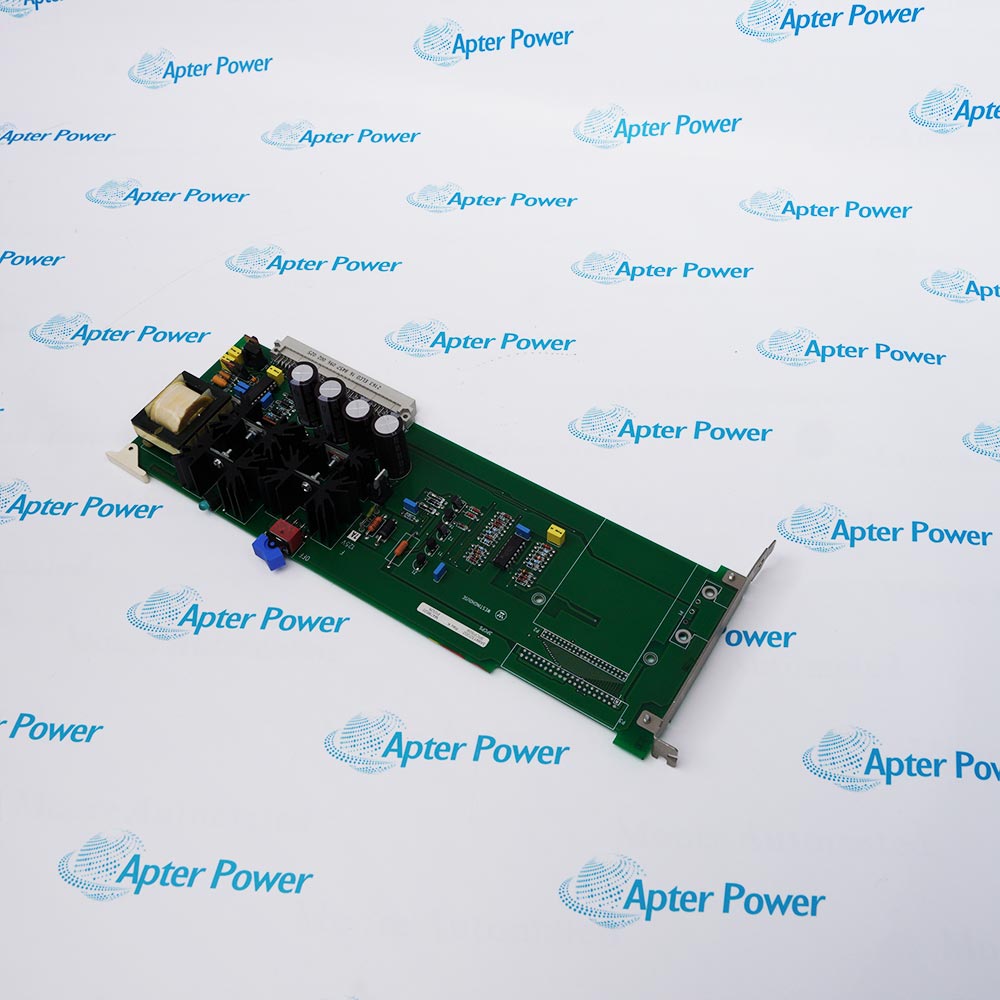

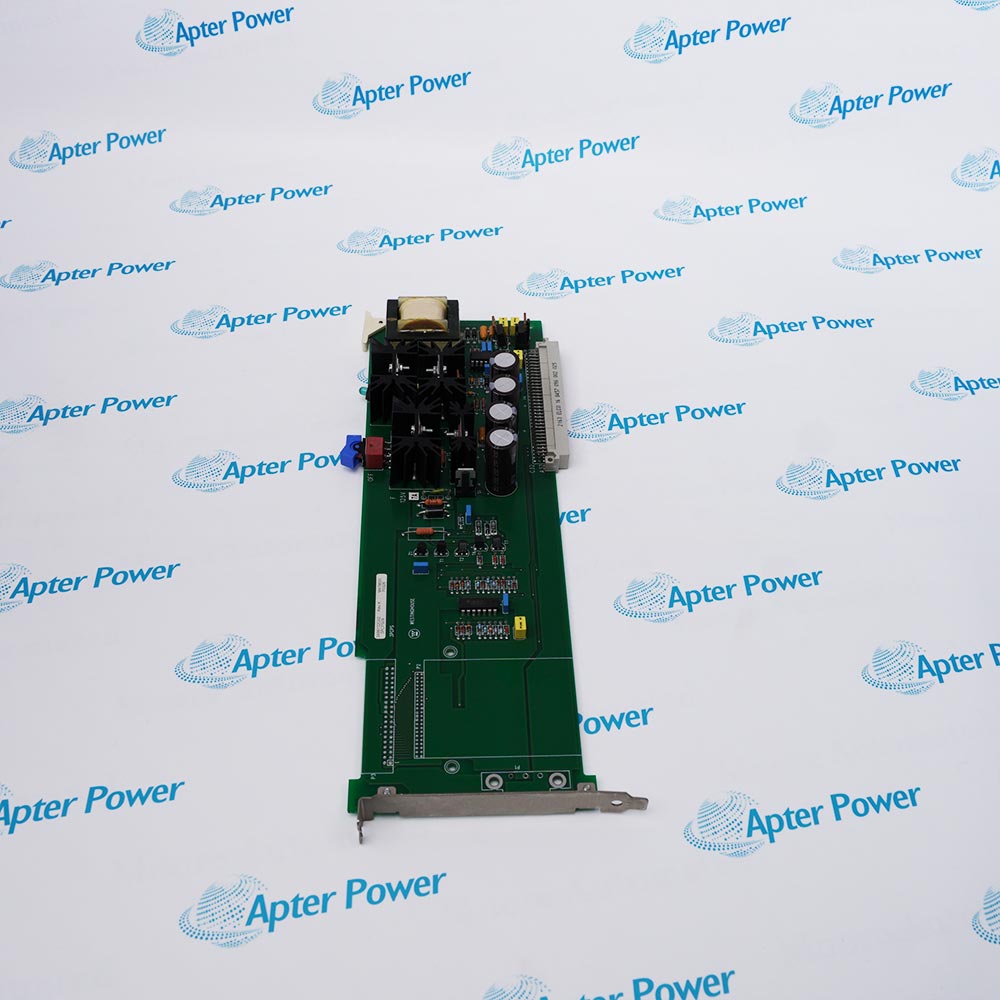

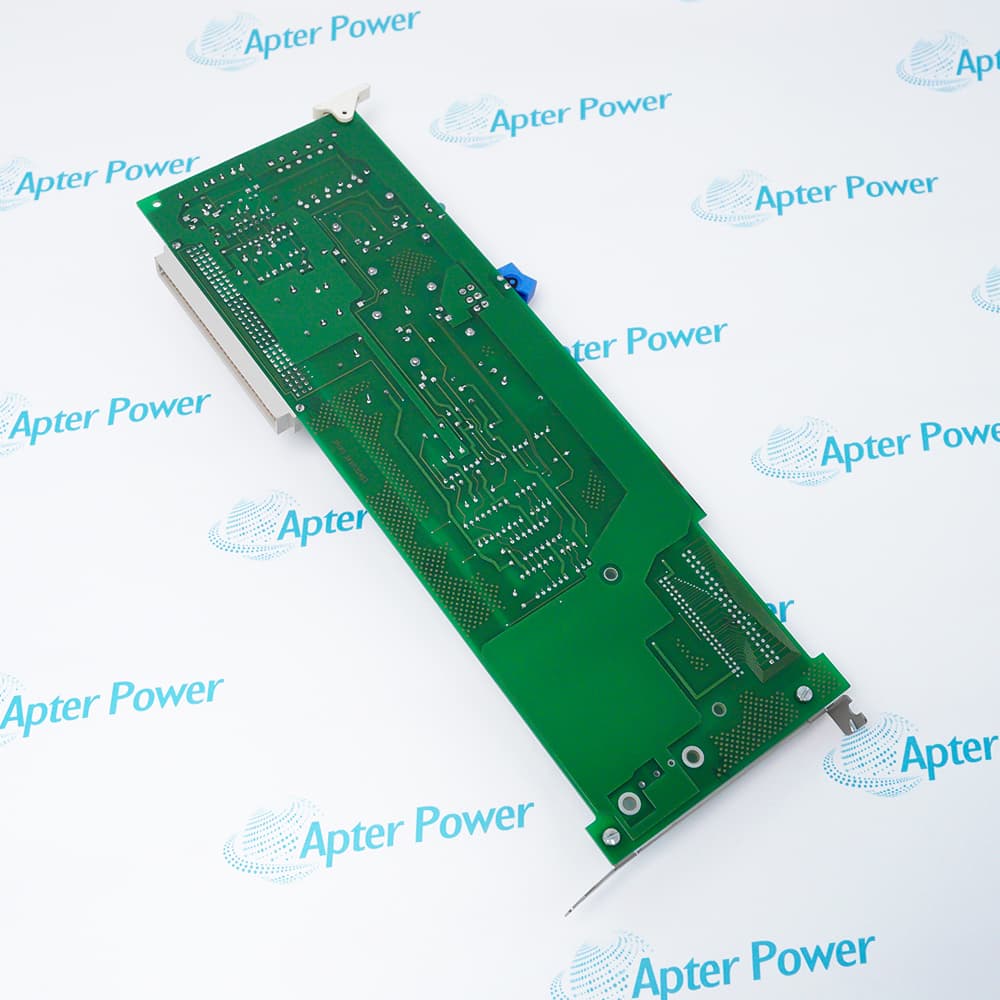

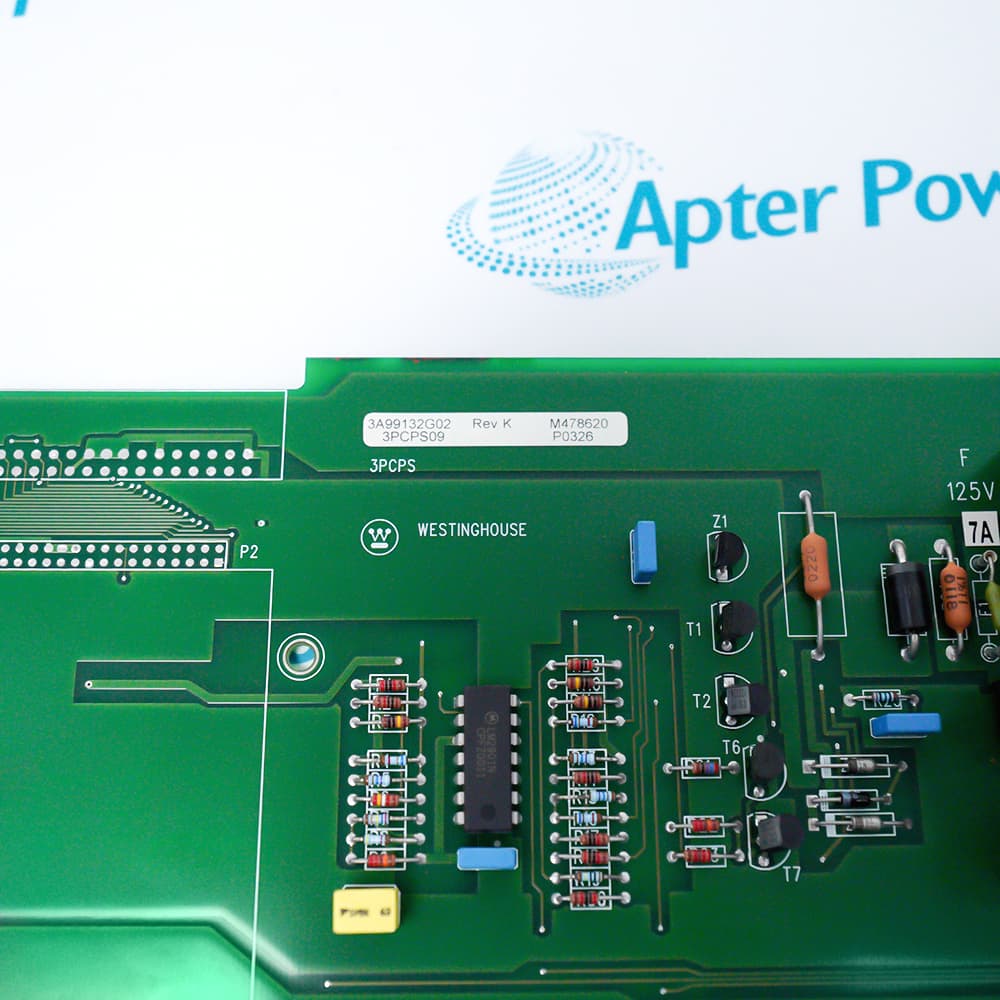

WESTINGHOUSE 3A99132G02 is the PCPS power-supply assembly used in an Ovation OCR161 controller hardware set.
FAQ View All FAQ
-
What should be matched before fitting WESTINGHOUSE 3A99132G02?Match the complete G02 assembly identity, installed connector arrangement and OCR161 cabinet position.
-
Which family designation is associated with WESTINGHOUSE 3A99132G02?The assembly belongs to the PCPS power-supply family.
-
What assembly marking belongs with WESTINGHOUSE 3A99132G02?The exact-model records identify 3PCPS04 W3-DPU.
-
Why must WESTINGHOUSE 3A99132G02 retain the G02 suffix?The suffix is part of the controlled assembly identity and must match the installed controller configuration.
-
What should be recorded before removing WESTINGHOUSE 3A99132G02?Record connector locations, cable labels, protective-device state, grounding and controller indications.
-
Can another PCPS card's ratings be assigned to WESTINGHOUSE 3A99132G02?No. Electrical ratings must be taken from the exact installed unit or its controlled project documents.
-
How should WESTINGHOUSE 3A99132G02 be started after replacement?Apply power through the approved cabinet procedure while monitoring supply and OCR161 diagnostic indications.
-
What closes WESTINGHOUSE 3A99132G02 acceptance?Stable controller power and correct operation of the connected OCR161 hardware close acceptance.
