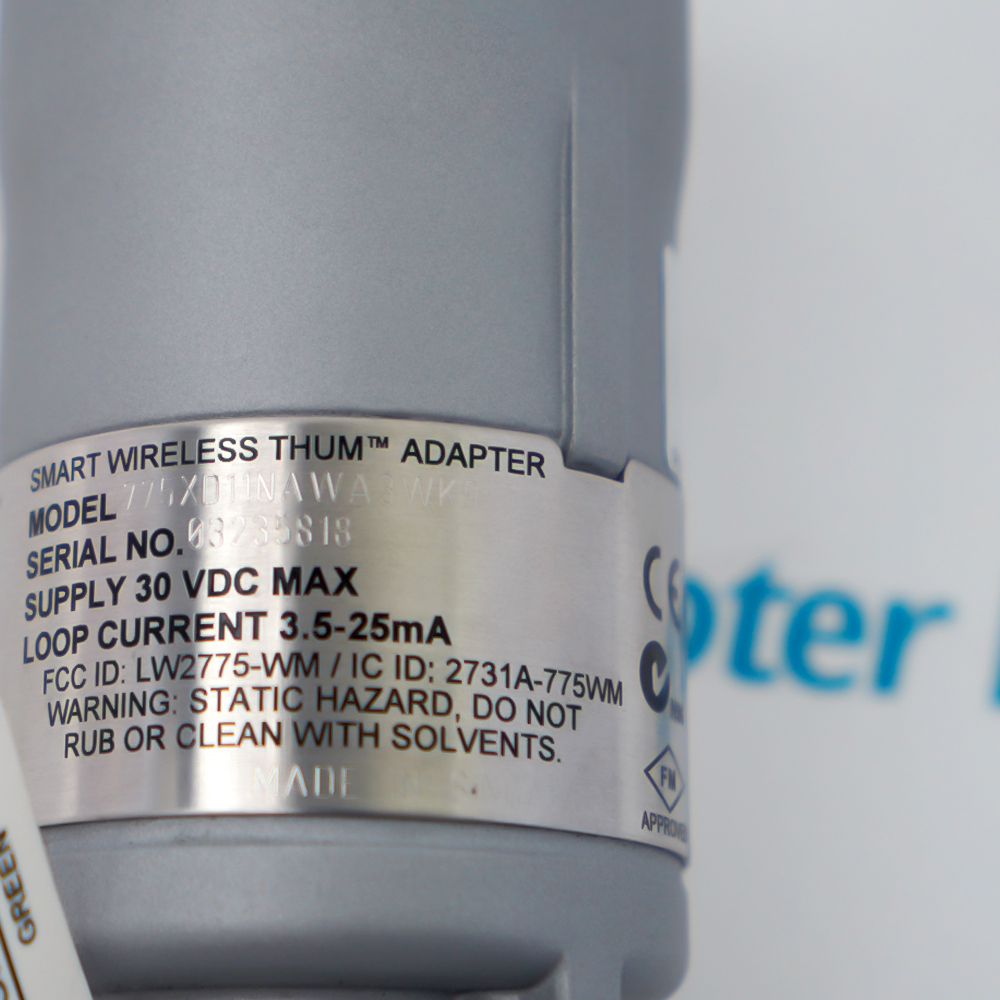

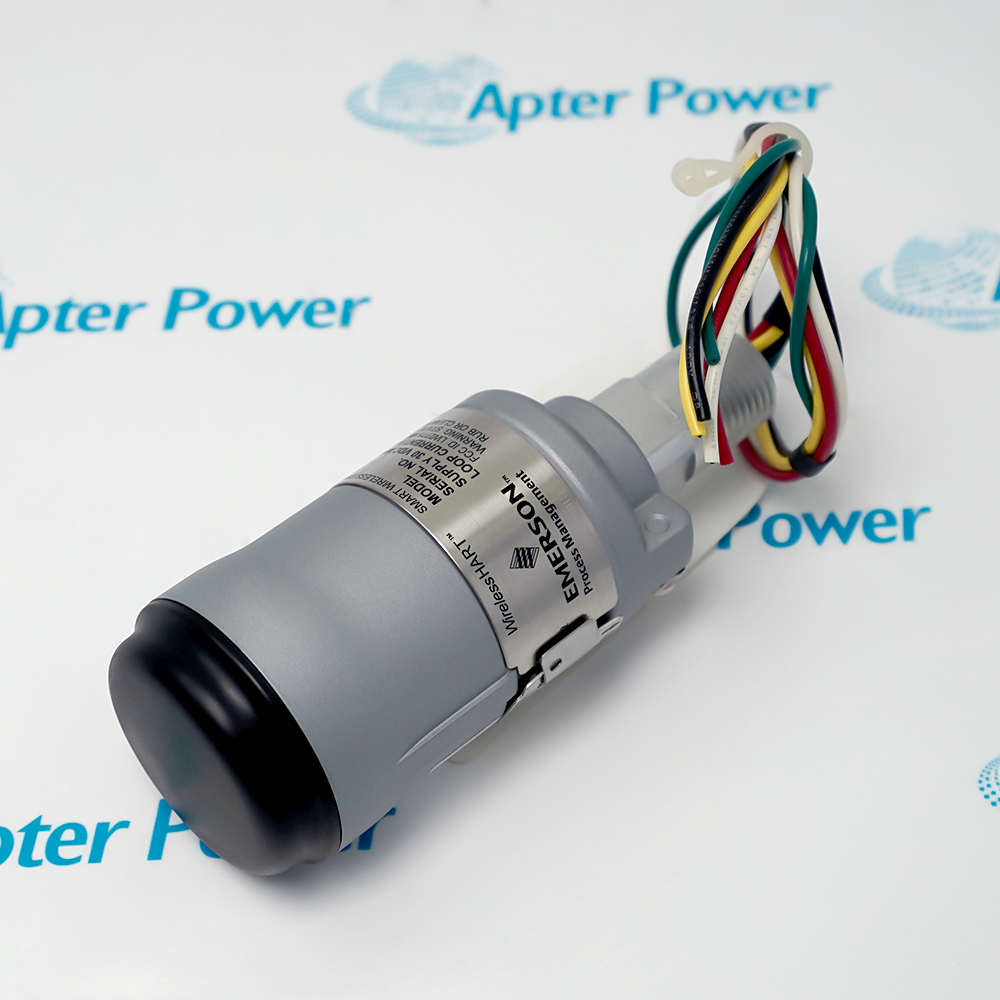

Emerson 775XD11NAWA3WK9 is an evidence-bounded Wireless 775 THUM Adapter configuration in the Emerson installed-base context. Emerson's ordering matrix decodes 775XD11NAWA3WK9 as a Wireless 775 THUM Adapter with aluminum housing, 1/2-14 NPT entry, HART data, no approval, WA3 WirelessHART network and WK9 long-range integral antenna.
- Exact configuration: 775XD11NAWA3WK9
- Housing / entry: Aluminum; 1/2-14 NPT
- Data protocol: HART data; IEC 62591 WirelessHART
- Approval code: NA - no approval
System role: It adds IEC 62591 WirelessHART communication to compatible wired HART devices while scavenging operating power from the 4-20 mA loop. The page publishes only functions and ratings stated by the cited Emerson material; sibling and successor data are not transferred. Architecture boundary: The adapter supports compatible 2-, 3- and 4-wire HART 5 or later devices. Loop load, update rate, network security, antenna placement and hazardous-area approval must match the project. Exact cable, termination, firmware, revision and host dependencies must be checked against the physical assembly and approved project drawings. For maintenance, migration or replacement work, verify identity, companion hardware, wiring, addressing, power, network settings and commissioning tests before returning the loop or node to service. Current formal lifecycle phase, origin, HS code, dimensions and logistics weight remain HOLD without exact Emerson evidence.
Important Notice: The NA code means no product approval is selected; do not represent this exact order as hazardous-area approved.
Apter Power 775XD11NAWA3WK9 Manuals and Guides
Important Notice: The first link is the model-specific product-parameters PDF prepared only from the cited Emerson official evidence; the second link is the Apter Power product information manual. Confirm the physical nameplate, current Emerson documents, and host-system requirements before installation or replacement.
Installed-base maintenanceSupports evidence-led identification and replacement planning for Emerson 775XD11NAWA3WK9.
System documentationProvides a source-traceable boundary for rack, network, I/O and termination records.
Commissioning reviewGuides pre-power checks, companion-module verification and controlled functional testing.
Migration assessmentSeparates exact-model facts from successor, sibling and family-level information.
Use the cited official manufacturer documentation and the exact physical label before installation, replacement or configuration. The NA code means no product approval is selected; do not represent this exact order as hazardous-area approved.
1Verify the complete Emerson 775XD11NAWA3WK9 nameplate, revision and installed-system documentation before use.
2The NA code means no product approval is selected; do not represent this exact order as hazardous-area approved.
3De-energize and follow the site's approved electrical and process-safety procedure before disturbing hardware or field wiring.
4Back up controller, network, I/O, addressing and configuration data before replacement or firmware work.
5Verify every companion module, termination unit, cable, connector and power source from approved drawings.
6Do not copy electrical, communication, mechanical or lifecycle values from a related model or successor.
7Perform a documented loop, network or functional test and confirm alarms and fail states after work.
8Current formal lifecycle phase, origin, HS code, dimensions and logistics weight remain HOLD without exact Emerson evidence.
