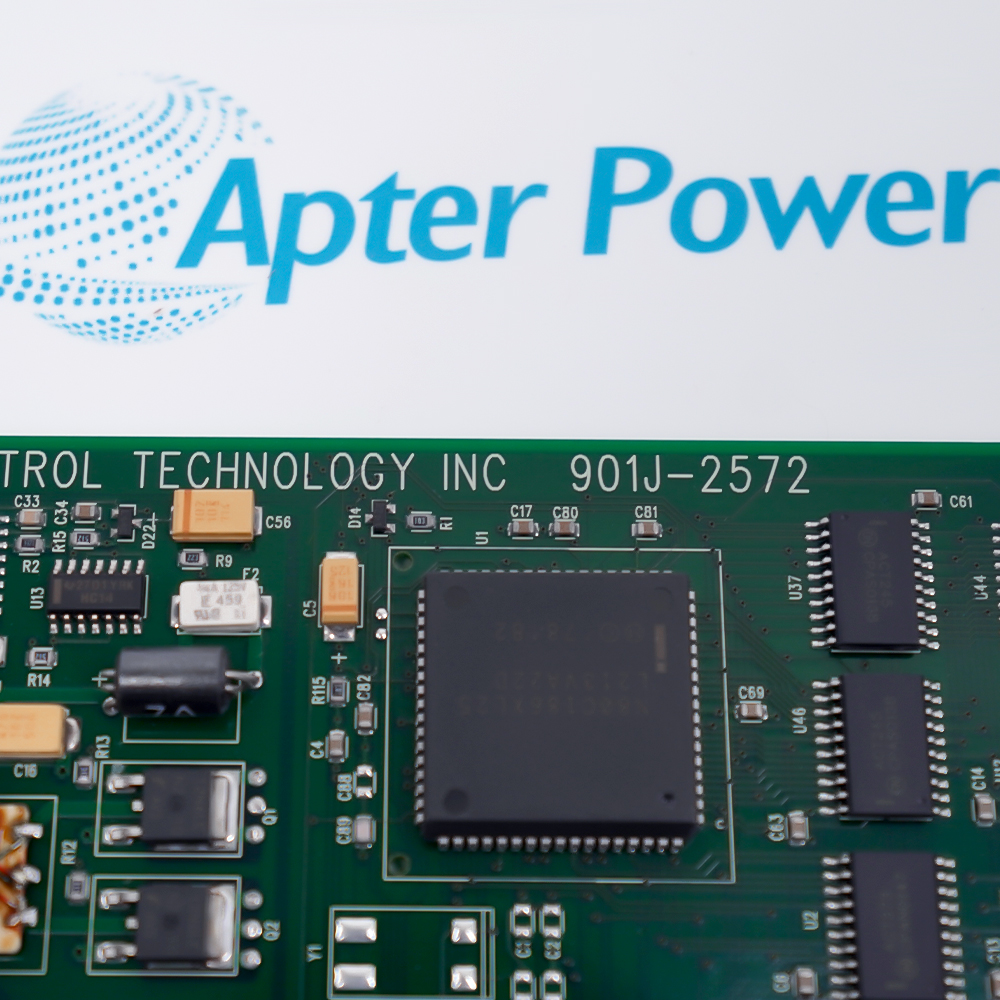

      CTI-Control Technology Inc CTI-2572
      CTI-Control Technology Inc CTI-2572
      CTI-Control Technology Inc CTI-2572
      CTI-Control Technology Inc CTI-2572
      CTI-Control Technology Inc CTI-2572
      CTI-Control Technology Inc CTI-2572
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      CTI-2572

      2572 Ethernet TCP/IP Adapter
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

      Control Technology Inc. CTI-2572 is a single-wide Ethernet TCP/IP adapter for compatible CTI 2500 and Siemens/TI 505 control systems. It provides 10BaseT networking and two serial ports.

      Ask our team:

      Get a quick price for： CTI-2572
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for CTI-2572

      Technical specifications for CTI-2572

      • Manufacturer:
        CTI-Control Technology Inc
      • Product Category:
        PLC Systems
      • Spare Part Number:
        CTI-2572
      • Estimated shipping dimensions:
        2x20x26.6cm
      • Weight:
        0.52 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        ​USA
      • CTI model:
        2572
      • Module type:
        Ethernet TCP/IP adapter
      • Form factor:
        Single-wide I/O module
      • Ethernet standard:
        IEEE 802.3 10BaseT
      • Ethernet connector:
        RJ-45
      • Transport protocols:
        TCP and UDP
      • Serial interfaces:
        Two ports for PLC programming and MMI use
      • Communication roles:
        Client/server and peer-to-peer
      • Serial redirection:
        Supported
      • Programming support:
        Workshop and TISOFT
      • Lifecycle:
        Mature product from 1 August 2012
      • Documented successors:
        2572-A and 2500-ECC1, subject to application review
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      CTI-2572 provides Ethernet TCP/IP communications for a compatible CTI 2500 or Siemens/TI 505 control system.
      • Single-wide CTI 2500/505-compatible module
      • IEEE 802.3 10BaseT RJ-45 interface
      • TCP and UDP client/server communications
      • Two serial ports with programming/MMI support

      The adapter occupies one I/O slot and bridges the controller to a 10BaseT network while retaining two serial interfaces. Commissioning restores addressing, routing, PLC logic/configuration and application connections before service.

      Important Notice: Confirm CTI-2572, compatible CTI 2500/Siemens TI 505 host, rack slot, IP address, subnet mask, default router, TCP/UDP services, PLC memory mapping, RJ-45 network and two serial-port assignments before commissioning.

      CTI-Control Technology Inc CTI-2572 Manuals & Downloads

      These are two different documents: the first consolidates verified technical and system data; the second provides installation checks, commissioning steps and acceptance records.

      PLC Ethernet integration
      Connects a compatible controller to TCP/IP hosts.
      HMI and SCADA access
      Provides the documented network path for supervisory systems.
      Peer controller communications
      Supports configured client/server or peer exchange.
      Legacy network maintenance
      Preserves a mature 2572 Ethernet node.
      Read the applicable CTI-Control Technology Inc installation instructions before work. Verify CTI-2572, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm CTI-2572 on the complete Control Technology Inc. nameplate.
      2
      Place the controller and connected process in the approved maintenance state.
      3
      Back up IP address, subnet mask, default router, port use and PLC logic.
      4
      Record rack slot, RJ-45 network, both serial ports and cable assignments.
      5
      Use ESD controls and isolate rack power before module handling.
      6
      Restore the exact network parameters, PLC memory mapping and serial assignments.
      7
      Review module, controller and network diagnostics after energization.
      8
      Verify TCP/UDP sessions, peer data and serial access before release.

      Technical notes

      Technical notes

      Correct the legacy record to CTI-Control Technology Inc. and exact model CTI-2572. Record IP address, subnet mask, default router, TCP/UDP port use, PLC memory mapping and both serial-port assignments before replacement. Do not represent it as a Siemens-manufactured module.

      FAQS

      • What network function does CTI 2572 provide?
        It is an Ethernet TCP/IP adapter used with compatible CTI 2500 Series and Siemens/TI 505 control systems.
      • Which controller platforms are associated with the adapter?
        The manufacturer record identifies CTI 2500 Series use and compatibility with legacy Siemens/TI 505 systems.
      • What communication settings should be preserved?
        Record the Ethernet addressing, host connections, controller slot, network parameters and application communication settings.
      • What lifecycle information applies to the original 2572?
        The CTI record lists the original 2572 as matured in 2012.
      • Which successor is identified by the manufacturer?
        CTI identifies the 2572-A as the recommended successor to the matured 2572 adapter.
      • Can 2572-A be installed without reviewing the existing network?
        No. Confirm rack, controller, Ethernet, addressing and application compatibility before approving a successor replacement.
      • What should be tested after restoring the Ethernet node?
        Check link status, addressing, controller communication and every configured HMI, SCADA, peer or host data path.
      • What closes commissioning for a CTI 2572 replacement?
        The record must show the exact adapter, restored network configuration, stable diagnostics and successful application data exchange.
