TCDEI-8D0P-DYU-G02

BRAD HARSHIO DIGITAL MODULE
In Stock

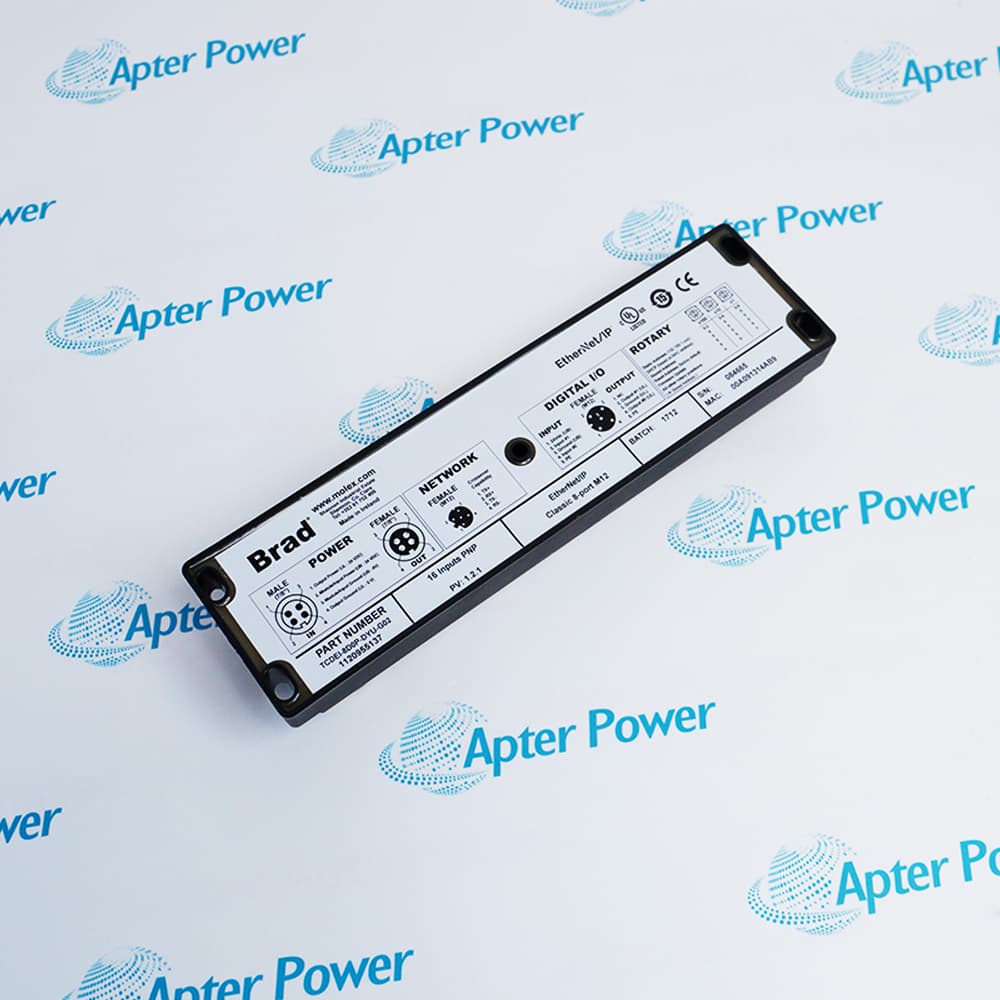

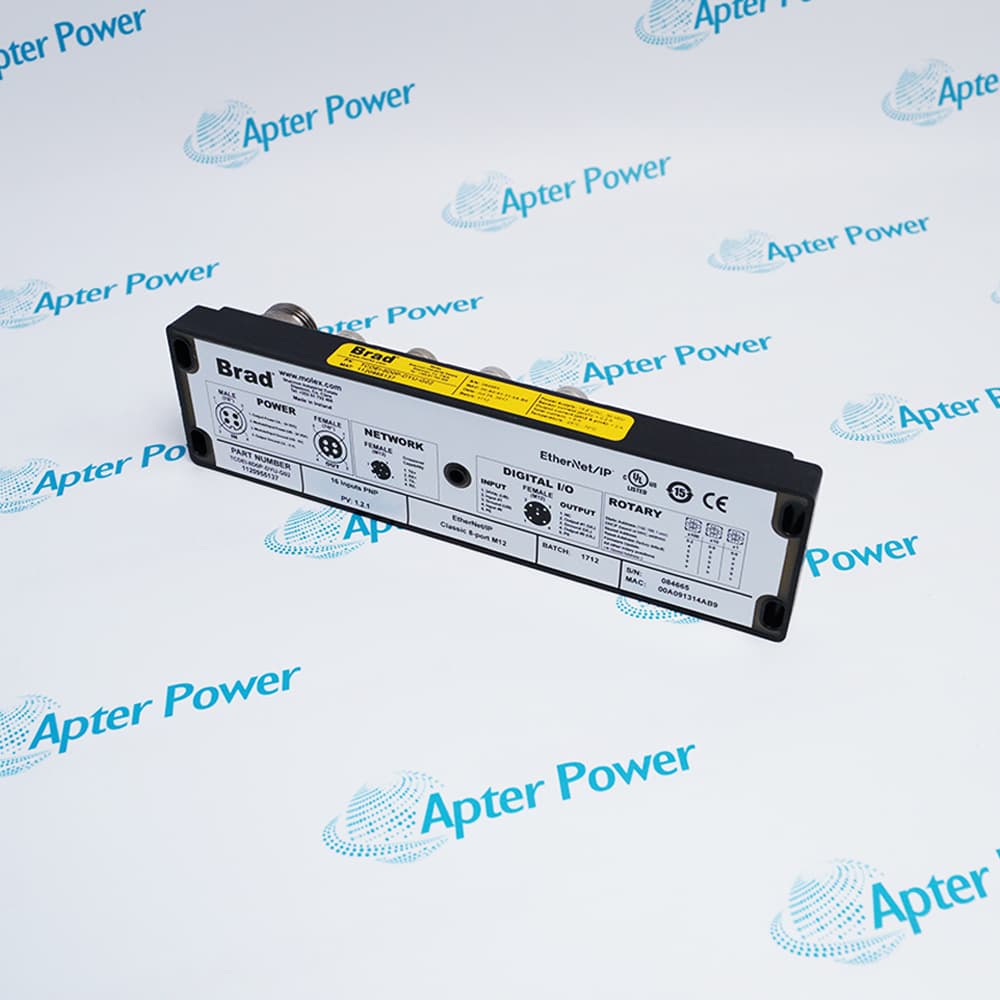

Brad TCDEI-8D0P-DYU-G02
Brad TCDEI-8D0P-DYU-G02
Brad TCDEI-8D0P-DYU-G02
Brad TCDEI-8D0P-DYU-G02
Brad TCDEI-8D0P-DYU-G02
Brad TCDEI-8D0P-DYU-G02
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

(1120955137) BRAD HARSHIO DIGITAL MODULE
FOR ETHERNET/IP
CLASSIC 60MM
IP67
8 PORTS M12
16 INPUTS
PNP
4 POLE POWER
3 ROTARY SWITCHTCDEI-8D0P-DYU-G02
Get a quick price for TCDEI-8D0P-DYU-G02
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for TCDEI-8D0P-DYU-G02

  • Manufacturer:
    Brad
  • Product Category:
    General Automation
  • Spare Part Number:
    TCDEI-8D0P-DYU-G02
  • Estimated shipping dimensions:
    22x6x3.2cm
  • Weight:
    0.58 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Bus Input:
    4-pole Ultra-Lock (M12), D-Coded, Female
  • Bus Output:
    4-pole Ultra-Lock (M12), D-Coded, Female
  • I/O Connector:
    5-pole Ultra-Lock (M12), A-Coded, Female
  • I/O Ports:
    8x M12
  • I/O Signal Mix:
    16 input
  • Power Input:
    4-pole Mini-Change, Male
  • Temperature Range - Operating:
    -25°C to +70°C

Information

Overview Manuals Common Applications Instruction
The TCDEI-8D0P-DYU-G02 is an industrial digital I/O module from the Molex Brad® HarshIO 600 series supporting EtherNet/IP communication protocol, designed for direct machine mounting. The module features an IP67‑rated housing and standard M12 connectors, enabling connection between PLC controllers and field I/O devices in harsh environments.
    • EtherNet/IP Communications
    • IP67 Harsh Environment
    • QuickConnect & ACD
According to the official HarshIO 600 series specifications, the module operates over a wide temperature range (‑25 °C to +70 °C) and supports PNP digital inputs, capable of receiving sensor signals. It includes features such as QuickConnect and Automatic Conflict Detection (ACD) to simplify EtherNet/IP network setup and initialization. The module offers multiple M12 I/O ports in a compact 60 mm form factor suitable for direct mounting on equipment.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Brad TCDEI-8D0P-DYU-G02 BRAD HARSHIO DIGITAL MODULE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Automotive Assembly
These modules connect industrial controllers to sensors and actuators on automotive production lines, enabling real‑time digital I/O communication over EtherNet/IP and supporting quick startup in robot tooling and repetitive tasks.

 Factory Automation
Industrial automation systems use these modules for machine I/O connectivity in automated assembly, CNC machining, robotics, and complex equipment.

 Material Handling
HarshIO modules support conveyor and sorting systems by connecting PLCs to field devices over Ethernet, facilitating signal exchange for sensors and actuators in warehousing and distribution environments.

 Food & Beverage
In food processing and packaging lines, these modules provide rugged I/O networking for sensors and actuators, enabling automation of filling, labeling, and quality checks. They operate across wide temperature ranges and resist harsh wash‑down conditions common to this industry.

 Oil & Gas
HarshIO modules are suitable for field I/O tasks in oil and gas facilities where controllers must interface with sensors in dusty or corrosive environments.

 Airport Logistics
Modules are applied in baggage handling and sorting systems to connect field sensors and actuators with central control, enabling automation of cargo movement and sorting using EtherNet/IP communication. Rugged machine mounting and fast commissioning reduce system interruption.

That the module’s digital input channels are designed for PNP devices and conform to industrial signal level standards, enabling reliable interface with a variety of field sensors and switches. The module supports 8 inputs and 8 outputs through its M12 I/O connector interface, providing deterministic digital signal control in EtherNet/IP networks.

Electrical connections for the module include shielded M12 connectors for I/O and EtherNet/IP datalinks, ensuring secure connection and signal integrity in industrial environments. The unit’s electrical characteristics such as input impedance and logic levels are defined to ensure compatibility with standard industrial automation devices as indicated in the official HarshIO 600 series sales drawing and specifications.

FAQ View All FAQ

  • What is TCDEI‑8D0P‑DYU‑G02?
    TCDEI‑8D0P‑DYU‑G02 is a Brad® HarshIO digital I/O module with EtherNet/IP communication capability, designed for IP67 rated industrial environments. It is part of the Brad HarshIO 600 series of rugged I/O modules.
  • What communication protocol does TCDEI‑8D0P‑DYU‑G02 support?
    This module supports EtherNet/IP as its fieldbus communication protocol, enabling real‑time digital I/O data exchange with industrial controllers over Ethernet networks.
  • How many input ports does TCDEI‑8D0P‑DYU‑G02 have?
    The TCDEI‑8D0P‑DYU‑G02 module provides 16 digital input channels with PNP wiring, allowing connection of multiple field sensors and devices for monitoring states.
  • What is the environmental protection rating of TCDEI‑8D0P‑DYU‑G02?
    According to its official specifications, the module has an IP67 rating, meaning it is protected against dust ingress and temporary water immersion, suitable for harsh industrial conditions.
  • What kind of connectors does TCDEI‑8D0P‑DYU‑G02 use?
    The module uses M12 connectors for I/O connection and supports 7/8" 4‑pole power connection, providing robust and standardized cabling for industrial automation systems.
