      Bently Nevada 177313-02-02-00
      Bently Nevada 177313-02-02-00
      Bently Nevada 177313-02-02-00
      Bently Nevada 177313-02-02-00
      Bently Nevada 177313-02-02-00
      Bently Nevada 177313-02-02-00
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      177313-02-02-00

      Electric TK-3e Proximity System Test Kit
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

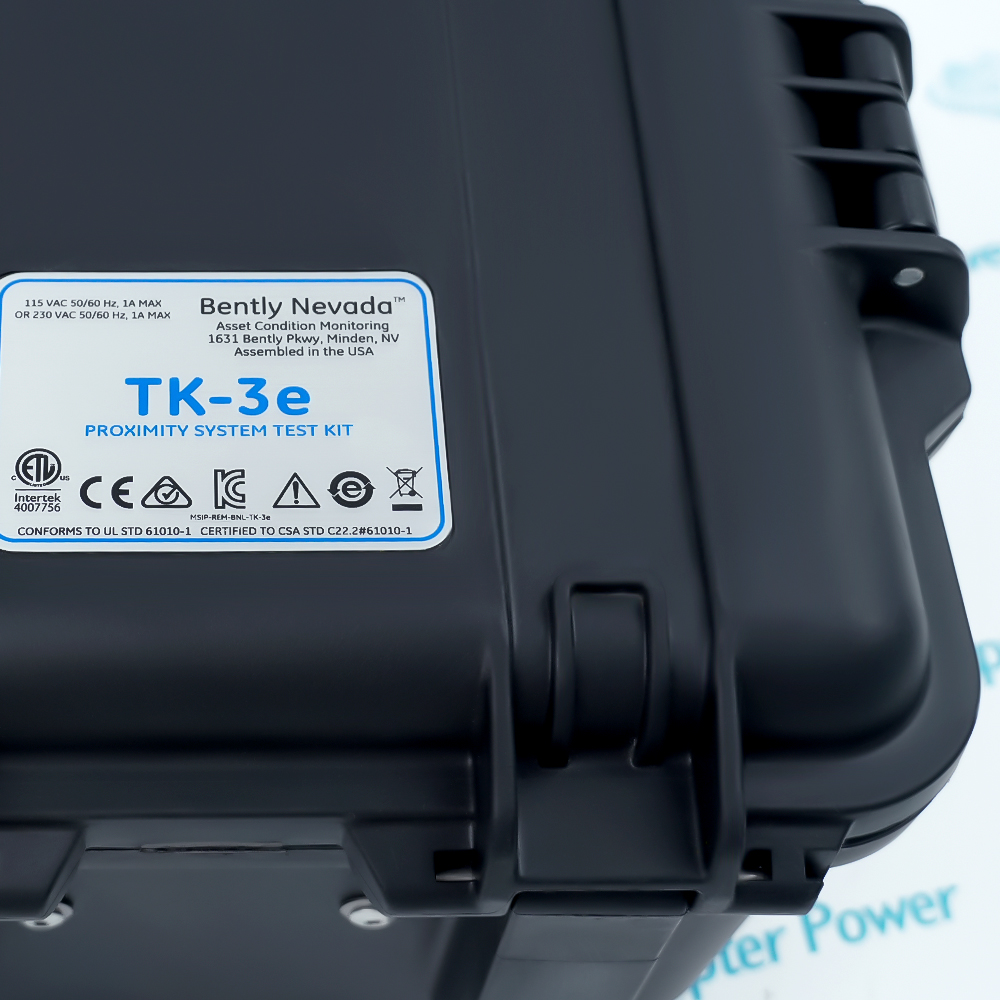

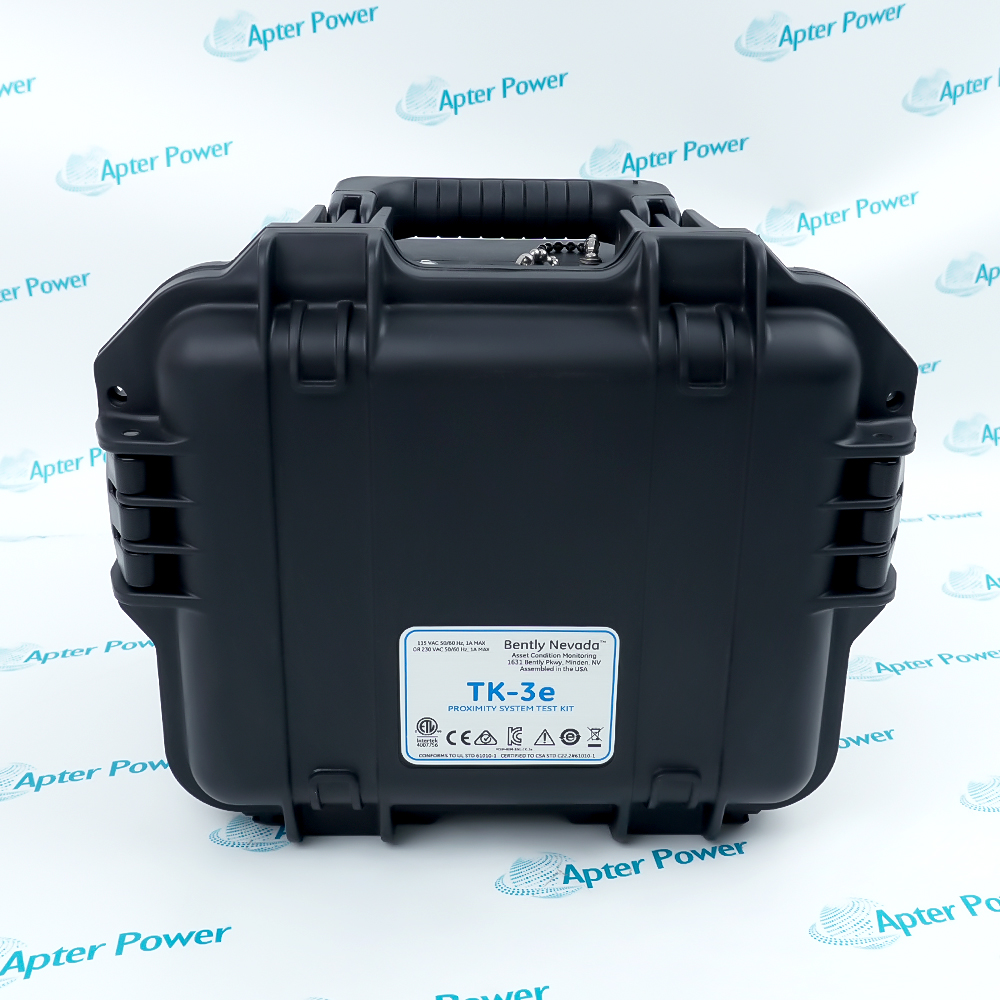

      Bently Nevada 177313-02-02-00 is an electric TK-3e proximity system test kit with metric micrometer and European power cord. It simulates shaft position and vibration for checking proximity transducer and monitor response.

      Ask our team:

      Get a quick price for： 177313-02-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 177313-02-02-00

      Technical specifications for 177313-02-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        177313-02-02-00
      • Estimated shipping dimensions:
        30x25x20cm
      • Weight:
        5.5 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Drive type:
        Electric
      • Micrometer units:
        Metric
      • Power cord:
        European
      • Approval option:
        None
      • Supported supply:
        95 to 125 Vac or 190 to 250 Vac
      • Supply frequency:
        50/60 Hz
      • Minimum supply current:
        1 A
      • Wobulator displacement:
        50 to 254 um peak-to-peak
      • Wobulator speed:
        0 to 5000 cpm +/-1000 cpm
      • Micrometer range:
        0 to 25.4 mm
      • Target material:
        AISI 4140 steel
      • Operating temperature:
        0 to +50 degC
      • Continuous operation maximum:
        +40 degC
      • Storage temperature:
        -18 to +65 degC
      • Relative humidity:
        95%
      • Enclosure rating:
        IP54 when closed
      • Universal probe mount:
        5 to 19 mm
      • Maximum operating altitude:
        2000 m
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 177313-02-02-00 is an electric TK-3e proximity system test kit with metric micrometer and European power cord. It simulates shaft position and vibration for checking proximity transducer and monitor response.
      • Simulates shaft vibration for proximity-system verification
      • Provides a micrometer-controlled static target position
      • Generates an adjustable rotating wobble target
      • Supports controlled checks of probes, Proximitor Sensors and monitor channels

      177313-02-02-00 installs with compatible proximity probe, Proximitor Sensor and extension cable, machinery monitor channel, portable measurement instrument in an engineered TK-3 Proximity System Test Kit configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this electric tk-3e proximity system test kit.

      Important Notice: Confirm the complete 177313-02-02-00 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 177313-02-02-00 Manuals and Guides
      Apter Power 177313-02-02-00 Product Technical Reference PDFBently Nevada 177313-02-02-00 Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Proximity probe calibration checkSimulates shaft vibration for proximity-system verification
      Monitor channel vibration simulationProvides a micrometer-controlled static target position
      Static gap verificationGenerates an adjustable rotating wobble target
      Maintenance shop transducer testingSupports controlled checks of probes, Proximitor Sensors and monitor channels
      Read the applicable Bently Nevada installation instructions before work. Verify 177313-02-02-00 and the installed TK-3 Proximity System Test Kit configuration.
      1Verify 177313-02-02-00, metric micrometer and European cord before use.
      2Inspect the enclosure, drive assembly and target surfaces before applying power.
      3Select only a supply range supported by the electric TK-3e.
      4Clamp the probe securely without damaging its case or cable.
      5Keep hands, leads and loose items clear of the rotating wobble plate.
      6Start at zero speed and increase only after confirming mechanical clearance.
      7Use the AISI 4140 targets when comparing published transducer response.
      8Return controls to a safe state and close the IP54 enclosure after testing.

      Alternative Names

      Alternative Names

      TK-3E 177313-02-01-00 TK 3E 177313 02 02 00 TK-3E 177313-02-02-0O TK-3E 177313-02-02-O0 TK-3E 177313-02-O2-00 TK-3E 177313-O2-02-00 TK-3E 1773I3-02-02-00 TK-3E I77313-02-02-00

      Technical notes

      Technical notes

      Secure the test probe in the universal mount, select the correct supply and establish static micrometer position before increasing wobulator speed. Compare electrical and monitor readings throughout the controlled test range.

      FAQS

      • What maintenance evidence should be retained for 177313-02-02-00?
        Retain the full 177313-02-02-00 identity, as-left mounting and connections, continuity or bias checks, diagnostics and the final functional-test result.
      • What should be verified before returning 177313-02-02-00 to service?
        Confirm secure mounting, connector integrity, restored configuration, stable signal behavior and the intended response of the associated monitoring channel.
      • What must be matched before replacing 177313-02-02-00?
        Match the complete 177313-02-02-00 marking, electric tk-3e proximity system test kit, installed mounting or connector execution and the approved equipment record before removal.
      • Which system components should be checked with 177313-02-02-00?
        Confirm the installed compatible proximity probe, Proximitor Sensor and extension cable and the assigned monitoring or connection point are the documented combination for 177313-02-02-00.
      • How should wiring or cabling for 177313-02-02-00 be recorded?
        Record conductor identity, shield termination, connector orientation, cable route and the as-found diagnostic state before disconnecting 177313-02-02-00.
      • What installation control is important for 177313-02-02-00?
        Use the model-specific mounting arrangement, protect mating surfaces and maintain the documented cable support and mechanical clearance for 177313-02-02-00.
      • How is 177313-02-02-00 checked during commissioning?
        Apply the approved controlled test for proximity probe calibration check, verify polarity or direction where applicable, and compare the measured response with the configured channel.
      • Can parameters from a similar model be used for 177313-02-02-00?
        No. Retain only values and configuration details that apply directly to the complete 177313-02-02-00 ordering code and installed system.
