Technical specifications for IS420YDOAS1B
-
Manufacturer:General Electric
-
Product Category:Gas Turbine Control
-
Spare Part Number:IS420YDOAS1B
-
Estimated shipping dimensions:5.7x12.2x8.3cm
-
Weight:0.34 kg
-
Tariff Code:8537101190
-
Counliy of origin:GERMANY
-
Protection level:IP65
-
Input voltage:24V DC
-
Maximum output current:0.5A
-
Operating temperature range:-40°C to +85°C
-
Communication interfaces:Supports Ethernet/IP, Modbus, Profinet
-
Network interface:Equipped with dual RJ-45 Ethernet ports, supporting redundant IONet network connections
-
Connection method:Insert the DC-37 pin connector directly into the terminal board and provide power through the 3-pin power interface
Information
Overview
Manuals
Compatibility information
Core functions and architecture

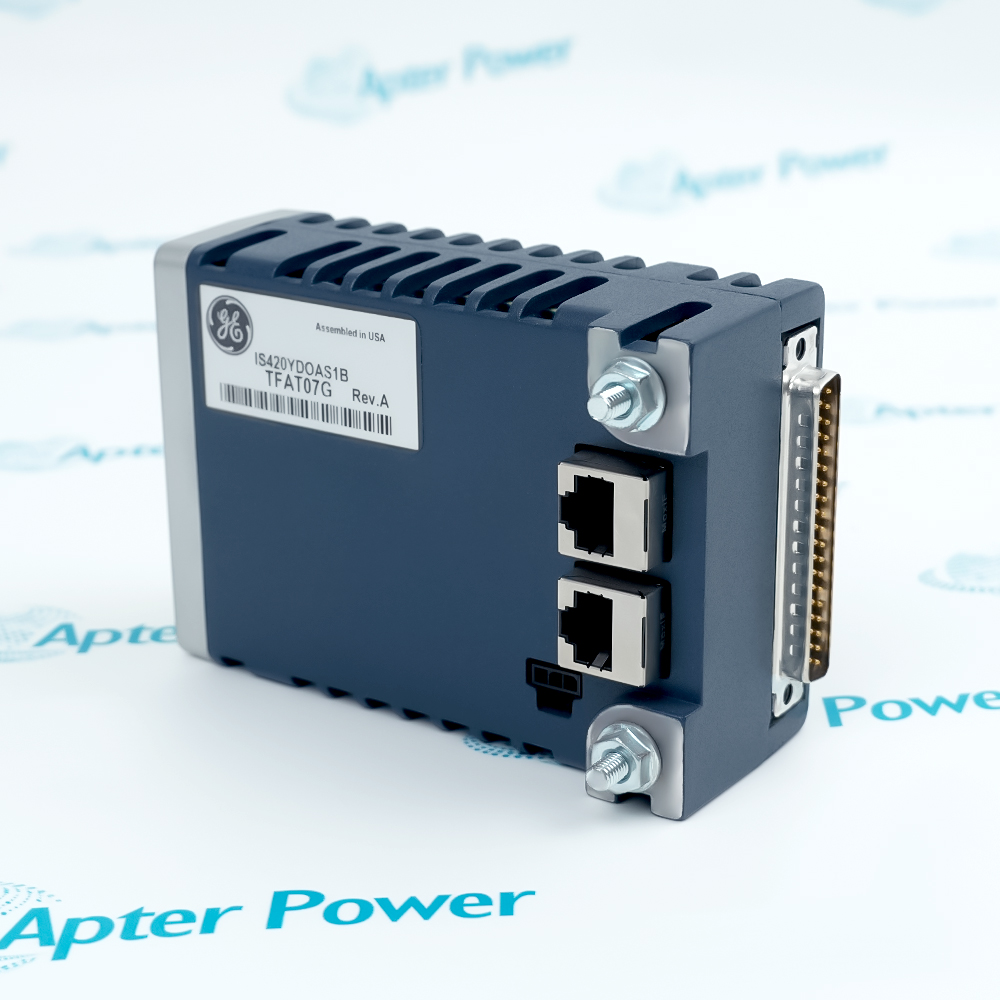

The IS420YDOAS1B is a GE Mark VIe 24VDC Discrete Output I/O Pack providing electrical interface between Ethernet networks and relay terminal boards (TRLY or SRLY).
- Discrete Output Module
- Electrical interfaces between up to two Ethernet input-output networks
- A discrete output terminal board.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
GE IS420YDOAS1B Discrete Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
This module needs to be used in conjunction with a specific relay output terminal board, mainly including:
TRLY series (such as TRLYS1B/D/F): supports TMR redundant applications.
SRLY series (such as SRLYS2A): suitable for single machine (Simplex) applications.
IS420YDOA1B is essentially an intelligent process interface that receives logic instructions from controllers through redundant IONet (Ethernet) and converts them into electrical signals to drive relays.
Processing capability: Built in high-performance processor, responsible for running algorithms, performing self diagnosis, and synchronizing data back to the controller.
Discrete output control: This module is specifically designed to control 12 relay outputs and can drive solenoid valves, contactors, indicator lights, or other industrial switchgear
FAQ View All FAQ
-
What terminal boards are compatible with the IS420YDOAS1B?It works with both TRLY (T-type) and SRLY (S-type) terminal boards to support different control modes.
-
Can I mix IS420YDOAS1B and IS420YDOAS1A packs?No. Mixing S1A and S1B packs on the same terminal board is not supported, especially in TMR configurations, where all three packs must be the same version.
-
What is the function of this module?The IS420YDOAS1B provides the electrical interface between one or two I/O Ethernet networks and a discrete output terminal board.
-
Is this module available for repair?Yes, repairs are available for this module.
-
What software is needed?Replacement requires verifying that your system is running the minimum required ControlST version or later.
