      3500-50M 286566-02 288062-02

      Tachometer Module
      In Stock
      Ships by Friday, November 6
      Fast Shipping Available

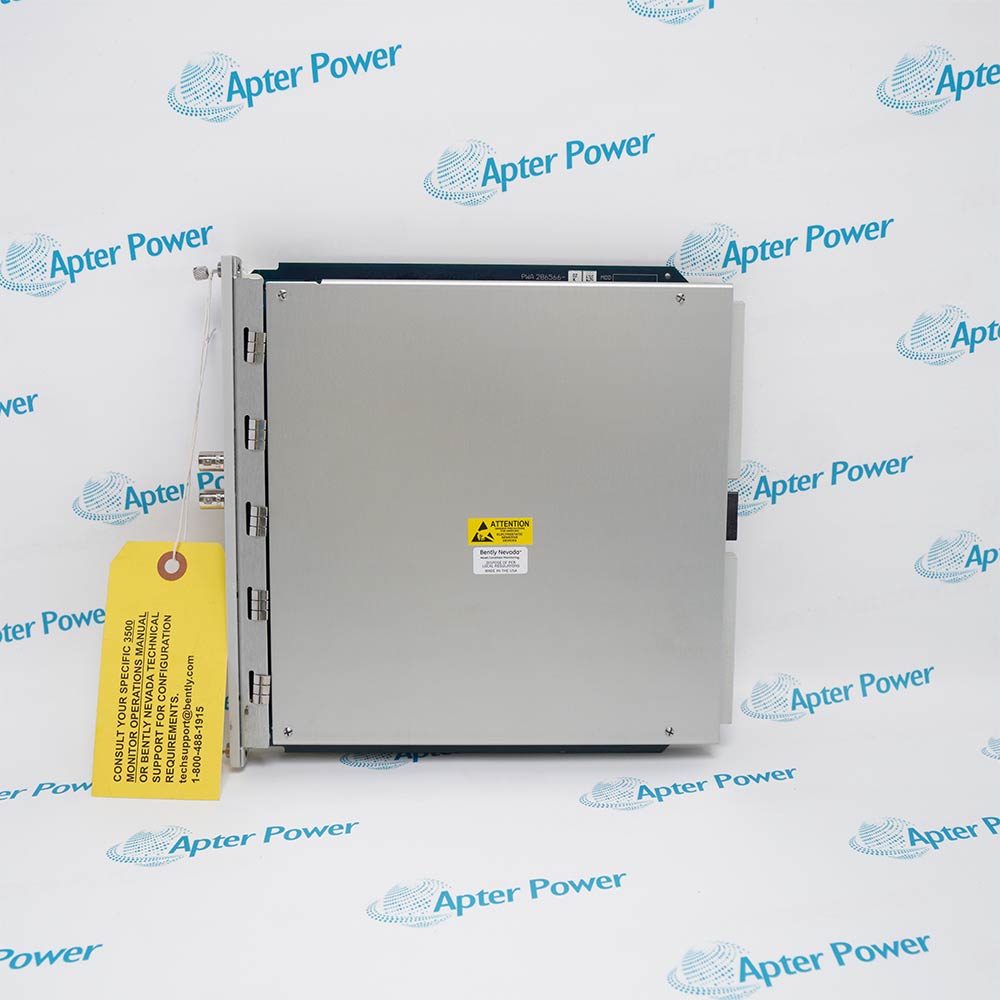

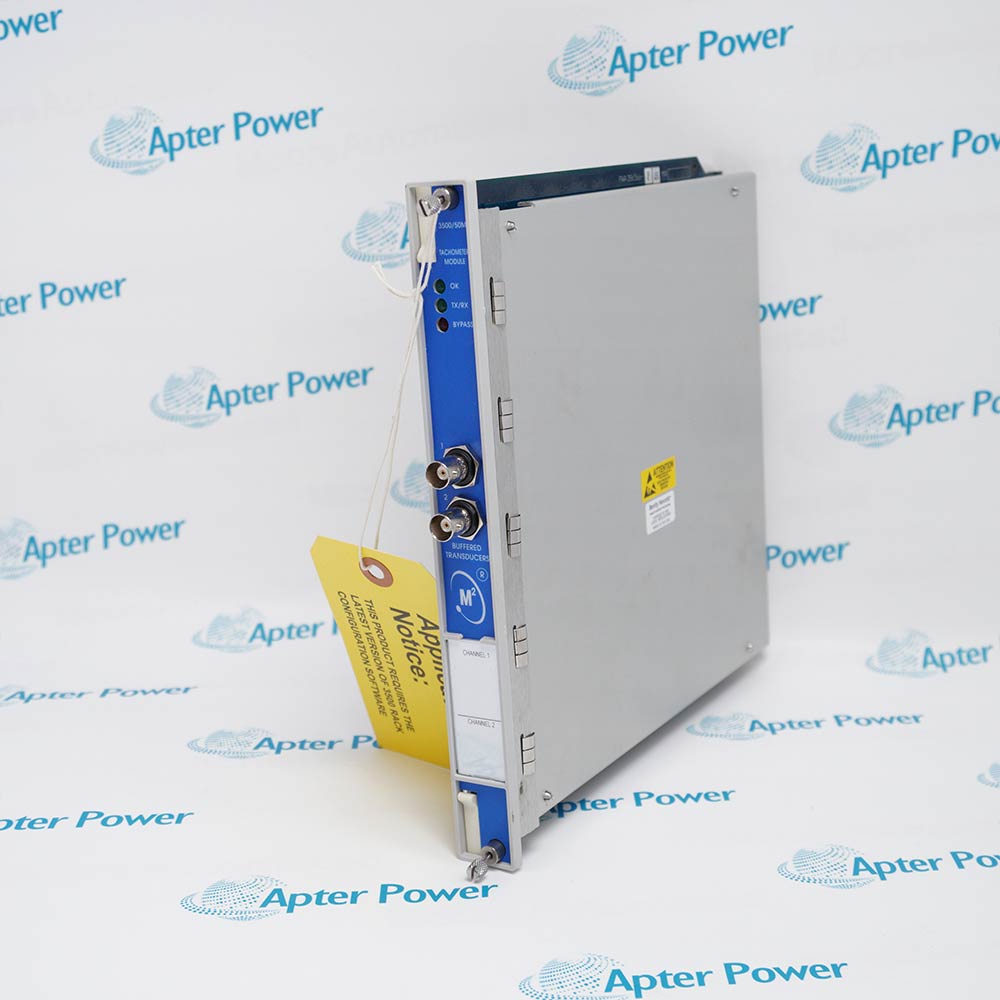

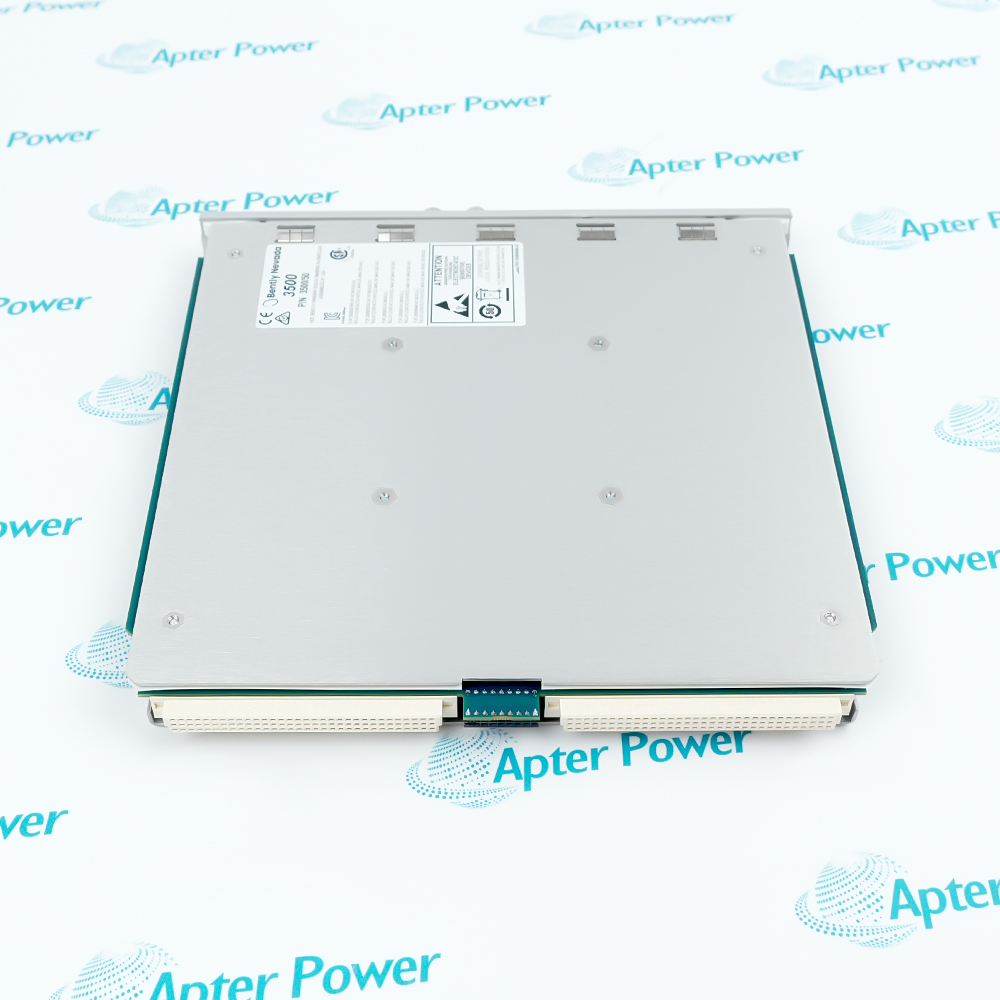

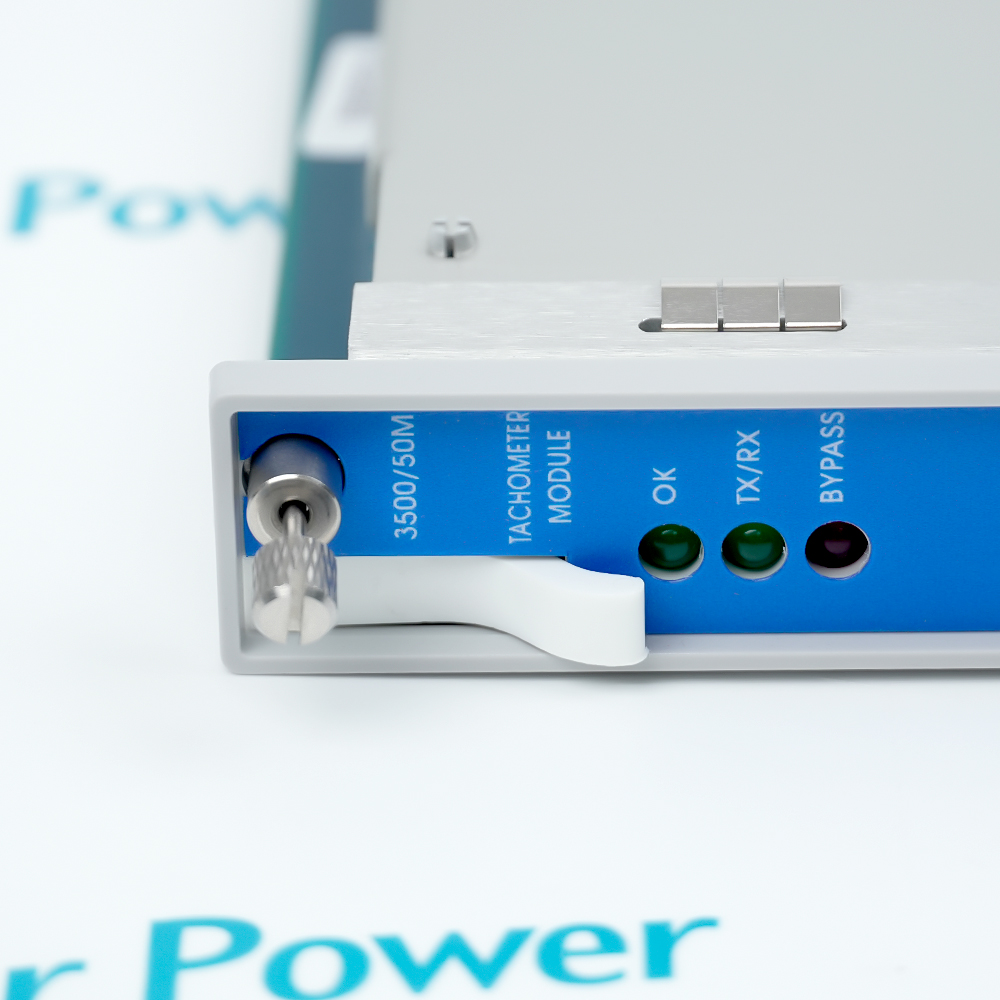

      Bently Nevada 3500-50M 286566-02 288062-02
      Bently Nevada 3500-50M 286566-02 288062-02
      Bently Nevada 3500-50M 286566-02 288062-02
      Bently Nevada 3500-50M 286566-02 288062-02
      Bently Nevada 3500-50M 286566-02 288062-02
      Bently Nevada 3500-50M 286566-02 288062-02
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      Tachometer Module
      2 independent channels
      Measurement accuracy ±0.1%
      Power supply: 24 VDC ±10%

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for 3500-50M 286566-02 288062-02
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for 3500-50M 286566-02 288062-02

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring Systems
      • Spare Part Number:
        286566-02
      • Estimated shipping dimensions:
        2.6x25.8x24cm
      • Weight:
        0.95 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • LED Indicators:
        3 LED
      • Input Voltage:
        24V DC
      • Number of Digital Inputs:
        16
      • Number of Digital Outputs:
        8
      • Communication Protocols:
        Modbus, Ethernet
      • Operating Temperature:
        -40°C to 70°C
      Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      The 3500-50M 286566-02 288062-02 is a 2-channel module that accepts input from proximity probes or magnetic pickups to determine shaft rotative speed, rotor acceleration, or rotor direction. The module compares these measurements against user-programmable alarm setpoints and generates alarms when the setpoints are violated.
        • Speed Monitoring, Setpoint Alarming and Speed Band Alarming
        • Speed Monitoring, Setpoint Alarming and Zero Speed Notification
        • Speed Monitoring, Setpoint Alarming and Rotor Acceleration Alarming
      Featuring a high-precision time-base processing chip, the module ensures microsecond-level, latency-free response even during high-dynamic speed phases such as machinery startup, coast-down, or severe load fluctuations. The highly isolated buffered outputs on the rear 288062-02 I/O module not only securely feed premium pulse signals into Bently Nevada System 1™ software, but also integrate seamlessly with third-party DCS, PLC, or SCADA networks. This effectively bridges the data gap between field-level hardware and enterprise-level management systems.

      Furthermore, by fully recording every single startup and coast-down profile of the shaft, it provides indispensable, unalterable baseline big data for predictive maintenance (PdM), Asset Performance Management (APM), and Root Cause Analysis (RCA) of machinery faults.

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
       Bently Nevada 3500-50M 286566-02 288062-02 Tachometer Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Thermal Power Generation
      Monitors the real-time speed and rotor acceleration of steam turbine generators and large boiler feedwater pumps, providing critical overspeed protection interlocks.

      Petrochemical & Refining
      Used for speed condition monitoring and zero-speed permissive logic of centrifugal compressors, hydrocracking pumps, and high-power axial fans in hazardous areas.

      Hydroelectric Power Generation
      Monitors the low-speed turning gear operations of hydro-generator shafts and provides runaway speed alarms during sudden load-rejection events.

      Wind Power Generation
      Monitors the speed of the wind turbine main shaft and the high-speed side of doubly-fed generators to optimize blade pitch control and prevent runaway overspeed.

      Iron & Steel Metallurgy
      Utilized for speed and reverse rotation detection on blast furnace Top Gas Recovery Turbine (TRT) blowers and heavy-duty main drive shafts of hot rolling mills.

      Mining & Mineral Processing
      Monitors the speed of large drive motors for semi-autogenous (SAG) mills, ball mills, and heavy-duty conveyors, providing zero-speed interlocking and mechanical jam protection.
       Set the internal jumpers on the I/O module to match the sensor type. Route signal cables separately from high-voltage lines. Always bypass trip logics before hot-swapping the main board to prevent accidental shutdowns.

      Technical notes

      Installed at the rear of the 3500 rack directly behind the main module, this board facilitates all field physical wiring. It provides the sensor power supply, receives raw pulse signals from transducers, hosts the internal jumpers for sensor type selection, and delivers conditioned recorder outputs (4-20mA or 0-10V) alongside Keyphasor buffered signals.

      FAQ View All FAQ

      • What is 3500-50M 286566-02 288062-02?
        3500-50M 286566-02 288062-02 is a Tachometer Module.
      • What is the difference between 286566-02 and 288062-02?
        286566-02 is the main module inserted into the front of the rack; 288062-02 is the I/O module installed at the rear.
      • How many sensor signals can the 3500-50M receive?
        The standard module provides 2 fully functional channels to connect 2 independent tachometer sensor inputs.
      • Does the 3500-50M 286566-02 288062-02 support hot-swapping?
        Yes. The main module can be safely removed or inserted while the system rack is powered, without damaging the hardware.
