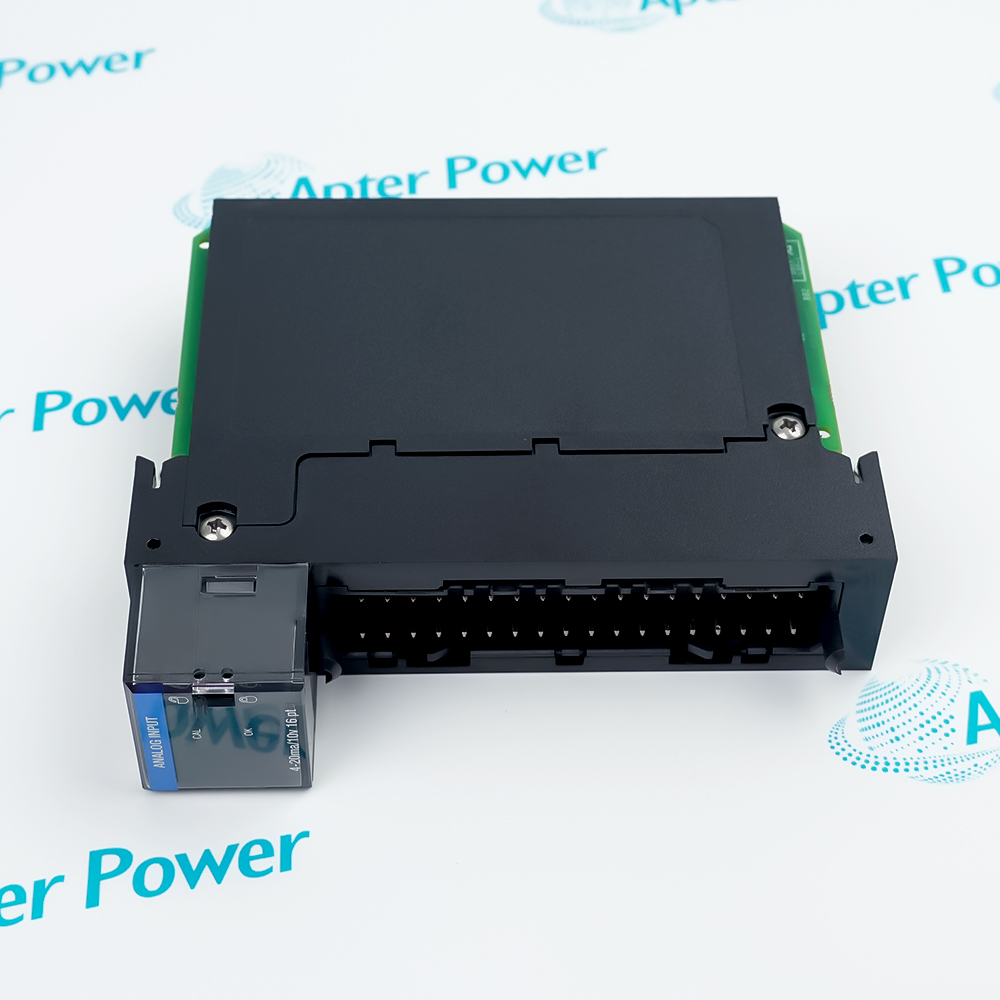

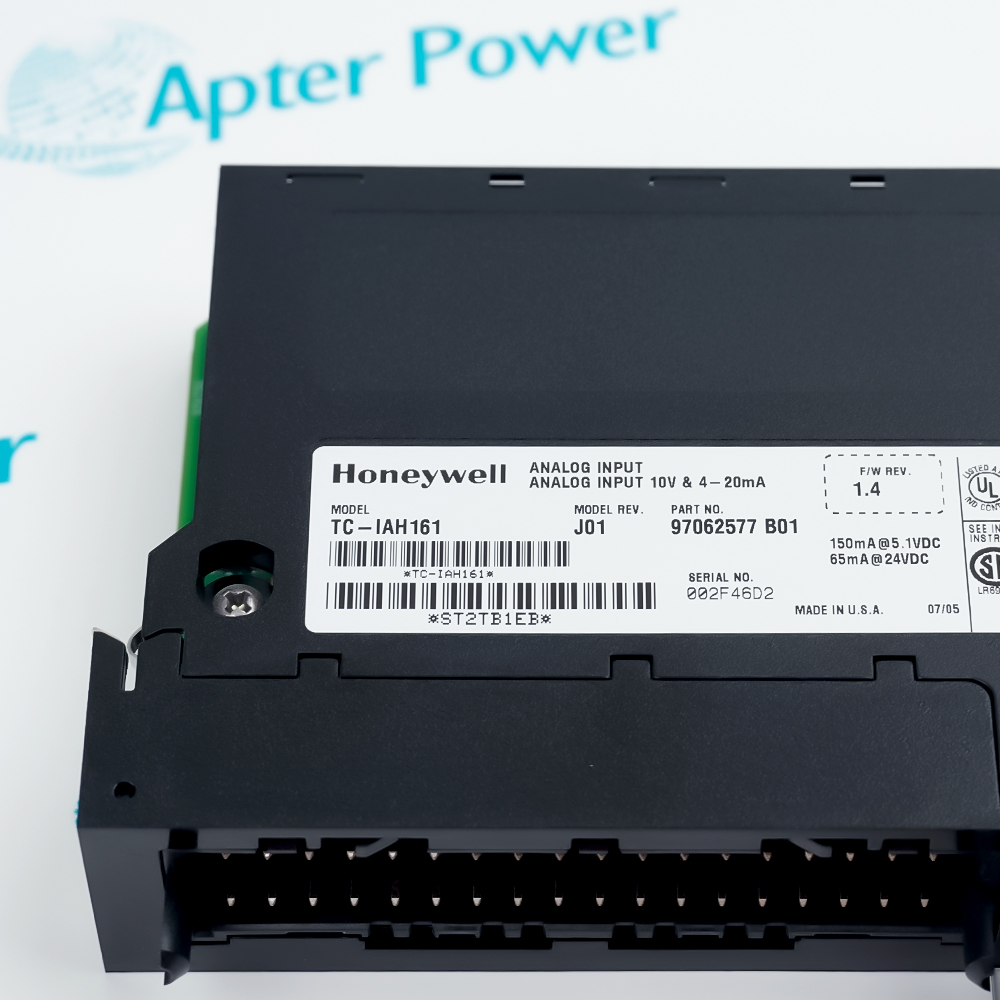

      TC-IAH161

      INPUT MODULE
      In Stock

      Product Describe：

      TCIAH161
      INPUT MODULE
      ANALOG
      10 VDC
      4-20 MA
      MODULE PUBLISH RATE 250 MSEC
      CHANNEL BANDWIDTH 20 HZ

      Ask our team:

      Get a quick price for： TC-IAH161
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for TC-IAH161

      Technical specifications for TC-IAH161

      • Manufacturer:
        Honeywell
      • Product Category:
        DCS System
      • Spare Part Number:
        TC-IAH161
      • Estimated shipping dimensions:
        3.5x14x14.5cm
      • Weight:
        0.24 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Number of Points:
        16 channels
      • Current Rating:
        4-20 MA
      • Voltage Resolution:
        16 bits across each specified range
      • Module Publish Rate:
        250 msec
      • Input Impedance (Voltage):
        Greater than 1.0 MΩ
      • Input Impedance (Current):
        249 Ω nominal
      • Channel Bandwidth:
        20 Hz (-3 dB)
      • Sampling Rate:
        10 kHz
      • Power Supply:
        24 VDC
      • Current Consumption:
        ≤ 20 mA
      Ask for Quote

      Information

      Information

      Overview Manuals System integration application Need More Info
      • Core industrial fields
      • Oil and Natural GasR
      • petrochemical
      The TC-IAH161 is a high-level analog input module manufactured by Honeywell, mainly used in industrial process control systems such as the Expert PKS C200 controller.

      This module supports multiple input channels, allowing simultaneous signal acquisition from various field devices. It ensures stable and accurate data with minimal electrical noise interference.

      Built for industrial environments, the TC-IAH161 offers reliable operation and long-term durability. It is suitable for control cabinets in power plants, manufacturing, and automation systems.

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Honeywell TC-IAH161 High Level Analog Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      DCS system core I/O: As an extension module for C200 or C300 controllers, it processes 0~20mA or 0~10V High level analog signal. Cross platform compatibility: In some applications, it shares functional similarities with Rockwell/Allen Bradley's 1756-IF16 module and is commonly used for maintenance and spare parts replacement in hybrid brand systems.
      We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.

      With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!

      FAQS

      • What is the function of TC-IAH161 module?
        It is a high-density high-level analog input module that provides 16 channels and can be configured as voltage or current input.
      • How to wire a 2-wire transmitter?
        Usually used in conjunction with the 1492-AIFM16-F-5 terminal block, the 24V DC positive pole is connected to the power supply, the negative pole is input to the IN terminal of the module channel through a transmitter, and the signal return is connected to the RTN.
      • What is the accuracy and resolution of this TC-IAH161 module?
        The voltage resolution is 16 bits across the full range.
      • Does the TC-IAH161 support thermocouples?
        Not supported. This module is only designed for high-level analog signals (V/mA).
      • What is the TC-IAH161 refresh rate of this module?
        The module data refresh rate is 250 milliseconds.
      • How adaptable is the TC-IAH161 environment?
        Has strong resistance to radio frequency interference (10 V/m, 27 to 1000 MHz, with an error of less than 2.0%).
      • How is the TC-IAH161 power consumption?
        The maximum power consumption is about 4.1 W
